1. Introduction

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Equator Advanced Appliances EW 826 Compact Washer and ED 860 Vented Dryer set. Please read this manual thoroughly before using the appliance and retain it for future reference.

2. Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.

• Read all instructions before using the appliance.
• Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they emit vapors that could ignite or explode.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the door to the washing or drying compartment.
• Do not reach into the appliance if the tub, agitator, or drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.
• Always disconnect the appliance from the power supply before attempting any service.

3. Product Overview

The Equator Advanced Appliances EW 826 Washer and ED 860 Dryer form a compact, stackable laundry solution designed for efficiency and convenience. Both units feature durable stainless steel drums and are powered by a 110V electrical supply.

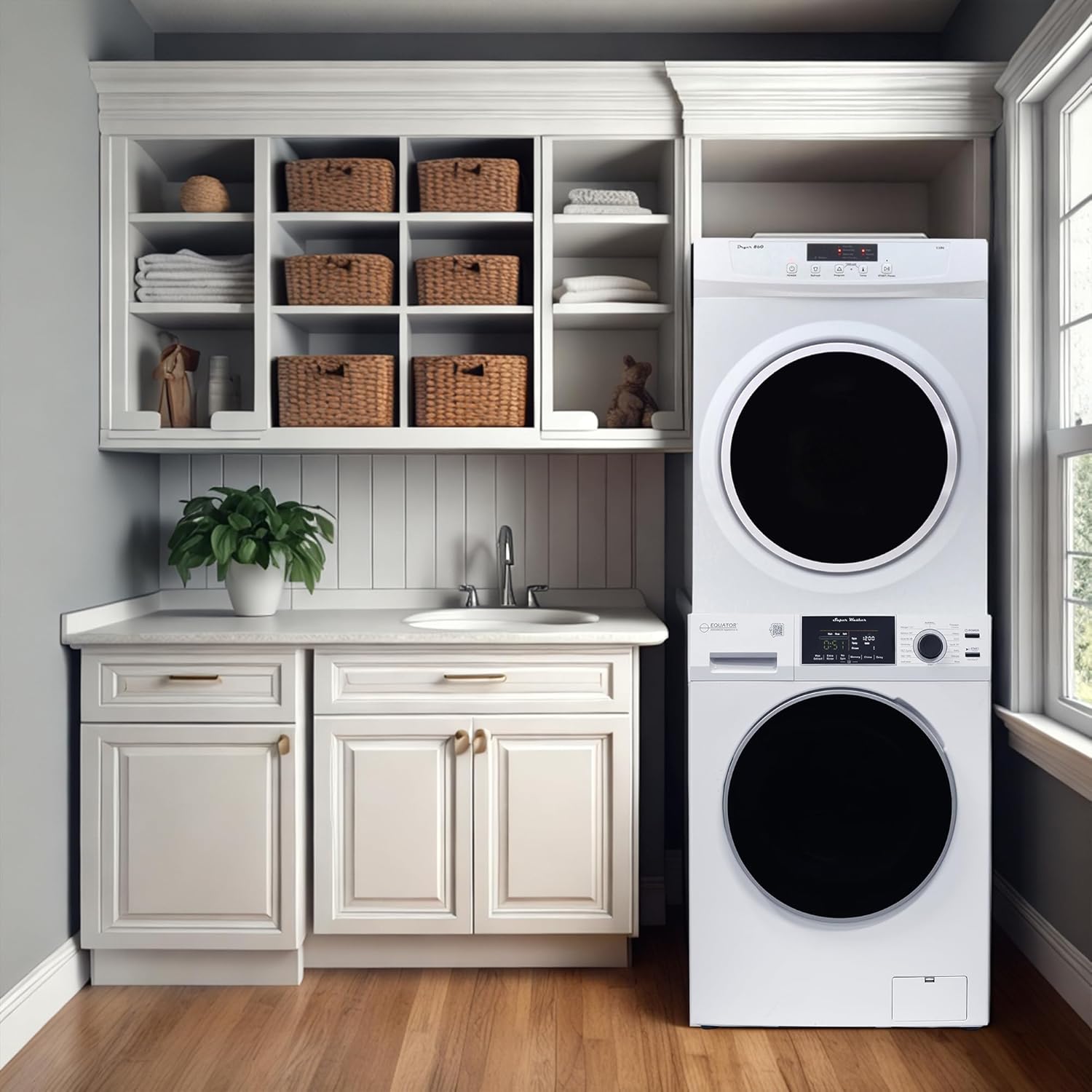

Image 3.1: Front view of the Equator EW 826 Washer and ED 860 Dryer stacked.

3.1 Dimensions and Capacity

• Washer (EW 826): 33.5 inches (H) x 21.85 inches (D) x 23.5 inches (W). Capacity: 1.62 cubic feet (15 lbs).
• Dryer (ED 860): 32.3 inches (H) x 21.5 inches (D) x 23.6 inches (W). Capacity: 3.5 cubic feet (13 lbs).
• Stacked Set Dimensions: Approximately 65.8 inches (H) x 23.5 inches (W) x 21.85 inches (D).

Image 3.2: Visual representation of the stacked dimensions of the washer and dryer.

Image 3.3: The washer handles up to 15 lbs and the dryer up to 13 lbs, with a 1400 RPM spin speed.

3.2 Control Panels

Both units feature electronic control panels with LED lights and touch buttons for easy program selection and monitoring.

Image 3.4: Detailed view of the control panels for the ED 860 dryer (top) and EW 826 washer (bottom).

4. Setup and Installation

Your Equator washer and dryer set offers flexible installation options to suit your space requirements.

4.1 Stackable Configuration

The dryer can be conveniently stacked on top of the washer using the included stacking kit (RSK 3080). This configuration is ideal for saving floor space.

Image 4.1: The stackable design allows for efficient use of space.

Image 4.2: A visual demonstrating the space-saving benefit of the stacked configuration.

4.2 Side-by-Side Configuration

Alternatively, the washer and dryer can be placed side-by-side. Both units are equipped with adjustable leveling legs to ensure stability on uneven surfaces.

Image 4.3: The washer and dryer can be placed side-by-side, offering flexibility in laundry room design.

Image 4.4: Illustration of the side-by-side placement option, highlighting adjustable feet for stability.

4.3 Connections

Ensure proper electrical, water (for washer), and venting (for dryer) connections are made according to local codes and the detailed instructions provided in the full installation guide. The washer requires cold and hot water hoses.

Image 4.5: Rear view of the stacked units, showing water hoses and venting connections.

5. Operating Instructions: EW 826 Washer

The EW 826 washer offers 16 wash programs and several advanced features for optimal cleaning.

5.1 Wash Programs

Select the appropriate program using the control dial. Available programs include:

• Normal: For everyday laundry.
• ECO: Energy-efficient wash cycle.
• Heavy: For heavily soiled items.
• Pet Cycle: Specifically designed to remove pet hair from fabrics.
• Wool: Gentle cycle for woolens.
• Baby: For delicate baby clothes.
• Delicate: For fragile garments.
• Prewash (+Heavy): Adds a pre-wash phase for extra dirty loads.
• Quiet 60 dB: Operates at a reduced noise level.
• Winterize: Prepares the washer for cold weather storage.
• Self-clean: For cleaning the washer drum.
• Spin Only: Extracts excess water without washing.
• Drain: Drains water from the drum.

Image 5.1: The washer offers 16 cycle programs, including ECO, Heavy, Normal, Wool, Baby, and Quiet.

5.2 Special Features

• Sanitize 165°: Uses ultra-heated water to eliminate germs and bacteria.
• Allergen 131°: Helps reduce allergy symptoms by removing pollen, dander, and dust mites.
• Pet Cycle: An innovative program to effectively remove pet hair.
• Memory Programs: Store up to four of your favorite cycle settings for quick access.
• Add-a-Sock Option: Allows you to pause the cycle and add forgotten items.
• Foam Control: Automatically detects and reduces excessive foam.
• Child Lock: Secures the control panel to prevent accidental changes.

Image 5.2: The Pet Cycle is designed to effectively remove pet hair from laundry.

Image 5.3: The Winterize function allows you to prepare your washer for cold weather in minutes.

6. Operating Instructions: ED 860 Dryer

The ED 860 dryer provides efficient drying with multiple programs and smart features.

6.1 Drying Programs

Choose from 5 drying programs:

• Hot: For durable fabrics requiring high heat.
• Warm: For most fabric types.
• Time Dry: Allows manual setting of drying time.
• Air Dry: Dries items without heat.
• Sensor Dry: Automatically detects moisture levels and stops when clothes are dry, preventing over-drying.

6.2 Special Features

• Wrinkle Guard: Tumbles clothes intermittently after the cycle ends to prevent wrinkles.
• Refresh Function: Helps to de-wrinkle and refresh clothes.
• End of Cycle Chime: Alerts you when the drying cycle is complete.
• Child Lock: Secures the control panel to prevent accidental changes.

Image 6.1: The dryer is equipped with a secure child lock for safety.

7. Care and Maintenance

Regular maintenance ensures the longevity and optimal performance of your laundry set.

• Drum Cleaning: Both the washer and dryer feature stainless steel drums. Use the washer's self-clean cycle periodically.
• Lint Filter: Clean the dryer's lint filter before or after every load to maintain drying efficiency and prevent fire hazards.
• Exterior Cleaning: Wipe down the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners.
• Winterizing: If storing the washer in an unheated area, use the Winterize function to prevent freezing damage.

Image 7.1: Both the washer and dryer feature long-lasting stainless steel drums.

8. Troubleshooting

If you encounter issues with your appliance, please refer to the comprehensive troubleshooting section in the full user manual for detailed solutions. Common issues and their remedies are typically covered there. For persistent problems, contact customer support.

9. Technical Specifications

10. Warranty and Customer Support

Your Equator Advanced Appliances EW 826 Washer and ED 860 Dryer set comes with a One-Year Parts and Labor Warranty. For warranty claims, technical assistance, or to purchase replacement parts, please contact Equator Advanced Appliances customer support. Refer to your purchase documentation for specific contact details.
