1. Introduction
Thank you for choosing an Electrolux appliance. This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your new Electrolux Serie 300 Induction Hob, model EIB60424CK. Please read this manual carefully before using the appliance and keep it for future reference.
This induction hob is designed to offer rapid and precise cooking, enhancing your culinary experience with advanced technology and user-friendly controls.
2. Safety Information
For your safety and to ensure correct operation, read this manual carefully before installation and use. Keep these instructions with the appliance for future reference. This appliance is intended for domestic use only.
- Electrical Safety: Ensure the appliance is correctly installed by a qualified person and connected to a properly grounded electrical outlet. Do not use extension cords or multiple adapters.
- Heat and Burns: The induction zones heat up rapidly. Always use appropriate cookware. The hob surface remains cool around the cooking zones, but the cooking zones themselves will be hot after use. Exercise caution to avoid burns.
- Child Safety: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure they do not play with the appliance. The child lock function helps prevent accidental changes to settings.
- Cleaning: Always disconnect the appliance from the power supply before cleaning. Use only recommended cleaning agents and methods.
- General Use: Do not place metallic objects such as knives, forks, spoons, and lids on the hob surface as they can get hot.
3. Product Overview
The Electrolux Serie 300 Induction Hob (EIB60424CK) is a 4-zone built-in induction cooktop designed for modern kitchens. It features a sleek black glass-ceramic surface and intuitive TouchControl commands.
Image: Top view of the Electrolux Serie 300 Induction Hob, showing its four cooking zones and control panel.
Key Features:
- Rapid Induction Cooking: Cook your favorite dishes faster than ever. Induction technology heats cookware directly, boiling water quickly without preheating.
- Precision and Safety: Heat is delivered precisely where needed, while surrounding areas remain cool and safe to touch. The hob responds instantly to temperature changes for perfect cooking results.
- Intuitive TouchControl: Adjust temperatures with a simple touch on the glass surface. The smooth surface without knobs or buttons makes cleaning effortless.
- Child Lock Function: Maintains selected settings, even if the control panel is accidentally touched, providing peace of mind, especially with children around.
Image: Diagram illustrating induction technology, showing how heat is generated directly in the pan while the surrounding hob surface remains cool.
Image: Close-up of a finger interacting with the TouchControl panel, demonstrating the ease of adjusting settings.
4. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your induction hob. It must be installed by a qualified technician in accordance with local regulations and the provided installation diagram.
Installation Requirements:
- Countertop Cut-out: Ensure the countertop opening matches the specified dimensions for a flush fit.
- Ventilation: Adequate ventilation space must be maintained beneath the hob to prevent overheating. Refer to the diagram for minimum clearances.
- Electrical Connection: The hob requires a dedicated electrical circuit. Verify voltage and wattage requirements match your household supply.
Image: Detailed installation diagram showing the dimensions for the countertop cut-out, minimum clearances, and electrical connection points for the induction hob.
5. Operating Instructions
Your Electrolux induction hob is designed for ease of use. Follow these steps for optimal cooking performance.
Turning On/Off:
- To turn on, touch the power symbol on the control panel.
- To turn off, touch the power symbol again.
Selecting a Cooking Zone and Adjusting Heat:
- Place suitable cookware on the desired cooking zone.
- Touch the corresponding zone selection control.
- Use the SliderTouch control to adjust the heat level from 1 (low) to 9 (high), or 'P' for PowerBoost.
Child Lock Function:
The child lock prevents accidental operation of the hob, especially useful during cleaning or when children are present.
- To activate: With the hob off or in standby, touch and hold the lock symbol until the indicator light illuminates.
- To deactivate: Touch and hold the lock symbol again until the indicator light turns off.

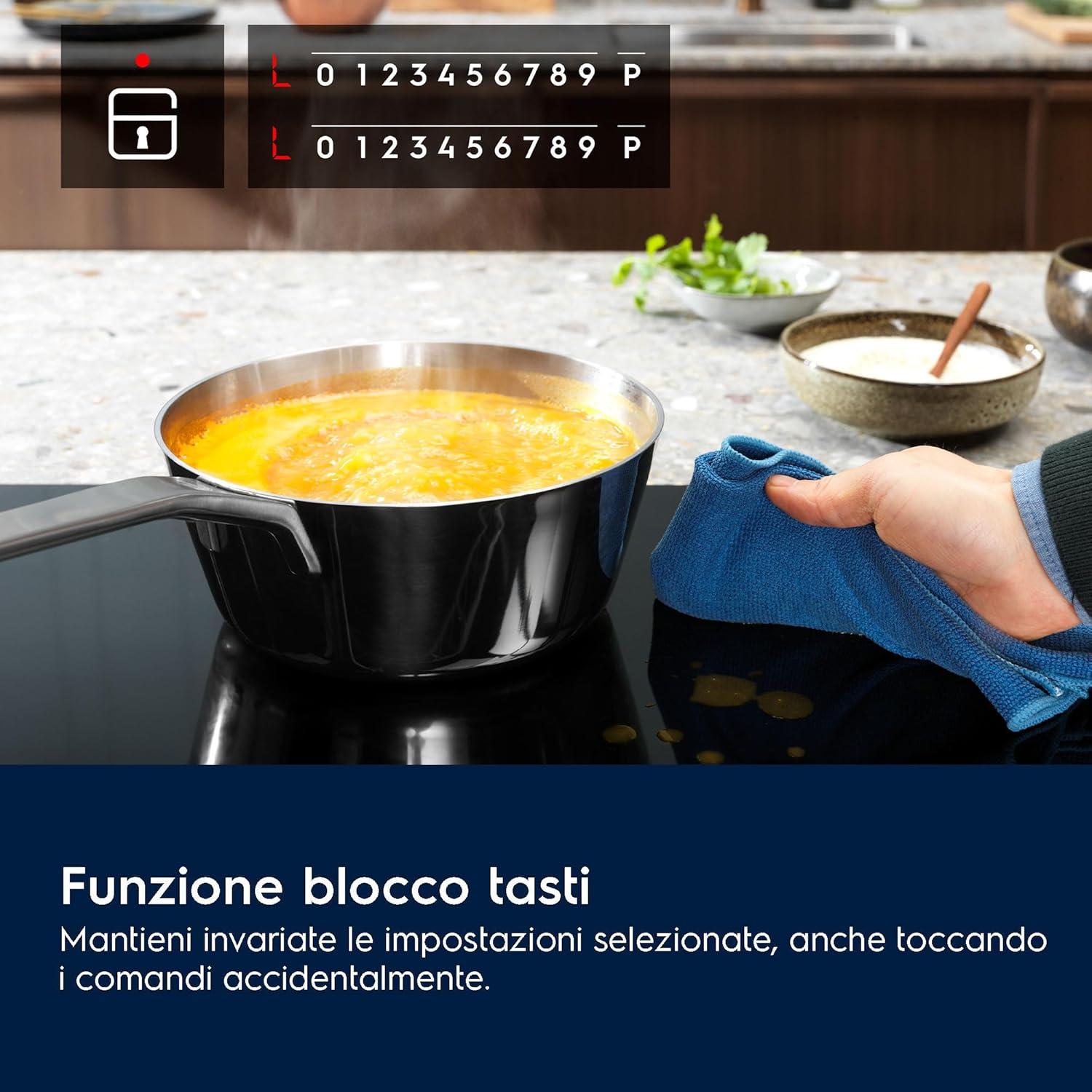

Image: A hand cleaning the hob surface, with the child lock icon and numerical settings displayed, demonstrating the safety feature in use.
Suitable Cookware:
Induction hobs require cookware with a magnetic base. Test your cookware by placing a magnet on the bottom; if it sticks, it's suitable for induction.
- Recommended materials: Cast iron, enameled steel, magnetic stainless steel.
- Avoid: Glass, ceramic, aluminum, copper, or non-magnetic stainless steel.
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Electrolux induction hob.
Daily Cleaning:
- After each use, allow the hob to cool down.
- Wipe the glass-ceramic surface with a damp cloth and a small amount of mild dish soap.
- Dry thoroughly with a clean, soft cloth to prevent water spots.
Removing Stubborn Stains:
- For burnt-on food or stubborn stains, use a specialized ceramic hob cleaner and a scraper designed for glass surfaces.
- Follow the cleaner's instructions carefully.
- Avoid abrasive sponges, scouring pads, or harsh chemical cleaners, as they can scratch or damage the surface.
7. Troubleshooting
Before contacting customer service, please refer to the following common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not turn on. | No power supply; child lock activated. | Check power connection; deactivate child lock. |
| Cooking zone not heating. | Cookware not suitable for induction; cookware not centered. | Use magnetic cookware; center cookware on the zone. |
| Display shows an error code. | Specific internal error. | Refer to the full manual for specific error codes or contact customer service. |
| Unusual noises during operation. | Normal induction sounds (humming, buzzing) or cookware-related. | These are usually normal. If excessively loud or unusual, contact service. |
If the problem persists after attempting these solutions, please contact Electrolux customer service for assistance.
8. Specifications
Detailed technical specifications for the Electrolux Serie 300 Induction Hob EIB60424CK.
- Brand: Electrolux
- Model: EIB60424CK (Internal Model: 949492516)
- Color: Black
- Product Dimensions: 52 x 59 x 5.3 cm (Depth x Width x Height)
- Weight: 8.6 Kilograms
- Wattage: 3000 watts
- Voltage: 220 Volt
- Material: Glass, Glass-ceramic
- Number of Heating Elements: 4
- Special Features: Safety lock (Child Lock)
- Power Source: Corded Electric
- Burner Type: Induction
9. Warranty and Support
Electrolux products are manufactured to the highest quality standards. For information regarding your product's warranty, please refer to the warranty card included with your appliance or visit the official Electrolux website for your region.
For technical support, spare parts, or service requests, please contact Electrolux customer service. Have your model number (EIB60424CK) and serial number ready when you call.
You can find more information and support resources on the official Electrolux website: www.electrolux.com
