YAMATIC Horizontal Triplex Pressure Washer Pump User Manual

1. Product Overview

This manual provides detailed instructions for the installation, operation, and maintenance of your YAMATIC Horizontal Triplex Pressure Washer Pump. Designed for high performance and durability, this replacement pump is compatible with various pressure washer models, including Simpson MorFlex 40224, 40225, 40226, Santoprene 41182, Honda, Dewalt, AR, Powerstroke, Blackmax, Husky, and Excell, provided they have a HORIZONTAL 3/4'' SHAFT engine.

Key Features:

• Top Performance: Fits 2500 - 3500 PSI / 2.6 GPM pressure washers with 5 ~ 8hp (160 ~ 270cc) engines.
• Extended Working Hours: Triplex Plunger Pump design offers a service life of up to 500 hours, significantly longer than standard pumps, ensuring stable operation with less vibration.
• Enhanced Durability: Features an upgraded pump head material for improved strength, a connecting rod utilizing forging technology for better mechanical properties, and a seal spring to prevent oil seal loosening.
• Easy Installation: Comes with all necessary accessories for a quick 10-minute installation, including 4 flange bolts, a soap hose, 5 color spray nozzle tips, and shaft keys.
• Pre-filled Oil: Ships with pre-filled SAE 15W-40 oil for immediate use.

2. Technical Specifications

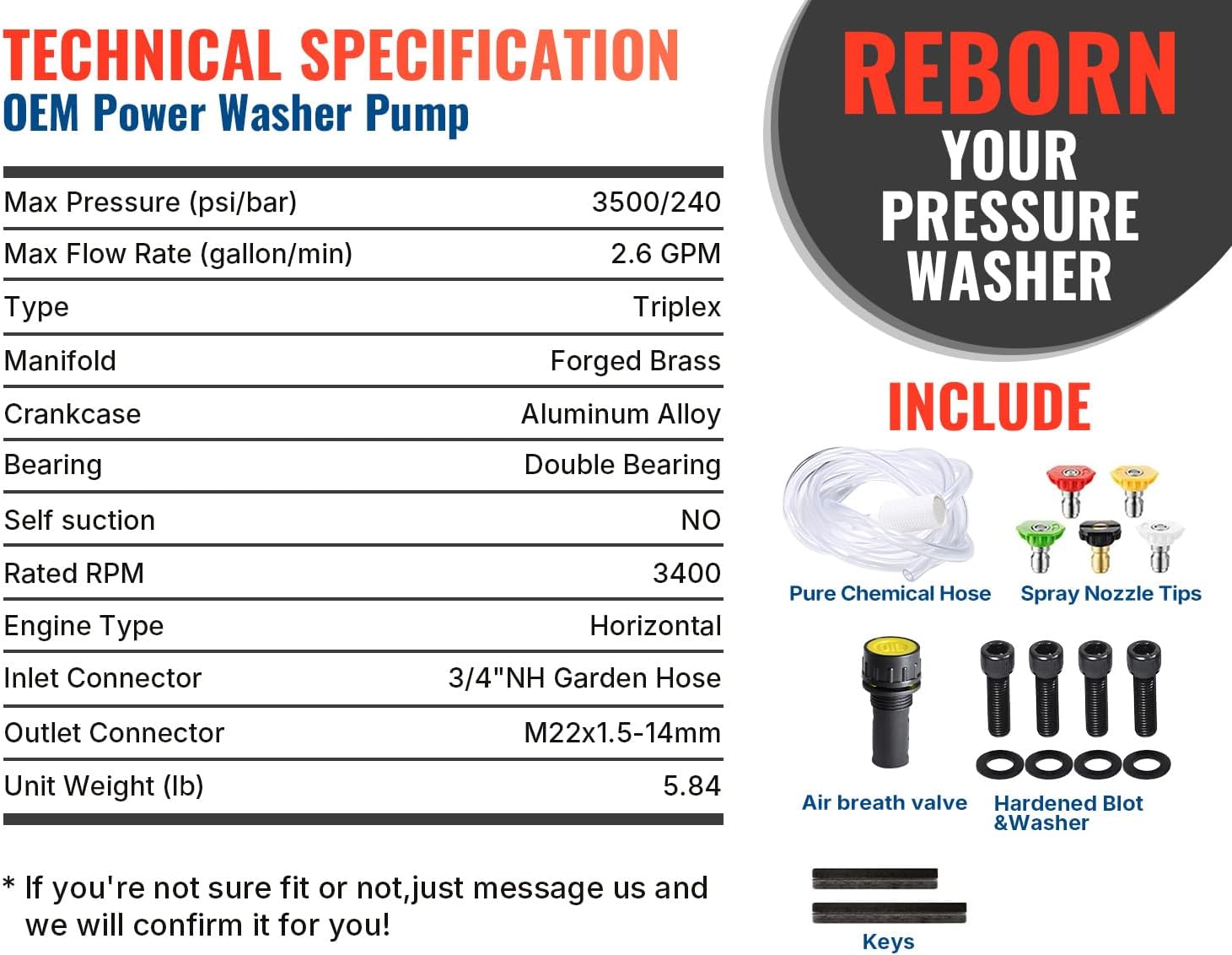

Technical specifications of the YAMATIC Horizontal Triplex Pressure Washer Pump.

3. Installation Guide

Before Installation:

• Ensure your pressure washer engine has a HORIZONTAL 3/4'' SHAFT. This pump is not compatible with other shaft types or orientations.
• Verify the engine's horsepower (5-8 HP) and CC (160-270cc) are within the recommended range.
• Gather all included accessories: 4 flange bolts, soap hose, 5 color spray nozzle tips, and shaft keys.

Installation Steps:

1. Prepare the Engine Shaft: Slowly pull the recoil rope to rotate the crankshaft until the keyway is facing upwards. This ensures proper alignment for key insertion.

Image showing the engine crankshaft and keyway alignment.

2. Insert the Key: Carefully place the provided key into the keyway on the engine shaft. A small tap may be needed to ensure it is fully seated and matches the keyway completely. A smaller gap between the key and keyway will reduce shock during operation.

Image illustrating the insertion of the key into the crankshaft keyway.

3. Mount the Pump: Rotate the pump to align its mounting holes with those on the engine. Apply slight pressure to the key to prevent it from sliding out while inserting the pump onto the shaft.

The YAMATIC Horizontal Triplex Pressure Washer Pump with included accessories.

Diagram detailing the mounting dimensions for the pump, including diagonal distance (3 5/8''), hole distance (2 9/16''), key width (3/16''), and depth (2 5/8'').

4. Secure the Pump: Install and securely tighten the four flange bolts to fasten the pump to the engine.

Hands tightening a screw to secure the YAMATIC pump to the engine.

The YAMATIC pump attached to a pressure washer engine, ready for operation.

Installation Video:

Official installation guide video for the YAMATIC Horizontal Triplex Pressure Washer Pump.

4. Operating Instructions

Initial Startup:

• Ensure all connections (water inlet, high-pressure hose, and spray wand) are secure.
• Connect the water supply and turn it on fully to purge air from the pump and hoses before starting the engine.
• Start the pressure washer engine according to its manufacturer's instructions.

Adjusting Pressure:

The YAMATIC pump features an adjustable unloader valve, allowing you to fine-tune the pressure output between 2500 PSI and 3500 PSI. To adjust, locate the red knob on the pump head:

• Rotate the knob counter-clockwise to reduce pressure.
• Rotate the knob clockwise to increase pressure.

Visual guide on how to adjust the pressure output of the pump.

Diagram highlighting the adjustable unloader on the pump.

General Usage Tips:

• These pumps are designed for clean, filtered cold water only.
• Always wear safety glasses and proper clothing when operating the pressure washer.
• Avoid running gas engines in closed spaces; ensure good airflow to prevent carbon monoxide buildup.
• Do not allow children to operate the pump or pressure washer.
• Always read the complete manual before installing and operating the pump.

Important safety and usage tips for the pressure washer pump.

5. Maintenance and Care

Oil Maintenance:

The pump comes with pre-filled SAE 15W-40 oil. Regular oil maintenance is crucial for the longevity of your pump.

• Pre-use Oil Level Inspection: Before each use, check the oil level using the convenient sight glass.
• Regular Oil Replacement: The SAE 15W-40 oil needs to be changed every 50 hours of use.
• Recommended Lubrication: Use SAE 15W-40 engine oil for replacement.

Close-up view of the oil sight glass and the anodized crankcase.

Instructions for oil level inspection and replacement.

Storage:

• Before storing, drain all water from the pump to prevent freezing and damage.
• Store the pump in a dry, frost-free environment.

6. Troubleshooting Common Issues

Low Pressure:

• Check Water Supply: Ensure the water source is fully open and providing adequate flow.
• Inspect Inlet Filter: A clogged inlet filter can restrict water flow. Clean or replace if necessary.
• Adjust Unloader Valve: Refer to the 'Adjusting Pressure' section to ensure the unloader valve is set correctly for desired pressure.
• Check for Air in System: Ensure all air is purged from the pump and hoses before operation.

Leaks:

• Inspect Connections: Tighten all hose connections and fittings.
• Check O-rings and Seals: Worn or damaged O-rings and seals can cause leaks. Replace any faulty components.
• Pump Head: If leaks persist from the pump head, it may indicate internal seal wear, requiring professional inspection or replacement.

Pump Not Starting / Engine Issues:

• Engine Check: Ensure the pressure washer engine itself is functioning correctly and receiving fuel and ignition.
• Keyway Alignment: Re-check that the key is properly seated in the keyway and the pump is correctly mounted to the shaft.
• Oil Level: Verify the oil level in the pump is adequate.

7. Warranty and Customer Support

Warranty Information:

Specific warranty details for your YAMATIC pump may vary. Please refer to the warranty card included with your product or visit the official YAMATIC website for the most up-to-date warranty policy.

Customer Support:

For technical assistance, troubleshooting, or warranty claims, please contact YAMATIC customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your product model and purchase information ready.

Thank you for choosing YAMATIC. We are committed to providing high-quality products and excellent customer service.
