Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Vileda RinseClean Spin Mop & Bucket System. Please read all instructions carefully before first use to ensure proper function and longevity of the product.
The Vileda RinseClean Spin Mop System is designed to provide efficient floor cleaning by separating clean and dirty water. Its microfibre mop head effectively removes over 99% of bacteria with just water, and it is suitable for various hard floor types.
Product Components
The Vileda RinseClean Spin Mop & Bucket System includes the following components:
- Mop handle (extendable)
- Microfibre mop head
- Bucket with built-in wringer and dual-chamber technology
- Red plastic base for mop head attachment

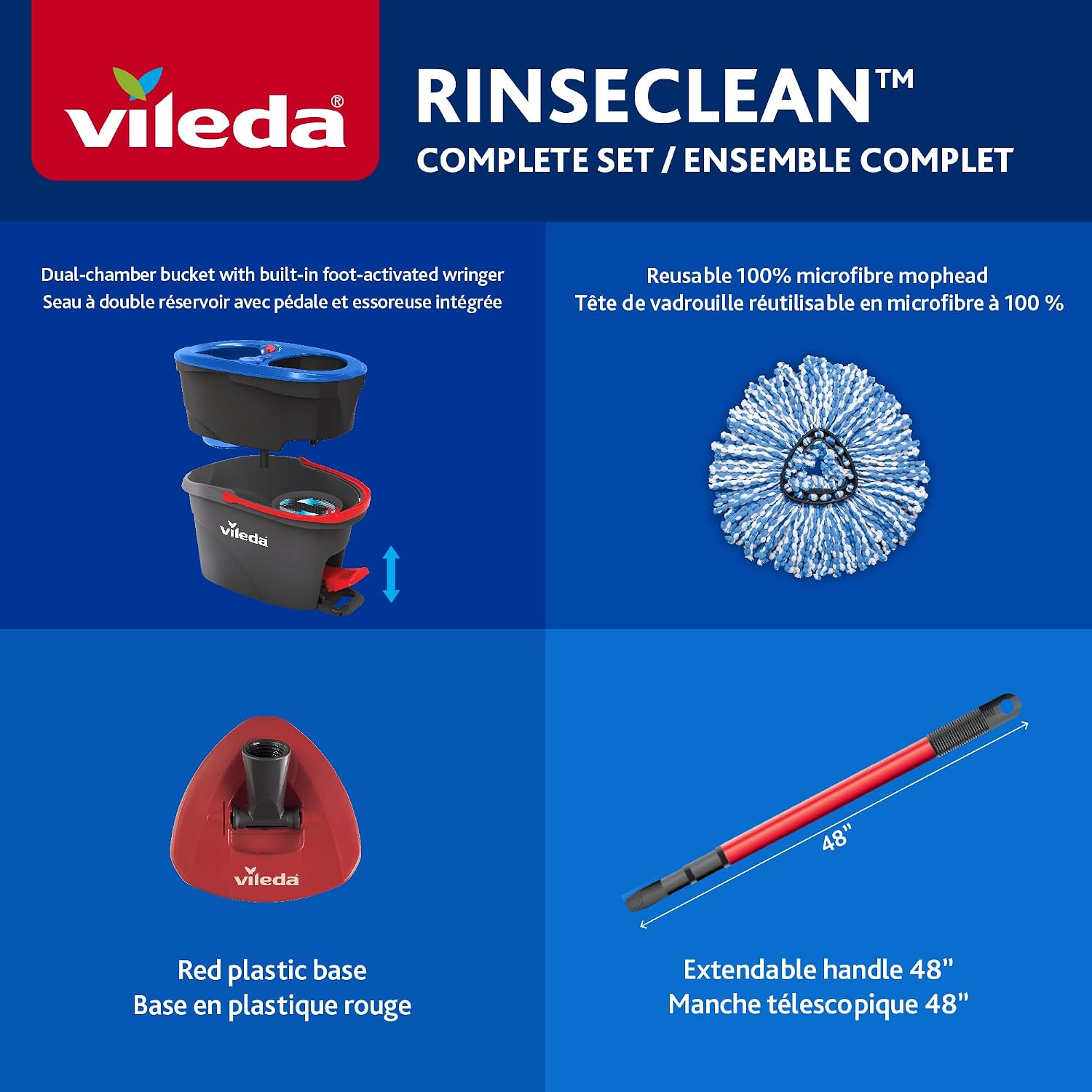

Figure 1: Overview of the Vileda RinseClean Spin Mop System components.
Assembly Instructions
Follow these steps to assemble your Vileda RinseClean Spin Mop System:
- Assemble the Mop Handle: Twist the grey handle section to the right to unlock and pull down to extend. Twist to the left to lock the handle in place.
- Attach the Mop Head: Screw the red plastic base onto the mop handle. Align the microfibre mop head with the red plastic base and push down until it clicks securely into place.
Figure 2: Visual guide for assembling the mop handle and attaching the mop head.
Operating Instructions
To use your Vileda RinseClean Spin Mop System for cleaning:
- Prepare the Bucket: Remove the clean water tank from the bucket. Fill the blue fill cap with clean water (up to 2.7 liters). You may add your preferred cleaning solution to the water. Ensure the water release lever is down in the closed position.
- Wet the Mop Head: Lift the red water release lever to open it, allowing clean water to fill the mop rinsing chamber. Place the mop head into the rinsing chamber to wet it.
- Wring the Mop Head: Transfer the wet mop head to the wringer basket. Loosely hold the handle vertically and press the foot pedal to spin and wring out excess water. Adjust pedal pressure for desired mop dampness.
- Mop the Floor: Proceed to mop your floors. The triangular mop head design allows for reaching into corners and under furniture.
- Rinse and Repeat: After mopping a section, rinse the dirty mop head in the clean water rinsing chamber (ensure the water release lever is open). Then wring it out again using the foot pedal. Repeat steps 2-4 as needed.
Figure 3: Clean water is dispensed for each rinse, ensuring continuous clean water for mopping.
Figure 4: Hands-free wringing mechanism for convenience.
Maintenance
Mop Head Care
The microfibre mop head is machine washable and reusable. For best results, replace the mop head every 6 months or as needed.
- Machine wash or hand wash in warm water.
- Do not use fabric softeners or bleach, as these may deteriorate the microfibre.
- Air dry the mop head.
Figure 5: The mop head is washable and reusable.
Bucket Care
After each use, empty the dirty water tank. Rinse both the clean and dirty water compartments with fresh water. Allow the bucket to air dry before storing to prevent mildew and odors.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mop head sprays water during wringing. | Mop head not fully inserted or too wet before spinning. | Ensure the mop head is sufficiently wet, then hold it lightly on top of the spinner for a moment to allow strands to fall straight before lowering into the spinner. |
| Mop handle spins with the mop head during wringing. | Handle is held too tightly. | Hold the handle very lightly, just enough to steady it, allowing it to spin freely with the mop head. |
| Mop head feels too wet after wringing. | Insufficient pedal pressure or spinning time. | Increase pedal pressure or spin the mop head for a longer duration to remove more water. |
| Mop head detaches during use. | Mop head not securely attached to the red plastic base. | Ensure the mop head is aligned and pushed down firmly until it clicks into place on the red plastic base. |
Specifications
- Model Number: 168467
- Color: Black / Blue / Red
- Material: Microfibre, Plastic, Metal (handle)
- Handle Type: Telescopic
- Mop Head Material: Microfibre
- Clean Water Tank Volume: 2.7 liters
- Item Weight: 2.7 kg
- Special Features: Reusable, Wringing Mechanism, Dual-Chamber Bucket
Figure 6: The Vileda RinseClean Spin Mop is safe for use on a variety of hard floor surfaces.
Warranty and Support
For warranty information, product support, or to purchase replacement parts and accessories, please visit the official Vileda website or contact Vileda customer service.
Official Website: www.vileda.ca
Customer Service: Refer to the contact information provided on the product packaging or the official Vileda website for your region.
Figure 7: Replacement mop head refills are available for purchase.
