1. Introduction
Thank you for choosing the Vente-unique CATONAV Extendable Dining Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new dining table. Please read these instructions carefully before beginning assembly and retain them for future reference.
Product Overview
The CATONAV extendable dining table features a durable MDF top and an elegant metal base. It is designed with two extensions, allowing it to comfortably seat 6 to 10 people, making it ideal for various dining occasions. The table's contemporary style, natural wood finish, and black metal legs complement a wide range of interior decors.
Image 1.1: The Vente-unique CATONAV Extendable Dining Table in a dining room setting, showcasing its natural wood top and black metal base.
2. Safety Warnings
To ensure your safety and prevent damage to the product, please observe the following warnings:
- Always handle large and heavy packages with care during unpacking and assembly. It is recommended that two people assemble this table.
- Ensure correct assembly of all components to support the maximum weight capacity. Improper assembly can lead to instability.
- Take precautions to prevent tipping or collapse. Do not lean heavily on the edges of the table, especially when extended.
- Do not exceed the maximum supported load of 100 kg for the main table and 20 kg for each extension.
3. Setup and Assembly
Assembly of the CATONAV dining table is required. An assembly guide is included with your product. Please follow the steps outlined in the guide carefully.
Recommended Tools (Not Included):
- Screwdriver (appropriate type for included fasteners)
- Allen wrench (if not included)
- Soft cloth or blanket to protect surfaces during assembly
Assembly Steps:
- Unpack all components and verify against the parts list in the included assembly guide.
- Attach the metal legs to the table frame using the provided hardware. Ensure all bolts are tightened securely.
- Carefully place the table top onto the assembled base, aligning all mounting points. Secure the table top to the base.
- Test the stability of the table before use.
Image 3.1: Dimensions of the CATONAV table, showing height (75cm), depth (90cm), and extended length (240cm).
Image 3.2: A close-up view of the table's base and top, highlighting the natural wood finish and black metal legs.
4. Operating Instructions
The CATONAV dining table features a convenient slide-out extension mechanism to adjust its length.
Extending the Table:
- Gently pull one end of the table top outwards. The slide-out mechanism will allow the table top to separate.
- Retrieve one or both extension leaves from their storage location (if integrated) or place them into the central gap.
- Push the table ends back together until they are flush with the extension leaves and securely locked in place.
Retracting the Table:
- Pull the table ends apart to create a gap.
- Remove the extension leaves and store them appropriately.
- Push the main table ends back together until they are fully closed.
Image 4.1: Detail of the table's slide-out extension mechanism, illustrating the rails that allow for smooth expansion.

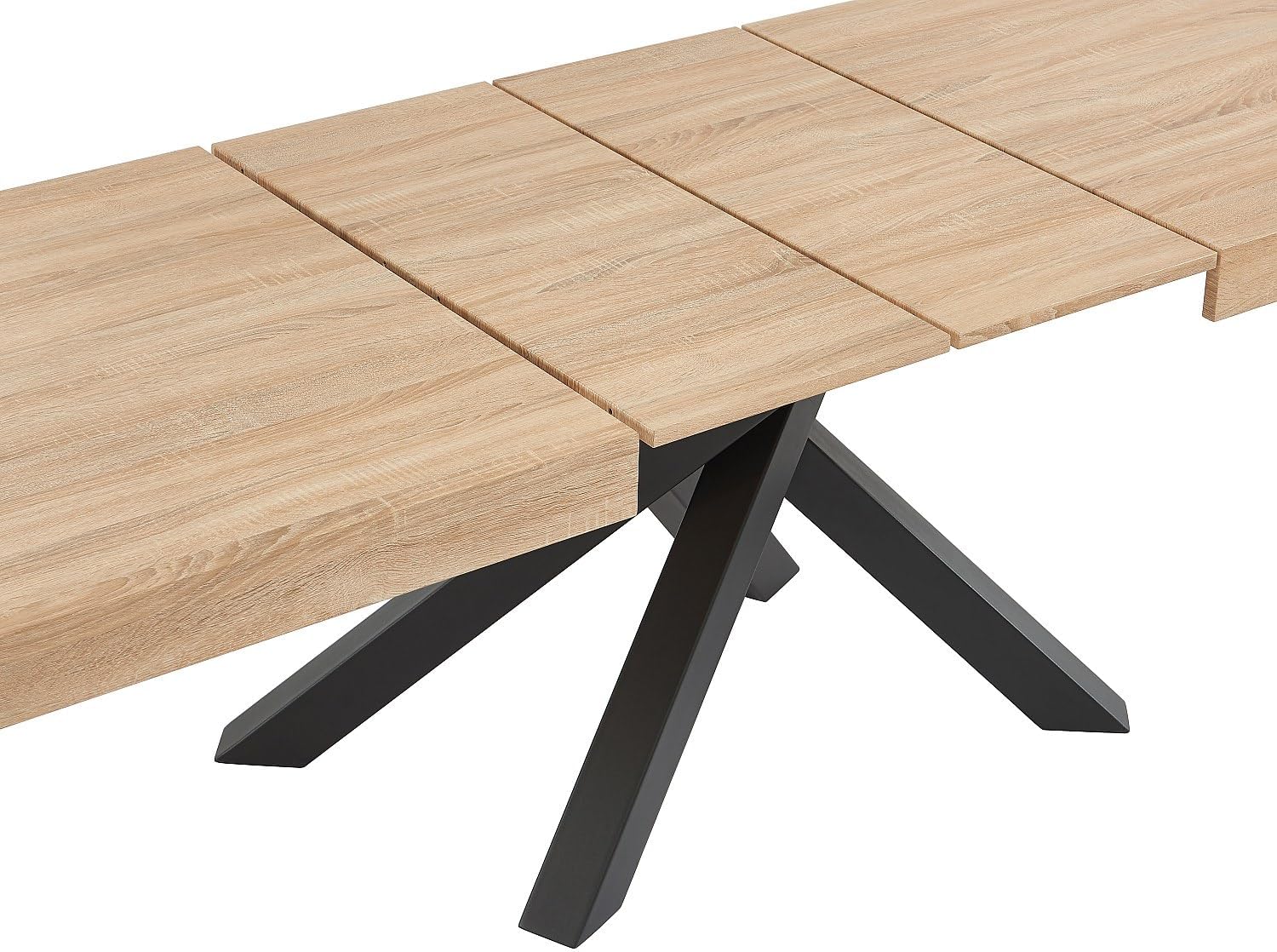

Image 4.2: The CATONAV table in its fully extended configuration, demonstrating how the two leaves integrate seamlessly.
Video 4.1: Demonstration of an extendable table mechanism, similar to the CATONAV model, showing how to expand and retract the table for different seating capacities.
Video 4.2: A short clip showcasing the extension process of a dining table, highlighting its ease of use for accommodating more guests.
Video 4.3: A brief demonstration of an extendable kitchen table, illustrating its functionality and design.
5. Maintenance and Care
Proper care will help maintain the appearance and longevity of your dining table.
- Cleaning: Clean the table surfaces with a damp cloth. Avoid using abrasive cleaners, harsh chemicals, or excessive moisture, which can damage the melamine finish.
- Spills: Wipe up spills immediately to prevent staining or damage to the MDF.
- Heat and Moisture: Use placemats and coasters to protect the surface from hot dishes and moisture.
- Sunlight: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration over time.
- Moving: When moving the table, always lift it rather than dragging it to prevent damage to the legs and floor.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Vente-unique |
| Model Name | CATONAV |
| Model Number | VU-CATONAV |
| Product Dimensions (L x W x H) | 160/240 cm x 90 cm x 75 cm (Extended Length: 240 cm) |
| Product Weight | 71.7 Kilograms |
| Material (Top) | MDF (Melamine finish) |
| Material (Frame/Legs) | Metal |
| Color (Top) | Light Natural |
| Color (Base) | Black |
| Seating Capacity (Unextended) | 6 people |
| Seating Capacity (Extended) | 10 people |
| Number of Extensions | 2 |
| Extension Type | Removable, Integrated (Slide-out mechanism) |
| Maximum Supported Load (Table) | 100 kg |
| Maximum Supported Load (Extensions) | 20 kg |
| Assembly Required | Yes |
| Recommended Persons for Assembly | 2 |
| Care Instructions | Clean with a damp cloth |
| Country of Origin | France |
7. Troubleshooting
If you encounter any issues with your CATONAV dining table, please refer to the following common solutions:
- Table Wobbles: Check that all assembly bolts are securely tightened. Ensure the table is placed on a level surface. Adjust leg levelers if present.
- Extensions Difficult to Slide: Ensure the sliding mechanism is clean and free of debris. Apply a silicone-based lubricant if necessary (avoid oil-based lubricants on wood).
- Gaps in Extended Table: Verify that the extension leaves are correctly seated and that the main table sections are pushed together firmly.
If problems persist, please contact customer support.
8. Warranty and Support
Your Vente-unique CATONAV Extendable Dining Table comes with a limited product warranty. Please refer to the specific terms and conditions provided at the time of purchase for full details. The manufacturer is VENTE-UNIQUE.COM.
For further assistance, spare parts, or warranty claims, please contact Vente-unique customer service through their official website or the retailer where the product was purchased.
