Important Safety Information
Please read and follow all instructions carefully before installing and using the Dreambaby Liberty Extra-Wide Hallway Baby Safety Gate. Failure to follow these instructions could result in serious injury or death.
- This gate is designed for domestic use only.
- Always ensure the gate is securely installed and latched before leaving a child unattended.
- The gate must always be fitted with the provided wall cups when using for stairways. These wall cups must be installed using screws for safety.
- Never use this gate at the top of stairs without the wall cups securely screwed into place.
- Regularly check all parts for wear, damage, or loose components. Replace damaged parts immediately.
- Do not use the gate if any components are missing or damaged.
- This gate is suitable for children from 0-24 months.
- Keep children away from the gate during installation.
WARNING: Incorrect installation can be dangerous. Always refer to the full instructions.
Setup and Installation
The Dreambaby Liberty gate is a pressure-mounted gate designed for easy installation without permanent fixtures in most doorways and hallways. For stairway use, screw-in wall cups are mandatory.
1. Measure Your Opening
Before installation, accurately measure the width of your opening. This gate is suitable for openings between 39 and 45.5 inches (99-115.5 cm) wide and is 30 inches (76 cm) tall. Ensure you have adequate space for the tension bolts; they should not be extended more than 6cm.
Image: Baby Gate Help Guide illustrating measurement and gate types.

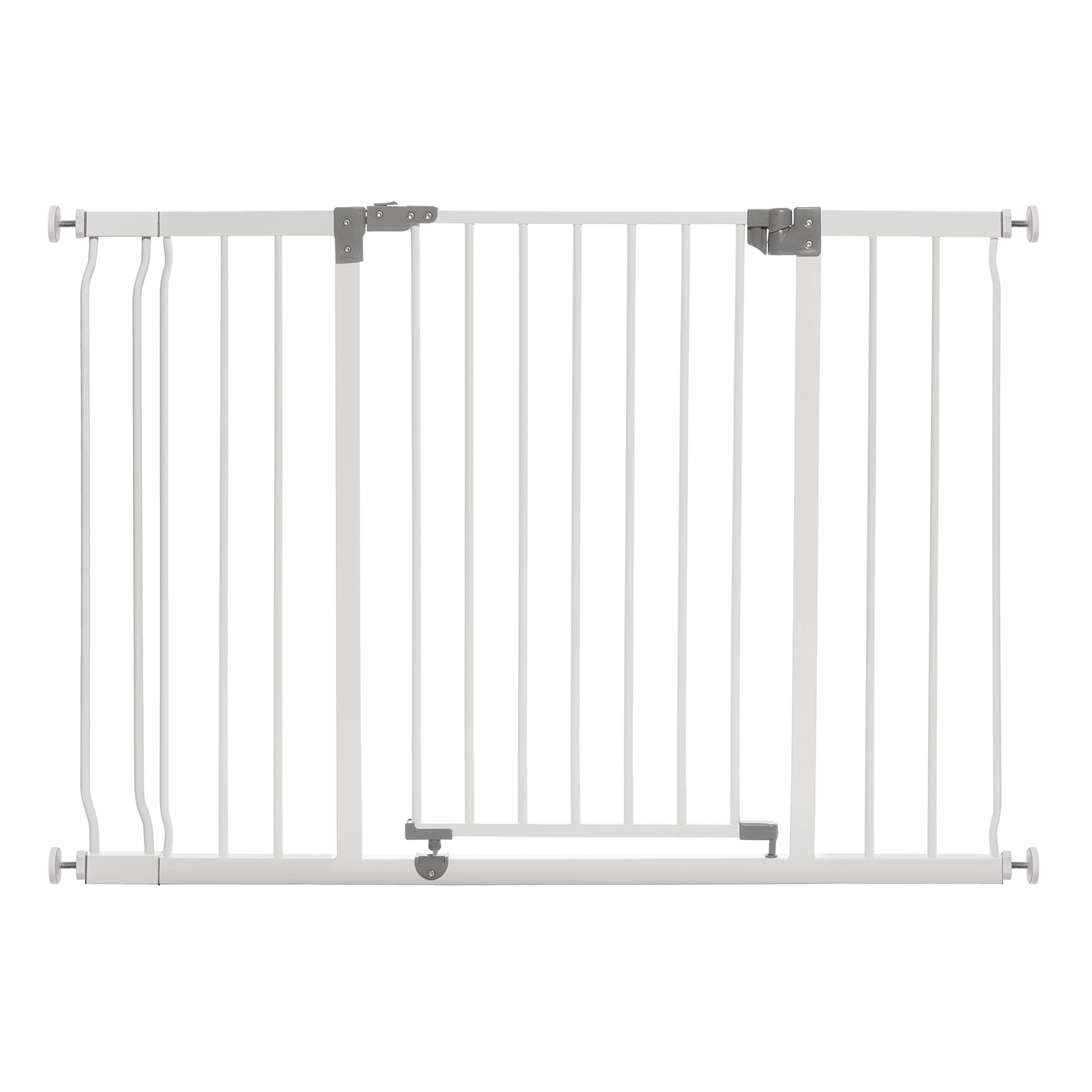

Image: The Dreambaby Liberty gate, ready for installation.
2. Assemble the Gate
- Unpack all components and ensure all parts are present.
- Insert the tension bolts into the four corners of the gate frame.
- If using extensions, attach them to the main gate frame according to the instructions provided with the extension kit.
3. Position and Secure the Gate
- Place the gate in the desired opening.
- Adjust the tension bolts by rotating them until the gate is firmly held in place. Ensure the gate is level and centered.
- For stairway use, position the wall cups at the top and bottom of the gate, mark the screw holes, and securely screw the wall cups into the wall. Then, ensure the tension bolts fit snugly into the wall cups.
Image: Gate installed in a doorway, showing proper fit.
Image: Detail of the tension bolt for secure fitting.
Operating Instructions
Opening the Gate
The Dreambaby Liberty gate features a one-handed operation mechanism. To open:
- Locate the latch mechanism at the top of the gate.
- Slide the release button and lift the gate door simultaneously.
- Swing the gate door open in either direction.
Image: Gate door swinging open.
Closing the Gate
Simply push the gate door closed until you hear a click, indicating it is securely latched. The gate is designed to automatically close and latch when released from a partially open position.
Smart Stay-Open Feature
For convenience, the gate includes a Smart Stay-Open feature. To activate, open the gate door past a certain point (usually around 90 degrees) until it locks into an open position. To close, simply push the gate door gently, and it will disengage from the stay-open position and close automatically.
Image: Gate in use, demonstrating its width and walk-through design.
Maintenance
Regular maintenance ensures the longevity and safety of your gate.
- Cleaning: Wipe the gate with a damp cloth and mild soap. Do not use abrasive cleaners or harsh chemicals.
- Inspection: Periodically check all parts, including the frame, latch, hinges, and tension bolts, for any signs of wear, damage, or loosening.
- Tightening: If the gate feels loose, re-tighten the tension bolts to ensure a secure fit.
- Lubrication: If the hinges become stiff, a small amount of silicone-based lubricant can be applied.
Troubleshooting
- Gate does not close or latch properly:
- Ensure the gate is installed level and the tension bolts are tightened sufficiently. The gap between the gate frame and the latch mechanism should be minimal when the gate is open, allowing for proper engagement when closed. Adjust tension bolts evenly on both sides.
- Gate feels loose or wobbly:
- Re-tighten all four tension bolts. If installed in a stairway, ensure the wall cups are securely screwed into the wall.
- Gate is difficult to open:
- Check for any obstructions. Ensure the latch mechanism is clean and free of debris. A small amount of lubricant on the moving parts of the latch may help.
- Gate does not stay open (Smart Stay-Open feature):
- Ensure you are opening the gate door wide enough for the stay-open mechanism to engage. It typically requires opening past 90 degrees until a slight click is felt.
Specifications
| Brand | Dreambaby |
| Model Number | L777BB |
| Product Dimensions | 39-45.5 inches (W) x 30 inches (H) / 99-115.5 cm (W) x 76 cm (H) |
| Item Weight | 14.6 Pounds |
| Mounting Type | Pressure Mount |
| Color | White |
| Age Range Description | 0-24 Months |
| Closure Type | Latch |
Warranty Information
Specific warranty details for the Dreambaby Liberty Extra-Wide Hallway Baby Safety Gate Set, Model L777BB, are not provided in the product information. Please refer to the manufacturer's official website or contact their customer support for current warranty terms and conditions.
Support
For further assistance, product registration, or to purchase replacement parts, please visit the official Dreambaby website or contact their customer service department. You can often find contact information on the product packaging or the brand's online store.
