Aigostar Solar LED Outdoor Light Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Aigostar Solar LED Outdoor Light. Please read this manual thoroughly before use to ensure proper function and longevity of the product. Keep this manual for future reference.

2. Product Overview

The Aigostar Solar LED Outdoor Light is designed for efficient and versatile outdoor illumination. Key features include:

• High-Efficiency Solar Panel: Features a 25% conversion efficiency and a 5000 mAh lithium-ion battery, providing up to 12 hours of illumination after 4-6 hours of charging.
• Durable and Waterproof: Constructed with robust materials and rated IP65 waterproof, ensuring resistance to dust and water jets for multi-season outdoor use.
• Flexible Installation: Comes with a 3-meter cable, allowing for versatile placement of both the solar panel and the light fixture.
• Adjustable Lighting: Universal swivel mechanism enables adjustment of the lighting angle.
• Customizable Illumination: Offers adjustable color temperatures (3000K warm white, 4000K neutral white, 6500K cool white) and brightness levels (25%, 50%, 100%).
• Convenient Remote Control: A remote control with a 6-meter range allows for easy adjustment of settings, including ON/OFF, color temperature, brightness, and timer functions (3H, 5H, 8H).

Image 1: Overview of the Aigostar Solar LED Outdoor Light components.

3. Package Contents

Please verify that all items are present in the package:

• Solar Panel
• Rechargeable Battery (integrated within the unit)
• LED Wall Lamp Fixture
• Remote Control
• Mounting Hardware (screws, anchors)

4. Specifications

Image 2: Product dimensions and performance details.

5. Setup

5.1 Initial Charging

Before first use, it is crucial to charge the solar light for more than 48 hours in direct sunlight. This ensures the integrated rechargeable battery is fully activated and can provide optimal performance.

Image 3: Reminder for initial charging.

5.2 Installation Methods

The Aigostar Solar LED Outdoor Light offers two primary installation methods: wall-mounted or hanging (pendant style). Choose the method that best suits your outdoor space.

Image 4: Illustration of wall-mounted and hanging installation options.

5.3 Step-by-Step Installation

1. Choose Location: Select a location for the solar panel that receives 4-6 hours of direct sunlight daily. The light fixture can be placed up to 3 meters away from the solar panel.
2. Mount Solar Panel: Use the provided mounting hardware to securely attach the solar panel to a wall or other stable surface. Adjust the bracket to optimize sun exposure.
3. Mount Light Fixture: For wall mounting, attach the light fixture to your desired location using the provided hardware. For hanging installation, secure the light fixture to a suitable overhead structure. The universal swivel allows for angle adjustment.
4. Connect Cables: Connect the cable from the solar panel to the light fixture. Ensure the connection is secure and waterproof.

Image 5: Visual guide for connecting the solar panel and light fixture.

6. Operating Instructions

The Aigostar Solar LED Outdoor Light operates automatically at night and can be controlled manually using the included remote control.

6.1 Automatic Operation

Once installed and charged, the light will automatically turn on at dusk and turn off at dawn, conserving energy during daylight hours.

6.2 Remote Control Functions

The remote control provides full command over the light's settings:

• ON/OFF: Press the 'ON' button to turn the light on, and 'OFF' to turn it off.
• Color Temperature Adjustment: Select between 3000K (warm white), 4000K (neutral white), and 6500K (cool white) to match your desired ambiance.
• Brightness Adjustment: Adjust the light intensity to 25%, 50%, or 100%.
• Timer Function: Set the light to turn off automatically after 3 hours, 5 hours, or 8 hours. Select 'Time off' to cancel any active timer.

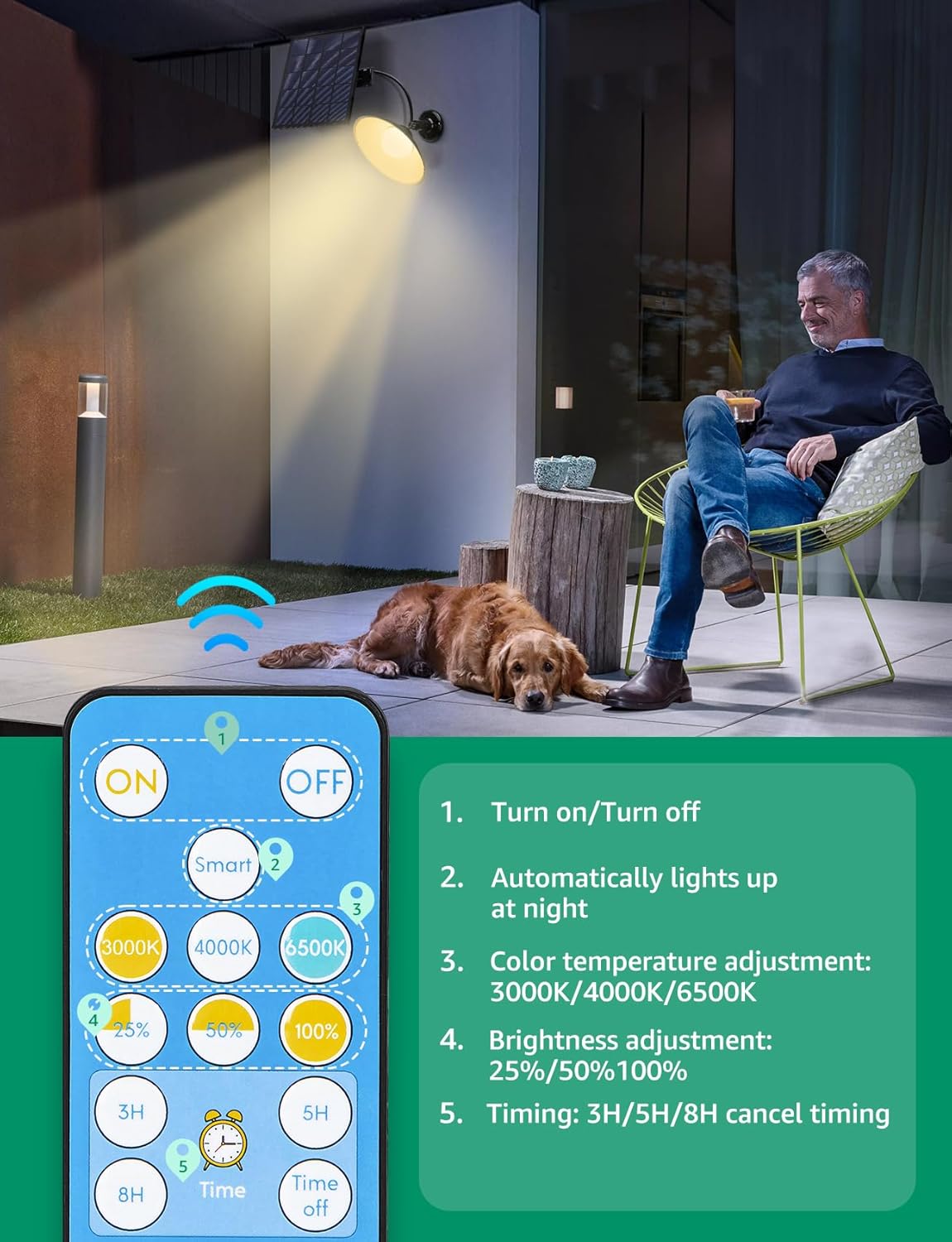

Image 6: Remote control functions for the Aigostar Solar LED Outdoor Light.

Image 7: Demonstrating adjustable color temperature and brightness.

7. Maintenance

To ensure optimal performance and longevity of your solar light, follow these maintenance guidelines:

• Cleaning: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris that may obstruct sunlight absorption. Clean the light fixture as needed.
• Weather Resistance: The IP65 rating protects the light from dust and water jets. However, avoid submerging the unit in water.
• Solar Panel Placement: Periodically check that the solar panel remains in a position that receives maximum direct sunlight, especially after seasonal changes or if new obstructions appear.

Image 8: The light's IP65 waterproof and weather-resistant design.

8. Troubleshooting

If you encounter issues with your Aigostar Solar LED Outdoor Light, please refer to the following common troubleshooting steps:

• Light Does Not Turn On:
  • Ensure the solar panel is receiving adequate direct sunlight for 4-6 hours daily.
  • Verify all cable connections between the solar panel and the light fixture are secure.
  • Check if the remote control battery needs replacement.
  • Confirm the light is not in a 'Time off' mode set by the remote control.
  • Remember the initial 48-hour charging requirement before first use.
• Light Duration is Short:
  • The solar panel may not be receiving enough sunlight due to shading, dirt, or cloudy weather. Reposition or clean the panel.
  • The battery may not be fully charged. Ensure the panel has sufficient charging time.
  • Extreme temperatures can affect battery performance.
• Remote Control Not Responding:
  • Ensure there are no obstructions between the remote control and the light fixture.
  • Replace the remote control battery.

9. Warranty Information

Specific warranty details for this product are not provided in the available information. Please refer to the product packaging or contact the retailer/manufacturer directly for warranty terms and conditions.

10. Support

For further assistance or inquiries regarding your Aigostar Solar LED Outdoor Light, please contact Aigostar customer support or the retailer from whom you purchased the product. Contact information can typically be found on the product packaging or the official Aigostar website.
