MOCEMTRY 5-in-1 Curling Iron Set User Manual

1. Product Overview

The MOCEMTRY 5-in-1 Curling Iron Set is a versatile hair styling tool designed to help you achieve various curl styles. This set includes a main handle and five interchangeable ionic barrels, offering flexibility for different looks. The advanced tourmaline ceramic technology ensures even heat distribution, reduces frizz, and protects hair, leaving it smooth and shiny.

Key features include:

• 5 Interchangeable Barrels: Includes 32mm straight barrel, 19-25mm conical barrel, 25mm triple barrel waver, 25mm bubble barrel, and 9-15mm conical barrel for diverse styling options.
• Automatic Shut-off: For safety, the device automatically turns off after 60 minutes of inactivity.
• 360-Degree Swivel Cord: Provides tangle-free operation and ease of use.
• Tourmaline Ceramic Technology: Releases negative ions to eliminate frizz and static, protecting hair and enhancing shine.
• Adjustable Temperature: Two temperature settings (180°C and 230°C) suitable for various hair types.
• Fast Heating: Reaches ideal temperature in 20 seconds and maximum temperature in 30 seconds.

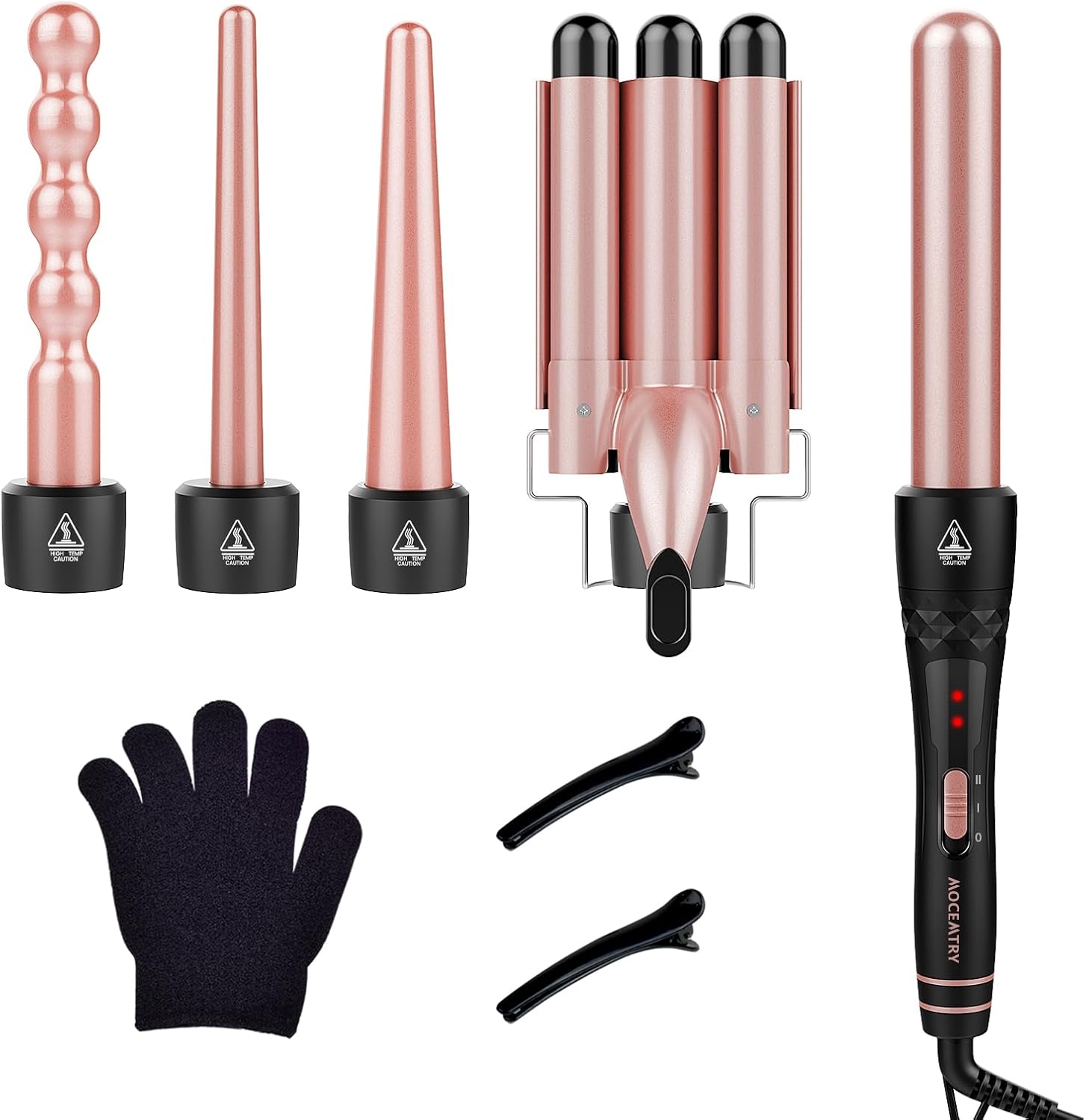

Image 1.1: The MOCEMTRY 5-in-1 Curling Iron Set, showcasing the main handle, five interchangeable barrels, a heat-resistant glove, and two hair clips.

2. Safety Information

Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Water and Moisture: Do not use this appliance near bathtubs, showers, basins, or other vessels containing water. Never immerse the appliance in water or any other liquid.
• Heat: The curling iron barrels become extremely hot during use. Avoid direct contact with skin, especially the face, neck, and ears. Use the provided heat-resistant glove.
• Children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Storage: Always unplug the appliance after use and allow it to cool down completely before storing. Do not wrap the cord around the appliance.
• Damage: Do not use the appliance if the cord or plug is damaged, or if it is not working properly. Contact customer support for repair.
• Ventilation: Ensure adequate ventilation during use. Do not block air vents if present.

3. Setup and Assembly

The MOCEMTRY 5-in-1 Curling Iron Set features an easy-to-use interchangeable barrel system.

3.1. Attaching a Barrel

1. Ensure the main handle is unplugged and cool.
2. Select the desired curling barrel.
3. Align the barrel with the main handle, matching the triangular marking on both parts.
4. Gently push the barrel into the handle until it clicks securely into place. Ensure it is firmly seated and does not wobble.

3.2. Detaching a Barrel

1. Ensure the appliance is unplugged and completely cool.
2. Press and hold the release button located below the triangular marking on the handle.
3. While holding the button, gently pull the barrel away from the handle.
4. You can now replace it with another barrel or store it.

Image 3.1: Visual guide for attaching and detaching the curling iron barrels. The left side shows aligning and inserting the barrel, while the right side shows pressing the release button and pulling the barrel off.

4. Operating Instructions

Follow these steps for safe and effective use of your MOCEMTRY curling iron set.

4.1. Preparing Your Hair

• Ensure your hair is clean, dry, and tangle-free.
• Apply a heat protectant spray to your hair to minimize heat damage.
• Section your hair using the provided hair clips for easier styling.

4.2. Powering On and Temperature Selection

1. Plug the appliance into a suitable power outlet.
2. Press the power button to turn on the curling iron.
3. Select your desired temperature setting:
   • 180°C: For fine, delicate, or color-treated hair.
   • 230°C: For thick, coarse, or naturally curly hair.
4. Allow the curling iron to heat up. It reaches ideal temperature in approximately 20 seconds and maximum temperature in 30 seconds.

Image 4.1: Illustration of the curling iron's fast heating capability, indicating it reaches optimal temperature quickly.

4.3. Curling Your Hair

• Wear the provided heat-resistant glove on the hand you will use to wrap hair around the barrel.
• Take a small section of hair (about 1-2 inches wide).
• Wrap the hair section around the heated barrel, starting from the root and wrapping towards the tip, or vice versa depending on the desired curl type.
• Hold for 5-10 seconds, or longer for tighter curls, but do not exceed 15 seconds to prevent damage.
• Release the hair gently from the barrel.
• Repeat for all sections of hair.
• For beach waves, use the 3-barrel waver attachment. Clamp a section of hair between the barrels and hold for a few seconds, then move down the section.

Image 4.2: A user demonstrating the application of the 3-barrel waver attachment to create professional-looking, long-lasting beach waves.

Image 4.3: This image displays the five different barrel sizes included in the set (32mm, 19-25mm conical, 25mm triple barrel, 25mm bubble, and 9-15mm conical) and illustrates the variety of hairstyles that can be achieved with each, from loose waves to tight curls.

4.4. Finishing Your Style

• Allow curls to cool completely before touching or brushing them to help set the style.
• Lightly spray with hairspray to hold the style in place.

4.5. Powering Off

• Press and hold the power button to turn off the appliance.
• Unplug the appliance from the power outlet.
• Allow the barrels to cool down completely before handling or storing.

5. Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your curling iron set.

5.1. Cleaning

• Always ensure the appliance is unplugged and completely cool before cleaning.
• Wipe the barrels and handle with a soft, damp cloth.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the ceramic coating.
• Ensure no water enters the main handle or electrical components.

5.2. Storage

• Store the curling iron and its attachments in a dry, cool place, away from direct sunlight and moisture.
• Do not wrap the power cord tightly around the appliance, as this can damage the cord.
• Keep out of reach of children.

6. Troubleshooting

If you encounter any issues with your MOCEMTRY curling iron set, refer to the following common problems and solutions.

7. Specifications

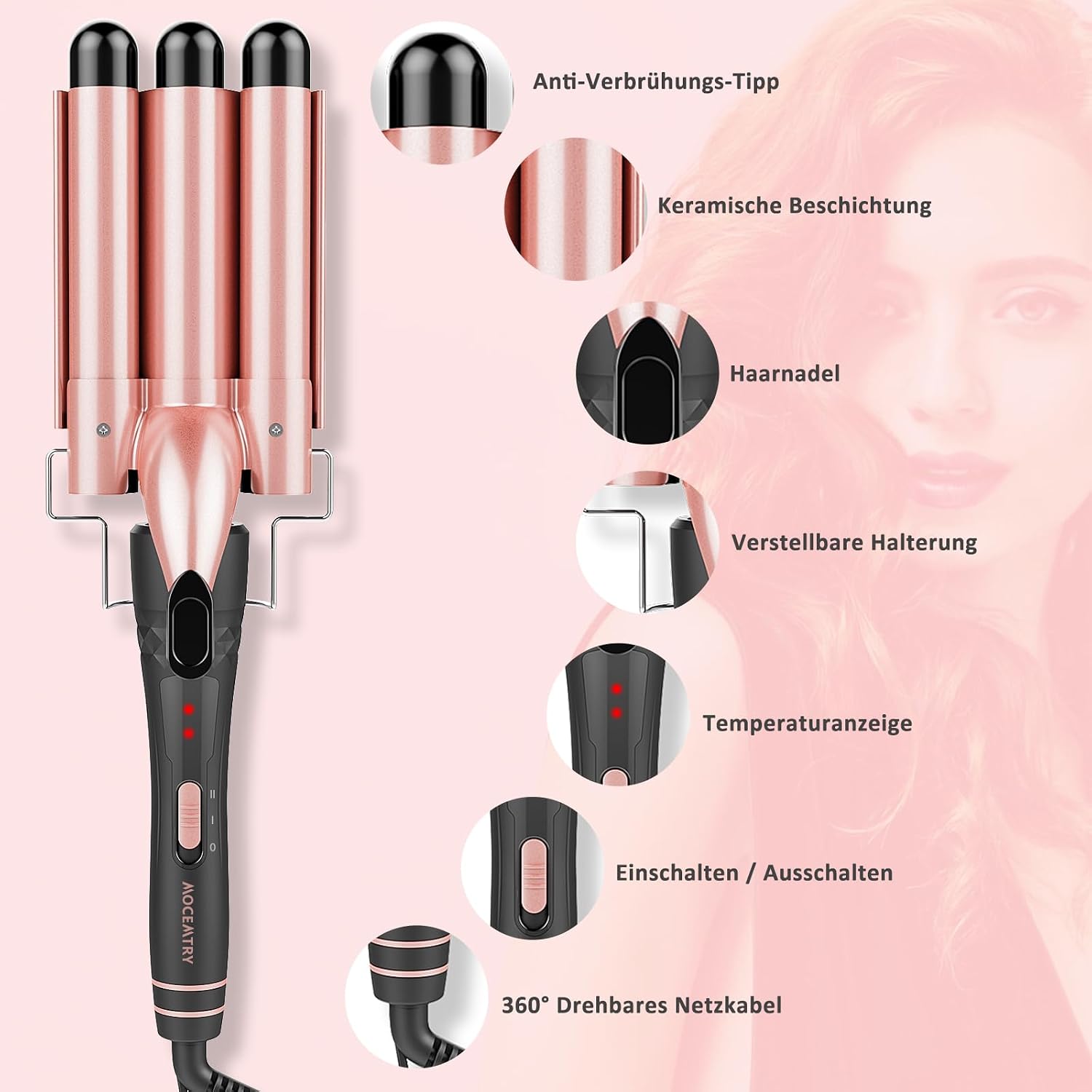

Image 7.1: Detailed view of the curling iron's features, including the anti-scald tip, ceramic coating, hair clip, adjustable stand, temperature display, power switch, and 360° swivel power cord.

8. Warranty and Support

MOCEMTRY provides a one-year after-sales service for this 5-in-1 curling iron set, as stated in the product description.

For any questions, concerns, or warranty claims, please contact MOCEMTRY customer support through your purchase platform or the contact information provided with your product packaging.

Please retain your proof of purchase for warranty purposes.
