Deaf Bonce Machete MF-10S-D2 10-inch Subwoofer User Manual
Model: MF-10S-D2
Brand: Deaf Bonce
1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Deaf Bonce Machete MF-10S-D2 10-inch Subwoofer. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.
The Deaf Bonce Machete MF-10S-D2 is a high-performance 10-inch subwoofer designed to deliver deep and powerful bass. It features a dual 2-Ohm voice coil configuration for flexible wiring options and robust construction for durability.

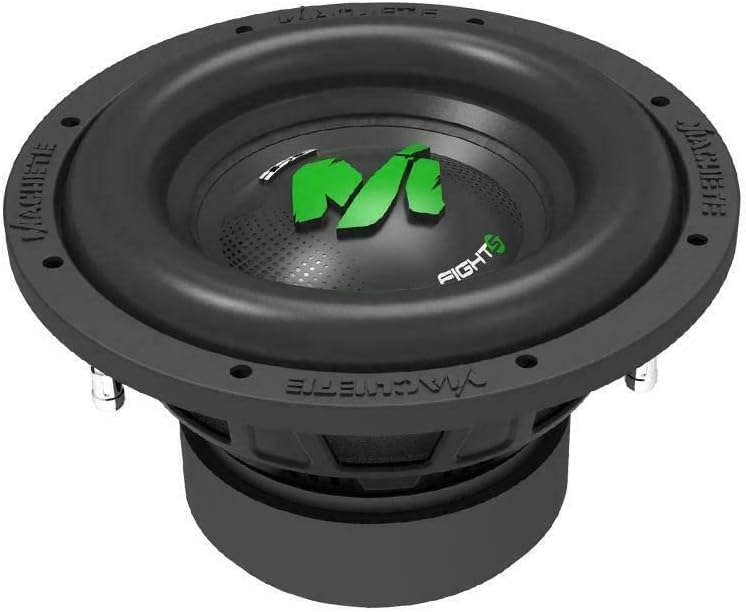

Image: Angled view of the Deaf Bonce Machete MF-10S-D2 10-inch Subwoofer, showcasing its design.
2. Safety Information
Always observe the following safety precautions:
- Disconnect the vehicle's battery before any installation or wiring to prevent electrical shorts.
- Ensure all wiring is properly insulated and secured to prevent damage and short circuits.
- Do not expose the subwoofer to excessive moisture or extreme temperatures.
- Use appropriate gauge wiring for power and speaker connections to handle the subwoofer's power requirements.
- Avoid operating the subwoofer at distortion levels, as this can cause permanent damage to the speaker and amplifier.
- Consult a professional installer if you are unsure about any aspect of the installation process.
3. What's in the Box
Upon unpacking, please verify that all items are present and undamaged:
- 1 x Deaf Bonce MF-10S D2 Subwoofer
Image: Front view of the Deaf Bonce Machete MF-10S-D2 10-inch Subwoofer, showcasing the cone and surround.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your subwoofer. This section provides general guidelines. Specific enclosure designs and wiring configurations may vary.
4.1 Enclosure Selection
The MF-10S-D2 subwoofer requires a suitable enclosure for optimal sound reproduction. Consult a car audio specialist or use recommended enclosure specifications for sealed or ported designs that match the subwoofer's parameters.
4.2 Wiring Connections
The MF-10S-D2 features dual 2-Ohm voice coils, offering flexibility in wiring configurations to match your amplifier's impedance requirements. Common configurations include:
- 1 Ohm Load: Wire both 2-Ohm voice coils in parallel. This configuration presents a 1-Ohm load to the amplifier.
- 4 Ohm Load: Wire both 2-Ohm voice coils in series. This configuration presents a 4-Ohm load to the amplifier.
Always ensure correct polarity (+ to + and - to -) for all connections. Incorrect wiring can lead to poor sound quality or damage to the subwoofer and amplifier.
Image: Side view of the subwoofer, highlighting the dual voice coil terminals for wiring connections.
4.3 Mounting
Securely mount the subwoofer within its enclosure using appropriate fasteners. Ensure there is no air leakage around the mounting flange, as this can negatively impact performance.
5. Operating Instructions
Once installed, follow these guidelines for optimal operation:
- Amplifier Matching: Ensure your amplifier's power output and impedance capabilities are compatible with the MF-10S-D2 subwoofer. The subwoofer has a maximum power handling of 1600 Watts.
- Gain Setting: Set the amplifier's gain control carefully. Start with the gain at its minimum and slowly increase it until the desired volume is achieved without distortion. Do not use the gain control as a volume knob.
- Crossover Settings: Utilize your amplifier's or head unit's low-pass filter (LPF) to send only low frequencies to the subwoofer. A typical LPF setting for a 10-inch subwoofer might be between 60Hz and 100Hz.
- Break-in Period: Allow a break-in period of several hours of moderate listening before operating the subwoofer at high volumes. This allows the suspension components to loosen and perform optimally.
6. Maintenance
The Deaf Bonce Machete MF-10S-D2 subwoofer requires minimal maintenance:
- Keep the subwoofer clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Avoid applying excessive pressure to the cone or surround.
- Regularly check wiring connections for tightness and corrosion.
7. Troubleshooting
If you experience issues with your subwoofer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from subwoofer | No power to amplifier; incorrect wiring; amplifier in protect mode; low input signal. | Check power connections, fuses, and ground. Verify speaker wiring polarity and impedance. Check amplifier status indicators. Ensure head unit is sending signal. |
| Distorted or unclear bass | Amplifier gain set too high; incorrect crossover settings; damaged subwoofer; poor enclosure. | Reduce amplifier gain. Adjust LPF settings. Inspect subwoofer for physical damage. Verify enclosure integrity. |
| Subwoofer cuts out intermittently | Loose wiring connections; amplifier overheating; impedance mismatch. | Check all wiring for secure connections. Ensure adequate ventilation for amplifier. Verify correct impedance wiring. |
8. Specifications
Detailed technical specifications for the Deaf Bonce Machete MF-10S-D2 Subwoofer:
| Model Name | MF-10S-D2 |
| Speaker Type | Subwoofer |
| Subwoofer Diameter | 10 Inches |
| Voice Coil Configuration | Dual 2-Ohm |
| Speaker Maximum Output Power | 1600 Watts |
| Material | Ferrite (Magnet), Paper (Cone), Foam (Surround) |
| Product Dimensions | 10"D x 10"W x 1"H (Note: This dimension may refer to a specific part or mounting depth. Refer to manufacturer's detailed specifications for full product dimensions.) |
| Item Weight | 16.5 Pounds |
| Manufacturer | Alphard Group |
| UPC | 795958008931 |
Image: Rear view of the subwoofer, displaying the magnet structure and product label with specifications.
9. Warranty and Support
The Deaf Bonce Machete MF-10S-D2 Subwoofer is covered by a limited manufacturer's warranty. Please refer to the warranty documentation included with your purchase for specific terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact Deaf Bonce customer service or visit their official website. You can also visit the Deaf Bonce Store on Amazon for more information.
