iGear iG-1012

iGear Duo Charging Cable User Manual

Model: iG-1012 | Brand: iGear

Product Overview

The iGear Duo Charging Cable is a versatile 2-in-1 solution designed for efficient charging and data synchronization across a wide range of devices. It features both a Type-C to Type-C connection and a Type-C to iPhone-pin connection, making it compatible with various smartphones, laptops, power banks, and other USB-C and Lightning-enabled devices.

Key features include:

Dual Connectivity: Offers both Type-C to Type-C and Type-C to iPhone-pin connections in a single cable.
Fast Charging: Supports 65W Power Delivery (PD) for Type-C to Type-C connections and 20W fast charging for Type-C to iPhone-pin connections.
High Durability: Constructed with a durable nylon braided exterior designed to resist breakage and withstand over 50,000 bends.
Wide Compatibility: Compatible with a broad range of devices including Android phones, iPhones, laptops, power banks, and speakers.
Data Sync Capability: Enables high-speed data transfer up to 480Mbps.

iGear Duo Charging Cable with Type-C and Lightning connectors

Image: The iGear Duo Charging Cable showcasing its Type-C and detachable Lightning connectors, highlighting its dual functionality.

Setup Guide

The iGear Duo Charging Cable is designed for plug-and-play simplicity. No complex setup or software installation is required.

Identify Device Port: Determine whether your device requires a Type-C connection or an iPhone-pin (Lightning) connection.
Select Connector:
- For Type-C devices: Use the integrated Type-C connector.
- For iPhone-pin (Lightning) devices: Attach the Lightning adapter to the Type-C connector. The Lightning adapter is designed to securely fit onto the Type-C end of the cable.
Connect to Power Source/Device: Plug the appropriate connector into your device (phone, laptop, etc.) and the other Type-C end into a compatible power adapter (wall charger, power bank) or another device for data transfer.

Operating Instructions

Charging Devices

The iGear Duo Charging Cable supports fast charging for both Type-C and iPhone-pin devices. Ensure your power adapter supports Power Delivery (PD) for optimal charging speeds.

For Type-C Devices: Connect the Type-C end of the cable to your device and the other Type-C end to a 65W PD compatible power adapter.
For iPhone-pin Devices: Attach the Lightning adapter to the cable's Type-C end, then connect it to your iPhone-pin device. Plug the other Type-C end into a 20W PD compatible power adapter.

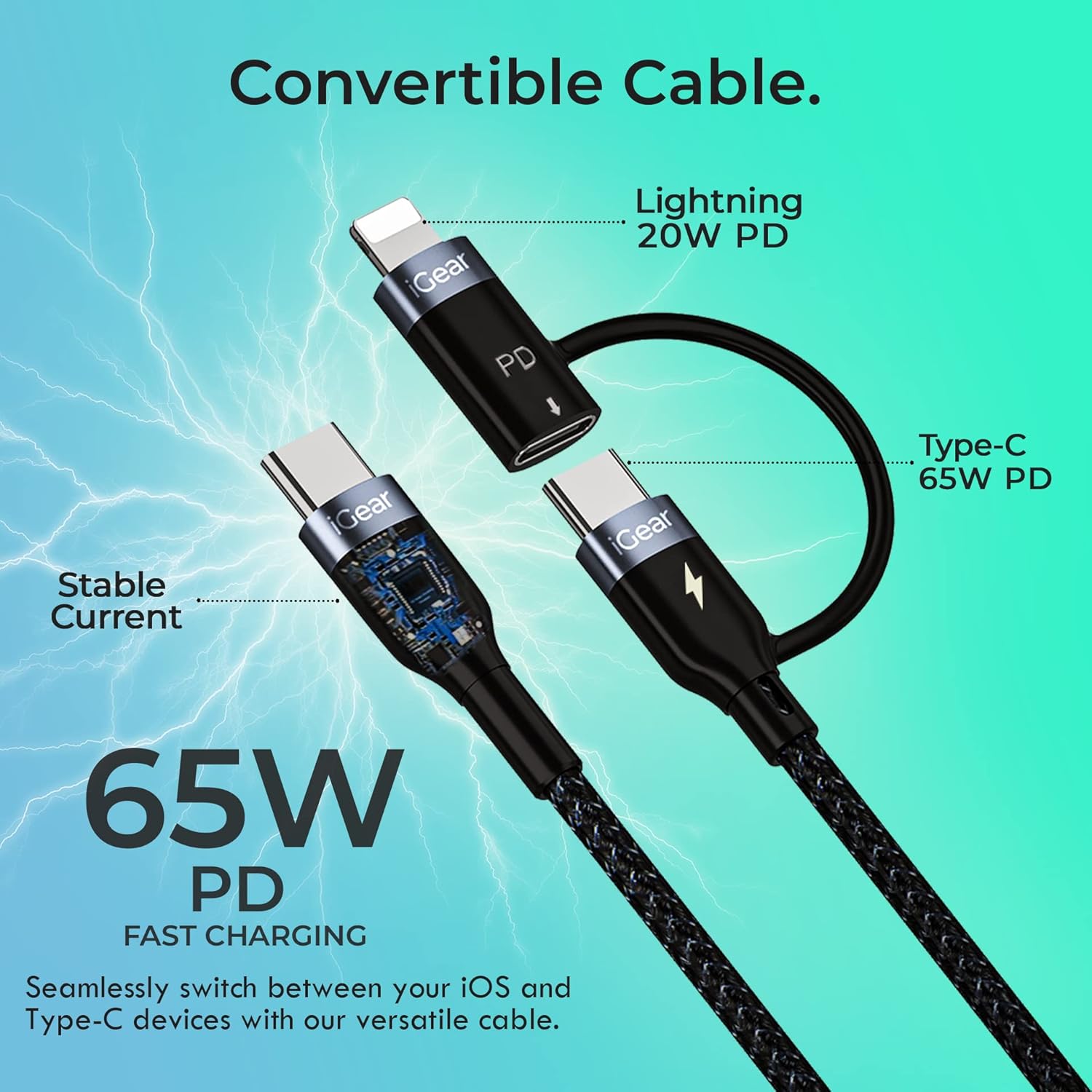

Diagram showing iGear Duo Cable's convertible design with Lightning and Type-C connectors and their respective PD wattages

Image: A visual representation of the cable's convertible design, illustrating how the Lightning adapter connects to the Type-C end, and specifying 20W PD for Lightning and 65W PD for Type-C.

Data Transfer

The cable facilitates high-speed data transfer between compatible devices, such as a smartphone and a laptop.

Connect Devices: Plug one end of the cable into your device (e.g., smartphone) and the other end into the data port of another device (e.g., laptop).
Initiate Transfer: Follow the prompts on your devices to allow data access and begin transferring files. The cable supports data transfer speeds of up to 480Mbps.

Hand holding a smartphone connected to the iGear Duo Cable, displaying 65W Fast Charging and indicating 480Mbps Data Transfer

Image: A hand holding a smartphone connected via the iGear Duo Cable, with text overlays indicating "65W Fast Charging" and "Upto 480Mbps Data Transfer," demonstrating its dual capabilities.

Care and Maintenance

Proper care will extend the life of your iGear Duo Charging Cable and ensure optimal performance.

Avoid Extreme Bending: While the cable is designed to be durable and withstand many bends, avoid sharp or excessive bending, especially near the connectors, to prevent internal wire damage.
Store Properly: When not in use, coil the cable loosely. Avoid tightly wrapping or knotting the cable, which can stress the internal wires and outer braiding.
Keep Clean: Use a soft, dry cloth to wipe down the cable and connectors. Avoid using harsh chemicals or abrasive materials.
Protect from Elements: Keep the cable away from extreme temperatures, direct sunlight, and moisture.
Handle Connectors Carefully: Always pull from the connector head, not the cable itself, when unplugging from a device or power source.

Cross-section diagram of the iGear Duo Cable showing its internal layers: Rubber Coating, Copper Wire, Aluminium Shield, and Nylon Braided Jacket

Image: A detailed cross-section view of the cable's construction, highlighting its protective layers: rubber coating for insulation, copper wire for power, aluminum shield for protection, and a nylon braided jacket for durability.

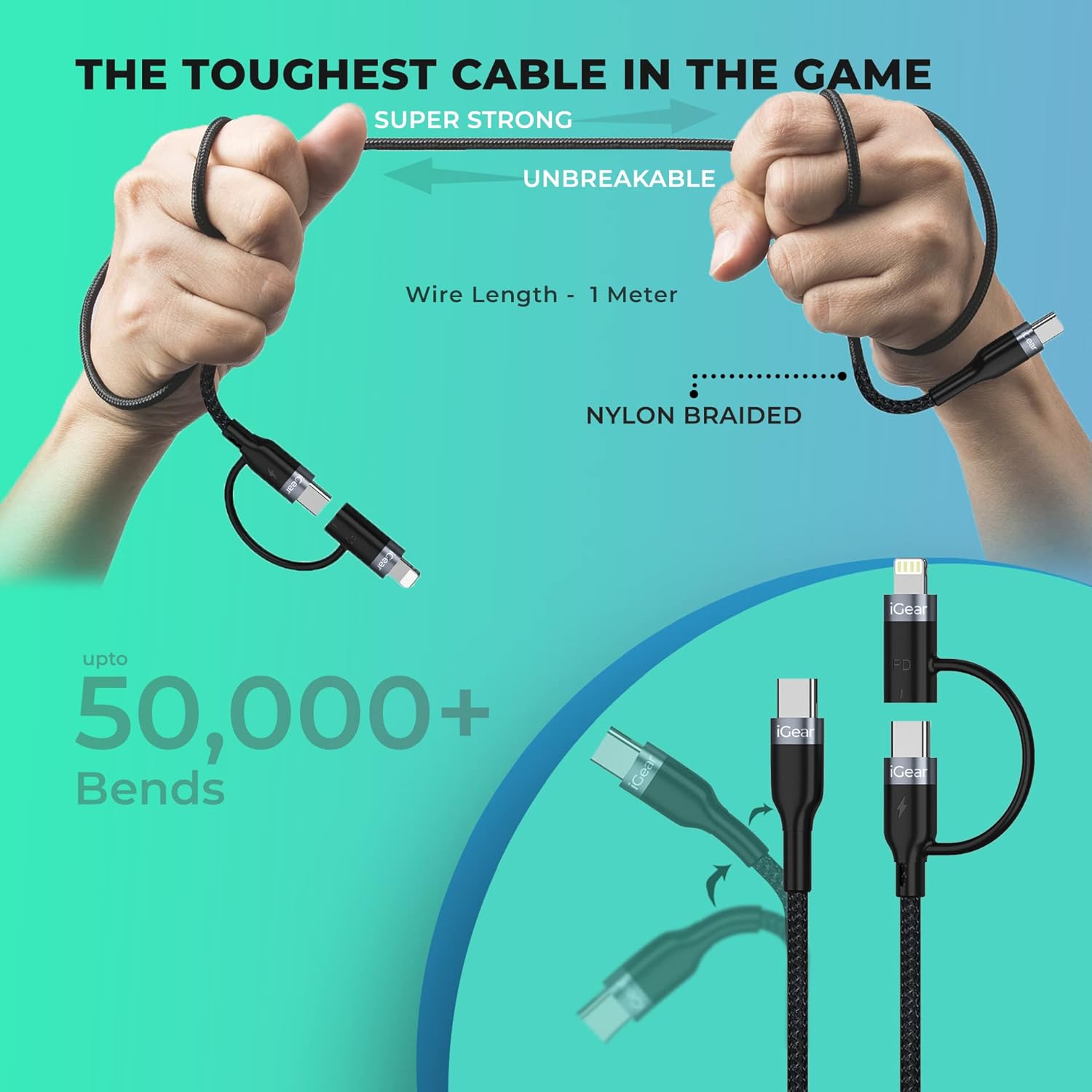

Image demonstrating the iGear Duo Cable's flexibility and durability, with text indicating 'Unbreakable' and 'Upto 50,000+ Bends'

Image: A visual representation of the cable's robust design, showing it being bent and twisted, emphasizing its "Super Strong" and "Unbreakable" nylon braided construction, capable of withstanding over 50,000 bends.

Troubleshooting

If you encounter issues with your iGear Duo Charging Cable, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Device not charging.	Loose connection, incompatible power adapter, dirty port, or damaged cable.	Ensure both ends of the cable are securely plugged in. Verify your power adapter meets the device's charging requirements (e.g., 65W PD for Type-C, 20W PD for Lightning). Clean device charging port gently with a non-conductive tool. Try a different power adapter or device to isolate the issue.
Slow charging speed.	Power adapter not supporting PD, device drawing less power, or background apps consuming power.	Use a power adapter that supports Power Delivery (PD) with appropriate wattage (65W for Type-C, 20W for Lightning). Close unnecessary background applications on your device. Ensure the cable is not damaged.
Data transfer not working.	Incorrect connection, device settings, or driver issues.	Confirm the cable is connected to data-enabled ports on both devices. Check device settings to ensure data transfer is enabled (e.g., "File Transfer" mode on Android). Restart both devices. Ensure necessary drivers are installed on your computer.

Technical Specifications

Feature	Specification
Brand	iGear
Model Number	iG-1012
Connector Type	USB Type C, Lightning (via adapter)
Cable Type	USB
Power Delivery (Type-C to Type-C)	Up to 65W PD
Power Delivery (Type-C to iPhone-pin)	Up to 20W PD
Data Transfer Speed	Up to 480Mbps
Compatible Devices	Headphone, Laptop, Power Bank, Smartphone, Speaker (Android & iPhone)
Special Features	Braided, Data Transfer, Durable
Colour	Black
Outer Material	Nylon
Item Weight	40 g
Package Dimensions	16.2 x 8.3 x 2.3 cm
Included Components	1 charging cable

Warranty and Support

Warranty Information

The iGear Duo Charging Cable comes with a 1 Year Warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.

Please retain your purchase receipt as proof of purchase for warranty claims.

Customer Support

For any product-related inquiries, technical assistance, or warranty claims, please contact iGear customer support:

Manufacturer: IGEAR TECH PRIVATE LIMITED
Address: Goregaon East, Mumbai 400063
Contact Number: 9327667193

You may also visit the official iGear store on Amazon for more information and product updates: iGear Amazon Store
