NOVOSTELLA 40ft Waterproof Tunable White LED Strip Lights Instruction Manual

1. Introduction and Overview

Thank you for choosing the NOVOSTELLA 40ft Waterproof Tunable White LED Strip Lights. This versatile lighting solution offers dimmable illumination with adjustable color temperatures ranging from warm white (3000K) to daylight white (6500K). Designed for both indoor and outdoor use, its waterproof construction and convenient RF remote control make it ideal for various applications, enhancing the ambiance and functionality of your space.

2. Package Contents

Please verify that all components are present in your package:

• 40ft (12.19 meters) Waterproof Tunable White LED Strip Light
• RF Remote Controller
• Power Supply (Adapter)
• Mounting Screws

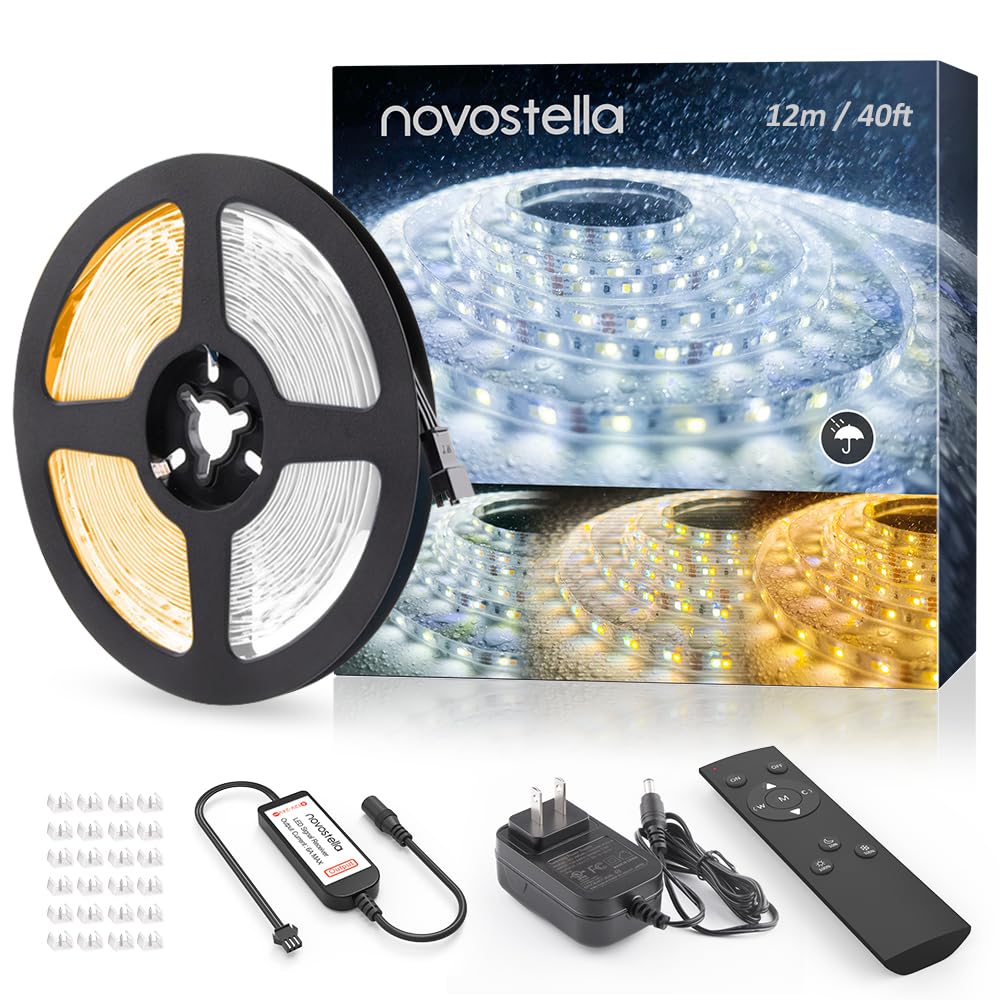

Image: Components of the NOVOSTELLA 40ft Waterproof Tunable White LED Strip Light kit, including the coiled strip, remote, and power adapter.

3. Specifications

Image: Comparison of NOVOSTELLA LED strip lights with other brands, detailing superior length, waterproof rating, LED density, and RF remote control.

4. Safety Instructions

• The LED strip itself is waterproof (IP65 rated), making it suitable for wet environments.
• The power adapter and RF remote controller are NOT waterproof (IP20 rated). Ensure these components are installed in a dry location, away from water and moisture.
• Do not cut the LED strip. This product is designed as a continuous 40ft strip and is not cuttable. Cutting the strip will damage it and void the warranty.
• Ensure the power supply voltage matches the product's requirements (12V).
• Avoid bending the strip at sharp angles, as this may damage the LEDs or internal wiring.
• Keep the product out of reach of children.

Image: A hand holding the flexible LED strip, illustrating its safe and pliable silicone material.

Image: A visual warning indicating that the LED strip is not designed to be cut.

5. Installation

The NOVOSTELLA LED strip lights offer two primary installation methods: using the pre-applied self-adhesive backing or securing with the included mounting screws.

Preparation:

1. Unroll the LED strip completely before powering it on to prevent overheating.
2. Clean the installation surface thoroughly. Ensure it is dry, smooth, and free of dust or grease for optimal adhesion.
3. Plan your desired layout. Avoid sharp bends.

Method 1: Self-Adhesive Backing

1. Peel off a small section of the protective film from the adhesive backing.
2. Carefully press the exposed adhesive part of the strip onto the cleaned surface.
3. Continue peeling the film and pressing the strip firmly along your desired path, ensuring good contact.

Method 2: Mounting Screws

For rougher surfaces or enhanced security, use the provided mounting screws:

1. Position the LED strip along your desired path.
2. Use the included clips and screws to secure the strip at regular intervals, typically every 1-2 feet, or as needed to ensure stability.
3. Ensure the screws do not pierce the LED strip itself.

Connecting the Power:

1. Connect the LED strip to the RF remote controller.
2. Connect the RF remote controller to the power adapter.
3. Plug the power adapter into a suitable power outlet.

Image: Illustration showing two installation methods for the LED strip: peeling the adhesive backing and securing with clips and screws.

Image: Various application examples of the LED strip lights, including outdoor eaves, living room accent lighting, under-cabinet kitchen lighting, and poolside illumination.

6. Operating Instructions

Your NOVOSTELLA LED strip lights are controlled using the included RF remote. The RF technology allows for 360° control with a working distance of up to 40-45ft, even through obstacles.

Remote Control Functions:

• ON/OFF: Press to turn the lights on or off.
• Brightness Adjustment (Up/Down Arrows): Increase or decrease the brightness (10 levels available).
• Color Temperature Adjustment (W/C Arrows): Adjust the color temperature from Warm White (3000K) to Daylight White (6500K).
• Mode (M) Button: Cycle through preset white light modes (e.g., Warm White, Cool White, Neutral White).
• 10% / Night Light Mode: Instantly set the brightness to 10% for a soft night light.
• 100% / Full Brightness: Instantly set the brightness to 100%.
• 100% Warm White / 100% Cool White: Dedicated buttons for full brightness at either 3000K or 6500K.

Image: Detailed diagram of the RF Remote Controller, showing all buttons and their corresponding functions for power, brightness, color temperature, and preset modes.

Image: Visual demonstration of the tunable white and dimmable features, showcasing the range from warm white (3000K) to cool white (6000K) and adjustable brightness.

7. Maintenance

• Cleaning: Gently wipe the LED strip with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the strip is unplugged before cleaning.
• Connection Check: Periodically inspect all connections (strip to controller, controller to adapter, adapter to outlet) to ensure they are secure and free from damage.
• Storage: If storing the strip for an extended period, ensure it is clean, dry, and coiled loosely to prevent damage.

8. Troubleshooting

• Lights Not Turning On:
  • Check if the power adapter is securely plugged into the outlet and the controller.
  • Ensure the LED strip is correctly connected to the controller.
  • Verify the power outlet is functional by plugging in another device.
• Remote Not Responding:
  • Ensure there are no significant obstructions between the remote and the controller.
  • Check if the remote's battery needs replacement (if applicable, though typically RF remotes have long battery life).
• Inconsistent Brightness or Color:
  • Check all connections for looseness.
  • Ensure the power adapter is providing stable power.
  • Avoid extreme temperatures, which can affect LED performance.

9. Warranty and Support

NOVOSTELLA products are manufactured to the highest quality standards. For warranty information, technical support, or any inquiries regarding your LED strip lights, please refer to the contact details provided in your product packaging or visit the official NOVOSTELLA website. Please retain your proof of purchase for warranty claims.
