1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Deaf Bonce Machete Series LW-80A4 Mid-Bass Speakers. These 8-inch speakers are designed to deliver clear and impactful mid-bass frequencies, enhancing your audio system's performance. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your speakers.
2. Safety Information
Observe the following safety precautions to prevent damage to the product or injury to yourself:
- Professional Installation Recommended: Installation of car audio components may require experience with electrical wiring and vehicle disassembly. If you are unsure, consult a qualified professional.
- Power Disconnection: Always disconnect the vehicle's battery negative terminal before beginning any electrical work to prevent short circuits and electrical shock.
- Proper Wiring: Ensure all wiring connections are secure and insulated to prevent short circuits and potential damage to the speakers or amplifier. Use appropriate gauge wire for power and speaker connections.
- Ventilation: Ensure adequate ventilation around the speakers and amplifier to prevent overheating.
- Volume Levels: Prolonged exposure to high volume levels can cause hearing damage. Operate your audio system responsibly.
- Component Matching: Ensure your amplifier's power output matches the speaker's RMS power handling to prevent damage.
3. Package Contents
Verify that all items are present in the package:
- (2) Deaf Bonce Mid-Bass Speakers LW-80A4
Image 3.1: Retail packaging for the Deaf Bonce LW-80A4 Mid-Bass Speakers. The box displays the model number and brand logo.
4. Product Features
The Deaf Bonce Machete Series LW-80A4 Mid-Bass Speakers offer the following key features:
- Punchy Mid-Bass Response: Delivers clear and impactful mid-bass tones with 100W RMS power handling.
- Single Voice Coil Design: Features a 4-ohm SVC setup for straightforward integration and optimal performance.
- Durable Construction: Built to withstand high output levels, ensuring long-lasting reliability.
- Compact Size: The 8-inch diameter allows for versatile installation in various audio setups.
- Enhanced Audio Clarity: Elevates your sound system with deep, resonant bass tones for a richer listening experience.
5. Specifications
Detailed technical specifications for the LW-80A4 Mid-Bass Speaker:
| Specification | Value |
|---|---|
| Model | LW-80A4 |
| Type | Midbass |
| Size | 8 Inch |
| Frequency Response | 29 - 4000 Hz |
| Magnet Material | Ferrite |
| RMS Power | 100 W |
| MAX Power | 200 W |
| Impedance | 4 Ohm |
| SPL (Sensitivity) | 91.00 dB |
| Mounting Depth | 3.58 inches (91 mm) |
| Cutout Dimensions | 7.19 inches (182.6 mm) |
| Item Weight (per speaker) | 6 pounds (2.72 kg) |
| Product Dimensions (approx.) | 8"D x 8"W x 1.6"H (20.3cm x 20.3cm x 4.1cm) |

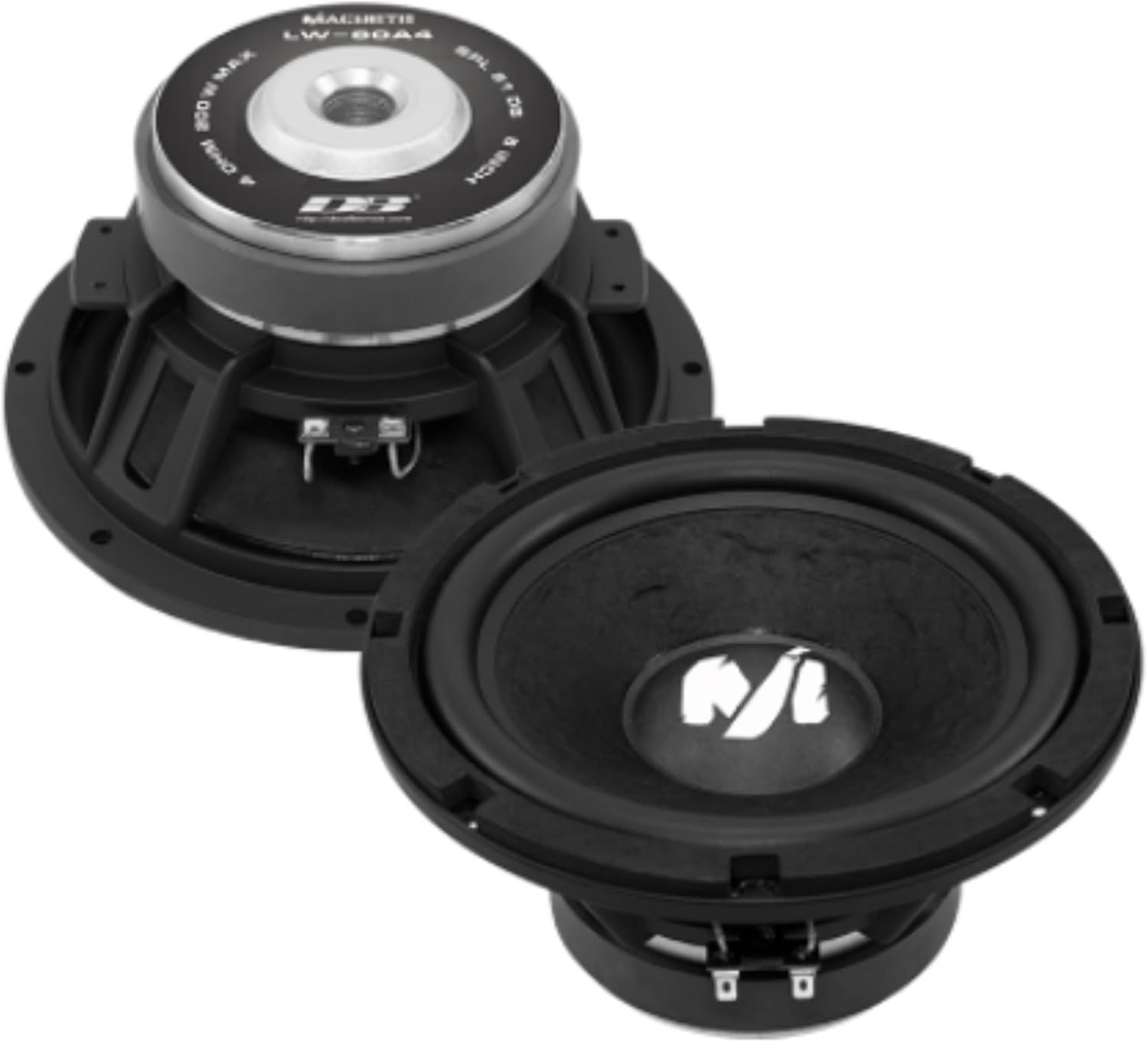

Image 5.1: Front and rear view of the Deaf Bonce LW-80A4 speakers, showing the cone, surround, and magnet structure with terminals.
6. Setup and Installation
Proper installation is crucial for optimal performance and safety. It is highly recommended that installation be performed by a qualified car audio professional.
6.1 Mounting Considerations
- Location: Choose a mounting location that provides sufficient depth and clearance for the speaker. Refer to the "Mounting Depth" and "Cutout Dimensions" in the specifications.
- Enclosure: These mid-bass speakers perform best in a properly sealed or ported enclosure designed for their specific parameters. Consult with an audio specialist for custom enclosure designs if needed.
- Secure Mounting: Use appropriate hardware to securely fasten the speakers to prevent vibrations and ensure stable performance.
Image 6.1: Front view of a single LW-80A4 speaker, highlighting the cone and surround.
6.2 Wiring Instructions
The LW-80A4 features a 4-ohm Single Voice Coil (SVC) design. Proper wiring is essential to match the speaker's impedance with your amplifier's output capabilities.
- Speaker Terminals: Connect the positive (+) terminal of the speaker to the positive (+) output of your amplifier. Connect the negative (-) terminal of the speaker to the negative (-) output of your amplifier.
- Wire Gauge: Use appropriate gauge speaker wire (e.g., 14-16 gauge for typical installations) to minimize power loss and ensure clear signal transmission.
- Multiple Speakers: When wiring multiple speakers, ensure the final impedance presented to the amplifier is within its stable operating range. For two 4-ohm SVC speakers:
- Parallel Wiring: Connect positive to positive, and negative to negative. This results in a 2-ohm load (4 ohms / 2 speakers = 2 ohms).
- Series Wiring: Connect the positive of one speaker to the negative of the other. Connect the remaining positive and negative to the amplifier. This results in an 8-ohm load (4 ohms + 4 ohms = 8 ohms).
- Insulation: Ensure all connections are tightly secured and properly insulated to prevent short circuits.

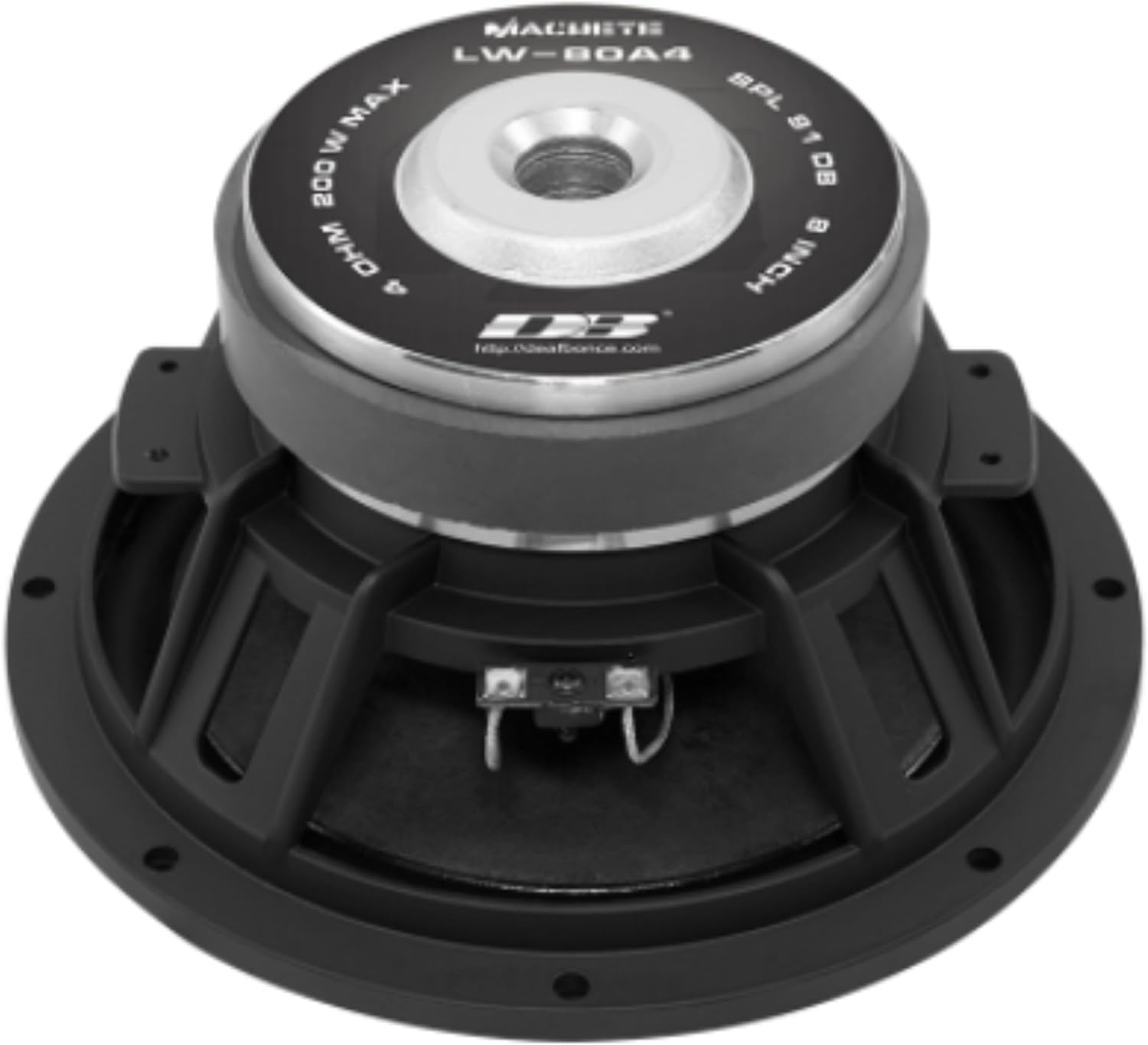

Image 6.2: Rear view of a single LW-80A4 speaker, detailing the magnet structure and speaker terminals for wiring connections.
7. Operating Instructions
Once installed, follow these guidelines for optimal operation:
- Initial Power-Up: Start with the amplifier's gain settings at their lowest. Gradually increase the volume and gain to a comfortable listening level, ensuring no distortion is present.
- Amplifier Matching: Ensure your amplifier's RMS power output is within the recommended range for the LW-80A4 speakers (100W RMS). Overpowering or underpowering can lead to speaker damage.
- Crossover Settings: Utilize your amplifier's or head unit's crossover settings to filter out frequencies outside the speaker's optimal range (29 - 4000 Hz). A high-pass filter set around 60-80 Hz is typically recommended for mid-bass speakers to prevent over-excursion at very low frequencies.
- Avoid Distortion: If you hear any distortion, reduce the volume or gain immediately. Distortion indicates that the amplifier or speakers are being overdriven, which can cause permanent damage.
8. Maintenance
The Deaf Bonce LW-80A4 speakers require minimal maintenance to ensure long-term performance:
- Cleaning: Periodically wipe the speaker cones and surrounds with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or excessive moisture.
- Inspection: Regularly inspect the speaker surrounds and cone for any signs of damage, tears, or deterioration. Check wiring connections for tightness and corrosion.
- Environmental Factors: Protect speakers from extreme temperatures, direct sunlight, and excessive moisture, which can degrade materials over time.
9. Troubleshooting
If you encounter issues with your speakers, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speaker |
|
|
| Distorted or unclear sound |
|
|
| Weak or absent bass |
|
|
If the problem persists after attempting these solutions, contact customer support or a qualified technician.
10. Warranty Information
Deaf Bonce products are covered by a limited warranty. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.
For detailed warranty information, including coverage, exclusions, and the claims process, please refer to the official Deaf Bonce website or contact your authorized dealer.
11. Support
For technical assistance, product inquiries, or support regarding your Deaf Bonce Machete Series LW-80A4 speakers, please contact:
- Your authorized Deaf Bonce retailer or installer.
- The official Deaf Bonce customer support channels, which can typically be found on their website.
When contacting support, please have your product model number (LW-80A4) and proof of purchase readily available.
