1. Product Overview
Thank you for choosing the Espird 3-Light 21-inch Black Vanity Light. This fixture features a matte black finish frame and thickened seeded glass shades, designed for use over a mirror in bathrooms. It is rust-resistant, easy to install, and includes removable glass shades for horizontal mounting. This light is dimmable when used with compatible bulbs and dimmer switches.
Image: Espird 3-Light Black Vanity Light with Seeded Glass Shades, showcasing its modern design.
- Stylish and Modern Vanity Light: Matte black finish frame with thickened seeded glass shades.
- Durable and Easy to Install: Constructed from sturdy metal and thick glass, with a robust mounting plate.
- Versatile Mounting: Can be mounted with lights facing up or down. Suitable for wet indoor scenes.
- E26 Base Compatibility: Designed for E26 base bulbs, max 60W per bulb. Dimmable with compatible bulbs and dimmer.
2. Important Safety Instructions
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries.
- WARNING: To avoid electric shock, disconnect power at the circuit breaker or fuse box before installation.
- All electrical connections must be in accordance with local codes and the National Electric Code (NEC).
- Consult a qualified electrician if you are unsure about the installation process.
- Use only E26 base bulbs, maximum 60 watts per bulb.
- Do not exceed the recommended wattage.
- Handle glass shades with care to prevent breakage.
3. Package Contents
Verify that all parts are included in your package before beginning installation:
- Vanity Light Fixture (1)
- Thickened Seeded Glass Shades (3)
- Mounting Plate (1)
- Hardware Pack (screws, wire nuts)
Image: Detailed view of the thickened seeded glass shade and the sturdy rectangular mounting bracket included with the fixture.
4. Product Specifications
| Feature | Specification |
|---|---|
| Brand | Espird |
| Model Number | W-010-1 |
| Color | Black & Seeded |
| Material | Glass, Metal |
| Style | Modern |
| Light Fixture Form | Sconce |
| Room Type | Bathroom, Entryway, Kitchen, Living Room |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Special Features | Dimmable |
| Number of Light Sources | 3 |
| Wattage | Max 60 watts per bulb |
| Bulb Base | E26 |
| Mounting Type | Wall Mount, Flush Mount |
| Item Dimensions (L x W x H) | 23.6"L x 4.3"W x 8.7"H |
Image: Diagram illustrating the dimensions of the Espird 3-Light Vanity Light fixture.
5. Installation Guide
5.1. Before You Begin
- Turn off the power at the main circuit breaker or fuse box.
- Carefully unpack all components and inspect for any damage.
- Ensure you have all necessary tools (screwdriver, wire strippers, electrical tape, etc.).
5.2. Mounting the Fixture
- Attach the mounting plate to the junction box in your wall using the provided screws. Ensure it is securely fastened.
- The fixture can be mounted with the lights facing upwards or downwards, depending on your preference.
Image: Comparison highlighting the sturdy rectangular mounting bracket of the Espird fixture against a less stable round bracket.
5.3. Wiring
- Connect the fixture's black wire (live) to the black wire from the junction box using a wire nut.
- Connect the fixture's white wire (neutral) to the white wire from the junction box using a wire nut.
- Connect the fixture's ground wire to the ground wire from the junction box (or to the green ground screw on the mounting plate).
- Carefully tuck all wires into the junction box.
5.4. Attaching Glass Shades and Bulbs
- Align the fixture with the mounting plate and secure it with the decorative nuts or screws.
- Screw E26 base bulbs (not included) into each socket. Do not exceed 60 watts per bulb.
- Carefully place each seeded glass shade over the bulb and secure it according to the fixture design.
- Restore power at the circuit breaker.
Video: An instructional video demonstrating the installation process for the Espird Bathroom Vanity Light.
6. Operating Instructions
Once installed and wired correctly, operate the vanity light using your standard wall switch. The fixture is designed to be dimmable. To utilize the dimming feature, ensure you are using dimmable E26 bulbs and a compatible dimmer switch (both sold separately).
Image: Illustration showing the E26 bulb base and various compatible bulb types (bulbs not included).

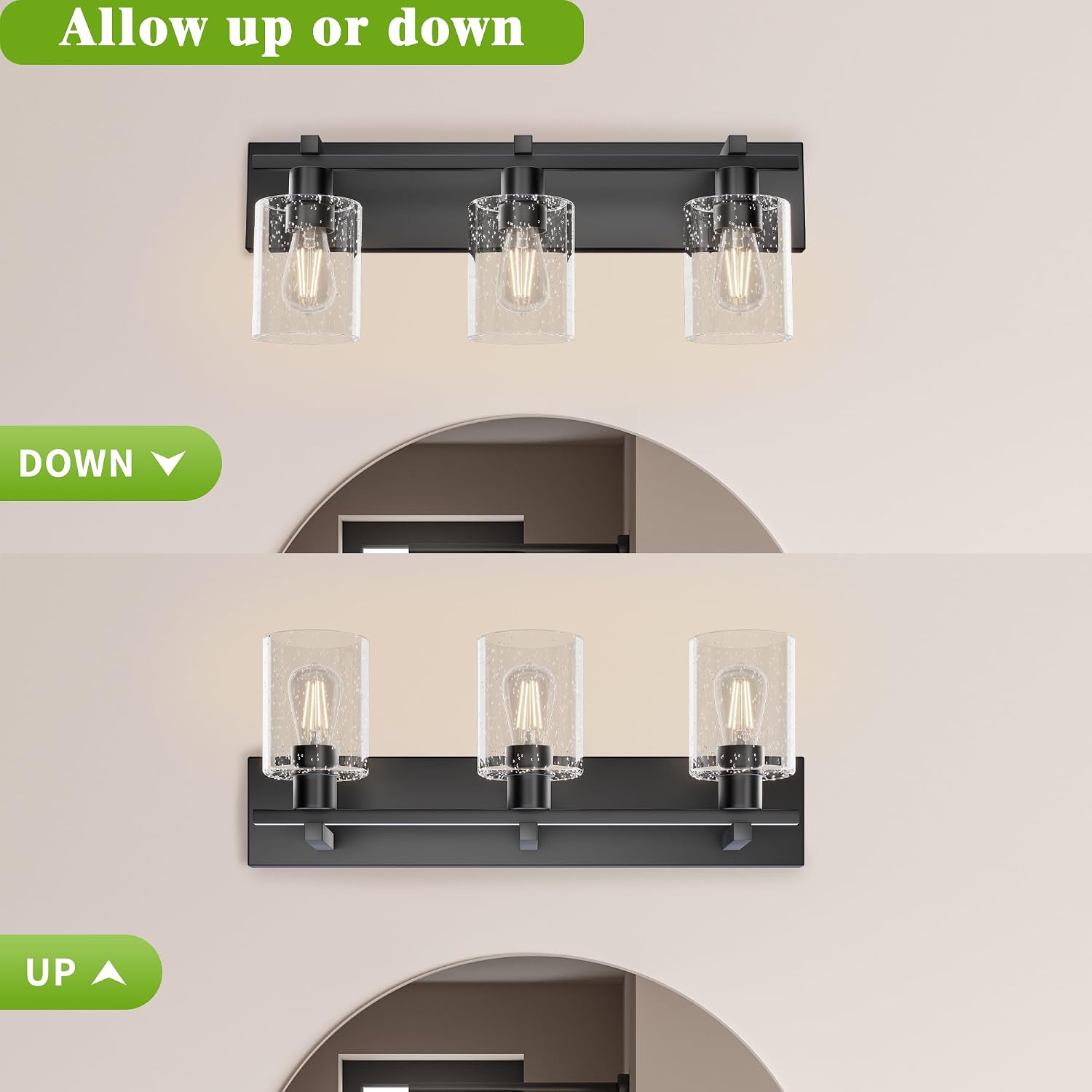

Image: Demonstrates the flexibility of mounting the vanity light with the shades facing either upwards or downwards.
7. Maintenance
To maintain the appearance and functionality of your Espird vanity light, follow these simple care instructions:
- Cleaning the Fixture: Ensure power is off before cleaning. Wipe the metal parts with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the finish.
- Cleaning Glass Shades: The seeded glass shades can be removed for easier cleaning. Wash with mild soap and water, then rinse thoroughly and dry completely before reattaching.
- Bulb Replacement: Always turn off power before replacing bulbs. Allow bulbs to cool before handling.
8. Troubleshooting
If you encounter issues with your vanity light, refer to the table below for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture; loose wiring; faulty bulb. | Check circuit breaker/fuse. Ensure all wire connections are secure. Replace bulb. |
| Light flickers or dims inconsistently. | Loose wiring; incompatible dimmer switch or bulbs. | Check wire connections. Ensure dimmable bulbs are used with a compatible dimmer switch. |
| Glass shade is loose. | Shade not properly secured. | Re-secure the glass shade by tightening its retaining ring or screws. |
If the problem persists after attempting these solutions, please contact customer service.
9. Warranty and Customer Support
Espird is committed to providing quality products. If you encounter any problems during installation or use of your vanity light, our customer service team is available to assist you. We aim to resolve any issues within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official Espird website.
