1. Introduction
The PRIOS Jorell 1-Phase Track System is a modern and versatile lighting solution designed for indoor environments. This system features a 300 cm track with five adjustable spotlights, each equipped with a GU10 lamp holder. It is suitable for various applications in living rooms, dining areas, kitchens, and other indoor spaces, providing flexible and targeted illumination.
This manual provides essential information for the safe installation, proper operation, and routine maintenance of your PRIOS Jorell track lighting system. Please read these instructions carefully before installation and retain them for future reference.

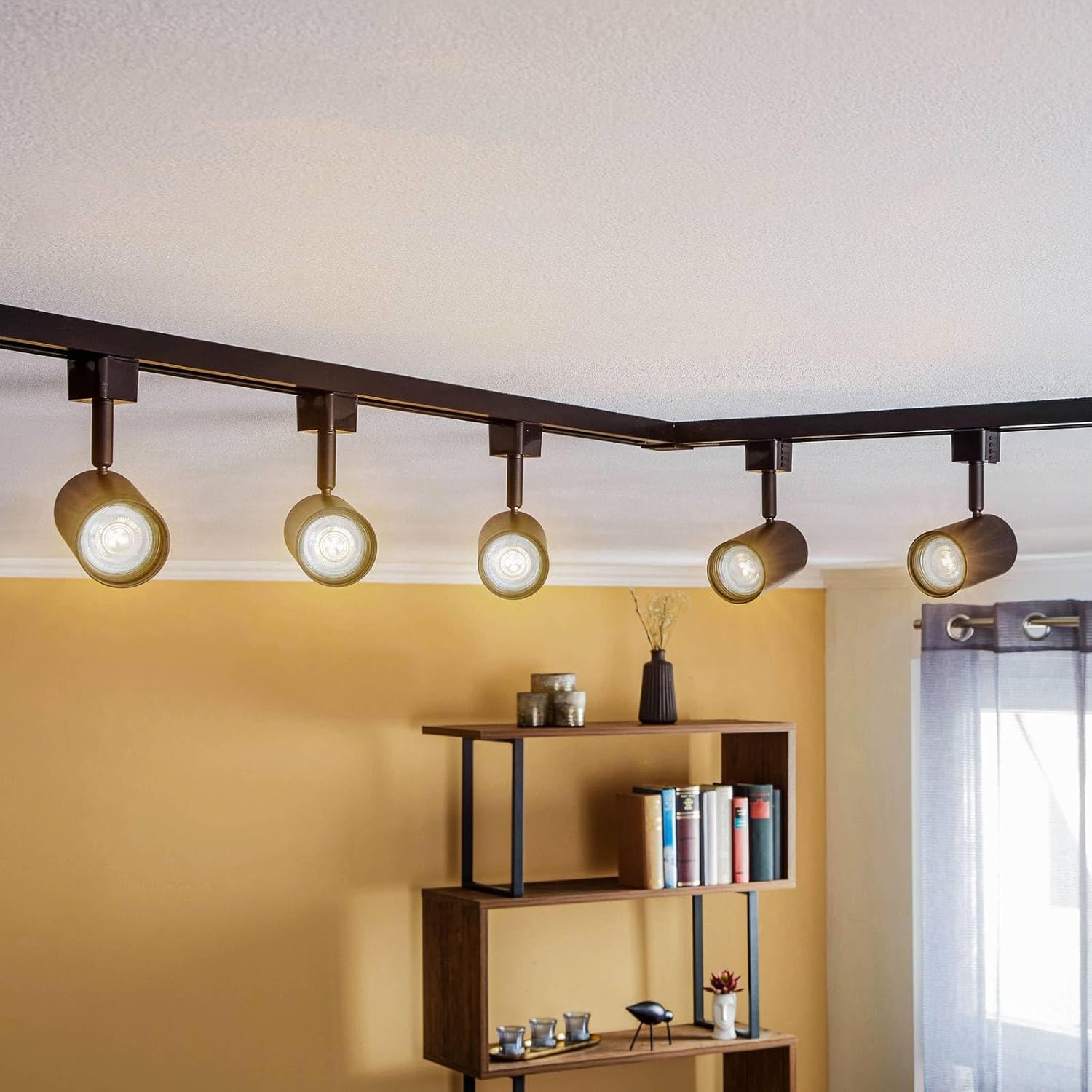

Image 1.1: The PRIOS Jorell 1-Phase Track System with five spotlights installed on a ceiling.
2. Safety Instructions
To ensure safe operation and prevent damage, please observe the following safety guidelines:
- Electrical Safety: Always disconnect the main power supply before attempting any installation, maintenance, or bulb replacement. Installation should only be performed by a qualified electrician in accordance with local electrical codes and regulations.
- Indoor Use Only: This product is rated IP20, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is intended for indoor use only and must not be exposed to moisture or wet conditions.
- Voltage: Ensure the operating voltage of your electrical system matches the product's specified voltage (230V).
- Bulb Compatibility: Use only GU10 LED bulbs with a maximum wattage of 10W per spotlight. Exceeding the recommended wattage can lead to overheating and damage.
- Mounting: Ensure the mounting surface is structurally sound and can support the weight of the track system.
- Heat: Do not touch the bulbs or surrounding areas immediately after use, as they may be hot. Allow sufficient time for cooling.
- Cleaning: Clean the fixture with a soft, dry cloth only. Do not use abrasive cleaners or solvents.
3. Package Contents
Carefully unpack the product and verify that all components are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.
- Track sections (total length 300 cm)
- 5 x Spotlights with GU10 lamp holders
- Connectors for track assembly (e.g., straight, L-shaped)
- Mounting hardware (screws, wall plugs)
- LED bulbs (5 x 10W GU10)
Image 3.1: Overview of the track sections, spotlights, connectors, and mounting hardware included in the package.
4. Setup and Installation
Important: Ensure the main power supply is switched off at the circuit breaker before beginning installation.
- Plan the Layout: Determine the desired placement of the track system on your ceiling or wall. Mark the drilling points for the mounting brackets.
- Assemble the Track: Connect the individual track sections using the provided connectors. Ensure a secure and stable connection.
- Mount the Track: Drill holes at the marked points and insert the wall plugs. Secure the track system to the ceiling or wall using the provided screws. Ensure the track is firmly attached and level.
- Electrical Connection: Connect the track system to your main electrical supply. This typically involves connecting the live, neutral, and ground wires from your ceiling outlet to the corresponding terminals on the track connector. Note: This product does not include external wiring or a ceiling cover for the electrical connection point. These components may need to be sourced separately depending on your installation requirements.
- Install Spotlights: Insert each spotlight into the track. The spotlights are designed to click into place and can be moved along the track to your desired positions.
- Insert GU10 Bulbs: Carefully insert the GU10 LED bulbs into each spotlight's lamp holder. Twist the bulb clockwise until it is securely seated.
Image 4.1: Detail of the GU10 lamp holder within a spotlight, showing the connection points for the bulb.
After completing the installation, restore power at the circuit breaker and test the system.
5. Operating Instructions
The PRIOS Jorell 1-Phase Track System is designed for straightforward operation:
- Power On/Off: Control the lighting system using your standard wall switch connected to the track's power supply.
- Adjusting Spotlights: Each spotlight can be moved along the track to adjust its position. The spotlight heads are also adjustable, allowing you to direct the light beam to specific areas. Gently pivot and rotate the spotlight head to achieve the desired angle.
- Dimming Functionality: This track system supports dimming. If connected to a compatible dimmer switch, you can adjust the light intensity. Ensure that the GU10 LED bulbs used are also dimmable.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your track lighting system.
- Cleaning: Disconnect power before cleaning. Use a soft, dry, lint-free cloth to wipe the track and spotlights. Do not use liquid cleaners, abrasive materials, or chemical solvents, as these can damage the finish.
- Bulb Replacement: If a bulb needs replacement, ensure the power is off and the bulb has cooled down. Gently twist the old GU10 bulb counter-clockwise to remove it. Insert the new GU10 LED bulb by aligning the pins and twisting clockwise until secure. Always use GU10 LED bulbs with a maximum of 10W.
- Inspection: Periodically check all connections and mounting points to ensure they remain secure.
7. Troubleshooting
If you encounter issues with your PRIOS Jorell track system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on | No power supply Faulty bulb Loose connection | Check circuit breaker and wall switch. Replace bulb with a known working one. Ensure all electrical connections are secure (with power off). |
| Lights flicker | Incompatible dimmer switch Loose bulb Faulty bulb | Ensure dimmer switch is compatible with LED bulbs. Tighten the bulb in its socket. Replace the flickering bulb. |
| Spotlight not adjusting smoothly | Dust or debris in track Tight mechanism | Clean the track and spotlight connection points. Apply minimal silicone lubricant if necessary (avoid electrical contacts). |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
- Brand: PRIOS
- Model Number: 9054003
- Material: Aluminum, Zinc
- Color: Black
- Style: Modern
- Mounted Length: 300 cm
- Mounted Width: 5.5 cm
- Mounted Height: 16 cm
- Weight: 9.92 kg
- Number of Lamps: 5
- Lamp Holder Type: GU10
- Max Wattage per Lamp: 10W LED
- Operating Voltage: 230V
- Protection Class: IP20 (Indoor use)
- Safety Class: I
- Power Source: Mains powered
- Switch Style: Dimmer compatible
- Installation Type: Semi-flush mounting
9. Warranty and Support
PRIOS products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, PRIOS stands for high quality and customer satisfaction. For any product-related questions, concerns, or support needs, please contact your retailer or PRIOS customer service directly through their Amazon reseller profile.
Please retain your proof of purchase for any warranty claims.
