Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your VADANIA K53 32-Inch Soft Close Heavy Duty Drawer Slides. Designed for durability and smooth functionality, these slides feature a soft-close mechanism and a high load capacity, making them suitable for various applications.
Product Features
- Heavy-Duty Construction: Made from high-quality steel with a 2.0mm thickness, ensuring robust performance and durability.
- Soft Close Mechanism: Integrated hydraulic buffer allows drawers to close gently and silently, preventing slamming.
- Full Extension: Three-fold design enables full extension of the drawer, providing complete access to contents.
- High Load Capacity: Supports up to 265 lbs (120 kg), suitable for heavy drawers in residential, commercial, or industrial settings.
- Ball Bearing Design: Double rows of solid steel ball bearings ensure smooth and consistent sliding motion.
- Detachable Inner Slide: The third (thinnest) slide can be easily detached for convenient installation and removal.

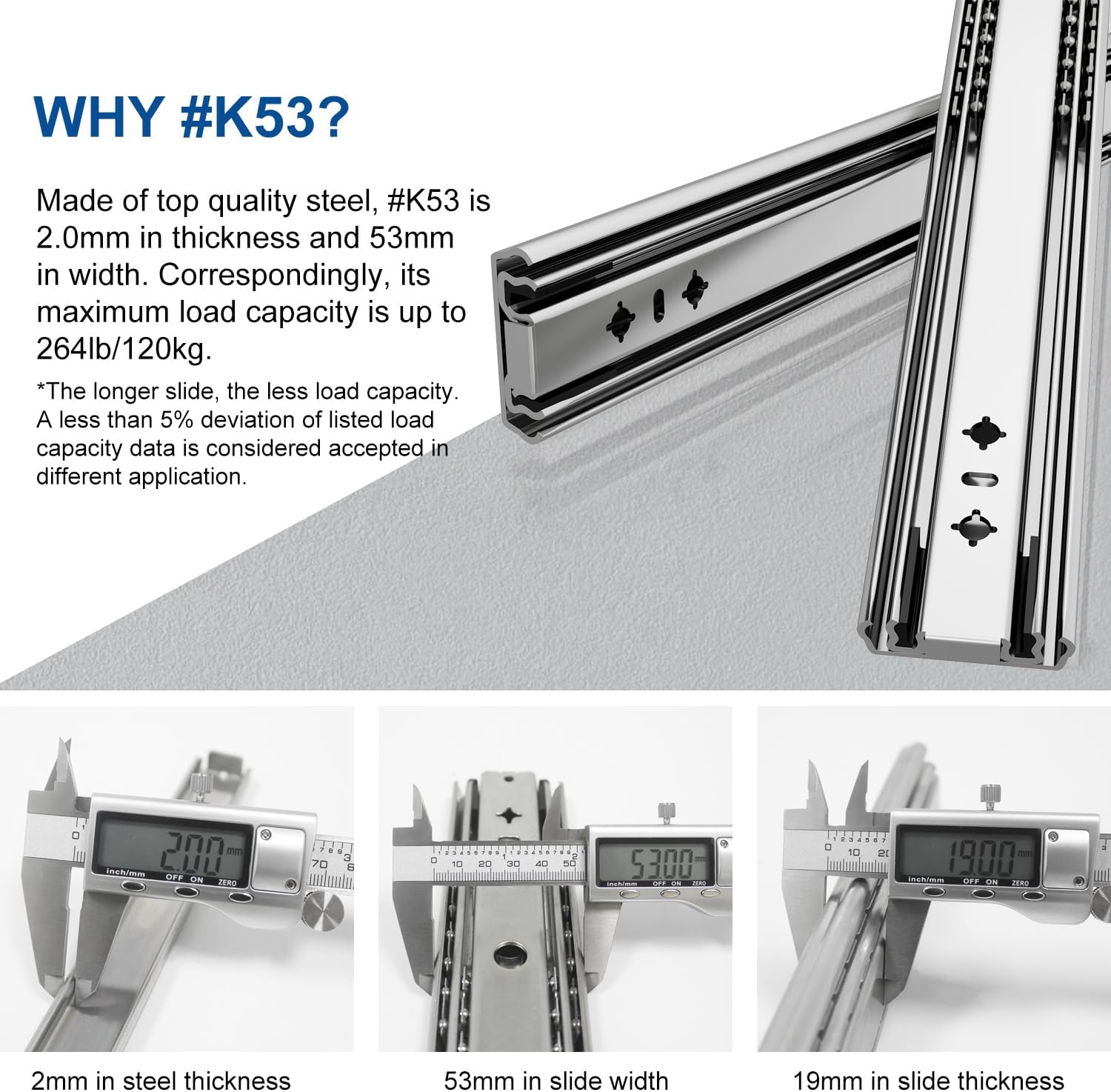

Image: VADANIA K53 Heavy Duty Soft Close Drawer Slide, showcasing its robust construction.
Specifications
| Attribute | Detail |
|---|---|
| Model | #K53 |
| Length (Current Product) | 32 Inch (800mm) |
| Material | Alloy Steel |
| Finish Type | Steel |
| Width | 2 inches (53mm) |
| Thickness | 0.75 inches (19mm) |
| Material Thickness | 2.0mm (0.08 inches) |
| Mounting Type | Side Mount |
| Drawer Type | Ball Bearing Slide |
| Maximum Weight Capacity | Up to 265 lbs (120 kg) |
Image: Detailed dimensions and load capacity table for VADANIA K53 drawer slides across various lengths.
Installation Guide
Follow these steps for proper installation of your VADANIA K53 drawer slides. For a visual guide, please refer to the installation video below.
1. Prepare the Cabinet and Slides
- Measure Clearance: Ensure a space of 0.75" ± 0.01" (19mm ± 0.5mm) between the drawer and the cabinet for proper slide fit.
- Mark Installation Line: Measure a specific height and draw a horizontal line to level the slide track. A wooden block can be used for assistance.
- Separate Slides: Distinguish between the left and right slides. Before mounting, separate the inner slide from the main body by pressing the small lever on the back of the slide track.
Image: Illustration of how to detach the inner slide for easier installation.
2. Mount the Cabinet Slides
- Align the outer slide (the part that remains in the cabinet) with your marked horizontal line.
- Mount at least two screws into the permanent mounting holes. Ensure the slide is level and secure.
- Repeat for the other side of the cabinet.
3. Mount the Drawer Slides
- Attach the inner slides (the detached parts) to the sides of your drawer.
- Mount the screws into the permanent mounting holes. Fasten the inner slides on both sides to the drawer.
- Before inserting the drawer, ensure the ball bearing piece of the sub-slide is pushed to the frontend. Failure to do so can cause the slides to get stuck or damage the ball bearing or soft close device.
Image: Important warning regarding the correct reinsertion of the sub-slide to prevent damage.
4. Insert the Drawer
- Align the inner slides on the drawer with the outer slides in the cabinet.
- Gently push the drawer into the cabinet until it engages with the soft-close mechanism.
- Test the drawer's movement to ensure smooth operation and proper soft-close function.
Installation Video Guide
Video: Step-by-step installation guide for VADANIA K53 Heavy-Duty & Soft-Close Drawer Slides.
Operating Instructions
The VADANIA K53 drawer slides are designed for effortless operation:
- Opening the Drawer: Pull the drawer handle to open. The full extension feature allows the drawer to slide out completely, providing full access to its contents.
- Closing the Drawer: Gently push the drawer until the soft-close mechanism engages. The hydraulic buffer will then smoothly and silently pull the drawer to a fully closed position. Avoid forcing the drawer shut, as the soft-close mechanism is designed to handle the final closing action.
Image: Close-up of the soft-close mechanism ensuring quiet and gentle drawer closure.
Maintenance
To ensure the longevity and optimal performance of your VADANIA K53 drawer slides, follow these simple maintenance tips:
- Cleaning: Periodically wipe the slide tracks with a clean, damp cloth to remove dust and debris. Avoid abrasive cleaners or solvents that could damage the finish.
- Lubrication: If the slides begin to feel stiff or noisy over time, apply a small amount of silicone-based lubricant to the ball bearings and tracks. Do not use oil-based lubricants, as they can attract dust and grime.
- Inspection: Regularly check all mounting screws to ensure they are tight. Loose screws can affect the slide's performance and stability.
- Avoid Overloading: Do not exceed the maximum weight capacity of 265 lbs (120 kg) to prevent damage to the slides and ensure smooth operation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawer feels stiff or sticky | Accumulation of dust/debris; lack of lubrication; misaligned slides. | Clean tracks and ball bearings. Apply silicone lubricant. Check alignment and adjust if necessary. |
| Soft-close mechanism not engaging or closing fully | Obstruction in the mechanism; drawer too heavy; mechanism not properly aligned. | Check for obstructions. Ensure drawer weight is within limits. Verify correct installation and alignment of the soft-close component. |
| Drawer wobbles or sags when extended | Loose mounting screws; drawer overloaded; incorrect slide length for drawer depth. | Tighten all mounting screws. Reduce drawer load. Ensure slides are appropriate length for the drawer. |
| Difficulty reinserting the drawer | Ball bearing sub-slide not pushed to the frontend. | Ensure the ball bearing piece of the sub-slide is pushed fully to the frontend before attempting to reinsert the drawer. Refer to the installation guide. |
Warranty and Support
VADANIA is committed to providing high-quality hardware and excellent customer service. For any pre-sale inquiries, 3D models, product manuals, installation tutorials, or troubleshooting assistance, please do not hesitate to contact VADANIA customer support.
We stand by our products and offer comprehensive support to ensure your satisfaction.
