1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Quoizel Barber Coastal Armour Outdoor Wall Lantern. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Quoizel Barber Outdoor Wall Lantern is designed for exterior use, featuring a durable antique brushed aluminum finish and clear seeded glass, suitable for patios, porches, or garages.

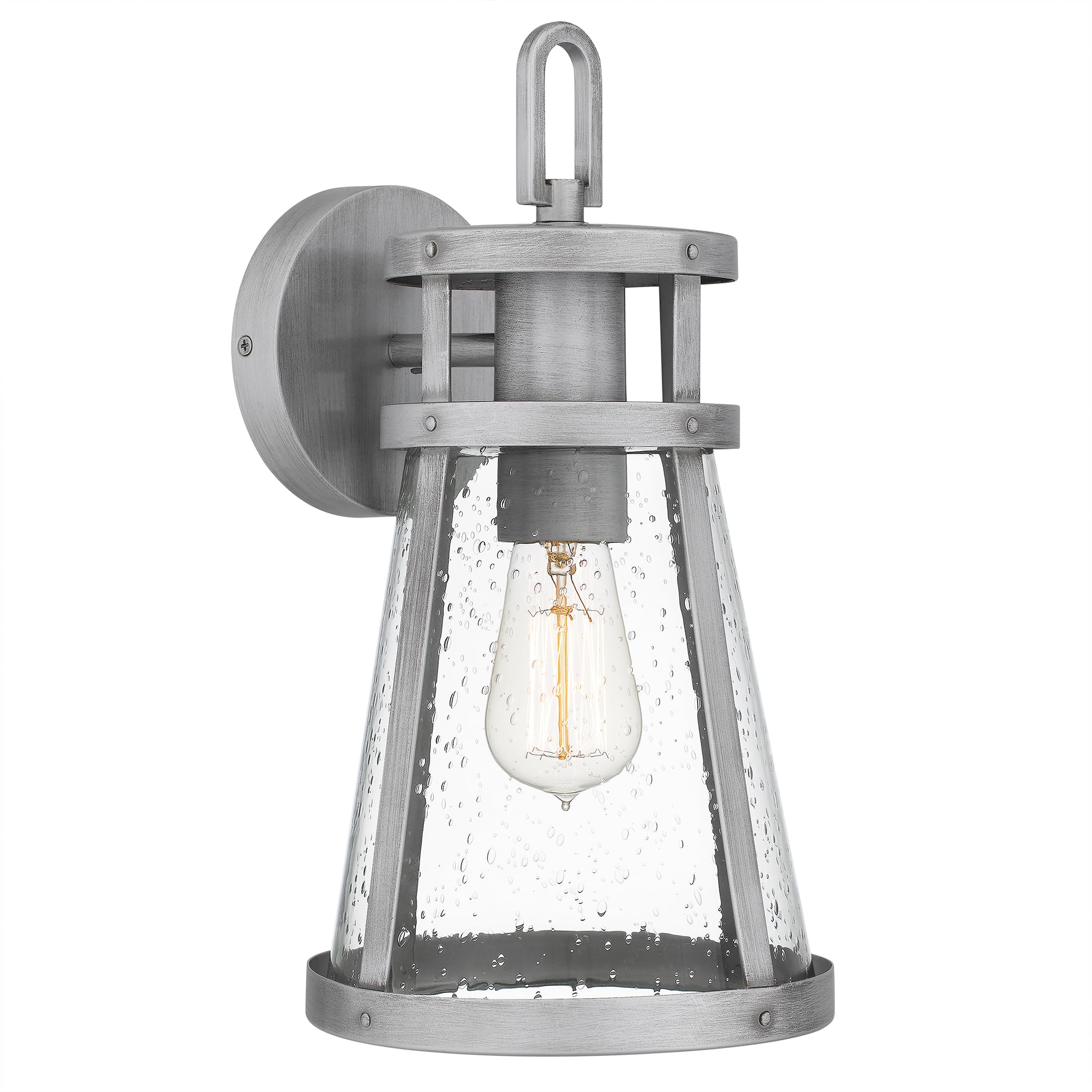

Figure 1: Quoizel Barber Coastal Armour Outdoor Wall Lantern.
2. Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
- Consult a qualified electrician if you are unfamiliar with electrical wiring.
- Use only UL or ETL listed wire connectors.
- Do not exceed the maximum wattage specified for this fixture.
- Ensure the fixture is properly grounded.
- Wear safety glasses and gloves during installation.
3. What's in the Box
Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the product. Contact customer support for assistance.
- Fixture Body with Mounting Plate
- Glass Shade (Clear Seeded)
- Mounting Hardware (Screws, wire nuts)
- Instruction Sheet
4. Setup and Installation
Follow these steps to install your outdoor wall lantern. Professional installation is recommended if you are not experienced with electrical wiring.
4.1 Prepare for Installation
- Turn off power: Locate the circuit breaker or fuse box and turn off the power to the junction box where the fixture will be installed.
- Unpack: Carefully remove the fixture and all parts from the packaging.
4.2 Mounting the Fixture
- Attach the mounting plate to the junction box using the provided screws. Ensure the plate is securely fastened.
- Thread the fixture wires through the center hole of the mounting plate.
4.3 Wiring Connections
Make the following electrical connections using the provided wire nuts:
- Connect the black wire from the fixture to the black (hot) wire from the junction box.
- Connect the white wire from the fixture to the white (neutral) wire from the junction box.
- Connect the ground wire from the fixture (bare copper or green) to the ground wire from the junction box.
Ensure all wire connections are secure and insulated with electrical tape if necessary. Carefully tuck all wires into the junction box.
4.4 Securing the Fixture and Installing Bulb
- Align the fixture body with the mounting plate and secure it using the decorative nuts or screws provided.
- Install one (1) incandescent or CFL bulb with an E26 Medium base, not exceeding 100 watts. (Bulb not included).
- Carefully place the clear seeded glass shade onto the fixture and secure it according to the fixture design.
Figure 2: Installed Quoizel Barber Outdoor Wall Lantern.
4.5 Final Step
- Restore power at the circuit breaker or fuse box.
- Test the fixture to ensure it is working correctly.
5. Operating Instructions
The Quoizel Barber Outdoor Wall Lantern is designed to be controlled by a standard wall switch or a compatible remote control system (if installed separately). Simply toggle the connected wall switch to turn the light on or off.
6. Maintenance
6.1 Cleaning
To clean the fixture, ensure the power is off. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or glass. For the clear seeded glass, a mild glass cleaner can be used, applied to a cloth first, not directly to the fixture.
6.2 Bulb Replacement
Before replacing the bulb, ensure the power to the fixture is turned off and the bulb has cooled completely.
- Carefully remove the glass shade to access the bulb.
- Unscrew the old bulb counter-clockwise.
- Screw in a new E26 Medium base bulb, ensuring it does not exceed 100 watts.
- Reattach the glass shade securely.
- Restore power and test the new bulb.

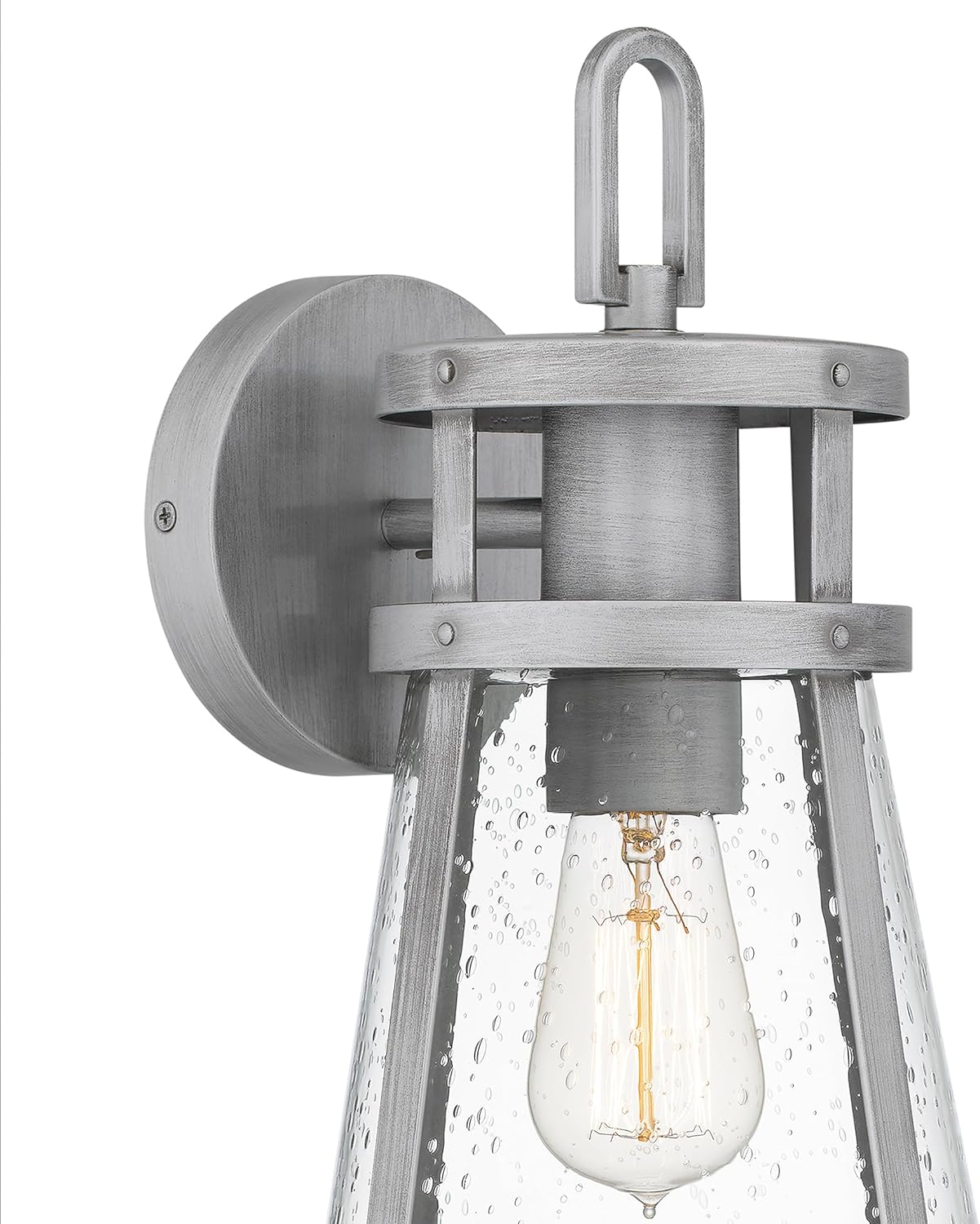

Figure 3: Close-up view of the fixture, highlighting the bulb and seeded glass.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connection Faulty bulb | Check circuit breaker/fuse Verify all wire connections are secure (power off) Replace bulb |
| Light flickers | Loose bulb Incorrect bulb wattage Loose wire connection | Tighten bulb Ensure bulb wattage is within specifications Check wire connections (power off) |
| Glass shade is loose | Improperly secured shade | Re-secure the glass shade according to installation steps |
8. Specifications
- Brand: Quoizel
- Model: BAB8408ABA
- Color: Antique Brushed Aluminum
- Material: Aluminum
- Style: Antique
- Light Fixture Form: Sconce
- Indoor/Outdoor Usage: Outdoor
- Power Source: Corded Electric
- Light Source: Incandescent, CFL
- Number of Light Sources: 1
- Voltage: 120 Volts
- Wattage: 100 watts (Max)
- Bulb Base: E26 Medium
- Water Resistance Level: Not Water Resistant (Designed for outdoor covered areas)
- Mounting Type: Wall Mount
- Item Dimensions (L x W x H): 8.25"L x 7.75"W x 14.5"H
- Certification: ETL Listed
9. Warranty
The Quoizel Barber Coastal Armour Outdoor Wall Lantern features a Coastal Armour finish that is covered by a 5-year warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
10. Support
For technical assistance, missing parts, or warranty inquiries, please contact Quoizel customer support. Refer to the contact information provided with your purchase or visit the official Quoizel website.
Website: www.quoizel.com
