Vimar 30653.00 Linea Plate Series 3 Modules User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Vimar 30653.00 Linea Plate Series 3 Modules. This product is a 3-gang wall plate designed for electrical installations, featuring a technopolymer construction in white. It offers absolute flatness and total alignment with electrical modules, with a minimal protrusion of 5.7mm. The surface has a sensory effect due to special laser processing, providing a velvet touch that is resistant to scratches and dirt over time. A patented coupling mechanism ensures maximum installation accuracy and allows for easy uninstallation from the front.

2. Safety Information

WARNING: Electrical installations should only be performed by qualified personnel. Always disconnect power at the main circuit breaker or fuse box before installing or servicing any electrical components. Failure to do so may result in electric shock, injury, or death.

• Ensure all local and national electrical codes are followed during installation.
• Do not install the plate if it appears damaged.
• Keep children away from electrical components during installation.
• Use appropriate tools for installation to prevent damage to the product or injury.

3. Package Contents

Verify that all components are present before beginning installation:

• 1 x Vimar 30653.00 Linea Plate Series 3 Modules, Technopolymer, White

Note: Electrical modules and mounting screws are sold separately and are not included with the wall plate.

4. Setup and Installation

The Vimar 30653.00 Linea Plate is designed for screw-in installation and is suitable for various wall types, including plasterboard.

1. Prepare the Installation Area: Ensure power to the electrical box is turned off at the circuit breaker. Remove any existing wall plate and ensure the electrical modules (switches, outlets, etc.) are securely mounted in the wall box.
2. Align the Plate: Position the Vimar 30653.00 Linea Plate over the installed electrical modules. The patented coupling mechanism ensures precise alignment and a flush fit.
3. Secure the Plate: Gently press the plate into place until it clicks, indicating that the coupling mechanism has engaged. The plate is designed for easy installation and removal from the front.
4. Final Check: Ensure the plate is securely fastened and flush against the wall. Restore power at the circuit breaker.

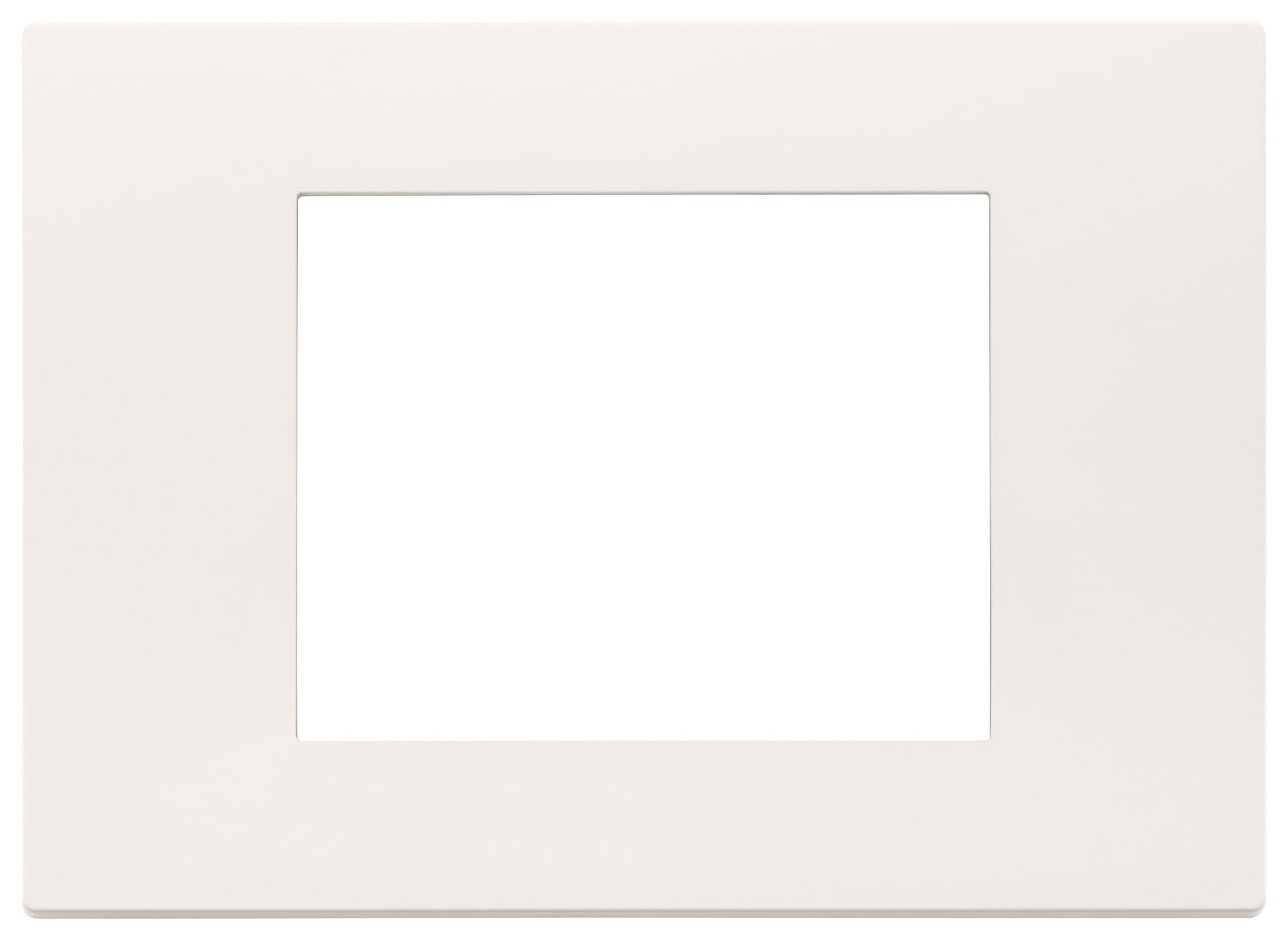

Image: The Vimar 30653.00 Linea Plate Series 3 Modules in white, shown installed, demonstrating its sleek and flush design. This image illustrates the product's appearance when properly mounted over electrical modules.

5. Operating Instructions

The Vimar 30653.00 Linea Plate functions as a protective and aesthetic cover for your electrical modules. Once installed, no specific 'operation' of the plate itself is required. Its purpose is to provide a finished look and protect the internal wiring and components of your electrical switches or outlets. Ensure that the plate is always securely attached to maintain safety and appearance.

6. Maintenance

The Vimar Linea Plate is constructed from durable technopolymer, designed to be resistant to scratches and dirt. Regular cleaning will help maintain its aesthetic appeal.

• Cleaning: Use a soft, damp cloth with mild soap and water to clean the surface of the plate.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the technopolymer finish.
• Dusting: For routine cleaning, a dry, soft cloth is sufficient to remove dust.

7. Troubleshooting

Most issues related to a wall plate are minor and can be resolved easily.

• Plate Not Sitting Flush: Ensure that the electrical modules underneath are properly seated and tightened within the wall box. The patented coupling mechanism requires proper alignment. If necessary, carefully remove the plate and re-align.
• Scratches or Damage: While the technopolymer is resistant, severe impacts can cause damage. If the plate is significantly scratched or cracked, it is recommended to replace it to maintain appearance and safety.
• Discoloration: If discoloration occurs, ensure that only recommended cleaning agents are used. Exposure to strong chemicals or prolonged direct sunlight might affect the finish over time.
