VIMAR 30008.G Aligned Illuminated Replaceable Button User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VIMAR 30008.G Aligned Illuminated Replaceable Button. This product is a 1P NO 10A 250V button designed for electrical control applications. Please read these instructions carefully before use and retain them for future reference.

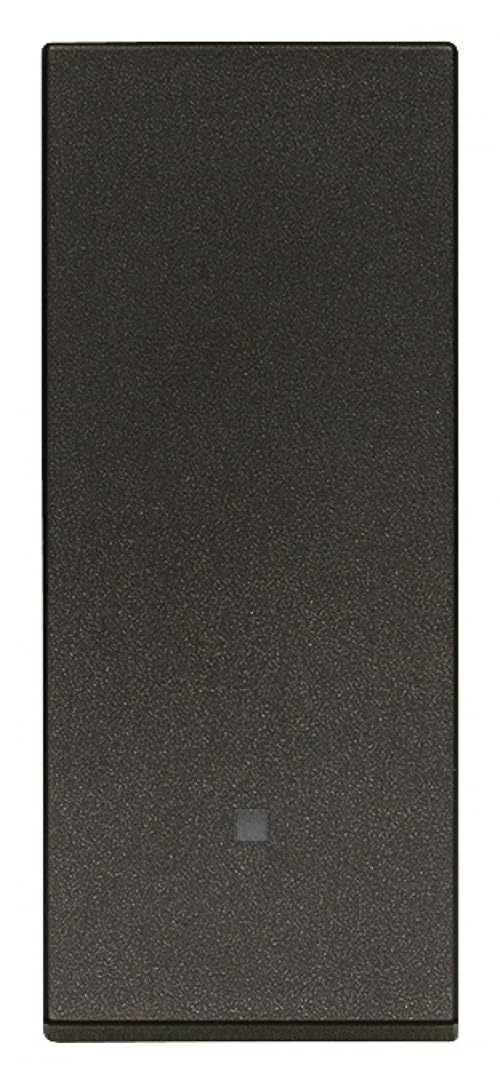

Figure 1: VIMAR 30008.G Aligned Illuminated Replaceable Button in black.

Key Features:

• Absolute Flatness and Alignment: Designed for seamless integration with the plate, featuring minimal protrusion and increased dimensions for easy tactile identification.
• Durable Finish: Special laser manufacturing provides a tactile velvet finish that is resistant to scratches and dirt over time.
• Patented Attachment Mechanism: Ensures maximum installation precision and facilitates easy removal of the front panel.
• Illuminated Design: Offers backlighting options for enhanced visibility and aesthetic appeal.

2. Setup and Installation

Installation should be performed by a qualified electrician in accordance with local electrical codes and regulations. Ensure power is disconnected at the main circuit breaker before beginning any installation work.

1. Power Disconnection: Turn off the main power supply to the circuit where the button will be installed. Verify that the power is off using a voltage tester.
2. Mounting: The VIMAR 30008.G features a patented attachment mechanism designed for precise installation. Secure the button module into the appropriate mounting frame or box.
3. Wiring: Connect the electrical wires to the terminals of the button. This is a 1P NO (Normally Open) button, rated for 10A at 250V. Ensure correct polarity and secure connections.
4. Front Panel Attachment: Align the front panel with the button module and press firmly until it clicks into place. The patented mechanism ensures a secure and flush fit.
5. Power Restoration: Once installation is complete and all connections are secure, restore power to the circuit.

Figure 2: Example of VIMAR aligned illuminated keys, demonstrating the flush design for installation.

3. Operating Instructions

The VIMAR 30008.G button operates as a momentary switch. Pressing the button will activate the connected circuit, and releasing it will deactivate the circuit (for Normally Open configuration).

• Activation: Gently press the button to engage its function.
• Illumination: The button features integrated backlighting. This illumination provides visibility in low-light conditions and serves as a visual indicator. The specific behavior of the backlighting (e.g., always on, on when active) depends on the wiring configuration and the type of LED used.

Figure 3: VIMAR axial keys with LED lighting, illustrating the illuminated feature of the button.

4. Maintenance

Regular maintenance ensures the longevity and proper functioning of your VIMAR button.

• Cleaning: To clean the button surface, use a soft, damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the tactile velvet finish.
• Button Replacement: The VIMAR 30008.G is designed with a replaceable button. If replacement is necessary, ensure power is disconnected. The patented attachment mechanism allows for easy removal of the front panel for access to the button module.
• Inspection: Periodically inspect the button for any signs of wear, damage, or loose connections. If any issues are observed, disconnect power and consult a qualified electrician.

5. Troubleshooting

If you encounter issues with your VIMAR 30008.G button, consider the following:

• Button Not Responding:
  • Check if the main power supply to the circuit is active.
  • Ensure all wiring connections are secure and correct.
  • Verify that the button module is properly seated in its frame.
• Illumination Not Working:
  • Confirm that the power supply is active.
  • Check the wiring for the illumination circuit.
  • The LED might be faulty; consider replacing the button module if necessary (ensure power is off).
• Physical Damage: If the button or front panel is physically damaged, it should be replaced to ensure safe operation.

For persistent issues, contact a qualified electrician or VIMAR customer support.

6. Specifications

7. Warranty and Support

Information regarding specific warranty terms for the VIMAR 30008.G button is not available in the provided product details. For warranty claims or technical support, please contact VIMAR directly or refer to their official website. Spare parts availability information is also not provided.
