1. Safety Information
Please read all instructions carefully before installation and use. Keep this manual for future reference.
- Ensure the power supply is 110 volts as specified for this product.
- Always disconnect power before performing any maintenance or cleaning.
- Do not immerse the electrical components in water.
- Ensure all water connections are secure and leak-free before operating.
- Keep children and pets away from the toilet during operation, especially when features like the heated seat or flushing mechanisms are active.
2. Product Overview
The COSVALVE Smart Toilet is a one-piece, tankless unit designed for modern bathrooms, featuring advanced functionalities for enhanced comfort and hygiene.
Front view of the Cosvalve Smart Toilet, showcasing its sleek, modern design and the foot sensor area at the base.

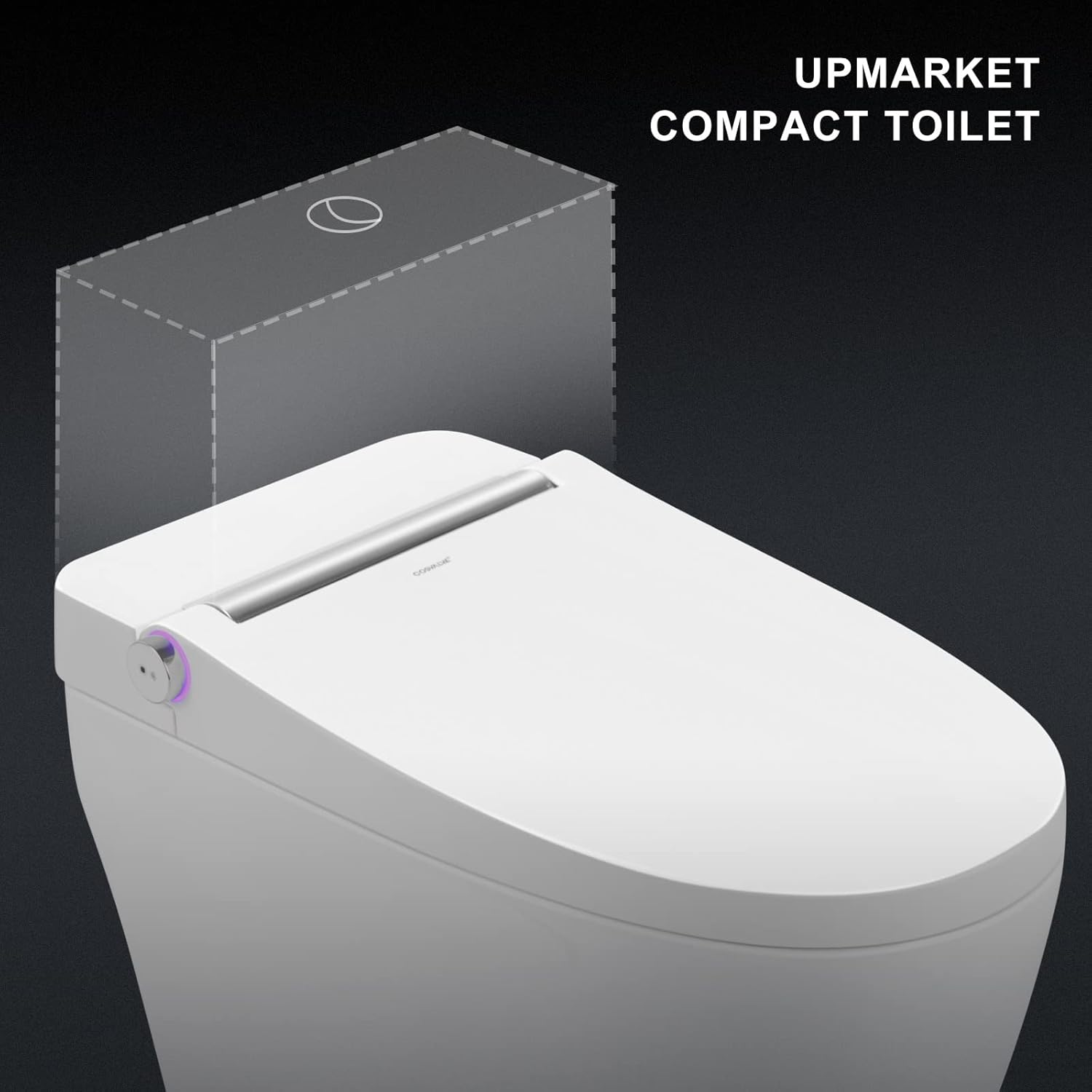

Side view of the Cosvalve Smart Toilet, highlighting its compact, tankless design, which saves space and contributes to its modern aesthetic.
Key Features:
- Heated Seat: Provides warmth and comfort, maintaining an optimal temperature of 37 degrees Celsius.
- Powerful Tankless Flush: Utilizes advanced ceramic technology for efficient and powerful flushing with minimal water consumption.
- Foot Sensor Flush: Allows for hands-free flushing by simply activating a sensor with your foot.
- Soft Blue Night Light: An integrated LED light illuminates the bowl, providing gentle guidance during nighttime use.
- Power Outage Flushing: Equipped with built-in batteries to ensure continued functionality (approximately 2300 flushes) during power interruptions.
- Soft-Closing Lid: Prevents slamming and ensures quiet operation.
3. Setup and Installation
The COSVALVE Smart Toilet is designed for floor-mounted installation. While installation is generally straightforward, professional plumbing assistance is recommended to ensure proper water and electrical connections.
Installation Requirements:
- Standard 12-inch rough-in for sewage pipeline.
- Dedicated 110-volt electrical outlet.
- Adequate water supply line (a 3/4-inch line is recommended for optimal flush performance, though a 1/2-inch line will function).
Detailed product dimensions and rough-in measurement (12 inches) for proper installation.
Installation Steps:
- Prepare the Area: Ensure the floor is clean and level. Confirm the rough-in measurement matches the toilet's requirements.
- Connect Water Hose: It is crucial to connect the water supply hose to the toilet first, before positioning the toilet.
- Position the Toilet: Carefully align the toilet with the floor drain and secure it according to plumbing standards.
- Connect Electrical: Plug the toilet into the dedicated 110-volt outlet.
- Test Functionality: Turn on the water supply and test all features, including flushing, heated seat, and night light.
4. Operating Instructions
The COSVALVE Smart Toilet offers various intelligent functions for a comfortable and hygienic experience.
Overview of the smart toilet's features, including Thermostat Knob, Nightlight, Heated Seat, Strong Flush, and Foot Infrared Sensor.
Basic Operation:
- Automatic Flush: The toilet is designed to flush automatically after use.
- Foot Sensor Flush: To activate flushing via the foot sensor, gently tap your foot near the sensor located at the base of the toilet. This provides a hands-free flushing option.
- Heated Seat: The seat automatically heats to 37 degrees Celsius for optimal comfort.
- Night Light: The blue LED night light activates when the knob control is used in low-light conditions, illuminating the bowl.
Control Panel Functions:
The control panel, typically mounted on the wall, provides access to advanced features:
- Rear Wash: For posterior cleansing.
- Front Wash: For feminine cleansing.
- Dryer: Air drying function after washing.
- Strong/Lady Care: Adjusts wash intensity for different needs.
- Front/Strong Wash: Combines front wash with strong intensity.
- Weak/Child Wash: Reduces wash intensity for sensitive users or children.
- Back/One Solution: Specific wash modes.
- Stop: Halts current operation.
- Power Save: Activates energy-saving mode.
- Night Light: Manual control for the night light.
- Water Temp: Adjusts water temperature for washing.
- Seat Temp: Adjusts seat temperature.
- Deodorizer: Activates deodorizing function.
- Nozzle Clean: Initiates self-cleaning for the nozzle.
Internal view illustrating the foot infrared sensor flush mechanism.
Close-up of the toilet bowl with the blue LED night light activated, providing gentle illumination.
Close-up of the toilet seat demonstrating the heated seat function, ensuring comfort.
Diagram illustrating the instant heating system for water, providing continuous warm water.
Diagram illustrating the super swirl and silence flushing system for effective and quiet waste removal.
Diagram illustrating the active oxygen pure energy technology for enhanced hygiene.
5. Maintenance and Cleaning
Regular maintenance and cleaning will ensure the longevity and optimal performance of your COSVALVE Smart Toilet.
- Ceramic Surface: The toilet features advanced ceramic technology, making cleaning easier. Use a soft cloth and mild, non-abrasive cleaners. Avoid harsh chemicals that could damage the glazed finish.
- Nozzle Cleaning: Utilize the 'Nozzle Clean' function on the control panel for automatic cleaning of the bidet nozzle. For manual cleaning, gently wipe the nozzle with a soft, damp cloth.
- Exterior Cleaning: Wipe down the exterior surfaces, including the seat and lid, with a damp cloth and mild soap.
- Sensor Area: Keep the foot sensor area clean and free from obstructions to ensure proper functionality.
- Power Outage Battery: While designed for extended use, ensure the toilet is regularly connected to power to keep the internal battery charged for power outage flushing.
6. Troubleshooting
If you encounter any issues with your COSVALVE Smart Toilet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Toilet not flushing / No power | Power disconnected, circuit breaker tripped, internal battery depleted. | Check power connection. Reset circuit breaker. Allow time for internal battery to charge if recently unplugged. |
| Excessive water flushing / Non-stop flushing | Sensor malfunction, internal valve issue. | Unplug the toilet for 30 seconds and plug back in to reset. Ensure no obstructions near sensors. If problem persists, contact support. |
| Foot sensor flushing without activation | Overly sensitive sensor, obstruction. | Ensure the area around the foot sensor is clear. Try cleaning the sensor. |
| Heated seat constantly on (even in warm weather) | Default setting, sensor issue. | Refer to the control panel section for seat temperature adjustment or power saving modes. If no setting is found, contact support. |
| Annoying noise after flush (e.g., metal rubbing ceramic) | Internal component misalignment or wear. | This may indicate an internal mechanical issue. Contact customer support for assistance. |
For issues not listed here or if solutions do not resolve the problem, please contact COSVALVE customer support.
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | COSVALVE |
| Model Number | TA-822ZD |
| Color | White |
| Product Dimensions (D x W x H) | 27"D x 16"W x 18.3"H |
| Material | Ceramic (Toilet), Polypropylene (Seat) |
| Installation Type | Floor Mounted |
| Shape | Oval |
| Item Weight | 88 pounds |
| Voltage | 110 Volts |
| Finish | Glazed |
| First Available Date | January 30, 2023 |
8. Warranty and Support
For warranty information, technical support, or any inquiries regarding your COSVALVE Smart Toilet, please contact COSVALVE Customer Support. Details can typically be found on the product packaging or the official COSVALVE website.
We are committed to providing excellent service and support for our products.
