Tatub Twin Over Full Bunk Bed with Stairs and Drawers User Manual

1. Safety Information

Please read all instructions carefully before assembly and use of this bunk bed. Keep this manual for future reference.

• WARNING: Always use the recommended mattress size and thickness to prevent entrapment or falls.
• WARNING: The top bunk is not suitable for children under 6 years of age.
• WARNING: Ensure all connections are tight before use and check periodically.
• WARNING: Do not allow horseplay on or under the bed.
• WARNING: Always use the provided guardrails on the upper bunk.
• WARNING: Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, and jump ropes.
• Maximum weight capacity for the upper bunk is 200 lbs.
• Maximum weight capacity for the lower bunk is 250 lbs.
• Suggested mattress thickness for both bunks: 6 inches or less.

2. Product Overview

The Tatub Twin Over Full Bunk Bed with Stairs and Drawers is designed for space-saving and versatile use in children's bedrooms or dorms. This bed features a twin-sized upper bunk and a full-sized lower bunk, complete with a built-in stairway that includes integrated storage drawers. The sturdy construction from high-quality solid pinewood ensures durability and stability. It also offers a convertible design, allowing it to be separated into two individual beds.

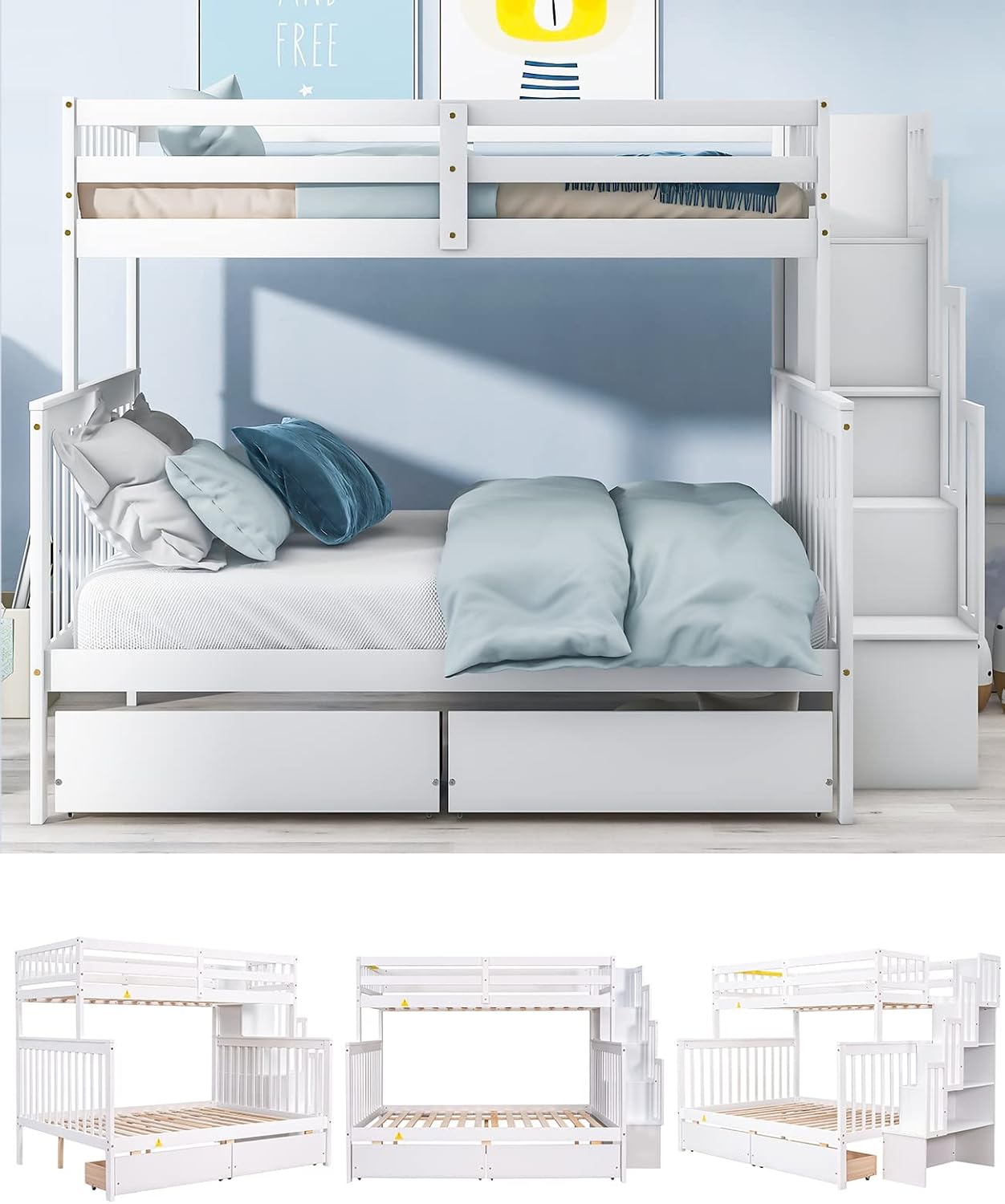

Image: Fully assembled Tatub Twin Over Full Bunk Bed, showcasing the twin upper bunk, full lower bunk, integrated stairway with storage, and pull-out drawers beneath the lower bed.

3. Components List

Before beginning assembly, ensure all parts are present and undamaged. Refer to the included hardware pack for specific fasteners.

• Upper Bunk Frame (Twin)
• Lower Bunk Frame (Full)
• Stairway Unit with Storage Shelves
• Guard Rails (for upper bunk)
• Pull-Out Storage Drawers (2 units)
• Bed Slats (14 for each bunk, total 28)
• Support Legs
• Hardware Pack (screws, bolts, nuts, Allen wrench)

Image: Diagram illustrating the overall dimensions of the bunk bed, including length, width, height, and individual component measurements. It also specifies a suggested mattress thickness of 6 inches or less, 14 slats per bunk, upper bunk weight capacity of 200 lbs, and lower bunk weight capacity of 250 lbs.

4. Setup & Assembly Instructions

Assembly typically requires two adults. Use a soft surface during assembly to prevent scratching components. Do not fully tighten all fasteners until the bed is completely assembled.

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out and compare them against the components list and hardware pack to ensure everything is present.
2. Assemble Lower Bunk Frame: Begin by assembling the headboard and footboard of the full-sized lower bunk with the side rails. Secure with appropriate bolts and nuts, but do not overtighten.
3. Install Lower Bunk Slats: Place the 14 wooden slats across the lower bunk frame. Ensure they are evenly spaced and secured according to the hardware instructions.
4. Assemble Upper Bunk Frame: Repeat step 2 for the twin-sized upper bunk frame.
5. Install Upper Bunk Slats: Place the 14 wooden slats across the upper bunk frame, ensuring even spacing and secure attachment.
6. Attach Guard Rails: Secure the full-length guard rails to the upper bunk frame using the designated hardware.
7. Assemble Stairway Unit: Construct the stairway unit, ensuring the storage shelves are correctly integrated.
8. Connect Bunks and Stairway: Carefully lift the upper bunk and align it with the lower bunk and the stairway unit. Securely attach the upper bunk to the lower bunk and the stairway using the provided connection hardware. Ensure all alignment pins are correctly seated.
9. Insert Pull-Out Drawers: Assemble the two pull-out storage drawers and slide them into position under the lower bunk.
10. Final Tightening: Once all components are assembled and aligned, go back and fully tighten all bolts and screws. Do not overtighten to avoid damaging the wood.
11. Safety Check: Verify that all connections are secure and the bed is stable before use.

Image: Illustration showing the Tatub bunk bed in its assembled form and then separated into two individual beds (one twin, one full), demonstrating its 2-in-1 convertible feature.

Image: Detailed view of the integrated stairway unit, highlighting the handrail for safe access and the hidden storage shelves within the stair steps. The image also points out the premium pinewood material for stability and durability.

Image: Composite image showcasing key features: high guard rails surrounding the upper bunk, the multi-functional storage staircase, and the convenient pull-out drawers located beneath the lower bunk.

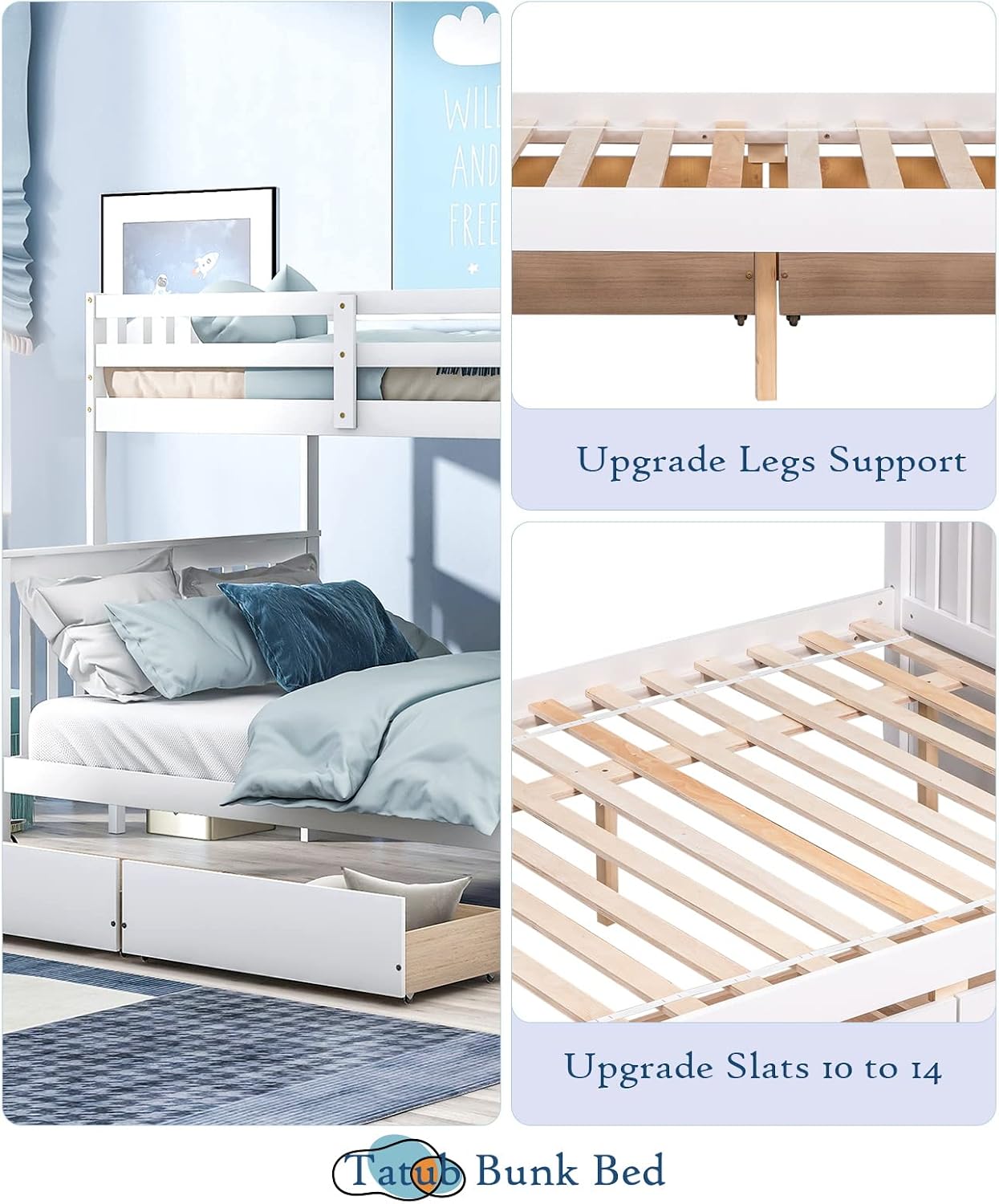

Image: Close-up views illustrating the upgraded leg support for enhanced stability and the increased number of slats (from 10 to 14 per bunk) for improved mattress support and durability.

5. Usage Instructions

• Bunk Bed Configuration: Use as a twin over full bunk bed for two sleepers, maximizing floor space.
• Convertible Feature: The bunk bed can be separated into two independent beds: one twin-sized bed and one full-sized bed. To convert, carefully disassemble the connection points between the upper and lower bunks and the stairway unit. Ensure all parts are stored safely if not in use.
• Stairway Storage: Utilize the integrated shelves within the stairway for storing books, toys, or other small items.
• Under-Bed Drawers: The two pull-out drawers provide convenient storage for bedding, clothing, or other personal belongings.
• Mattress Placement: Place a twin-sized mattress on the upper bunk and a full-sized mattress on the lower bunk. Ensure mattress thickness does not exceed 6 inches for safety on the upper bunk.

6. Care and Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Regular Checks: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Retighten as necessary to maintain stability and safety.
• Wood Care: Protect the wood finish from direct sunlight and extreme temperature changes.
• Moving the Bed: When moving the bed, lift it rather than dragging it to prevent damage to the frame and floor.

7. Troubleshooting

Issue: Bed feels wobbly or unstable.

Solution: Check all assembly bolts and screws. Ensure they are fully tightened. If the issue persists, disassemble and reassemble, paying close attention to alignment.

Issue: Drawers do not slide smoothly.

Solution: Ensure the drawer runners are clean and free of obstructions. Check that the drawers are assembled correctly and not overloaded.

Issue: Squeaking noises.

Solution: Squeaking often indicates loose connections. Identify the source of the squeak and tighten the corresponding fasteners. Applying a small amount of lubricant (e.g., paraffin wax) to metal-on-metal or wood-on-wood contact points can also help.

8. Product Specifications

9. Warranty and Support

Tatub provides a limited warranty for this product against manufacturing defects. For specific warranty terms, claims, or technical support, please contact Tatub customer service through the retailer where the product was purchased or visit the official Tatub website.

Please retain your proof of purchase for warranty purposes.
