Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Vente-unique MODULO V Mezzanine Bed with Convertible Sofa. Please read these instructions carefully before assembly and retain them for future reference.
The MODULO V is a versatile furniture piece designed to optimize space, featuring an upper single bed (90 x 190 cm) and a lower convertible sofa that transforms into a double bed (135 x 190 cm).
Safety Warnings
- Important: The top bed is not suitable for children under 6 years of age.
- Ensure all components are securely fastened during assembly. Do not overtighten screws, as this may damage the threads.
- The maximum weight capacity for the upper bed is 150 kg.
- The maximum weight capacity for the convertible sofa is 200 kg.
- This bed is designed to be compatible with a 90x190 cm mattress for the upper bunk. The maximum mattress height for the upper bed should not exceed 15 cm to ensure safety barrier effectiveness.
- Regularly check all bolts and connections to ensure they remain tight. Loose connections can lead to instability and injury.
- Do not allow jumping or rough play on the bed.
- Always use the provided ladder for accessing the upper bunk.
- The bed structure is made of metal. Be cautious during assembly to avoid pinching fingers or hands.
- It is recommended to fix the bed to a wall for additional stability.
Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- 1 x MODULO V Mezzanine Bed Metal Structure (Black and Red)
- 1 x MODULO Futon Mattress (Black and Red)
- 1 x Set of Assembly Hardware (screws, bolts, nuts, tools if included)
- 1 x Ladder (reversible for left or right side mounting)
- 1 x Slat Frame for upper bed
Setup Instructions
Assembly requires at least two adults. Clear a spacious area for assembly. Follow the numbered steps provided in the separate assembly diagram (not included in this manual).
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches.
- Identify Parts: Refer to the parts list in your assembly diagram to identify each component.
- Assemble Base Frame: Begin by assembling the base frame of the lower sofa bed and the main vertical supports.
- Attach Upper Bed Frame: Securely attach the upper bed frame to the vertical supports. Ensure all connections are tight.
- Install Slat Frame: Place the slat frame into the upper bed structure.
- Attach Ladder: The ladder is reversible. Attach it to your preferred side of the bed using the designated hardware.
- Position Futon: Place the MODULO futon mattress onto the lower sofa frame.
- Wall Mounting (Recommended): For enhanced stability, fix the mezzanine bed to a sturdy wall using appropriate wall anchors (not always included, check your hardware pack).
- Final Check: Before use, double-check all bolts, screws, and connections to ensure they are fully tightened and secure.
Image: The Vente-unique MODULO V Mezzanine Bed with Convertible Sofa, featuring a black metal frame and a black and red futon mattress in the sofa position.
Image: The Vente-unique MODULO V Mezzanine Bed with Convertible Sofa placed in a room, illustrating its space-saving design with the futon in sofa mode.
Operating Instructions
Converting the Sofa to a Bed
The lower futon sofa can be easily converted into a 135 x 190 cm double bed.
- Clear the Area: Ensure there is enough space in front of the sofa for it to fully extend into a bed.
- Locate Mechanism: Identify the conversion mechanism, typically located on the sides or back of the futon frame.
- Release Lock: Gently lift the seat portion of the futon until you hear a click, or disengage any locking pins.
- Lower Backrest: Push the backrest down until it lies flat, forming a continuous sleeping surface with the seat.
- Adjust Futon Mattress: Smooth out the futon mattress to cover the entire bed surface evenly.
Converting the Bed to a Sofa
- Fold Mattress: Fold the futon mattress in half, aligning the backrest portion with the seat portion.
- Lift Seat: Lift the front edge of the futon seat upwards. The backrest will begin to rise.
- Engage Lock: Continue lifting until the backrest clicks into an upright, seated position. Ensure it is securely locked.

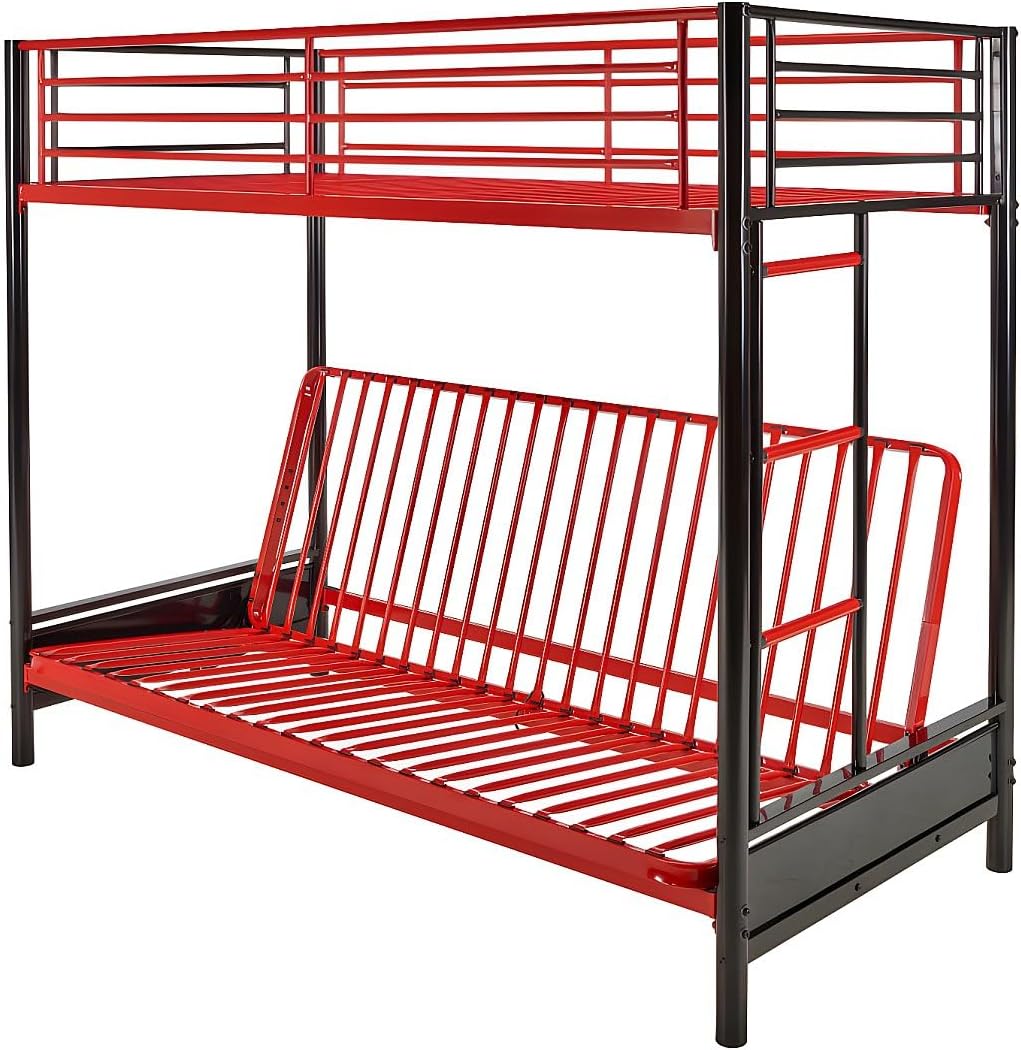

Image: The metal frame of the Vente-unique MODULO V Mezzanine Bed's lower convertible sofa, shown without the futon mattress in the upright sofa position.
Image: A front view of the Vente-unique MODULO V Mezzanine Bed, highlighting the metal frame of the lower convertible sofa in its upright position.
Image: The MODULO Futon Mattress, featuring a black and red design, designed for the convertible sofa.
Maintenance
- Cleaning the Metal Frame: The metal structure is resistant and easy to maintain. Wipe down with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Cleaning the Futon Mattress: Spot clean the futon mattress with a mild detergent and water. Allow to air dry completely. Do not machine wash or tumble dry the futon.
- Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any that have become loose to maintain structural integrity and prevent squeaking.
- Lubrication: If the convertible mechanism becomes stiff or squeaky, apply a small amount of silicone-based lubricant to the moving parts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed squeaks excessively. | Loose bolts or connections. | Inspect all assembly points and tighten any loose bolts. Apply silicone lubricant to moving parts if necessary. |
| Difficulty converting sofa to bed or vice versa. | Mechanism is stiff or obstructed. | Ensure no objects are obstructing the mechanism. Apply silicone lubricant to hinges and moving parts. Follow conversion steps carefully. |
| Parts do not fit during assembly. | Incorrect orientation of parts; fragile screw threads. | Double-check the assembly diagram for correct part orientation. Do not force parts. Avoid overtightening screws to prevent stripping threads. If parts are damaged, contact customer support. |
| Upper bed feels unstable. | Loose connections; not fixed to wall. | Ensure all bolts are securely tightened. If not already done, fix the mezzanine bed to a sturdy wall using appropriate anchors. |
Specifications
- Model: MODULO V
- Brand: Vente-unique
- Overall Dimensions (L x D x H): 198 cm x 96 cm x 170 cm
- Upper Bed Sleeping Surface: 90 x 190 cm
- Convertible Sofa Bed Sleeping Surface: 135 x 190 cm
- Height Under Mezzanine: 137 cm
- Safety Barrier Height: 32 cm
- Maximum Mattress Height (Upper Bed): 15 cm
- Material: Metal frame
- Color: Black and Red
- Upper Bed Maximum Load Capacity: 150 kg
- Sofa Maximum Load Capacity: 200 kg
- Futon Mattress Filling: Recycled polyester fibers
- Futon Mattress Cover: Cotton
- Product Weight: 65.2 kg
Warranty
Specific warranty information for the Vente-unique MODULO V Mezzanine Bed is not provided in the product details. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty terms and conditions.
Support
For technical assistance, missing parts, or any questions regarding your Vente-unique MODULO V Mezzanine Bed, please contact the retailer from whom you purchased the product or visit the official Vente-unique website for customer service contact information.
Vente-unique Official Website: www.vente-unique.com (Please note: This link is a general example; refer to your specific region's Vente-unique website if applicable.)
