MasterPRO Trio Nutrimix 3-in-1 Vacuum Blender with Heating Function

1. Introduction

Thank you for choosing the MasterPRO Trio Nutrimix. This versatile 3-in-1 appliance combines the functions of a vacuum blender, a detachable vacuum pump, and a heating jug, designed to enhance your culinary experience. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.

2. Important Safety Instructions

Please read all instructions carefully before using the appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the appliance is unplugged before assembly, disassembly, or cleaning.
• Do not immerse the motor base in water or any other liquid. Clean with a damp cloth only.
• Keep hands and utensils out of the blending jar while operating to prevent severe injury and damage to the blender.
• Blades are sharp. Handle with extreme care during assembly, disassembly, and cleaning.
• Do not blend hot liquids in the vacuum blending mode. When blending hot liquids, ensure the lid is securely fastened and use caution to avoid steam burns.
• Never operate the appliance with damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• This appliance is for household use only. Do not use outdoors.
• Supervise children closely when the appliance is in use.
• Ensure the lid is properly locked in place before operating the blender.

3. Product Components

The MasterPRO Trio Nutrimix comes with several components designed for various functions. Familiarize yourself with each part:

• Main Blender Unit: The motor base with the deluxe control panel.
• 1.5L Tritan Heating Jar: The primary blending jar, suitable for both blending and heating.
• 700ml Tritan Vessel: A smaller blending cup for individual portions.
• Detachable Vacuum Pump: Used for vacuum blending and food preservation.
• Vacuum Containers/Bags: For storing food under vacuum (may vary by package).
• Vacuum Hose: Connects the vacuum pump to containers/bags.
• Blades Assembly: Integrated into the blending jars.

Figure 3.1: Overview of the MasterPRO Trio Nutrimix main unit, 1.5L heating jar, smaller vessel, vacuum pump, and vacuum storage containers.

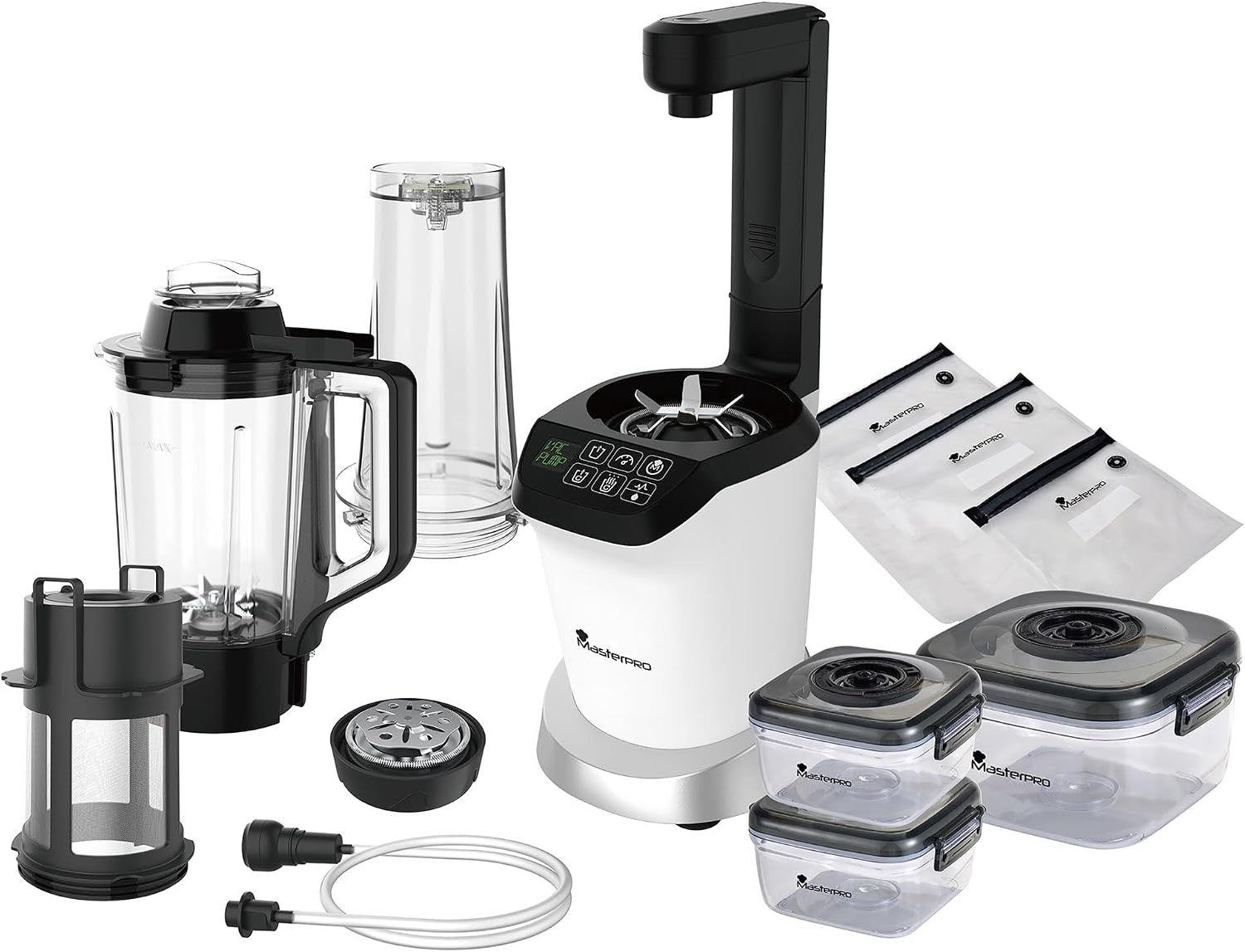

Figure 3.2: All components of the MasterPRO Trio Nutrimix, including the main unit, blending jars, vacuum pump, vacuum hose, and vacuum bags/containers.

4. Setup

Before first use, wash all removable parts (jars, lids, blades) with warm soapy water. Rinse thoroughly and dry. The motor base should only be wiped with a damp cloth.

1. Place the Motor Base: Position the main blender unit on a stable, flat, and dry surface. Ensure it is away from heat sources and water.
2. Assemble the Blending Jar: Place the desired blending jar (1.5L heating jar or 700ml vessel) onto the motor base. Align the jar with the base and twist clockwise until it locks securely into place.
3. Add Ingredients: Place your ingredients into the blending jar. Do not exceed the maximum fill line indicated on the jar.
4. Secure the Lid: Place the lid onto the blending jar and twist clockwise until it is firmly sealed. Ensure the lid's vacuum valve (if applicable) is closed or ready for vacuuming.
5. Connect Power: Plug the power cord into a suitable electrical outlet. The control panel should illuminate.

5. Operating Instructions

5.1 General Blending

1. Prepare the blender as described in the Setup section.
2. Select your desired blending speed or program using the deluxe control panel. The panel offers various settings for different food types.
3. Press the START/STOP button to begin blending.
4. Blend until desired consistency is achieved.
5. Press START/STOP again to stop, then unplug the appliance before removing the jar.

5.2 Vacuum Blending

Vacuum blending removes air from the jar before blending, which can help preserve nutrients and reduce oxidation.

1. Prepare the blender with ingredients and secure the lid. Ensure the vacuum valve on the lid is open or accessible.
2. Attach the detachable vacuum pump to the vacuum valve on the lid.
3. Activate the vacuum pump (refer to pump instructions if separate). The pump will remove air from the jar.
4. Once the vacuum is established (the pump may stop automatically or indicate completion), remove the vacuum pump.
5. Select your blending program on the main unit and start blending.
6. After blending, release the vacuum by opening the valve on the lid before removing it.

5.3 Heating Function (1.5L Heating Jar only)

The 1.5L Tritan Heating Jar allows you to heat ingredients directly in the blender.

1. Place ingredients into the 1.5L heating jar. Ensure the jar is securely attached to the motor base and the lid is closed.
2. Select the desired heating program or temperature setting on the control panel.
3. Press the START/STOP button. The blender will begin heating and may stir periodically.
4. Monitor the heating process. The appliance may have an automatic shut-off or a timer.
5. Once heating is complete, carefully remove the lid and pour out the contents. Use oven mitts if the jar is hot.

5.4 Using the Detachable Vacuum Pump for Food Preservation

The vacuum pump can also be used with compatible vacuum containers and bags to preserve food.

1. Place food into a compatible vacuum container or bag.
2. Close the container lid or seal the bag, ensuring the vacuum port is accessible.
3. Connect the vacuum hose from the detachable vacuum pump to the vacuum port on the container/bag.
4. Activate the vacuum pump. It will remove air until a vacuum seal is achieved.
5. Once sealed, remove the vacuum pump and store the food.

6. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your MasterPRO Trio Nutrimix.

6.1 Cleaning the Motor Base

• Always unplug the appliance before cleaning.
• Wipe the motor base with a soft, damp cloth. Do not use abrasive cleaners or scourers.
• Never immerse the motor base in water or any other liquid.

6.2 Cleaning Blending Jars and Lids

• After each use, rinse the blending jars and lids immediately to prevent food from drying on.
• Wash with warm, soapy water using a non-abrasive sponge or brush.
• The blending jars and lids are dishwasher safe. Place them on the top rack of your dishwasher.
• For stubborn residue, fill the jar with warm water and a drop of dish soap, then run the blender on a low setting for a few seconds. Rinse thoroughly.

6.3 Cleaning the Detachable Vacuum Pump and Hose

• Wipe the exterior of the vacuum pump with a damp cloth. Do not immerse in water.
• Rinse the vacuum hose with warm water and allow it to air dry completely.

7. Troubleshooting

If you encounter any issues with your MasterPRO Trio Nutrimix, refer to the following table for common problems and solutions.

8. Specifications

Technical details for the MasterPRO Trio Nutrimix (Model: BGMP-9132-WH).

9. Warranty and Support

The MasterPRO Trio Nutrimix comes with a full warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your product or contact MasterPRO customer support.

Customer Support:

For technical assistance, spare parts, or any questions not covered in this manual, please contact MasterPRO customer service through their official website or the contact information provided in your product packaging.

You can also visit the official MasterPRO store for more information: MasterPRO Store
