1. Introduction
This manual provides essential information for the safe and efficient operation of your Bertazzoni REF24RCR 24 Inch Column Refrigerator. Please read these instructions thoroughly before installation and use, and retain them for future reference.

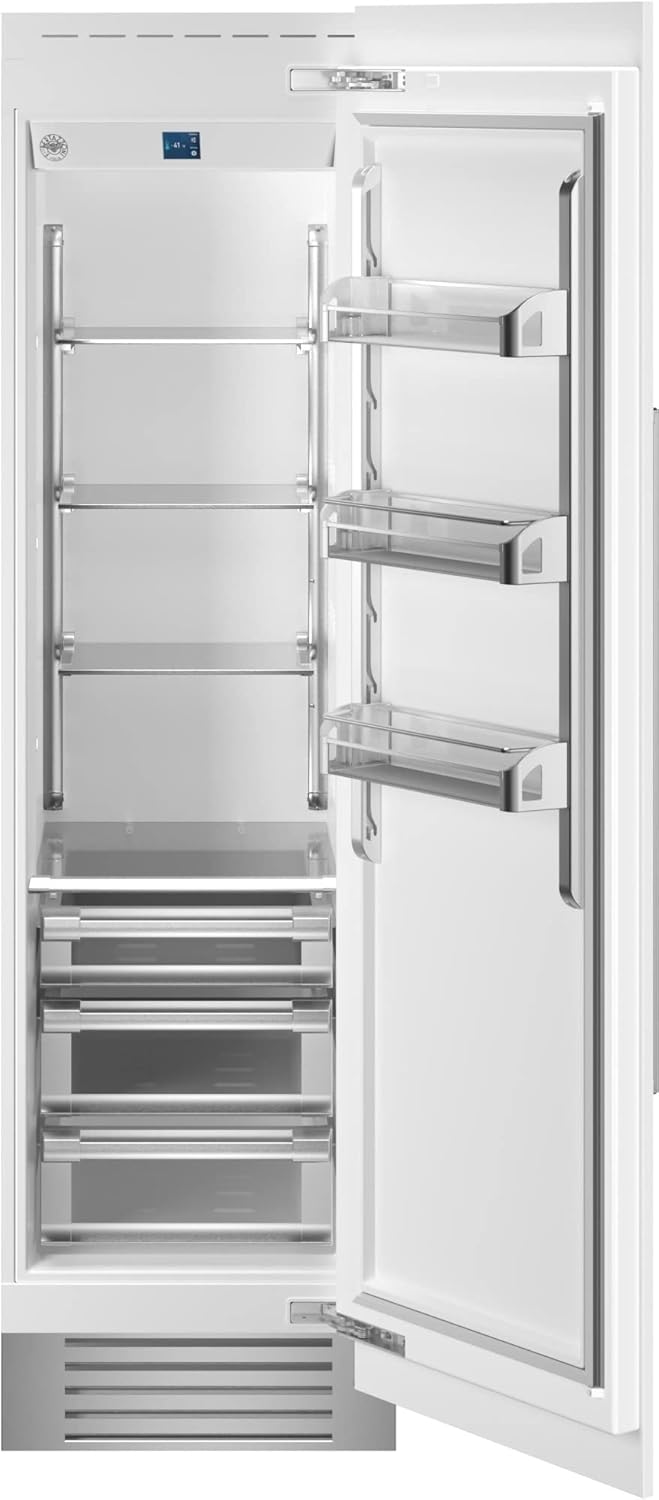

Figure 1: Interior view of the Bertazzoni REF24RCR refrigerator, showcasing its spacious design with multiple adjustable glass shelves, clear door bins, and bottom crisper drawers for organized food storage.
2. Setup and Installation
2.1 Unpacking
Carefully remove all packaging materials. Inspect the refrigerator for any shipping damage. Do not discard packaging until the unit has been tested and is operating correctly.
2.2 Location Requirements
Place the refrigerator on a firm, level surface capable of supporting its weight when fully loaded. Ensure adequate ventilation around the unit. Avoid direct sunlight or heat sources.
- Maintain a minimum clearance of 1 inch (2.5 cm) from walls or cabinets on the sides and rear for proper air circulation.
- Ensure the floor is level to allow the door to close properly.
2.3 Electrical Connection
Connect the refrigerator to a dedicated, grounded electrical outlet. Refer to the rating label inside the refrigerator for specific voltage and current requirements. Do not use extension cords or adapter plugs.
2.4 Door Swing and Panel Installation
The Bertazzoni REF24RCR is designed as a panel-ready column refrigerator, allowing for custom cabinetry integration. The unit is configured for a right swing door, but can be reversed to a left swing configuration by a qualified technician. Refer to the dimensional drawing for precise measurements required for custom panel fabrication and installation.

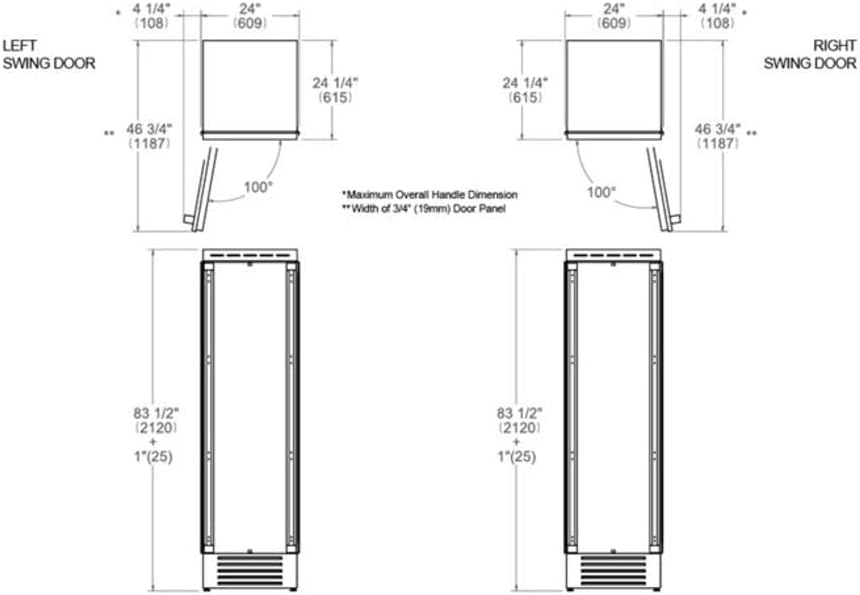

Figure 2: Dimensional drawing illustrating the precise measurements for the Bertazzoni REF24RCR refrigerator, including overall height (83 1/2 inches), width (24 inches), and depth, along with details for both left and right door swing configurations and panel dimensions.
3. Operating Instructions
3.1 Control Panel
The electronic control panel is located at the top interior of the refrigerator. It allows you to adjust temperature settings and activate special modes.
3.2 Temperature Adjustment
Press the temperature control buttons to set the desired temperature. The recommended temperature for fresh food storage is between 34°F (1°C) and 38°F (3°C).
3.3 Vacation Mode
Activate Vacation Mode when you will be away for an extended period. This mode optimizes energy consumption while maintaining a safe temperature to prevent odors and mold growth. Ensure the refrigerator is empty of perishable items before activating this mode.
3.4 Interior Features
Your refrigerator is equipped with adjustable glass shelves, clear door bins, and humidity-controlled crisper drawers. Arrange shelves to suit your storage needs. Utilize crisper drawers for fruits and vegetables to maintain freshness.
4. Maintenance and Cleaning
4.1 Interior Cleaning
Clean the interior regularly with a solution of mild soap and warm water. Rinse with clean water and dry thoroughly. Remove shelves and drawers for easier cleaning. Do not use abrasive cleaners or solvents.
4.2 Exterior Cleaning
Wipe the exterior surfaces with a soft cloth dampened with mild soap and water. For stainless steel surfaces, use a specialized stainless steel cleaner and polish in the direction of the grain.
4.3 Door Gaskets
Clean door gaskets regularly to ensure a tight seal. A dirty or sticky gasket can prevent the door from closing properly, leading to increased energy consumption and temperature fluctuations.
5. Troubleshooting
Before contacting service, review the following common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power supply issue; Temperature setting too high; Door not closed properly | Check power cord and circuit breaker; Adjust temperature setting; Ensure door is fully closed and gasket is clean |
| Unusual noises | Unit not level; Items vibrating inside; Compressor noise (normal) | Level the refrigerator; Rearrange items; Compressor noise is normal during operation |
| Water on floor or inside | Drain tube clogged; Door left ajar | Clear drain tube (refer to maintenance); Ensure door is closed tightly |
| Door not closing completely | Gasket dirty or damaged; Refrigerator not level; Obstruction | Clean or replace gasket; Level the unit; Remove any obstructions |
6. Specifications
- Brand: Bertazzoni
- Model: REF24RCR
- Form Factor: Compact Column
- Door Material Type: Stainless Steel (Panel Ready)
- Cooling Method: Compressor
- Adjustable Temperature Control: Yes
- Dimensions (Overall): Approximately 83.5 inches (2120 mm) Height x 24 inches (609 mm) Width x 24.25 inches (615 mm) Depth (excluding handle)
- First Available: August 3, 2021
