ClimaTek PCBBF163 OEM Upgraded Furnace Control Board Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your new ClimaTek PCBBF163 OEM Upgraded Furnace Control Board. Please read these instructions thoroughly before attempting any installation or service. Proper installation and adherence to safety guidelines are crucial for optimal performance and to prevent potential hazards.

2. Important Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Installation and service must be performed by a qualified installer, service agency, or gas supplier.

• Always disconnect electrical power to the furnace before installing or servicing the control board. Failure to do so can result in electrical shock or death.
• Ensure all wiring connections are secure and comply with local and national electrical codes.
• Do not operate the furnace with damaged wiring or components.
• This control board contains sensitive electronic components. Handle with care to avoid electrostatic discharge (ESD) damage.
• Keep children away from the furnace area during installation and operation.

3. Product Overview

The ClimaTek PCBBF163 is an OEM upgraded furnace control board designed to replace original equipment manufacturer (OEM) parts in various furnace systems, including Amana models. This board is a critical component that manages the ignition sequence, blower motor operation, and safety functions of your furnace, ensuring efficient and reliable heating.

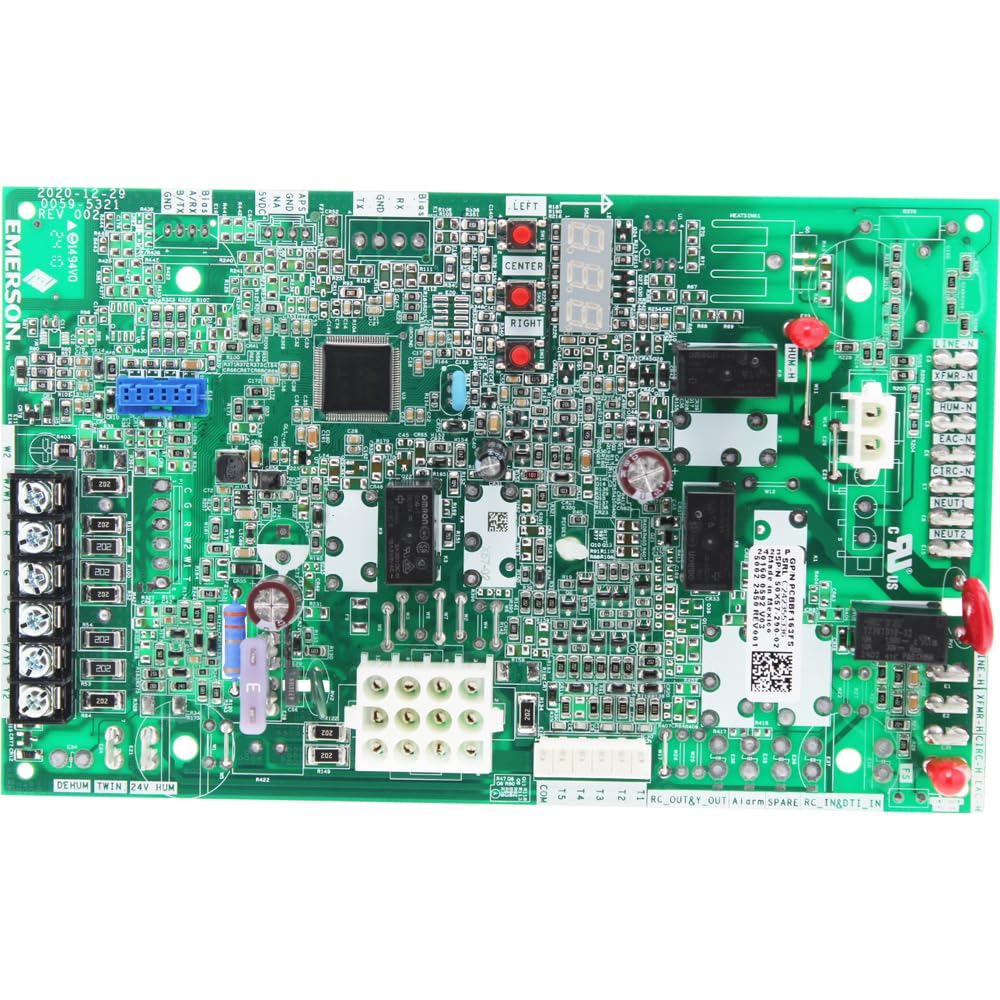

Figure 1: ClimaTek PCBBF163 OEM Upgraded Furnace Control Board. This image displays the electronic components, connectors, and circuit layout of the control board, essential for furnace system management.

4. Compatibility

This ClimaTek PCBBF163 control board is an OEM upgraded replacement part. It directly replaces the original part number PCBBF163 and is compatible with various furnace models, including those from Amana. Always verify the part number on your existing control board to ensure proper compatibility before installation.

5. Installation Instructions

Note: Installation should only be performed by a qualified HVAC technician. Ensure all safety precautions are followed.

1. Disconnect Power: Turn off all electrical power to the furnace at the main service panel. Verify power is off using a voltage meter.
2. Access Control Board: Open the furnace access panel to locate the existing control board.
3. Document Wiring: Before disconnecting any wires, take clear photographs or make a detailed diagram of all wiring connections to the old control board. This is critical for correct re-installation.
4. Disconnect Wires: Carefully disconnect all wires from the old control board. Label wires if necessary to avoid confusion.
5. Remove Old Board: Unscrew or unclip the old control board from its mounting brackets.
6. Install New Board: Mount the new ClimaTek PCBBF163 control board in the same location as the old one, securing it with screws or clips.
7. Reconnect Wiring: Refer to your photographs or diagram and carefully reconnect all wires to the corresponding terminals on the new control board. Ensure all connections are firm and correct.
8. Close Access Panel: Securely close the furnace access panel.
9. Restore Power: Turn on the electrical power to the furnace at the main service panel.
10. Test Operation: Initiate a heating cycle to verify the furnace operates correctly. Observe the ignition sequence, blower operation, and overall furnace function.

6. Operation

The ClimaTek PCBBF163 furnace control board operates automatically in conjunction with your thermostat and other furnace components. Once installed and power is restored, the board will manage the furnace's heating cycles, including:

• Initiating the ignition sequence when a call for heat is received.
• Monitoring safety limits and shutting down the furnace if unsafe conditions are detected.
• Controlling the blower motor for heat distribution and cooling cycles (if applicable).
• Managing diagnostic codes for troubleshooting.

Refer to your furnace's specific user manual for detailed operational procedures and thermostat settings.

7. Maintenance

The ClimaTek PCBBF163 control board itself requires no routine user maintenance. However, regular professional maintenance of your entire furnace system is highly recommended to ensure its longevity and efficient operation. An HVAC technician can inspect the control board and other components during routine service to identify any potential issues.

• Ensure furnace filters are replaced regularly as per your furnace manufacturer's recommendations.
• Keep the area around the furnace clear of obstructions and combustible materials.
• Schedule annual professional furnace inspections.

8. Troubleshooting

If your furnace is not operating correctly after installing the new control board, consider the following general troubleshooting steps. For complex issues, always consult a qualified HVAC technician.

• No Power: Check the circuit breaker for the furnace. Ensure the furnace access panel is securely closed, as many furnaces have safety switches that prevent operation if the panel is open.
• Incorrect Wiring: Double-check all wiring connections against your diagram or photographs. Loose or incorrect connections are a common cause of malfunction.
• Diagnostic Codes: Many control boards have LED indicators that flash diagnostic codes. Consult your furnace's specific manual for the meaning of these codes.
• Thermostat Issues: Ensure your thermostat is set correctly and calling for heat.
• Other Components: A malfunctioning furnace may not always be due to the control board. Other components like the igniter, flame sensor, or limit switches could be at fault.

If you are unable to resolve the issue, contact a professional HVAC service technician.

9. Specifications

10. Warranty and Support

For specific warranty information regarding your ClimaTek PCBBF163 control board, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. For technical support or assistance with installation and troubleshooting, it is recommended to consult a qualified HVAC professional.
