1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and setup of your Redcat Racing Gen9 Scout 800A 1/10 Scale Trail Truck Crawler. Please read this manual thoroughly before operating your vehicle.
The Gen9 Scout 800A is a ready-to-run (RTR) trail truck designed for off-road adventures, featuring a meticulously crafted licensed International Scout 800A body, a two-speed transmission, and advanced suspension for conquering various terrains.
2. Safety Information
Warning: Only charge batteries under direct supervision.
- Always operate the vehicle in a safe, open area away from people, pets, and obstacles.
- Keep hands, hair, and loose clothing away from moving parts.
- Ensure all connections are secure before operation.
- Do not operate the vehicle in wet conditions unless specifically designed for it, and always ensure proper drying afterwards.
- Store batteries in a cool, dry place and dispose of them according to local regulations.
- Recommended age for operation is 14 years and up.
3. What's in the Box
- Remote Control RC 1/10 Scale Trail Truck (Redcat Gen9 Scout 800A)
- 4 Channel 2.4GHz radio system (transmitter)
- User Manual
- Additional accessories (e.g., tools, spare parts - typically included with RTR models)
Needed to complete (not included):
- Battery for vehicle
- Charger for vehicle battery
- AA Batteries for Transmitter
4. Setup
4.1. Transmitter Battery Installation
- Locate the battery compartment on the back of the transmitter.
- Open the battery compartment cover.
- Insert the required AA batteries (not included), ensuring correct polarity.
- Close the battery compartment cover securely.
4.2. Vehicle Battery Installation and Charging
The vehicle requires a compatible battery and charger (not included). Follow the instructions provided with your battery and charger for safe charging and installation.
- Ensure the vehicle's power switch is in the OFF position before connecting the battery.
- Connect the fully charged battery to the vehicle's ESC (Electronic Speed Controller) connector.
- Secure the battery within the battery tray using the provided straps or clips to prevent movement during operation.
4.3. Binding the Transmitter and Receiver
Your vehicle and transmitter should come pre-bound. If re-binding is necessary, refer to the specific instructions for your 2.4GHz radio system. Generally, this involves:
- Turn on the transmitter.
- Turn on the vehicle's power switch.
- Press and hold the bind button on the receiver (if applicable) until the LED indicates successful binding.
5. Operating Your Vehicle
5.1. Basic Controls
- Throttle Trigger: Pull to accelerate forward, push to brake/reverse.
- Steering Wheel: Turn left for left, right for right.
- 2-Speed Transmission: The Gen9 features a 2-speed transmission. Use first gear for optimal control over challenging obstacles and second gear for increased speed on trails. Refer to your transmitter's manual for specific gear shifting controls.
5.2. Driving Tips
- Start slowly to get a feel for the controls.
- Practice in open areas before attempting challenging terrain.
- The vehicle's portal axles and Interco SS M-16 tires provide excellent stability and grip for rock crawling and trail driving.
- Utilize the adjustable coilover threaded aluminum body shocks for optimal suspension performance on varied surfaces.
- Consider installing optional LED lights for enhanced visibility during night crawling.
Official video showcasing the Redcat Gen9 International Scout 800A 1/10 Crawler in action across various terrains, including rocky trails and snowy landscapes.
6. Maintenance
- After each use, inspect the vehicle for any loose screws, damaged parts, or debris.
- Clean the vehicle using a soft brush or compressed air. Avoid using water directly on electronics unless specified as waterproof.
- Regularly check the tires for wear and tear.
- Ensure the motor and ESC are free from obstructions and excessive dirt.
- Lubricate moving parts as recommended in the detailed product manual (if available).
7. Troubleshooting
- Vehicle not responding:
- Check if both the transmitter and vehicle are powered on.
- Ensure batteries are fully charged and correctly installed.
- Re-bind the transmitter and receiver if necessary.
- Loss of range or erratic behavior:
- Check for interference from other 2.4GHz devices.
- Ensure the transmitter batteries are not low.
- Reduced performance:
- Check battery charge level.
- Inspect motor and drivetrain for debris or damage.
8. Specifications
| Feature | Detail |
|---|---|
| Motor/ESC | Brushed 550 motor / 40A Brushed Steering Servo: Hexfly Torque-Spec Coreless Digital. 25Kg-6V & 42Kg-8.4V |
| Radio | 4 Channel 2.4GHz radio system |
| Chassis | 1.5mm Thick Steel C-Channel Frame Rails |
| Drive System | 4-Wheel-Drive, Front Mounted Motor |
| Transmission | 2-Speed with Lockable Slipper Clutch |
| Transfer Case | Divorced, Centrally Mounted |
| Length | 523mm |
| Stock Wheelbase | 312mm - 336mm Adjustable |
| Chassis Ground Clearance | 80mm |
| Axle Ground Clearance | 54.5mm |
| Approach Angle | 63.5 degrees |
| Departure Angle | 53 degrees |
| Suspension | 4-Link Rear and 3-Link Front with Panhard Bar |
| Shocks | 95mm Adjustable Coilover Threaded Aluminum Body |
| Axles | Portal Axles with CNC aluminum spools, single piece front housing with metal gear cover, and front universal joints. |
| Wheels | 1.9in True Beadlocks |
| Tires | Fully Licensed Interco SS M-16 Tires in a high grip compound |
| Product Dimensions | 20.6 x 9.8 x 9.85 inches |
| Item Weight | 12 pounds |
| Manufacturer Recommended Age | 14 years and up |

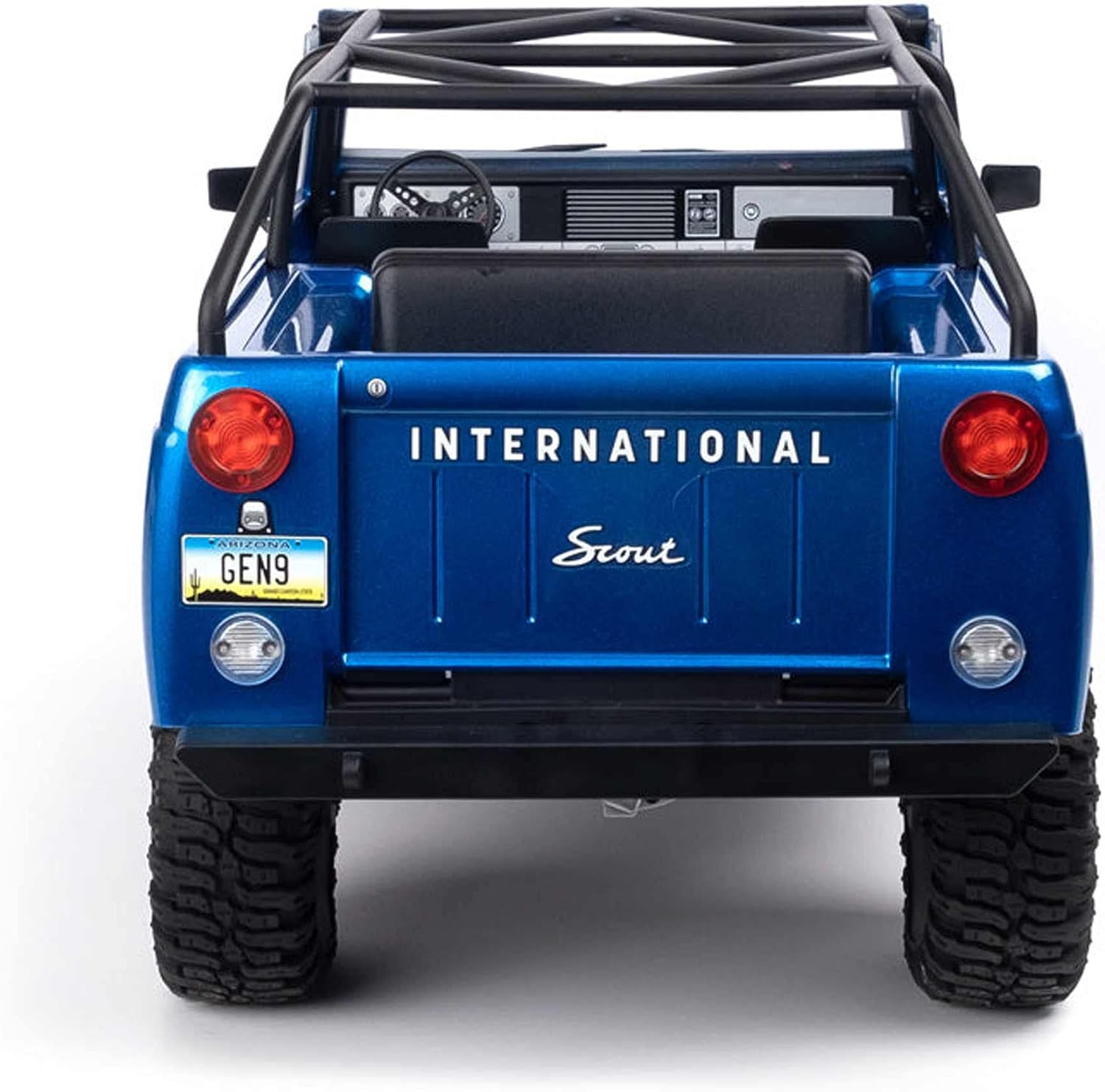

9. Product Overview
10. Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please visit the official Redcat Racing website or contact their customer service directly. Keep your proof of purchase for any warranty claims.
