1. Introduction
Thank you for choosing the OttLite Extended Reach LED Desk Lamp. This lamp features OttLite's exclusive ClearSun LED technology, designed to provide a natural daylight experience indoors. This technology significantly reduces eyestrain by 51% and offers exceptional color rendering (CRI 95+), allowing you to see colors accurately and vividly. Its flexible design and adjustable brightness make it ideal for various tasks, from reading and crafting to office work.

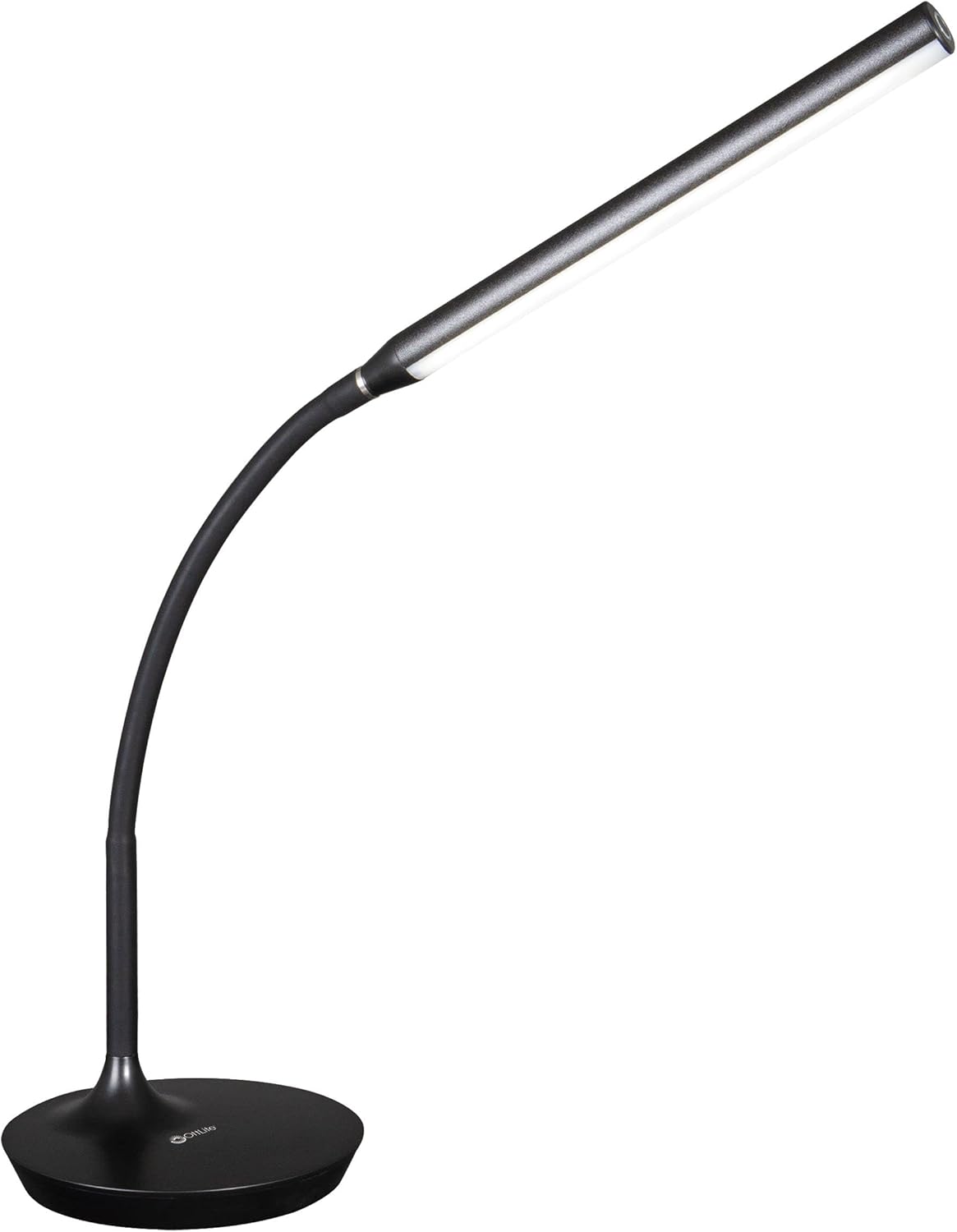

Image: The OttLite Extended Reach LED Desk Lamp, showcasing its sleek black design and extended arm with the LED light bar illuminated.
2. Setup
- Unpack: Carefully remove all components from the packaging. Ensure all parts are present: lamp base, flexible arm with LED light bar, and power adapter.
- Placement: Place the lamp base on a stable, flat surface. The base has a diameter of 6.5 inches, providing a secure foundation.
- Connect Power: Insert the power adapter into the lamp's power port, typically located at the back or side of the base. Plug the other end of the adapter into a standard electrical outlet.
Image: The OttLite lamp positioned on a desk, demonstrating its suitability for various tasks and its ability to illuminate a wide workspace.
3. Operating Instructions
- Power On/Off: The lamp features a touch-activated control on the shade. Gently touch the designated area on the shade to turn the lamp on or off.
- Adjust Brightness: The lamp offers 3 brightness levels. Continue to touch the control area on the shade to cycle through the different brightness settings.
- Positioning: The flexible neck allows for easy adjustment of the light's direction. You can adjust the height from 9.75 to 27 inches to suit your needs. The long 10.5-inch shade provides ample illumination.
Image: A close-up of the lamp's shade, showing a finger interacting with the touch-activated power and brightness control.

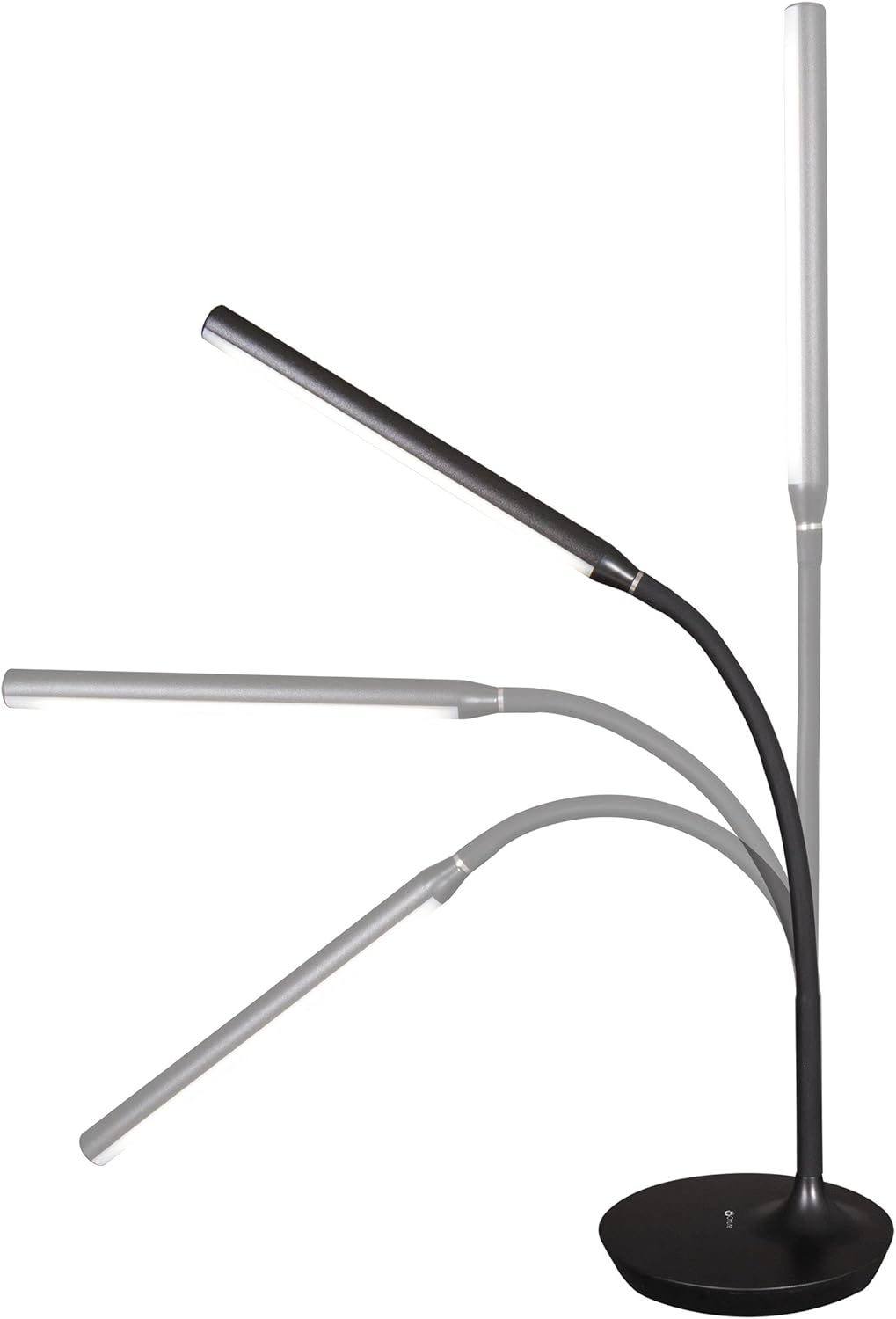

Image: An illustration demonstrating the lamp's flexible neck, highlighting its ability to be positioned at various angles and heights for optimal lighting.
Image: A visual representation of the three distinct brightness levels provided by the OttLite ClearSun LED technology.
ClearSun LED Technology Overview
The OttLite Extended Reach LED Desk Lamp utilizes proprietary ClearSun LED technology. This technology is engineered to closely match the spectral output of the sun, providing balanced and consistent wavelengths of light across the entire visual spectrum. This results in reduced eyestrain and fatigue, allowing for extended periods of comfortable use. The high Color Rendering Index (CRI) of 95+ ensures that colors appear vibrant and true-to-life, enhancing clarity for detailed tasks.
Video: An overview of OttLite's ClearSun LED technology, explaining how it reduces eyestrain and provides true-to-life colors by mimicking natural daylight.
4. Maintenance
- Cleaning: To clean the lamp, ensure it is unplugged from the power outlet. Use a soft, dry cloth to wipe down the surfaces. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- LED Care: The integrated LED light source is designed for long-lasting performance and does not require bulb replacement.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Power adapter not properly connected or outlet is not active. | Ensure the power adapter is securely plugged into both the lamp and a working electrical outlet. Test the outlet with another device. |
| Light is dim or flickering. | Incorrect brightness setting or power supply issue. | Cycle through the brightness settings using the touch control. Ensure the power adapter is providing stable power. If issues persist, contact customer support. |
6. Specifications
- Brand: OttLite
- Model: B0BSVF7PTR
- Lamp Type: Desk Lamp
- Light Source: Proprietary OttLite ClearSun LED
- Color Rendering Index (CRI): 95+
- Brightness Levels: 3 (Touch Activated)
- Adjustable Height: 9.75 to 27 inches
- Shade Length: 10.5 inches
- Base Diameter: 6.5 inches
- Product Dimensions: 6.75"D x 10.5"W x 27"H (adjustable)
- Item Weight: 1.8 Pounds
- Base Material: Acrylonitrile Butadiene Styrene
- Finish Type: Unfinished (referring to the material's natural state, not a lack of finish on the product)
7. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your product or visit the official OttLite website. You can also find more information and contact details on the OttLite Store on Amazon.
