Trust Taxon 2K QHD Webcam Instruction Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Trust Taxon 2K QHD Webcam. Designed for high-quality video communication, this webcam features 2K QHD resolution, autofocus, dual microphones, and a privacy filter. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

Image: Front view of the Trust Taxon 2K QHD Webcam, showcasing its sleek design and lens.

What's in the Box

Verify that all items are present in the packaging:

• Trust Taxon 2K QHD Webcam
• User manual

Setup

System Requirements

• Windows 10 or 11
• macOS 11, 12 or 13
• Chrome OS
• USB port

Connecting the Webcam

1. Unpack the webcam and remove any protective films.
2. Placement: The webcam features a versatile stand that allows for easy placement. You can securely attach it to the top of your monitor, place it on a flat desk surface, or mount it on a tripod (not included) using the integrated thread.

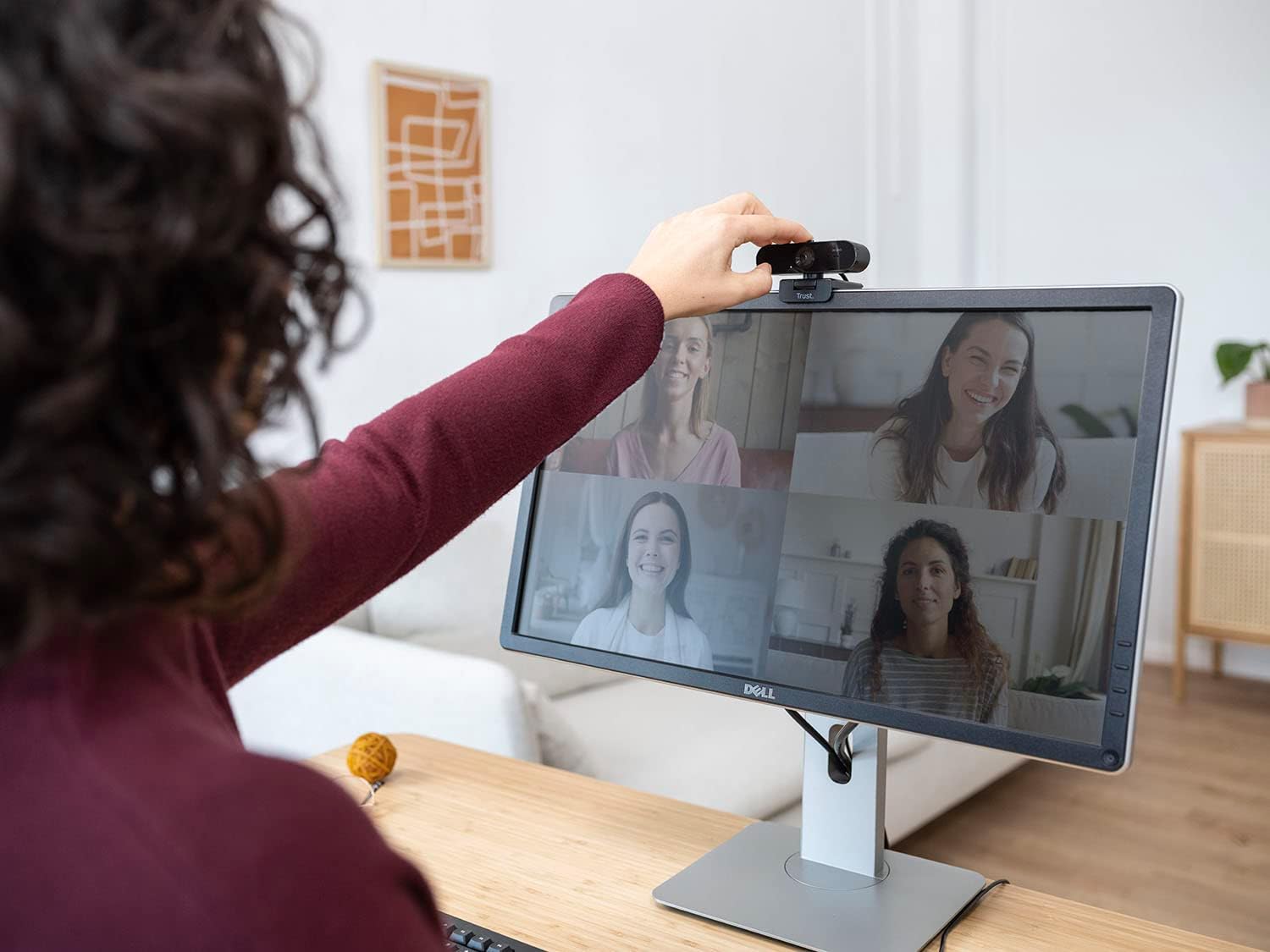

Image: The Trust Taxon 2K QHD Webcam securely positioned on top of a computer monitor, demonstrating its flexible mounting capabilities.

3. Connect to Computer: Plug the USB cable from the webcam into an available USB port on your computer. The webcam is plug-and-play, meaning it should be automatically recognized by your operating system without requiring additional driver installation.
4. Indicator Light: A green LED indicator light on the webcam will illuminate when the camera is active and in use.

Features

• 2K QHD Resolution: Enjoy sharp video quality with 2560 x 1440 pixels at 30 frames per second, ideal for video calls and conferences.


Image: A visual representation of the webcam's key features, including its 2K QHD resolution, autofocus capability, and the status LED indicator.

• Autofocus: The integrated autofocus system ensures you remain clear and sharp during your video sessions, automatically adjusting to maintain focus.
• Dual Microphones: Two built-in microphones capture your voice clearly from a distance of up to 5 meters, minimizing background noise for effective communication.


Image: The Trust Taxon 2K QHD Webcam with an overlay indicating its dual microphone feature for enhanced voice clarity.

• Privacy Filter: A physical privacy filter is integrated to cover the lens when the webcam is not in use, ensuring your privacy.


Image: The Trust Taxon 2K QHD Webcam demonstrating its built-in privacy filter, which slides to cover the lens for user privacy.

• Eco-friendly Design: The Taxon QHD webcam is constructed from 85% recycled plastic, contributing to sustainable practices.


Image: A graphic depicting the eco-friendly aspect of the webcam, emphasizing its construction from 85% recycled plastic bottles.

• Glass Lens, Auto White Balance, and Backlight Compensation: Equipped with a wide-angle glass lens, the webcam automatically adjusts white balance and compensates for backlight to deliver optimal image quality in various lighting conditions.


Image: The Trust Taxon 2K QHD Webcam with callouts for its glass lens and automatic white balance features, ensuring clear visuals.

Operating the Webcam

Using the Privacy Filter

To activate the privacy filter, slide the physical cover over the lens. Slide it back to uncover the lens when you are ready to use the webcam. This provides a physical barrier for your privacy.

Software Compatibility

The Trust Taxon 2K QHD Webcam is compatible with popular video conferencing applications such as Skype, Zoom, and Microsoft Teams. Simply select the 'Trust Taxon 2K QHD Webcam' as your video and audio input device within your preferred application's settings.

Image: A user adjusting the Trust Taxon 2K QHD Webcam on a monitor, participating in a video conference with multiple participants visible on screen.

Maintenance

To maintain the performance and appearance of your webcam:

• Cleaning the Lens: Use a soft, lint-free cloth specifically designed for optics to gently wipe the lens. Avoid abrasive materials or harsh cleaning chemicals.
• Cleaning the Body: Wipe the webcam's body with a soft, slightly damp cloth. Do not immerse the webcam in water or use excessive moisture.
• Storage: When not in use, store the webcam in a clean, dry place, preferably with the privacy filter engaged to protect the lens.

Troubleshooting

• Webcam Not Detected:
  • Ensure the USB cable is securely connected to both the webcam and your computer.
  • Try connecting the webcam to a different USB port.
  • Restart your computer.
  • Check your operating system's device manager or system information to see if the webcam is listed.
• No Video Output:
  • Verify that the privacy filter is not covering the lens.
  • Ensure the webcam is selected as the primary video device in your video conferencing software settings.
  • Check if any other application is currently using the webcam, which might prevent access.
• Poor Image Quality:
  • Ensure the lens is clean.
  • Check lighting conditions; sufficient and even lighting improves image quality.
  • Confirm your video conferencing software is set to use the highest available resolution (2K QHD).
• No Audio Input:
  • Ensure the webcam's microphone is selected as the primary audio input device in your computer's sound settings and your video conferencing software.
  • Check microphone privacy settings in your operating system.

Specifications

Image: The back of the product packaging, detailing key specifications and features of the Trust Taxon 2K QHD Webcam.

Warranty and Support

For warranty information and technical support, please refer to the official Trust website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Trust

Date First Available: June 20, 2023
