Introduction
This user manual provides important information for the safe and effective use of your Cangaroo Jessica Electric Baby Swing. Please read this manual thoroughly before assembly and operation, and keep it for future reference.
Product Overview
The Cangaroo Jessica Electric Baby Swing is designed to provide a soothing and entertaining environment for infants. It features multiple swing speeds, built-in melodies and nature sounds, and a comfortable, adjustable seat.
Overall view of the Cangaroo Jessica Electric Baby Swing in pink, showing its frame, seat, and overhead toy bar with stars and a cloud.
Key Features
- 5 Swing Levels: Adjustable swing intensity to suit your baby's preference.
- Timer Function: Set swing duration for 8, 15, or 30 minutes.
- Music and Nature Sounds: 12 melodies and 5 natural sounds with adjustable volume.
- Adjustable Backrest: Two recline positions (lying and semi-sitting) for optimal comfort.
- Remote Control: Convenient operation from a distance.
- Toy Bar: Includes 3 plush toys for engagement.
- Safety Harness: 5-point safety harness for secure restraint.
- Power Options: Operates with included AC adapter or 4 AA batteries (not included).
- Foldable Design: Easy to fold and store when not in use.
Safety Information
Your child's safety is paramount. Please adhere to all safety warnings and instructions to prevent injury.
Important Safeguards
- Age and Weight Limits: Suitable for infants from birth up to approximately 6 months, with a maximum weight of 9 kg (19.8 lbs). Do not use for children exceeding these limits.
- Supervision: Never leave your child unattended in the swing. Always keep your child in view.
- Harness Use: Always secure your child with the 5-point safety harness. Ensure it is properly adjusted and snug.
- Placement: Place the swing on a flat, stable, and level surface. Do not place near stairs, heat sources, or open flames.
- Assembly: Ensure all parts are correctly assembled and securely fastened before use. Do not use if any parts are damaged or missing.
- Moving the Swing: Do not move the swing with the child in it.
- Attachments: Do not add any strings, cords, or other items to the swing that could pose a strangulation hazard.
- Batteries: If using batteries, ensure they are inserted correctly. Do not mix old and new batteries or different types of batteries. Remove batteries if the swing will not be used for an extended period.
Package Contents
Please check the package contents upon opening to ensure all items are present and undamaged.
- Cangaroo Jessica Electric Baby Swing Unit
- Overhead Toy Bar with 3 Plush Toys
- Soft Head Cushion
- AC Power Adapter
- Remote Control
- User Manual (this document)
Components of the Cangaroo Jessica Electric Baby Swing, including the remote control, power adapter, and a close-up of the control panel.
Setup
Follow these steps to assemble your Cangaroo Jessica Electric Baby Swing.
Assembly Instructions
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Assemble the Frame: Connect the frame components as indicated in the diagrams. Ensure all locking mechanisms click into place securely.
- Attach the Seat Unit: Secure the seat fabric and frame to the main swing frame. Verify that the seat is firmly attached and cannot be easily dislodged.
- Install the Toy Bar: Insert the overhead toy bar into its designated slots on the swing frame. Ensure it is securely fastened.
- Insert Batteries (Optional): If you plan to use battery power, open the battery compartment (usually located on the control panel) and insert 4 AA batteries, observing correct polarity (+/-). Close the compartment securely.
- Connect Power Adapter: If using AC power, plug the adapter into the swing's power port and then into a standard electrical outlet.
- Final Check: Before placing your child in the swing, gently push and pull on all assembled parts to ensure they are stable and secure.
Side view of the Cangaroo Jessica Electric Baby Swing, illustrating its assembled structure and recline position.
Front-side view of the Cangaroo Jessica Electric Baby Swing, highlighting the seat and toy bar.

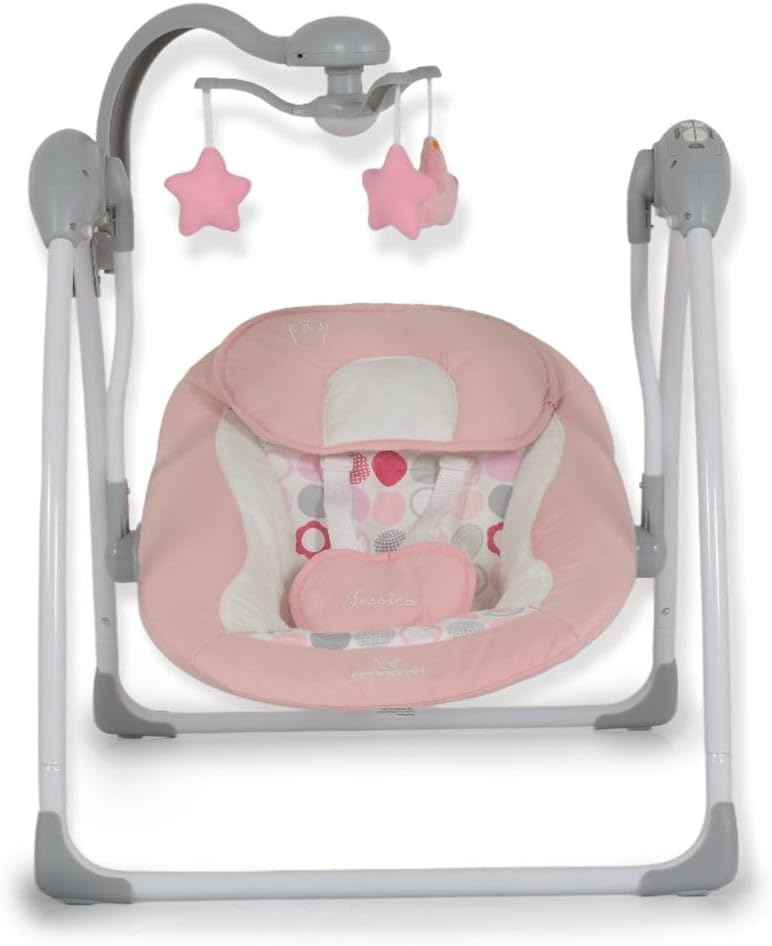

Front view of the Cangaroo Jessica Electric Baby Swing, showing the full seat and toy bar.
Overhead view of the Cangaroo Jessica Electric Baby Swing's seat, showing the harness and soft padding.
Operating Instructions
Familiarize yourself with the swing's controls and functions for optimal use.
Powering the Swing
- AC Power: Plug the included AC adapter into the swing's power port and then into a wall outlet.
- Battery Power: Ensure 4 AA batteries are correctly installed in the battery compartment. The swing can operate on batteries when AC power is not available.
Swing Speed Adjustment
Use the speed control buttons on the swing's control panel or the remote control to adjust the swing intensity. There are 5 distinct swing levels.
Timer Function
Press the timer button to set the swing to operate for a specific duration: 8 minutes, 15 minutes, or 30 minutes. The swing will automatically stop after the selected time.
Music and Sound Functions
- Melodies: Press the music button to cycle through 12 built-in melodies.
- Nature Sounds: Press the nature sound button to cycle through 5 soothing nature sounds.
- Volume Control: Use the volume up/down buttons to adjust the audio level.
Recline Adjustment
The swing's backrest can be adjusted to two positions: a lying position for newborns and a semi-sitting position for older infants. Locate the recline adjustment mechanism on the side of the seat and follow the instructions to change the angle.
Remote Control Usage
The included remote control allows you to operate the swing's functions from a distance. It typically includes buttons for power, swing speed, timer, music, nature sounds, and volume control. Ensure the remote has working batteries.
Maintenance
Regular maintenance helps ensure the longevity and safe operation of your baby swing.
Cleaning
- Fabric Seat: The fabric seat cover can typically be removed for cleaning. Refer to the care label for specific washing instructions (usually hand wash or gentle machine wash with mild detergent). Air dry thoroughly.
- Frame and Plastic Parts: Wipe down the frame and plastic components with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
- Toy Bar Toys: The plush toys can be spot cleaned with a damp cloth.
Storage
When not in use, the Cangaroo Jessica Electric Baby Swing can be folded for compact storage. Locate the folding mechanisms on the frame and follow the instructions to collapse the swing. Store in a clean, dry place away from direct sunlight and extreme temperatures.
The Cangaroo Jessica Electric Baby Swing in its folded position, demonstrating its compact storage capability.
Troubleshooting
If you encounter any issues with your baby swing, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Swing does not turn on or operate. | No power, batteries dead/incorrectly installed, power adapter not connected. | Ensure AC adapter is securely plugged in. If using batteries, check battery polarity and replace if necessary. |
| Swing motion is weak or inconsistent. | Low battery power, swing overloaded (child too heavy), obstruction. | Replace batteries or use AC adapter. Ensure child's weight is within limits (max 9 kg). Check for any obstructions preventing smooth motion. |
| No sound from music/nature sounds. | Volume too low, sound function not activated. | Increase volume using the volume buttons. Press the music/nature sound button to activate. |
| Remote control not working. | Remote batteries dead/incorrectly installed, remote out of range. | Replace remote batteries. Ensure remote is pointed towards the swing's receiver and within range. |
Specifications
| Recommended Age | Birth to approximately 6 months |
| Maximum Weight Capacity | 9 kg (19.8 lbs) |
| Product Dimensions (L x W x H) | 64 x 56 x 71 cm (25.2 x 22 x 28 inches) |
| Product Weight | 4.5 kg (9.9 lbs) |
| Material | 100% Polyester |
| Power Supply | AC Adapter (included) or 4 x AA Batteries (not included) |
| Swing Levels | 5 |
| Timer Settings | 8, 15, 30 minutes |
| Melodies | 12 |
| Nature Sounds | 5 |
| Recline Positions | 2 |
| Model Number | 109607 |
| ASIN | B0BSNHC8BF |
Warranty and Support
For warranty information, product registration, or customer support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.
