1. Introduction
Thank you for choosing the MONDAWE MD-A3816-BN3 Wall Mounted Shower Faucet Set. This manual provides essential information for the safe installation, proper operation, and effective maintenance of your new shower system. Please read these instructions thoroughly before beginning installation or use.
Product Overview
This shower system is designed to provide a versatile and comfortable showering experience. Key features include:
- Anti-Scald Pressure Balance Valve: Equipped with a pressure balance shower valve to protect against sudden changes in water temperature, ensuring safety for all users.
- 3-Function Handheld Shower: Offers rainfall, massage, and mixed spray patterns for a personalized experience, complete with a height-adjustable slide bar.
- Easy Operation: A single handle controls water flow and temperature, while a diverter knob allows effortless switching between the rainfall shower head, handheld shower, and bathtub spout. Only one function operates at a time.
- Durable Brushed Nickel Finish: The finish provides corrosion resistance and durability, complementing various bathroom aesthetics.
- High Pressure Technology: Designed to deliver consistent, powerful rain showers even in low water pressure environments.
- American Standard Compatibility: Features American standard 1/2 inch NPT thread for compatibility with most U.S. plumbing connections.
Image 1.1: The MONDAWE 9-inch wall-mounted shower faucet set with rainfall shower head, handheld spray, and tub spout in a brushed nickel finish.
2. Package Contents
Carefully unpack all components and verify that all parts are present and undamaged. If any parts are missing or damaged, please contact customer support before proceeding with installation.

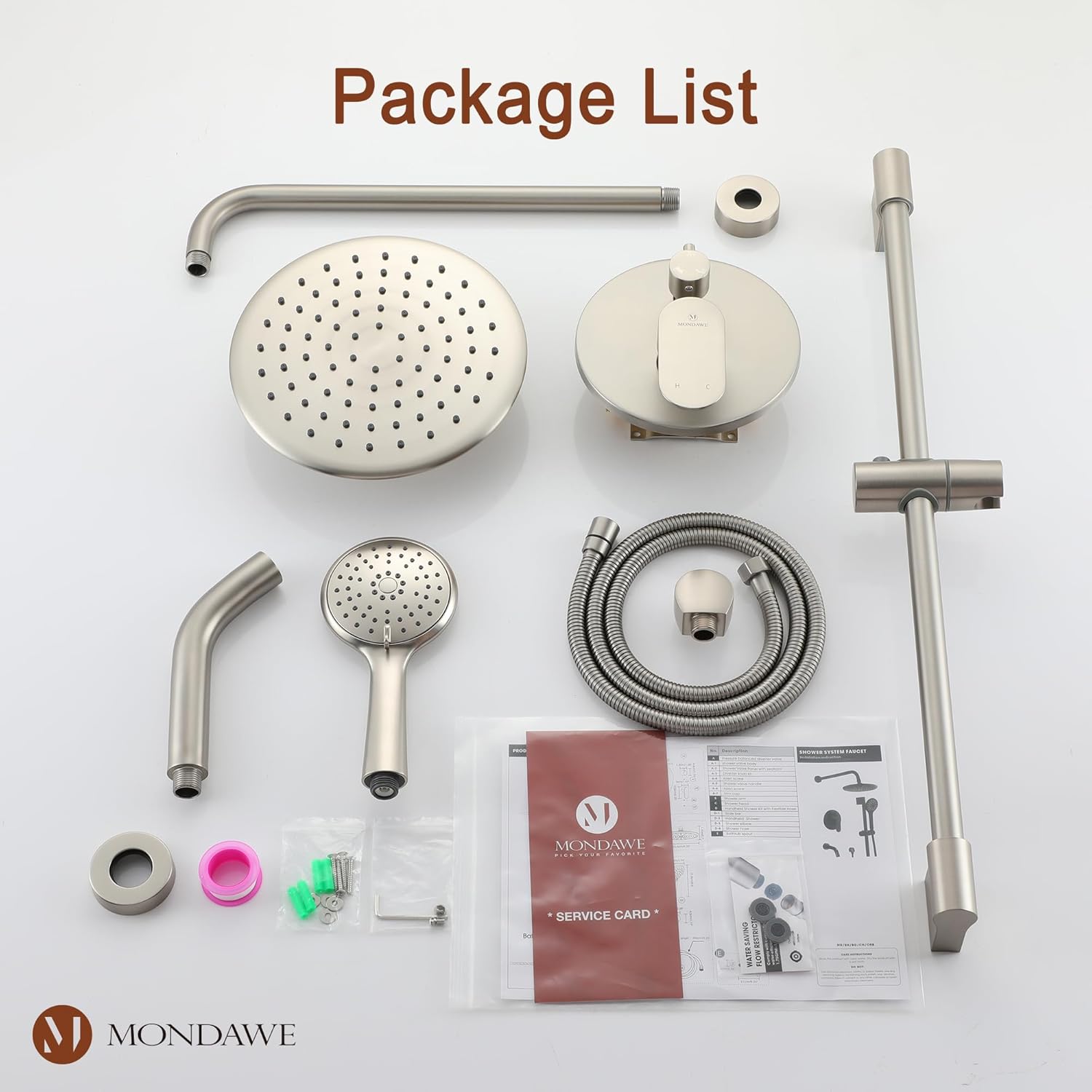

Image 2.1: All components included in the MONDAWE shower faucet set package.
List of Components:
- Rainfall Shower Head
- Shower Arm
- Shower Mixer Valve (with trim plate and handle)
- Handheld Shower Head
- Shower Hose
- Slide Bar for Handheld Shower
- Tub Spout
- Shower Elbow/Wall Outlet
- Mounting Hardware and Seals
- Instruction Manual (this document)
3. Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | MD-A3816-BN3 |
| Brand | MONDAWE |
| Finish | Brushed Nickel |
| Main Material | Solid Brass Valve, ABS Components |
| Mounting Type | Wall Mount |
| Number of Handles | 1 |
| Connection Size | 1/2 inch NPT (American Standard) |
| Shower Head Size | 9 inches (diameter) |
| Handheld Spray Settings | Rainfall, Massage, Mixed |
Image 3.1: Detailed dimensions of the shower system components, including shower head, arm, valve, handheld, slide bar, and tub spout.
4. Installation Guide
Before You Begin
- Ensure all local plumbing codes are met.
- Turn off the main water supply before starting any work.
- Clear the work area and protect surrounding surfaces.
- Inspect all components for any damage.
Tools Required (Not Included)
- Adjustable Wrench
- Pipe Thread Sealant Tape (Teflon Tape)
- Screwdriver (Phillips and Flathead)
- Drill with appropriate bits
- Level
- Measuring Tape
- Safety Glasses
Installation Steps
Refer to the diagrams below for visual guidance during installation. Professional installation is recommended if you are unfamiliar with plumbing work.
Image 4.1: Internal structure of the shower mixer valve, showing NPT 1/2 inch connections for tub spout, rainfall shower head, handheld shower head, hot water, and cold water.
Image 4.2: Step-by-step installation diagram illustrating the placement of the valve, shower arm, rainfall head, tub spout, and handheld shower components.
- Prepare Wall Opening: Create an opening in the wall for the shower mixer valve according to the dimensions provided in the specifications and diagrams. Ensure proper depth for the valve body.
- Install Mixer Valve: Secure the solid brass mixer valve body within the wall opening. Connect the hot and cold water supply lines to the designated NPT 1/2 inch inlets on the valve. Connect the outlets for the rainfall shower head, handheld shower, and tub spout. Use pipe thread sealant tape on all threaded connections to prevent leaks.
- Install Shower Arm: Thread the shower arm into the wall outlet for the rainfall shower head. Ensure it is securely tightened and sealed.
- Attach Rainfall Shower Head: Connect the rainfall shower head to the shower arm. Hand-tighten, then use a wrench for a final snug fit, being careful not to overtighten.
- Install Tub Spout: Mount the tub spout to its designated wall connection. Ensure it is level and securely fastened.
- Install Shower Elbow/Wall Outlet: Install the wall outlet for the handheld shower hose.
- Mount Slide Bar: Position and secure the slide bar for the handheld shower head to the wall using the provided mounting hardware. Ensure it is at a comfortable and accessible height.
- Connect Handheld Shower: Attach the shower hose to the wall outlet and to the handheld shower head. Place the handheld shower head onto the slide bar holder.
- Install Trim Plate and Handle: Once all internal plumbing is complete and tested for leaks, install the decorative trim plate and the control handle onto the mixer valve.
- Test System: Turn on the main water supply and check all connections for leaks. Test each function (rainfall, handheld, tub spout) to ensure proper operation and water flow.
5. Operation Instructions
Water Flow and Temperature Control
The single handle on the mixer valve controls both water flow and temperature.
- To turn on the water, lift the handle.
- Rotate the handle left for hotter water and right for colder water.
- The pressure balance valve automatically adjusts to maintain a consistent temperature, preventing sudden changes.
Image 5.1: The control panel showing the single handle for temperature and flow, and the diverter knob for selecting shower functions.
Shower Functions
Use the diverter knob on the mixer valve to switch between the three functions: rainfall shower, handheld shower, and bathtub spout. Only one function can be active at a time.
- Rainfall Shower Head: Rotate the diverter knob to the 'Rainfall Shower' position. This large overhead shower head provides a wide, consistent water flow for a full body rinse. The shower head features an adjustable angle connector and easy-clean silicone nozzles.
Image 5.2: Details of the rainfall shower head, highlighting its adjustable angle connector and easy-clean silicone nozzles.
- Handheld Shower: Rotate the diverter knob to the 'Handheld Shower' position. The handheld shower offers three spray settings: rainfall, massage, and a mixed mode. Adjust the spray pattern by rotating the shower head face. The handheld shower is mounted on a height-adjustable slide bar for convenience.
Image 5.3: The handheld shower head demonstrating its three distinct spray patterns: massage, rain, and a combination of rain and massage.

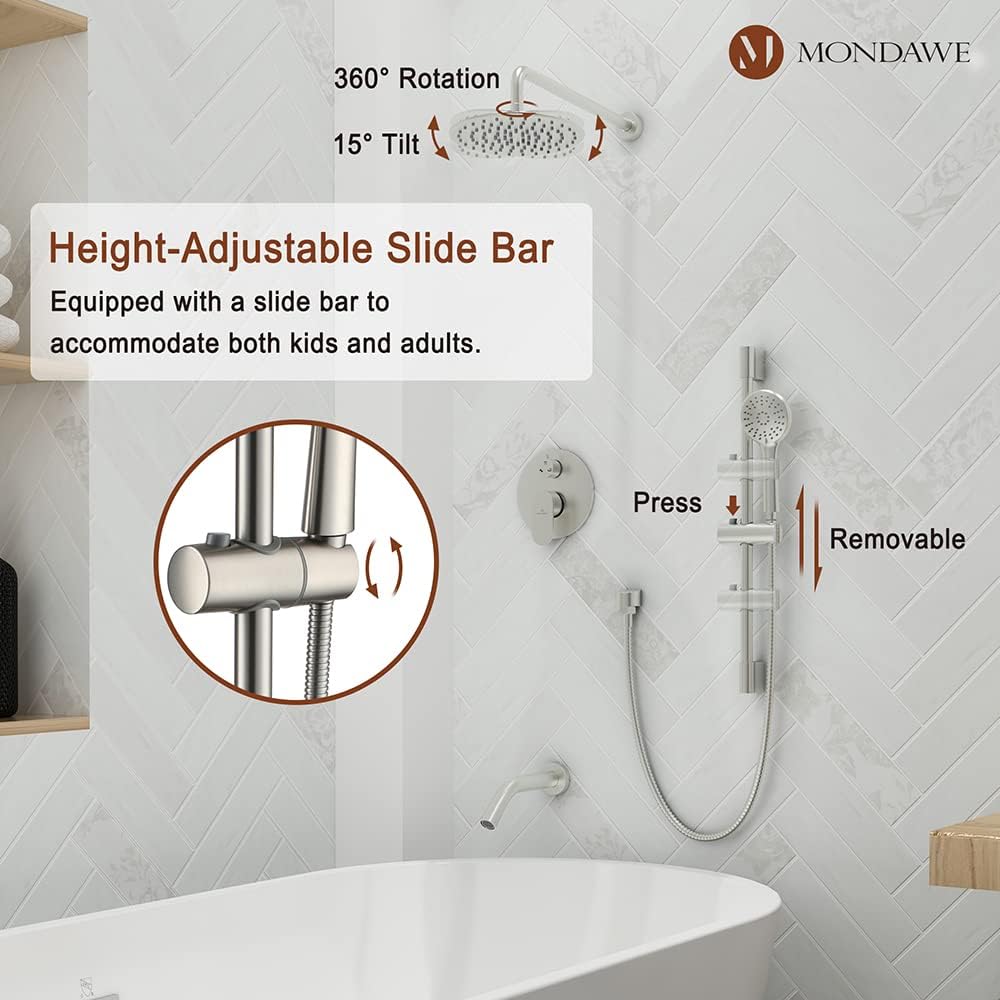

Image 5.4: The height-adjustable slide bar, allowing the handheld shower to be positioned for users of different heights, with 360-degree rotation and 15-degree tilt capability.
- Bathtub Spout: Rotate the diverter knob to the 'Bathtub Spout' position. The tub spout provides a high-flow, splash-proof stream for filling the bathtub.
Image 5.5: Close-up view of the bathtub spout, emphasizing its high flow rate and splash-proof design.
6. Care and Maintenance
Proper care and maintenance will ensure the longevity and appearance of your MONDAWE shower system.
- Cleaning the Finish: Clean the brushed nickel finish with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. Mild soap and water are generally sufficient.
- Cleaning Nozzles: The rainfall shower head and handheld shower head feature silicone nozzles. To remove mineral buildup, gently rub the nozzles with your finger or a soft brush.
- Regular Inspection: Periodically check all connections for leaks and ensure all components are securely tightened.
- Avoid Over-tightening: When cleaning or adjusting components, avoid overtightening, which can cause damage.
7. Troubleshooting Guide
This section addresses common issues you might encounter with your shower system.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged shower head nozzles; partially closed shut-off valves; low household water pressure. | Clean shower head nozzles. Ensure shut-off valves on the mixer are fully open. Consult a plumber if household pressure is consistently low. |
| Water Leaks from Connections | Loose connections; worn seals/gaskets; insufficient pipe thread sealant. | Turn off water supply. Tighten connections. Replace worn seals/gaskets. Reapply pipe thread sealant tape if necessary. |
| Water Temperature Fluctuations | Pressure balance valve malfunction; issues with hot/cold water supply. | Ensure hot and cold water supplies are stable. If problem persists, the pressure balance cartridge may need inspection or replacement by a qualified professional. |
| Diverter Not Switching Functions | Internal debris; diverter mechanism issue. | Flush the system by running water through all outlets. If the issue continues, the diverter cartridge may require inspection or replacement. |
8. Warranty and Customer Support
MONDAWE stands behind the quality of its products. For specific warranty details, please refer to the warranty card included in your package or contact MONDAWE customer service.
If you have any questions regarding installation, operation, or require technical assistance, please do not hesitate to contact us. Our customer support team is available to assist you.
Contact Information:
Please refer to the contact details provided on the product packaging or the MONDAWE official website for the most current customer support information.
