AFI Northfield Murphy Bed Chest - Full Size Instruction Manual

1. Introduction and Overview

The AFI Northfield Murphy Bed Chest is a versatile, space-saving furniture solution designed to provide a comfortable sleeping area when needed and convert into a stylish chest when not in use. This Full-sized unit in Grey includes a 6-inch memory foam mattress, a spacious storage drawer, and a built-in USB charging station for added convenience. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your Murphy Bed Chest.

2. Safety Information

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

• Read all instructions carefully before assembly and use.
• Keep children and pets away from the assembly area.
• Ensure all hardware is securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the maximum weight capacity of 800 lbs.
• Always ensure the bed is fully extended and stable before use.
• Do not jump on the bed or chest.
• Use caution when converting the chest to a bed and vice versa to avoid pinching or injury.
• Keep electrical cords from the charging station away from water and heat sources.

3. Package Contents

Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, contact AFI customer support.

• Cabinet
• Drawer Base
• Hardware Pack
• Installation Manual (this document)
• 6-inch Memory Foam Mattress

4. Setup and Assembly

Assembly is required for this product. While many steps can be completed by one person, assistance is recommended for lifting and securing heavier components, particularly the folding bed frame. An electric drill is highly recommended for efficient assembly, especially for parts without pre-drilled holes.

General Assembly Steps:

1. Unpack and Organize: Carefully unpack all boxes and lay out components on a clean, soft surface to prevent scratches. Identify all parts against the provided parts list.
2. Assemble the Main Cabinet: Follow the detailed instructions in the included installation manual to construct the primary chest cabinet. Ensure all cam locks and screws are tightened.
3. Install the Drawer Base: Assemble the storage drawer and install it into the designated slot at the bottom of the cabinet.
4. Attach the Folding Bed Mechanism: Secure the folding bed frame to the cabinet using the provided hardware. This step may require two people due to the weight and size of the components.
5. Place the Mattress: Once the bed frame is securely installed, carefully place the 6-inch memory foam mattress onto the frame. The mattress is designed to fold with the bed mechanism.
6. Connect the Charging Station: Plug the integrated power source cord into a wall outlet.

Figure 1: Product Dimensions in Closed and Open States

5. Operating Instructions

Converting from Chest to Bed:

1. Clear the Top Surface: Remove any items from the top of the chest.
2. Unlock Latches: Locate and release the latches on either side of the top panel.
3. Open Top Panel: Lift the top panel and fold it backward to reveal the bed mechanism.
4. Extend Bed Frame: Gently pull the front panel of the chest outwards. The bed frame will unfold and extend. Ensure the support legs are fully deployed and stable.
5. Unfold Mattress: The 6-inch memory foam mattress will unfold as the bed extends. Adjust it as needed for a flat sleeping surface.

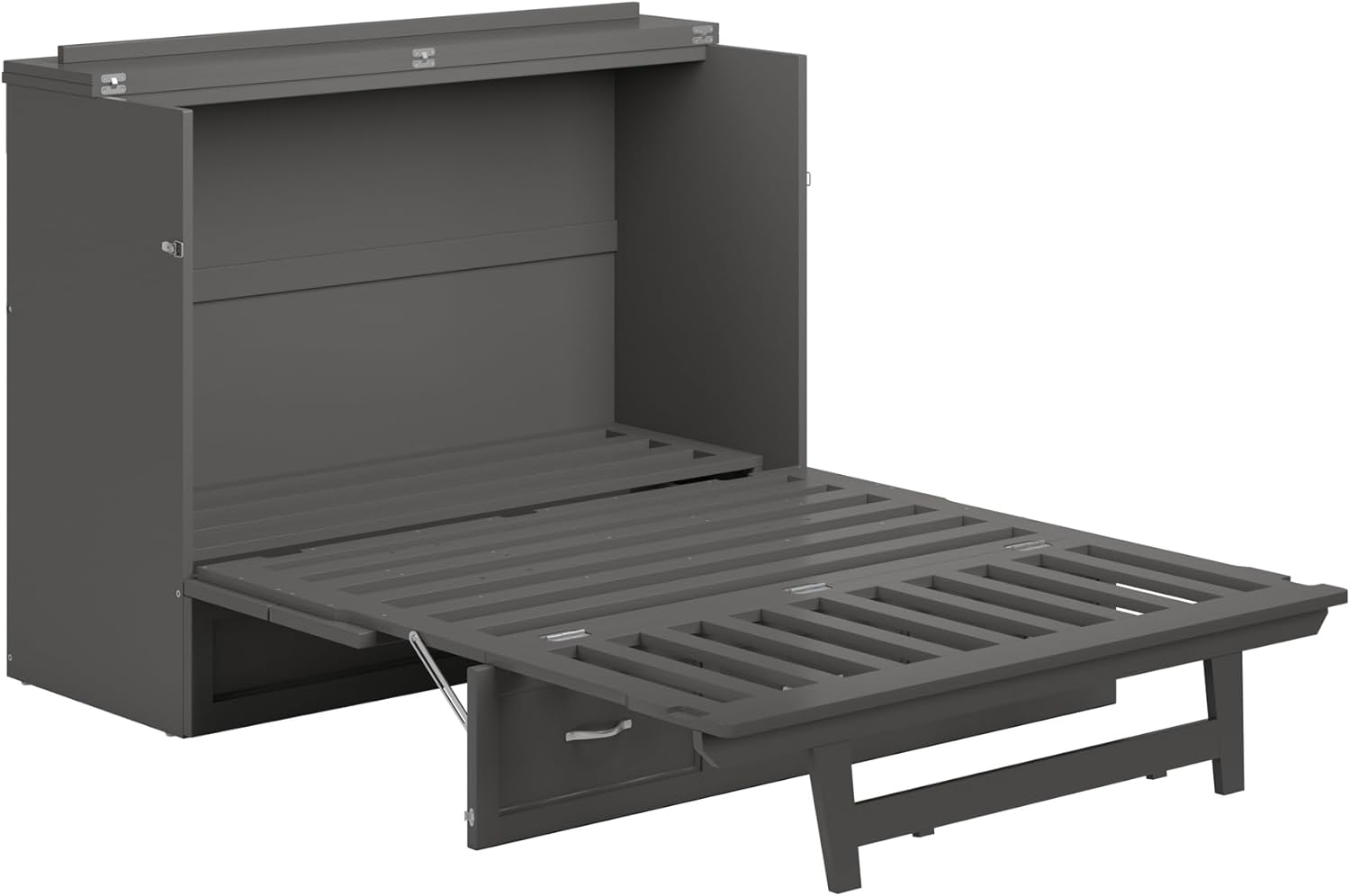

Figure 2: Chest in Closed and Open Bed Configurations

Converting from Bed to Chest:

1. Fold Mattress: Fold the mattress back into its compact position on the bed frame.
2. Retract Bed Frame: Lift the bed frame slightly and push the front panel inwards. The support legs will retract, and the frame will fold back into the chest.
3. Close Top Panel: Fold the top panel back down and secure the latches on both sides.

Using the Storage Drawer:

The large bottom drawer provides convenient storage for bedding, pillows, or other items. Simply pull the handles to open and push to close.

Figure 3: Spacious Storage Drawer

Using the Built-in USB Charging Station:

The integrated charging station is located on the side of the chest. It features two USB ports and two standard AC outlets. Plug your devices into the appropriate ports for charging.

Figure 4: Built-in USB and AC Charging Station

6. Maintenance

To maintain the appearance and longevity of your AFI Northfield Murphy Bed Chest:

• Cleaning: Wipe the wooden surfaces with a dry, soft cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware: Periodically check all screws, bolts, and latches to ensure they are tight. Re-tighten as needed to maintain stability.
• Mattress Care: Follow the care instructions provided with the 6-inch memory foam mattress. Rotate the mattress regularly to ensure even wear.
• Movement: If moving the chest, ensure it is in the closed position and lift it carefully. Avoid dragging the unit to prevent damage to the legs or floor.

7. Troubleshooting

Common Issues and Solutions:

• Difficulty during Assembly: If you encounter difficulty with screws or aligning parts, ensure you are using the correct hardware for each step. An electric drill can assist with driving screws into solid wood components.
• Bed does not convert smoothly: Check for any obstructions in the folding mechanism. Ensure all hinges and moving parts are clean and free of debris. Verify that the mattress is correctly positioned and folded.
• Wobbly or Unstable: Re-check all assembly hardware to ensure every screw and bolt is securely tightened. Ensure the chest is placed on a flat, level surface.
• Charging Station Not Working: Verify that the power cord is securely plugged into both the chest and a functioning wall outlet. Check if the wall outlet is receiving power.

If you experience persistent issues not covered here, please contact AFI customer support for assistance.

8. Specifications

9. Warranty and Support

Manufacturer's Warranty:

This AFI Northfield Murphy Bed Chest is covered by a 1-year limited manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support:

For any questions, missing parts, assembly assistance, or warranty inquiries, please contact AFI Furnishings customer support. They are dedicated to providing excellent service and can be reached through their official website or the contact information provided in your product packaging.
