1. Product Overview
The CASAINC Luxury Shower System is designed to provide a premium showering experience with its large 22-inch square shower head, offering both rainfall and waterfall spray patterns, and a convenient handheld spray. This wall-mounted system features a CUPC certified pressure-balanced valve to prevent scalding and ensure consistent water temperature. Constructed from durable brass and stainless steel with an advanced electroplating brushed gold finish, it is built for longevity and easy maintenance.
Image 1.1: Main components of the CASAINC Luxury Shower System, including the large square shower head, control valve, and handheld spray, all in a brushed gold finish.
2. Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in personal injury or property damage.
- Ensure all local plumbing and building codes are met during installation.
- Turn off the main water supply before beginning any installation or maintenance.
- Use appropriate safety gear, such as eye protection and gloves, during installation.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- The pressure-balanced valve is designed to prevent scalding; however, always test water temperature before stepping into the shower.
3. Package Contents
Verify that all components listed below are present and undamaged before proceeding with installation.
- 22 Inch Overhead Shower Head
- 59 Inch Shower Hose
- Pressure Balancing Shower Valve
- Stainless Steel Hand Shower
- Installation Guide
- Mounting Hardware and Accessories
Image 3.1: All items included in the CASAINC Luxury Shower System package, laid out for verification.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | CASAINC |
| Model Number | M6630-A-22-BG |
| Color | Brushed Gold |
| Material | Brass, Stainless Steel |
| Finish Type | Brushed |
| Number of Handles | 1 |
| Mounting Type | Wall Mount |
| Head Size | 22 inches |
| Hose Length | 59 inches |
| Flow Rate | 2.5 GPM |
| Valve Type | Pressure Balanced (CUPC Certified) |
| Product Dimensions | 24.02 x 11.81 x 7.09 inches |
| Item Weight | 24.4 pounds (11.11 Kilograms) |

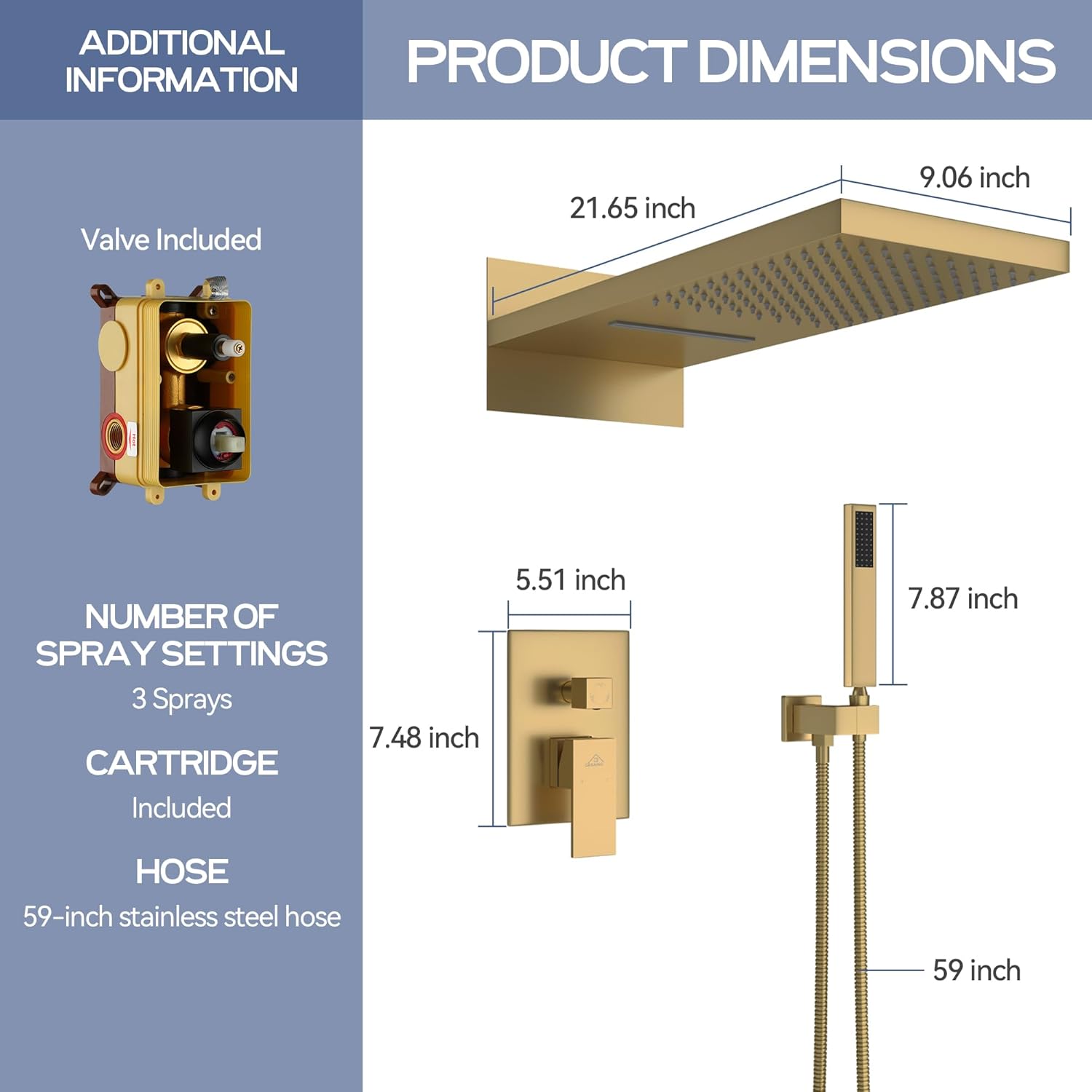

Image 4.1: Detailed product dimensions and key specifications for the shower system components.
5. Setup (Installation)
Installation of the CASAINC Luxury Shower System requires professional plumbing knowledge. It is highly recommended to consult or hire a certified plumber for proper installation.
For detailed step-by-step instructions, please refer to the official Installation Manual provided with your product or download it from the link below:
Download Installation Manual (PDF)
Key Installation Considerations:
- Ensure proper wall reinforcement for the shower head and valve.
- Verify correct hot and cold water line connections to the pressure-balanced valve.
- Use thread sealant on all threaded connections to prevent leaks.
- Test all connections for leaks before closing up walls.
- The system uses American standard 1/2 inch NPT thread connections.
6. Operating Instructions
The CASAINC Luxury Shower System offers three distinct functions for a personalized showering experience.
6.1. Water Flow and Temperature Control
The main handle on the valve controls both water flow and temperature. Rotate the handle to adjust the temperature from cold to hot. Lift or push the handle to turn the water on or off and adjust flow intensity.
6.2. Function Selection
The diverter knob allows you to switch between the three spray functions:
- Rainfall: Provides a gentle, wide coverage shower from the large overhead shower head.
- Waterfall: Delivers a broad, cascading sheet of water from the overhead shower head, ideal for a luxurious experience.
- Handheld Spray: Activates the flexible handheld shower for targeted rinsing or cleaning.
Image 6.1: Visual representation of the three available spray functions and how they are selected via the control valve.
Image 6.2: The 22-inch shower head demonstrating both rainfall and waterfall spray patterns.
7. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your CASAINC shower system.
7.1. Cleaning the Shower Heads and Handheld Spray
- The rubber nozzles on the shower head and handheld spray are designed for easy cleaning. Simply rub them with your finger or a soft cloth to remove mineral buildup.
- For general cleaning, use a soft cloth and mild soap or a non-abrasive bathroom cleaner.
- Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed gold finish.
- Rinse thoroughly with clean water after cleaning and wipe dry to prevent water spots.
7.2. Valve and Finish Care
- The advanced electroplating coating technology makes the finish durable and spot resistant.
- Wipe down the valve trim and handles regularly with a soft, damp cloth to maintain their appearance.
- Do not use cleaners containing ammonia, bleach, or alcohol, as these can degrade the finish over time.
Image 7.1: The CUPC certified ceramic cartridge, designed for leak-free operation and extended lifespan.
8. Troubleshooting
If you encounter any issues with your CASAINC Luxury Shower System, please refer to the common problems and solutions below. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged nozzles, partially closed shut-off valves, or low household water pressure. | Clean shower head nozzles. Ensure shut-off valves are fully open. Check household water pressure. |
| Water Leaks | Loose connections, damaged O-rings/gaskets, or faulty cartridge. | Check and tighten all connections. Inspect and replace worn O-rings/gaskets. If cartridge is suspected, contact customer support. |
| Inconsistent Water Temperature | Pressure balance valve issue or insufficient hot water supply. | Ensure hot water heater is functioning correctly. If problem persists, the pressure balance cartridge may need inspection by a professional. |
| Difficulty Switching Functions | Mineral buildup in diverter or worn diverter cartridge. | Clean around the diverter knob. If still stiff, the diverter cartridge may need replacement. |
9. Warranty & Support
CASAINC is committed to providing high-quality products and excellent customer service.
9.1. Warranty Information
This CASAINC shower system comes with a Lifetime-Limited-Maintenance warranty. This warranty covers free replacement of accessories/products for non-human quality problems.
9.2. Customer Support
Our dedicated customer support team is readily available to address any questions or concerns you may have. If you received products with missing parts, damaged items, or have any problems with consultation, logistics, or installation, please reach out to us before initiating a return.
You can typically find contact information or a way to reach us by clicking the order details page on the platform where you purchased the product.
CASAINC: Build Your Ideal Space
