Ecowell LULU Quick Clean P04 Cordless Wet Dry Vacuum Cleaner Instruction Manual

Introduction

The Ecowell LULU Quick Clean P04 is a cordless multi-surface wet dry vacuum designed to vacuum, mop, and wash floors simultaneously. This manual provides detailed instructions for the safe and efficient operation, maintenance, and care of your LULU Quick Clean P04 to ensure optimal performance and longevity.

Image: The Ecowell LULU Quick Clean P04 Cordless Wet Dry Vacuum Cleaner, shown in its upright position.

Important Safety Instructions

Before using this appliance, read all instructions and cautionary markings in this manual and on the product. Failure to follow the warnings and instructions may result in electric shock, fire, or serious injury.

• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filter and dirt tank in place.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

Package Contents

Verify that all components are present and in good condition upon opening the package.

• Cordless Floor Cleaner x 1
• Docking Station x 1
• Charge Adapter x 1
• Brush Roll x 1 (Pre-installed)
• Area Rug Brush Roll x 1 (Accessory)
• HEPA Filter x 1 (Pre-installed)
• Cleaning Kit x 1
• Warranty Card with 24 Months Warranty x 1

Image: Diagram illustrating the main components of the Ecowell LULU Quick Clean P04, including the handle, water spray button, clean water tank, dirty water tank, digital light, self-cleaning mode indicator, easily removable floor cleaning brush, power switch, speed control switch, docking & storage station, adapter, cleaning roller, and clean-out brush.

Product Overview

Familiarize yourself with the various parts of your Ecowell LULU Quick Clean P04.

• Handle: Ergonomically designed for comfortable grip and control.
• Water Spray Button: Activates water and cleaning solution spray.
• Clean Water Tank: Holds fresh water and cleaning solution.
• Dirty Water Tank: Collects dirty water and debris.
• Digital Light (LCD Display): Provides information on battery life, water status, and operating mode.
• Self-Cleaning Mode Indicator: Shows when the self-cleaning cycle is active.
• Easily Removable Floor Cleaning Brush: The main brush roll for cleaning surfaces.
• Power Switch: Turns the unit on and off.
• Speed Control Switch: Toggles between Eco and Max cleaning modes.
• Docking & Storage Station: Used for charging and self-cleaning.
• Adapter: For charging the vacuum.
• Cleaning Roller: The primary roller brush for scrubbing.
• Clean-out Brush: Tool for manual cleaning of components.
• HEPA Filter: High-efficiency particulate air filter for trapping fine particles.

Setup

1. Assembly:
   • Insert the handle into the main body of the vacuum until it clicks securely into place.
2. Initial Charging:
   • Place the vacuum on the docking station.
   • Connect the charge adapter to the docking station and plug it into a power outlet.
   • The LCD display will indicate charging status. A full charge takes approximately 3.5 hours.
   • Ensure the vacuum is fully charged before first use for optimal battery life.
3. Filling the Clean Water Tank:
   • Remove the clean water tank from the main unit.
   • Fill the tank with clean water up to the MAX fill line. For enhanced cleaning, add a small amount of Ecowell-approved cleaning solution according to the solution's instructions.
   • Securely reattach the clean water tank to the vacuum.

Operating Instructions

Basic Operation

1. Power On: Press the Power Switch on the handle to turn on the vacuum. The voice prompt will announce the current status.
2. Select Mode: Use the Speed Control Switch to toggle between Eco mode (standard cleaning) and Max mode (for stubborn messes requiring maximum suction).
3. Start Cleaning: Tilt the vacuum back to engage the brush roll. Press the Water Spray Button to dispense water and cleaning solution onto the floor as you clean.
4. Multi-Surface Cleaning: The LULU Quick Clean P04 is suitable for hard floors (hardwood, tile, laminate, vinyl, marble, linoleum) and area rugs. It picks up wet and dry messes simultaneously.
5. Voice Prompt: The integrated voice prompt system will report the working status, such as battery level, water tank status, and self-cleaning initiation.

Image: The Ecowell LULU Quick Clean P04 actively cleaning a combination of wet and dry spills on a hard floor, demonstrating its wet/dry vacuum and wash capability.

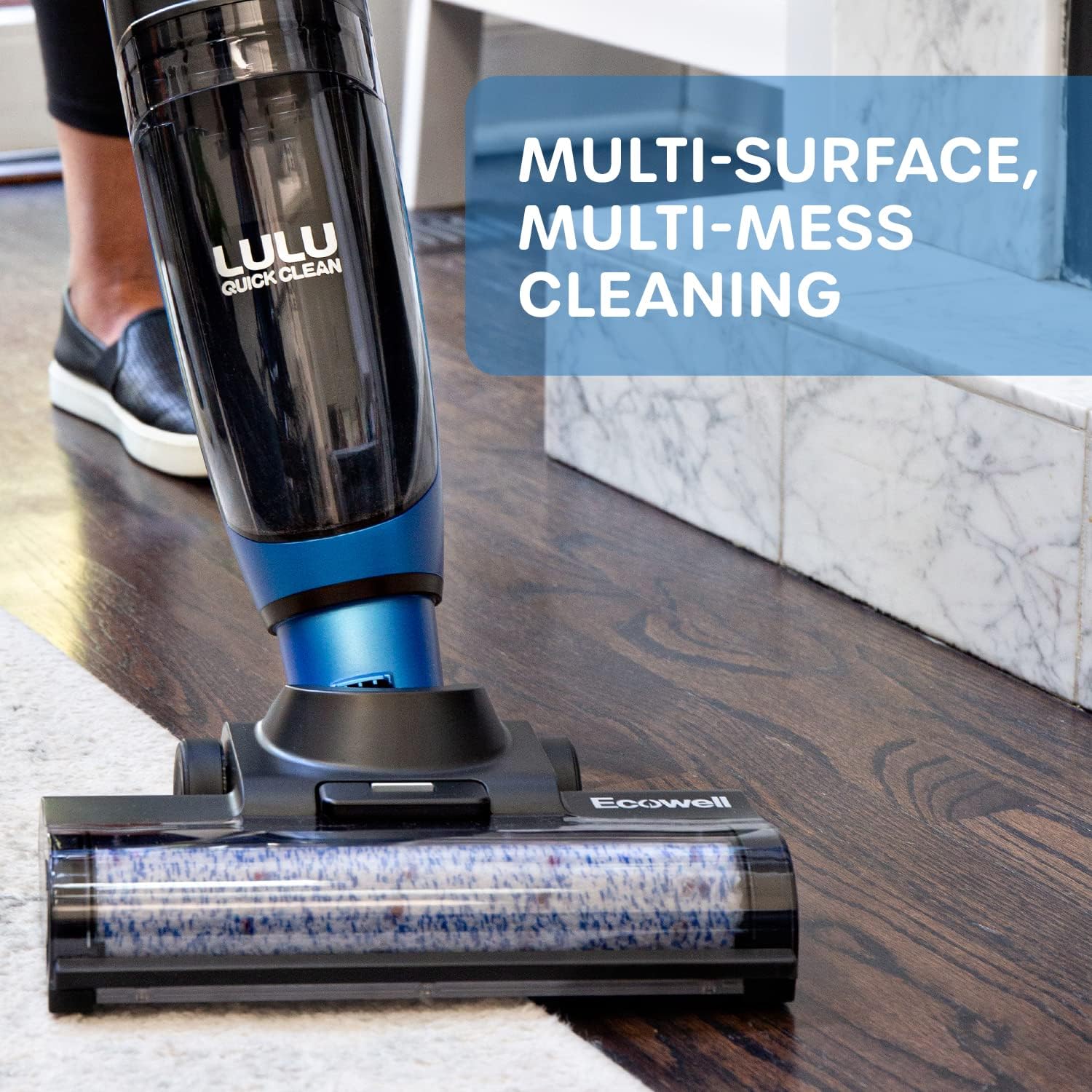

Image: A close-up view of the Ecowell LULU Quick Clean P04's brush head transitioning from a hard floor to an area rug, highlighting its multi-surface cleaning ability.

Image: The Ecowell LULU Quick Clean P04 being used on a hard floor, illustrating its cordless design and ease of movement.

Maintenance

Hands-free Self-Cleaning

1. After each use, place the vacuum back on the docking station.
2. Ensure there is sufficient clean water in the clean water tank.
3. Press the dedicated self-cleaning button (refer to the product overview diagram for location).
4. The vacuum will automatically perform a cleaning cycle for the brush roll. The voice prompt will confirm the start and completion of the cycle.
5. Once the self-cleaning cycle is complete, empty the dirty water tank.

Image: The Ecowell LULU Quick Clean P04 positioned on its docking station, illustrating the one-touch self-cleaning roller feature.

Emptying and Cleaning the Dirty Water Tank

1. Always empty the dirty water tank after each use or when the voice prompt indicates it is full.
2. Remove the dirty water tank from the main unit.
3. Carefully open the tank and dispose of the dirty water and debris.
4. Rinse the tank thoroughly with clean water.
5. Ensure the tank is completely dry before reattaching it to the vacuum.

Cleaning the HEPA Filter

1. The HEPA filter should be cleaned regularly, ideally after every few uses, or if suction power decreases.
2. Remove the HEPA filter from its housing (refer to the product overview diagram).
3. Tap the filter gently over a trash can to remove loose dust and debris.
4. If necessary, rinse the filter under cool running water. Do not use detergent.
5. Allow the filter to air dry completely for at least 24 hours before reinserting it into the vacuum. Do not use the vacuum with a wet filter.

Image: Hands demonstrating the removal or insertion of the HEPA filter from the Ecowell LULU Quick Clean P04.

Brush Roll Maintenance

• Even with self-cleaning, it is recommended to periodically remove and inspect the brush roll for tangled hair or debris.
• Use the provided clean-out brush to remove any wrapped hair or fibers.
• Rinse the brush roll under running water if heavily soiled and allow it to air dry completely before reinserting.
• The Ecowell LULU Quick Clean P04 comes with both a standard brush roll and an area rug brush roll. Ensure the correct brush roll is installed for the surface being cleaned.

Troubleshooting

Specifications

Warranty and Support

The Ecowell LULU Quick Clean P04 comes with a 24-month warranty from the date of purchase. Please retain your proof of purchase and the warranty card included in the package for any warranty claims.

For technical support, troubleshooting assistance, or warranty inquiries, please contact Ecowell customer service. Refer to the contact information provided on your warranty card or visit the official Ecowell website for the most up-to-date support details.
