Introduction
This manual provides instructions for the installation, operation, and maintenance of the KOHLER NUMI 2.0 Smart Toilet, model K-30754-PA-0. The Numi 2.0 is a one-piece smart toilet designed for personal comfort and cleansing, featuring integrated bidet functions, dual flush, and smart home connectivity.
Image: The KOHLER NUMI 2.0 Smart Toilet, showcasing its sleek, modern design in a bathroom environment.
Product Features
- Compact, Streamlined Design: One-piece smart bidet toilet with an elongated bowl for comfort.
- Comfort Height: Chair-height seating for ease of use.
- Dual Flush: Offers 0.8 or 1.0 gallons per flush (3.0 or 3.8 lpf) for water efficiency.
- Integrated Personal Cleansing: Stainless steel wand with adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions. Includes front and rear warm water wash modes.
- Self-Cleaning Wand: Utilizes UV light and electrolyzed water for automatic wand surface cleaning.
- Motion-Activated: Hands-free opening and closing of the seat and cover.
- Quiet-Close™: Lid and seat designed to prevent slamming.
- Pre-Use Bowl Mist: Automatically mists the bowl prior to use for more effective rinsing.
- Heated Seat: Adjustable temperature settings for user comfort.
- Warm-Air Drying: Reduces the need for toilet paper.
- Auto Deodorization: Carbon filter neutralizes odors.
- Ambient Colored Lighting: Customizable lighting options.
- Integrated Speakers: For audio playback via Bluetooth or smart assistant.
- Smart Connectivity: Compatible with Kohler Konnect app and Amazon Alexa voice commands.
Setup and Installation
The KOHLER NUMI 2.0 Smart Toilet requires professional installation due to its integrated smart features and electrical requirements.
Electrical Requirements
- A dedicated Ground Fault Circuit Interrupter (GFCI) outlet is required for safe operation.
- Ensure the electrical outlet is located within 12 inches (305 mm) of the toilet's water supply lines and electrical connection point.
Image: Side view illustrating the requirement for an electrical GFCI outlet for the smart toilet.
Water Supply Connection
- Connect the toilet to a standard cold water supply line.
- Ensure all connections are secure and leak-free before operation.
Dimensions
Refer to the diagram below for product dimensions to ensure proper fit and clearance in your bathroom.
Image: Dimensional drawing of the Numi 2.0 Smart Toilet, indicating its height (25 inches), width (17 inches), and depth (28 3/8 inches).
Operating Instructions
Motion-Activated Features
- The toilet seat and cover will automatically open and close as you approach and leave the toilet.
- An automatic flush function is integrated for hands-free operation.

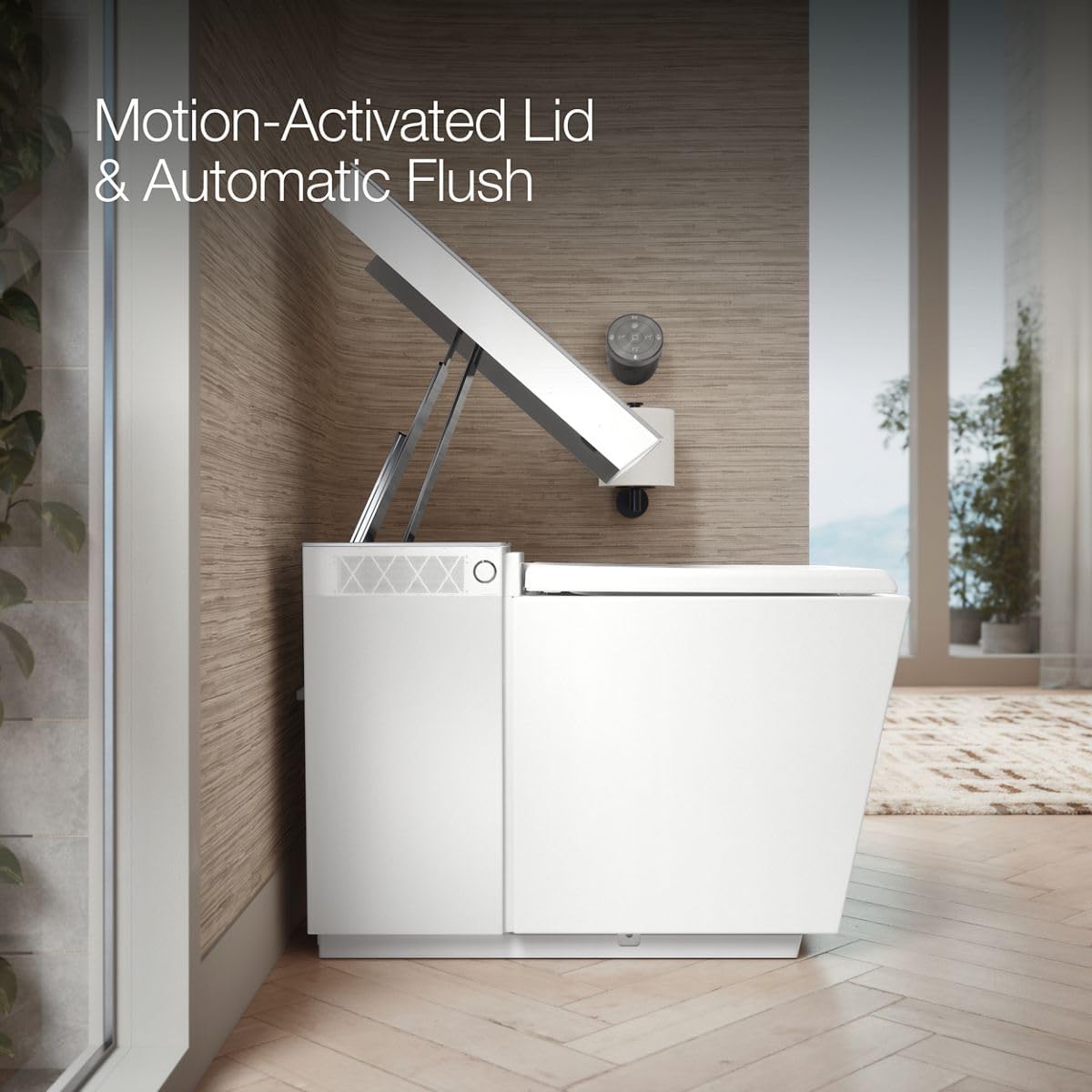

Image: The Numi 2.0 Smart Toilet demonstrating its motion-activated lid and automatic flush feature.
Flushing
- The dual flush system offers two options: a 0.8 gpf (3.0 lpf) light flush and a 1.0 gpf (3.8 lpf) full flush.
- The toilet bowl is automatically misted before use to enhance flushing efficiency.
- In case of a power outage, an emergency flush option is available. Consult the full product manual for specific instructions on activating the emergency flush.
Bidet Functions
- Wand Operation: The stainless steel wand provides adjustable spray shape, position, water pressure, and temperature.
- Wash Modes: Select between front and rear wash modes, both delivering warm water.
- Advanced Settings: Utilize pulsate and oscillate functions for a comprehensive cleansing experience.
- Heated Seat: Adjust the seat temperature to your preference using the remote control or Kohler Konnect app.
- Warm-Air Drying: After cleansing, activate the warm-air dryer to reduce moisture.
Image: Details of the LED Nightlight for easy navigation in the dark and the Heated Seat with adjustable temperature settings.
Image: Illustration of the Warm-Air Drying function to reduce toilet paper use and the Auto Deodorization system with a carbon filter.
Smart Features and Connectivity
- Kohler Konnect App: Download the app to personalize settings, control features, and manage your toilet.
- Amazon Alexa: Integrate with Amazon Alexa for voice command control of various functions.
- Ambient Lighting: Customize the colored lighting to create a desired bathroom ambiance.
- Integrated Speakers: Stream music or podcasts wirelessly via Bluetooth from any compatible device.
Image: The Numi 2.0 Smart Toilet displaying its ambient colored lighting and integrated speakers for an immersive experience.
Maintenance
Wand Cleaning
- The stainless steel wand features an automatic self-cleaning function.
- It is cleaned using UV light and electrolyzed water, eliminating the need for harsh chemicals.
Image: The self-cleaning wand being sanitized automatically with UV light.
Image: The bidet wand undergoing automatic cleaning with electrolyzed water, avoiding harsh chemicals.
Bowl Misting
- The toilet automatically mists the bowl surface before each use. This helps maintain cleanliness and aids in efficient flushing.
Image: The pre-use bowl mist feature, designed for more effective rinsing during flushing.
General Cleaning
- Use mild, non-abrasive cleaners for external surfaces.
- Avoid harsh chemicals or abrasive pads, as these can damage the finish.
- Regularly wipe down the exterior with a soft, damp cloth.
Troubleshooting
If you encounter any issues with your KOHLER NUMI 2.0 Smart Toilet, please refer to the comprehensive troubleshooting guide available on the Kohler website or contact Kohler customer support. Common issues may include:
- Power supply interruptions.
- Water pressure inconsistencies.
- Sensor calibration for motion-activated features.
- Connectivity issues with the Kohler Konnect app or Amazon Alexa.
For complex problems, it is recommended to contact a qualified technician or Kohler customer service.
Specifications
| Feature | Detail |
|---|---|
| Model Number | K-30754-PA-0 |
| Color | White |
| Product Dimensions (D x W x H) | 15.04"D x 26.2"W x 18.47"H (382mm D x 665mm W x 469mm H) |
| Material | Vitreous China (Bowl), Plastic (Seat) |
| Item Weight | 165.3 Pounds (75 kg) |
| Installation Type | Professional Installation Recommended |
| Shape | Elongated (Oblong) |
| Flush Type | Dual Flush (0.8 gpf / 1.0 gpf) |
| Water Efficiency | Meets EPA WaterSense Criteria |
| Electrical Requirement | Dedicated GFCI Outlet |
| Included Components | Numi 2.0 One-Piece Elongated Smart Toilet, Dual-Flush |
Image: The WaterSense logo, signifying that the toilet meets EPA criteria for water efficiency.
Warranty and Support
For detailed warranty information, please refer to the official Kohler website or the warranty card included with your product. Kohler provides customer support for assistance with installation, operation, troubleshooting, and parts replacement.
Contact Information:
Please visit the official Kohler website or refer to your product packaging for the most current customer support contact details.
