Alohappy Queen Bed Frame with Storage and LED Lights

1. Safety Information

Please read and understand all instructions before assembly and use. Keep these instructions for future reference.

• Do not load more than 1300 pounds on the bed frame.
• Be careful around sharp edges during assembly and use.
• Always follow the assembly instructions carefully to prevent instability or collapse.
• Ensure all connections are securely fastened before use.
• Keep children away from the assembly area.

2. Package Contents

Verify that all components are present before beginning assembly:

• 1 x Queen Bed Frame
• 1 x Bookcase Headboard
• 1 x LED Lights Strip
• 4 x Storage Drawers
• 1 x Accessories Kit (all parts, tools, instructions)
• 1 x Instruction Manual

Image: All bed frame components, including metal parts, wooden headboard, and hardware, laid out for assembly.

3. Setup and Assembly

Assembly is designed to be straightforward. All necessary tools are included. It is recommended to assemble the bed frame in the room where it will be used.

3.1 Frame Assembly

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Follow the step-by-step diagrams in the included instruction booklet to connect the main metal frame sections. Ensure all bolts are tightened securely using the provided Allen wrench.
3. Attach the 13 heavy-duty steel slats to the frame. These slats are designed for noise-free support.
4. Install the 11 support legs, including the 5 extra central supporting legs. Three of these central legs are height-adjustable for optimal stability.

Image: The sturdy metal frame with all slats and support legs installed, demonstrating the noise-free design and robust construction.

3.2 Headboard Assembly

1. Attach the bookcase headboard to the main bed frame. Pay close attention to the orientation of the wooden panels to ensure the charging station and LED light channels face the correct direction.
2. Secure the headboard using the provided screws. A screwdriver (not included) may be needed for certain attachments.

Image: The bookcase headboard featuring five storage compartments and shelves, ideal for books, decorations, or small items.

3.3 Storage Drawers Installation

1. Assemble the 4 under-bed storage drawers. Each drawer comes with wheels for easy movement.
2. Insert the black pads into the drawers to prevent items from falling out and to protect against dust.
3. Slide the assembled drawers into the designated slots under the bed frame. Ensure they latch securely to prevent accidental rolling.

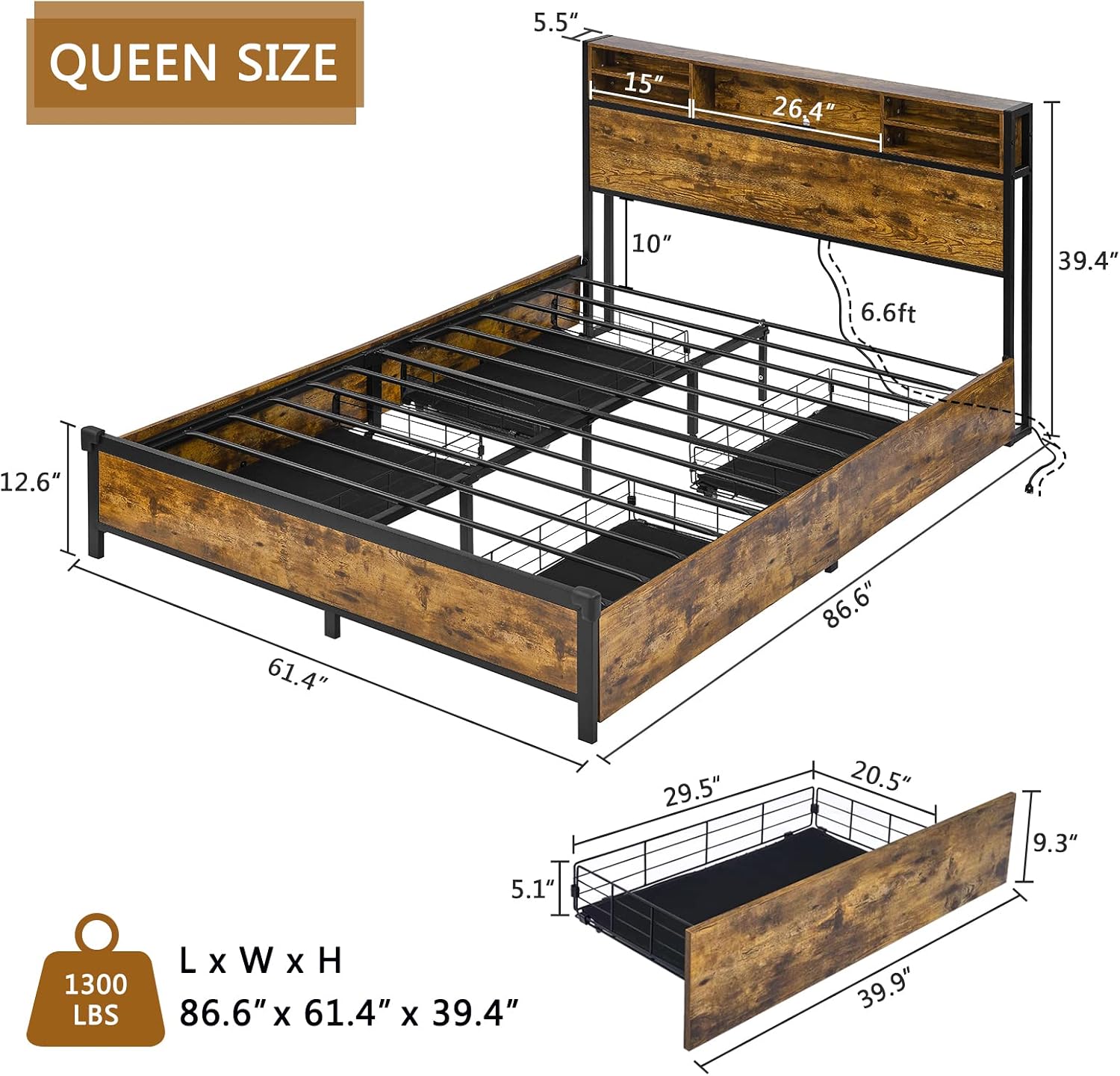

Image: An overview of the Queen bed frame, highlighting its dimensions (86.6"L x 61.4"W x 39.4"H) and the four large under-bed storage drawers.

4. Operating Instructions

4.1 Smart RGB LED Lights

The bed frame features multi-color RGB LED light strips with over 60,000 color options. They can be controlled via a remote or a dedicated mobile application.

• Remote Control: Use the provided remote to turn the lights on/off, change colors, adjust brightness, and select various modes (Strobe, Gradient, Jump).
• Mobile App Control: Download the companion app to access advanced features, including precise color selection, timing functions, and music synchronization for dynamic light displays.

Image: The bed frame's headboard illuminated by RGB LED lights, showcasing the remote and mobile app control interfaces for customizing lighting effects.

4.2 Charging Station

The bookcase headboard includes a built-in charging station for convenience.

• Outlets: Two standard plug outlets (125V/12A) are available for powering devices.
• USB Ports: Two USB ports (5V/2A) are provided for charging smartphones, tablets, and other USB-powered devices.
• The charging station is powered by a 6.6-foot symmetrical design power cord.

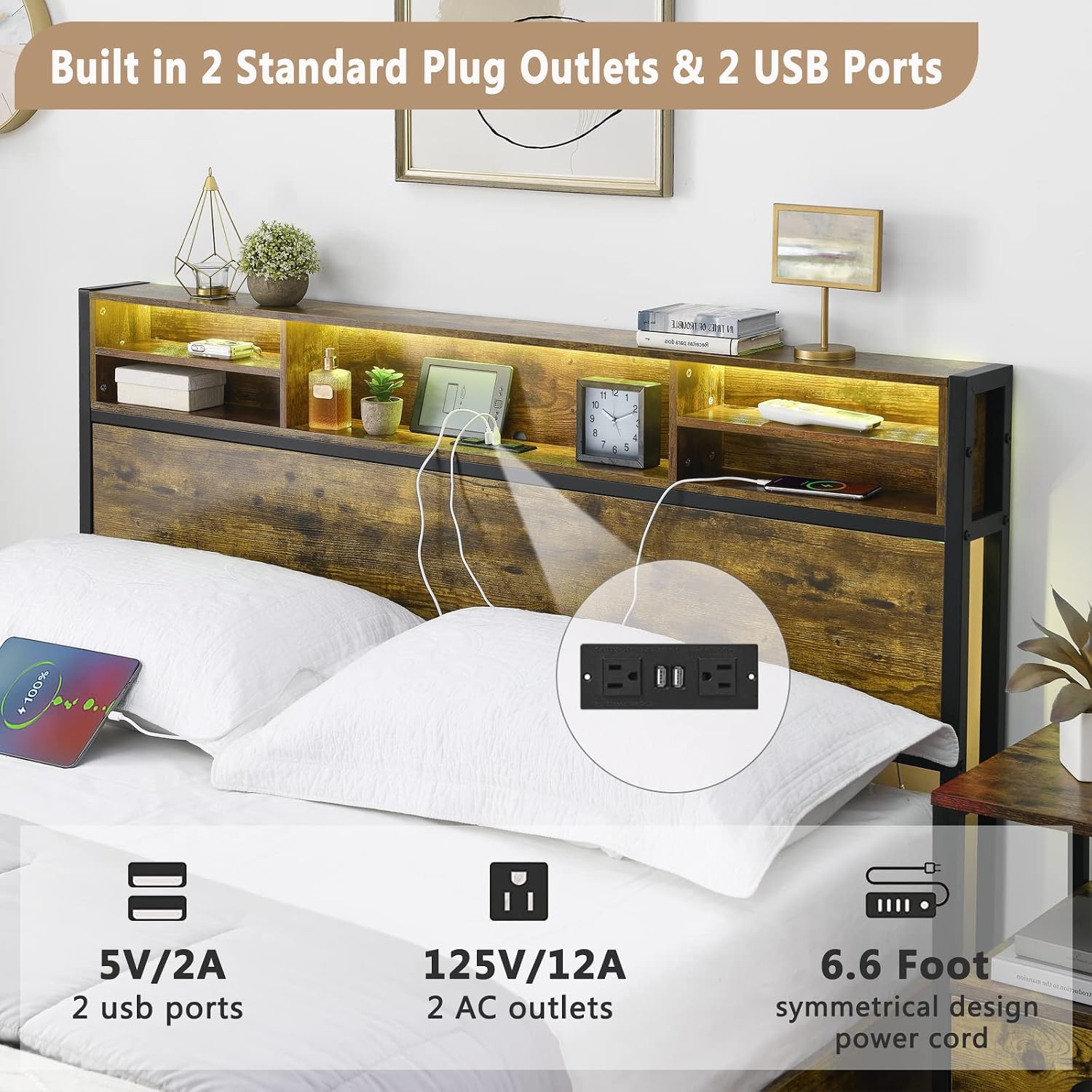

Image: A close-up of the bookcase headboard's charging station, showing the two standard AC outlets and two USB ports for convenient device charging.

4.3 Storage Drawers

The four under-bed storage drawers are designed for easy access and organization.

• To open, gently lift the front of the drawer to disengage the latch and pull it out using the wheels.
• To close, push the drawer back into place until it latches securely under the bed frame.

5. Maintenance

• Cleaning: Wipe the bed frame and headboard surfaces with a dry cloth. Avoid harsh chemicals that may damage the finish.
• Fasteners: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability.
• LED Lights: If LED lights malfunction, check the power connection and ensure the remote/app is properly paired.
• Drawers: Keep the drawer wheels clean and free of debris for smooth operation.

6. Troubleshooting

• Squeaking Noise: Check all frame connections and tighten any loose bolts. Ensure the mattress is properly seated on the slats.
• LED Lights Not Working: Verify the power cord is securely plugged into an outlet and the LED strip is connected to the power source. Check remote battery or app connection.
• Drawers Sticking: Ensure the drawer wheels are clean and free of obstructions. Check that the drawer is aligned correctly within its track.
• Unstable Frame: Re-check all assembly steps, especially the support legs and main frame connections. Ensure the bed is on a level surface.

7. Specifications

8. Warranty and Support

For any questions, concerns, or support needs regarding your Alohappy Queen Bed Frame, please contact Alohappy customer service. Refer to your purchase documentation for specific warranty details.

You can visit the official Alohappy Store for more information: Alohappy Store
