Palio Ballista Jet-Flame Lighter User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your Palio Ballista Jet-Flame Lighter. Please read all instructions carefully before operating the device and retain this manual for future reference.

2. Safety Information

• Keep out of reach of children.
• Ignite lighter away from face and clothing.
• Contains flammable gas under pressure. Do not puncture or incinerate container.
• Do not expose to heat above 120°F (49°C) or prolonged sunlight.
• Ensure flame is extinguished after each use.
• Never attempt to repair or modify the lighter.
• Use only high-quality butane fuel for refilling.

3. Product Overview

The Palio Ballista is a jet-flame lighter designed for reliable ignition. It features an oversized jet-flame for efficient lighting and oversized air vents to assist performance at higher altitudes.

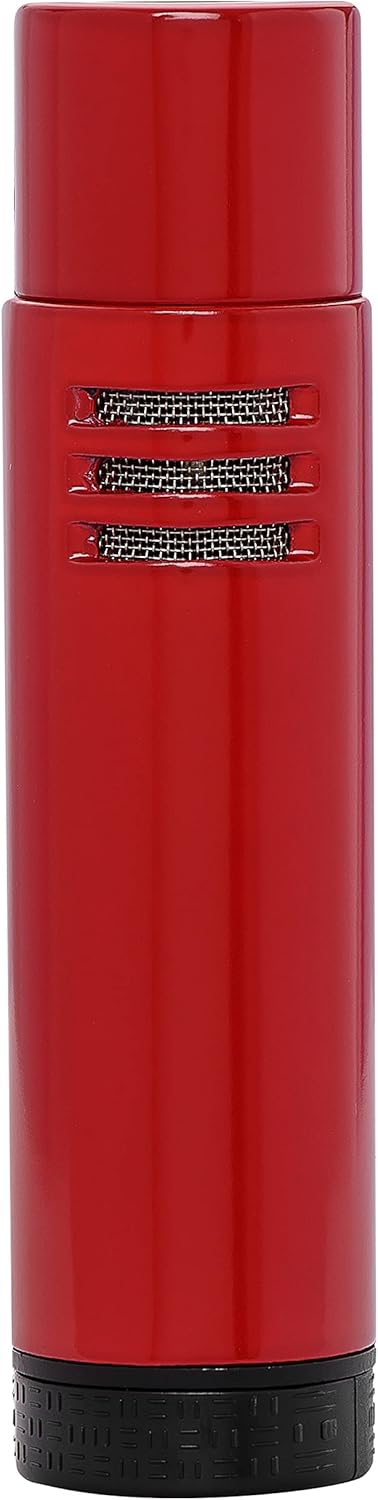

Image 3.1: Front view of the Palio Ballista Jet-Flame Lighter in Red.

Key Features:

• Oversized Jet-Flame: Capable of quickly lighting thicker ring gauge cigars and providing accuracy for more slender cigars.
• Wind Resistant: Designed to perform reliably in various conditions.
• High-Altitude Performance: Oversized air vents enhance functionality at elevated altitudes.
• Fuel Capacity: The fuel tank holds approximately 10g of butane, reducing the frequency of refills.

Image 3.2: The Palio Ballista Lighter demonstrating its active jet flame.

4. Setup

4.1 Fueling Instructions

The Palio Ballista lighter is shipped without fuel for safety reasons. It requires high-quality butane fuel for operation.

1. Vent Lighter: Before refilling, hold the lighter upside down and use a small screwdriver or pen tip to press the refill valve to release any residual air from the tank. This ensures a complete fill.
2. Refill: Hold the lighter upside down. Firmly press the nozzle of the butane fuel can into the lighter's refill valve. Hold for approximately 5-10 seconds. Repeat 2-3 times for a full fill.
3. Wait: After refilling, wait at least 2-3 minutes before attempting to ignite the lighter. This allows the butane to stabilize and reach room temperature.

5. Operating Instructions

5.1 Ignition

To ignite the lighter, press the ignition button located on the top of the device. The jet flame will appear. Release the button to extinguish the flame.

5.2 Flame Adjustment

The flame height can be adjusted using the flame adjustment screw located on the bottom of the lighter. Use a small flathead screwdriver to turn the screw:

• Turn towards the (+) symbol for a larger flame.
• Turn towards the (-) symbol for a smaller flame.

Image 5.1: Bottom view of the Palio Ballista Lighter, indicating the fuel refill valve and flame adjustment screw.

6. Maintenance

6.1 Cleaning

Periodically clean the lighter's exterior with a soft, dry cloth. Avoid using abrasive cleaners or solvents. Ensure the jet nozzles are clear of debris for optimal performance.

6.2 Storage

Store the lighter in a cool, dry place, away from direct sunlight and heat sources. Ensure the lighter is fully extinguished before storage.

7. Troubleshooting

Lighter does not ignite or flame is inconsistent:

• Low Fuel: Check the fuel level. If low, refill the lighter following the instructions in Section 4.1.
• Air in Tank: Ensure the lighter was properly vented before refilling. Air pockets can prevent proper fuel flow. Vent and refill again.
• Flame Adjustment: The flame adjustment may be set too low. Adjust the flame height as described in Section 5.2.
• Clogged Nozzle: Dust or debris may be blocking the jet nozzle. Gently clear any obstructions.
• Temperature: Butane performs best at room temperature. If the lighter is too cold, warm it gently in your hands before attempting to ignite.

Lighter leaks fuel:

• Ensure the refill valve is securely closed after fueling.
• Avoid overfilling the lighter.
• If leakage persists, discontinue use and contact customer support.

8. Specifications

Image 8.1: Palio Ballista Lighter with its key dimensions labeled.

9. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact Palio customer service through their official website. Keep your purchase receipt as proof of purchase.
