1. Introduction
Thank you for choosing the STIGA Estate 384 M Ride-On Lawnmower. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new lawnmower. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.
The STIGA Estate 384 M is a petrol-powered ride-on lawnmower designed for gardens up to 3000 m². It features an 84 cm cutting deck with two blades, a 200 L grass collector, and a STIGA ST 350 engine. Its ergonomic design and user-friendly controls ensure a comfortable mowing experience.
Image 1.1: The STIGA Estate 384 M ride-on lawnmower, showcasing its 200L grass collection mode, 84 cm cutting deck, and suitability for areas up to 3500 sq meters.
2. Safety Information
Operating a ride-on lawnmower requires careful attention to safety. Failure to follow these instructions can result in serious injury or death.
- Read the Manual: Always read and understand the entire manual before operating the machine.
- Personal Protective Equipment (PPE): Wear appropriate safety gear, including eye protection, hearing protection, sturdy footwear, and long trousers.
- Children and Bystanders: Keep children and pets away from the operating area. Never allow children to operate the lawnmower.
- Pre-Operation Check: Inspect the area for objects that could be thrown by the blades. Ensure all guards and safety devices are in place and functioning.
- Fuel Safety: Handle fuel with extreme care. Refuel outdoors, away from sparks or open flames, and do not smoke while refueling.
- Slope Operation: Exercise extreme caution when operating on slopes. Mow across slopes, not up and down. Avoid steep slopes.
- Blade Engagement: Disengage the cutting blades before crossing surfaces other than grass, and before transporting the machine.
- Maintenance Safety: Always turn off the engine, remove the ignition key, and disconnect the spark plug wire before performing any maintenance or adjustments.
3. Setup and Assembly
While the STIGA Estate 384 M requires minimal assembly, certain steps are necessary before first use.
3.1 Unpacking and Initial Inspection
- Carefully remove the lawnmower from its packaging.
- Check for any visible damage during transit. Contact your dealer immediately if damage is found.
- Ensure all components listed in the packing list are present.
3.2 Battery Installation
The lawnmower requires a 12V battery for ignition. Refer to the battery compartment location (typically under the seat) and connect the positive (red) and negative (black) terminals securely. Ensure the battery is fully charged before first use.
3.3 Fuel and Oil
- Fuel: Fill the fuel tank with fresh, unleaded petrol (gasoline) suitable for small engines. Do not overfill.
- Engine Oil: Check the engine oil level using the dipstick. Add recommended engine oil if necessary, ensuring it is within the specified range. Refer to the engine manual for specific oil type and capacity.
3.4 Grass Collector Attachment
Attach the 200 L grass collector to the rear of the lawnmower according to the instructions provided in the separate assembly guide or diagrams. Ensure it is securely latched in place.
Image 3.1: Detailed view of the STIGA ST 400 single-cylinder engine and the 5-speed forward + 1 reverse gear shift lever, crucial for understanding setup and operation.
4. Operating Instructions
Follow these steps for safe and effective operation of your STIGA Estate 384 M lawnmower.
4.1 Starting the Engine
- Ensure the parking brake is engaged.
- Place the transmission in neutral.
- Insert the ignition key and turn it to the 'START' position. Release the key once the engine starts.
- Allow the engine to warm up for a few moments before engaging the blades or driving.
4.2 Driving the Lawnmower
- Release the parking brake.
- Select the desired gear (5 forward speeds, 1 reverse speed).
- Slowly depress the accelerator pedal to begin moving.
- Always drive at a safe and controlled speed, especially on uneven terrain or near obstacles.
4.3 Engaging the Cutting Blades
The STIGA Estate 384 M features an electromagnetic clutch for blade engagement.
- With the engine running at a moderate RPM, press the blade engagement button (usually located on the dashboard).
- The blades will begin to rotate.
- To disengage, press the button again.
4.4 Adjusting Cutting Height
The cutting deck offers 7 height adjustments, ranging from 25 mm to 80 mm.
- Locate the cutting height adjustment lever (typically on the side of the seat).
- Move the lever to select one of the 7 available cutting heights.
- Adjust the height before you start mowing, or when the blades are disengaged.

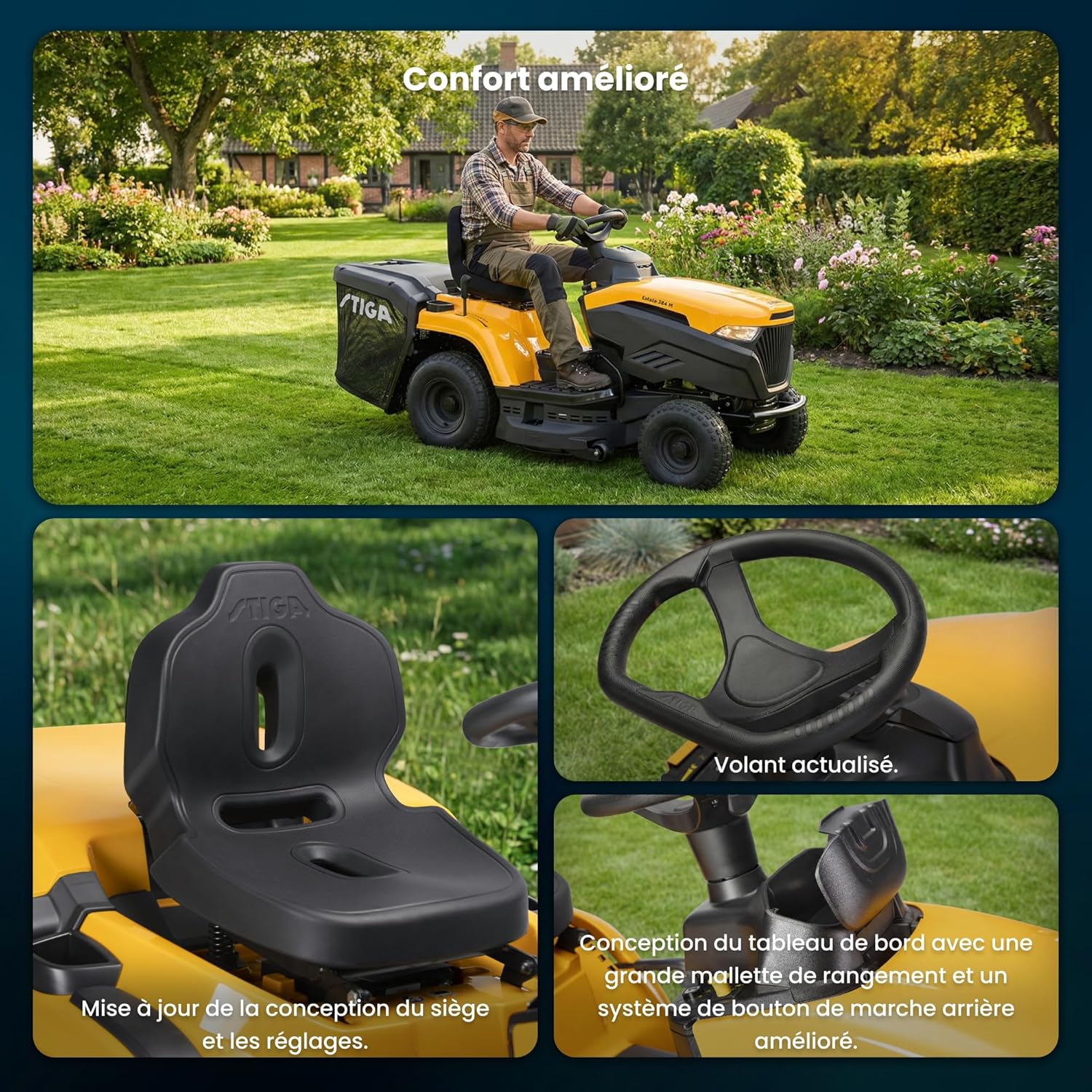

Image 4.1: Enhanced comfort features of the STIGA Estate 384 M, including the updated seat design, modern steering wheel, and an improved dashboard with an enhanced reverse button system.
4.5 Mowing Techniques
- For best results, mow when the grass is dry.
- Overlap cutting swaths slightly to ensure an even cut.
- Avoid sudden turns or changes in speed while mowing.
- Empty the grass collector regularly to maintain optimal cutting performance and prevent clogging.
4.6 Stopping the Engine
- Disengage the cutting blades.
- Engage the parking brake.
- Place the transmission in neutral.
- Turn the ignition key to the 'OFF' position and remove it.
5. Maintenance
Regular maintenance is crucial for the longevity and performance of your STIGA Estate 384 M.
5.1 General Cleaning
- After each use, clean the cutting deck. The deck features a hose connection for easy cleaning. Attach a garden hose, start the engine, engage the blades for a short period, and let the water clean the underside of the deck.
- Wipe down the exterior of the lawnmower to remove grass clippings and debris.
5.2 Blade Care
- Regularly inspect the cutting blades for sharpness and damage. Dull blades can tear grass, leading to an unhealthy lawn.
- Sharpen or replace blades as needed. Always use genuine STIGA replacement parts.
- WARNING: Always disconnect the spark plug wire and remove the ignition key before working on the blades.
5.3 Engine Maintenance
- Oil Change: Change the engine oil after the first 5 hours of operation, then every 25-50 hours or annually, whichever comes first.
- Air Filter: Clean or replace the air filter regularly, especially when operating in dusty conditions.
- Spark Plug: Inspect and clean the spark plug annually. Replace if worn.
- Refer to the separate engine manual for detailed maintenance schedules and procedures.
5.4 Storage
- For long-term storage, ensure the fuel tank is either empty or treated with a fuel stabilizer.
- Clean the entire machine thoroughly.
- Store in a dry, protected area, away from direct sunlight and extreme temperatures.
6. Troubleshooting
This section provides solutions to common operational issues. For more complex problems, contact an authorized STIGA service center.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel; Spark plug faulty; Battery low; Safety switch not engaged | Check fuel level; Clean/replace spark plug; Charge/replace battery; Ensure parking brake is on and operator is seated |
| Poor cutting performance | Dull blades; Cutting height too low; Grass collector full; Wet grass | Sharpen/replace blades; Adjust cutting height; Empty grass collector; Mow when grass is dry |
| Excessive vibration | Bent or unbalanced blade; Loose components | Inspect blades for damage, replace if necessary; Check all bolts and fasteners for tightness |
| Engine loses power | Clogged air filter; Old fuel; Low oil level | Clean/replace air filter; Use fresh fuel; Check and add oil |
7. Specifications
Detailed technical specifications for the STIGA Estate 384 M.
| Feature | Specification |
|---|---|
| Model Number | 2T2000481/ST3 |
| Engine Type | STIGA ST 350 (352 cm³), Single-cylinder, Petrol |
| Cutting Width | 84 cm |
| Cutting Height Adjustment | 7 positions, 25 - 80 mm |
| Grass Collector Capacity | 200 Liters |
| Transmission | Manual, 5 Forward + 1 Reverse |
| Recommended Lawn Area | Up to 3000 m² |
| Product Dimensions (L x W x H) | 233.8 x 88 x 83.7 cm |
| Weight | 188 kg |
| Battery | 1 x 12V (required) |
| Material | Plastic, Metal |

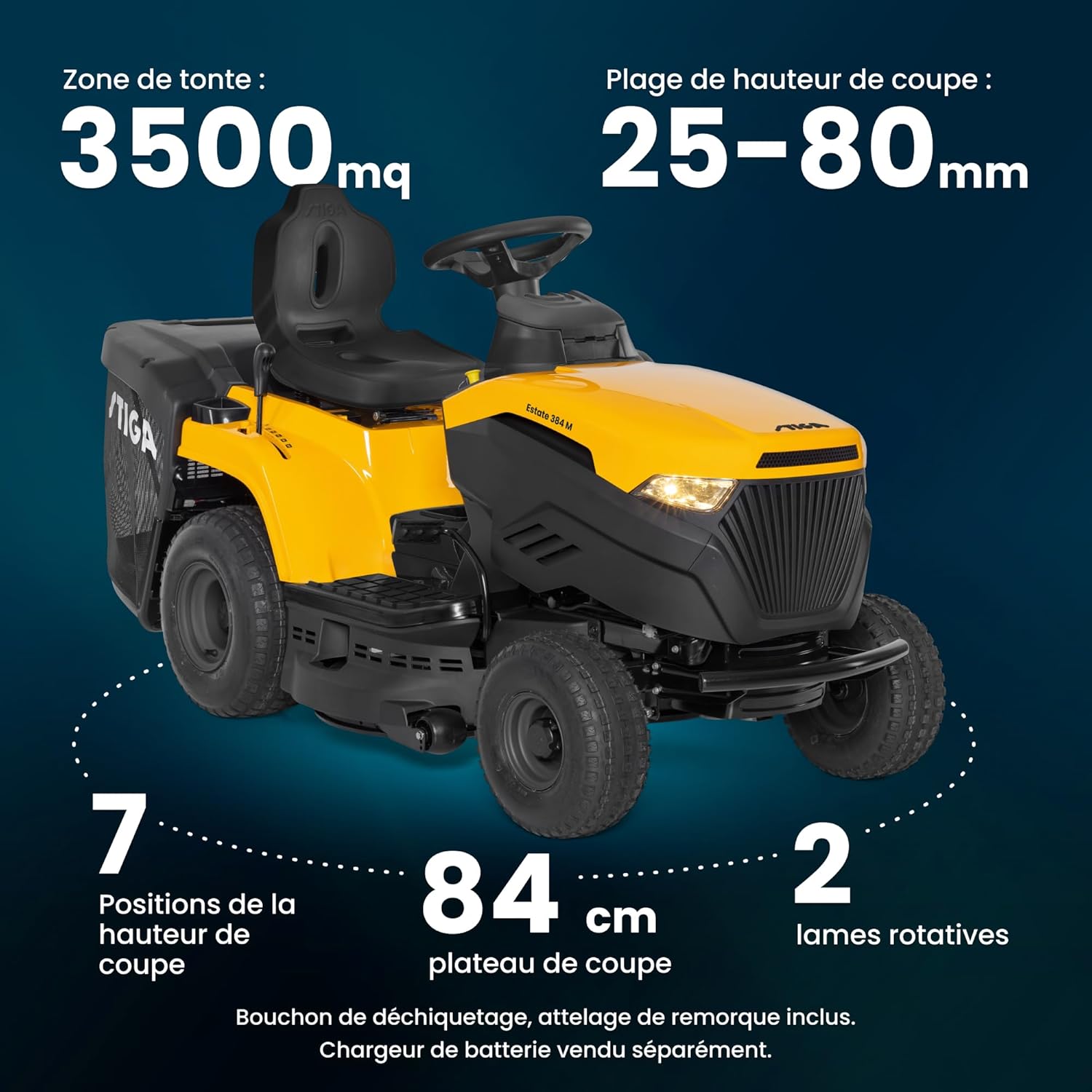

Image 7.1: Overview of the STIGA Estate 384 M highlighting key specifications such as 3500 sq meter mowing zone, 25-80mm cutting height range, 7 height positions, 84 cm cutting deck, and 2 rotary blades.
8. Warranty and Support
STIGA products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official STIGA website.
For technical assistance, spare parts, or service, please contact your authorized STIGA dealer or the STIGA customer support. When contacting support, please have your model number (Estate 384 M) and serial number ready.
You can find more information and support resources on the official STIGA website: www.stiga.com
