Element Fire Extinguisher Tactical Mounting Kit User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Element Fire Extinguisher Tactical Mounting Kit. This kit is designed to securely hold either an Element E50 or E100 fire extinguisher, offering versatile mounting options for various environments. Please read this manual thoroughly before use to ensure safety and optimal performance.

Image: The Element Fire Extinguisher Tactical Mounting Kit, showing the black tactical sleeve, red and black straps, and a red Element E50 fire extinguisher stick.

2. What's in the Box

Your Element Fire Extinguisher Tactical Mounting Kit includes the following components:

• 1 x Tactical Mount Sleeve (black nylon with Velcro)
• 2 x High-Strength Tactical Mount Straps (black with red accents)
• 1 x Element Fire Extinguisher Stick (E50 or E100, depending on your choice)

3. Safety Information

Important Safety Notice:

• The Element Fire Extinguisher does not automatically deploy when exposed to fire. Manual deployment is required.
• Always ensure the extinguisher is easily accessible in case of emergency.
• Familiarize yourself with the operating instructions before an emergency occurs.
• Store the extinguisher in a location protected from extreme temperatures and direct sunlight to maintain its integrity.

The Element Fire Extinguisher is designed to combat various fire classes:

Image: Diagram illustrating the fire classes Element extinguishers are effective against: Class A (wood, coal, trash), Class B (flammable liquids/gases), Class C (electrical up to 100,000V), and Class K (cooking oil/grease).

4. Setup and Installation

The tactical mounting kit offers multiple options for secure attachment. The durable nylon construction with high-strength Velcro ensures a strong and reliable mounting.

4.1. Preparing the Tactical Sleeve

The tactical sleeve features three reinforced loops on the back, allowing for various mounting configurations.

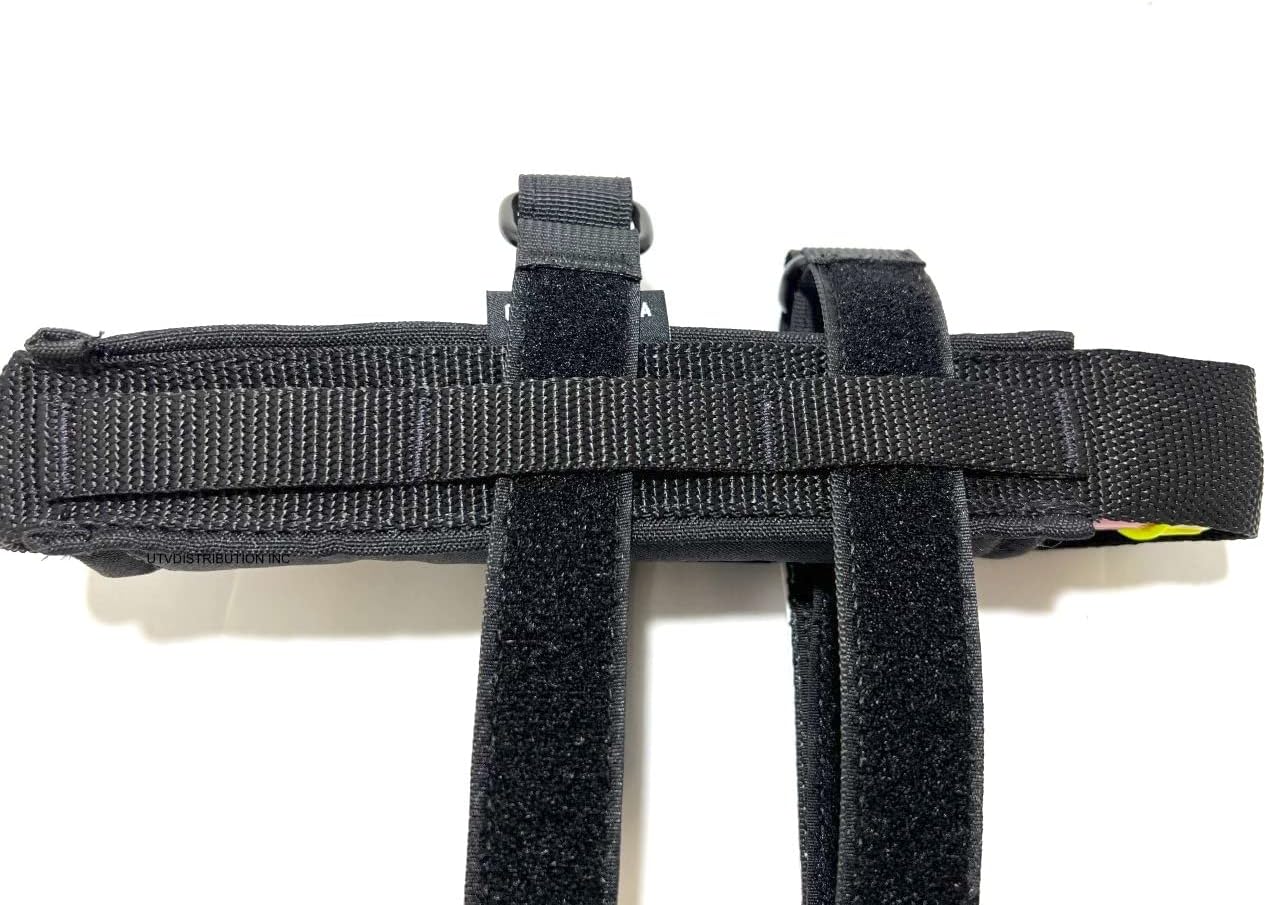

Image: The reverse side of the tactical sleeve, showing the three reinforced Velcro loops designed for secure attachment.

4.2. Inserting the Extinguisher

Carefully slide your Element E50 or E100 fire extinguisher stick into the tactical sleeve. Ensure it is fully seated and secure within the sleeve.

Image: A close-up of the Element E50 fire extinguisher stick, which fits into the tactical sleeve.

4.3. Mounting Options

Utilize the two high-strength straps and the reinforced loops to attach the kit to your desired location. Common mounting options include:

• MOLLE Panels: The loops and straps are ideal for securing to MOLLE (Modular Lightweight Load-carrying Equipment) panels.
• Roll Hoops/Bars: Wrap the straps around roll hoops or bars in vehicles for a secure fit.
• Belts/Straps: Can be attached to a belt or other existing straps for portability.
• Fixed Structures: Secure to various fixed structures using the versatile strap options.

Image: The tactical mounting kit securely attached to a black MOLLE panel, demonstrating one of its versatile mounting applications.

Image: The tactical mounting kit with an Element extinguisher attached to a vehicle's roll bar, showcasing its use in automotive applications.

Image: The tactical mounting kit secured to a vertical metal rack, illustrating its adaptability for various fixed installations.

5. Operating Instructions

The Element Fire Extinguisher is a manual deployment device. In the event of a fire, follow these general steps:

1. Assess the Fire: Ensure the fire is small and contained, and that you can safely extinguish it without putting yourself or others at risk.
2. Retrieve the Extinguisher: Quickly remove the Element extinguisher from its tactical mount.
3. Activate: Remove the yellow cap from the end of the extinguisher.
4. Aim and Sweep: Aim the nozzle at the base of the fire. Sweep the extinguishing agent across the fire until it is out.
5. Monitor: After the fire is out, continue to monitor the area for re-ignition.

Note:

• The Element extinguisher uses a non-pressurized, non-toxic, and non-corrosive extinguishing agent.
• It is designed for single-use. Once activated, the entire contents should be discharged.

6. Maintenance

The Element Fire Extinguisher and its tactical mounting kit require minimal maintenance. Follow these guidelines to ensure readiness:

• Regular Inspection: Periodically inspect the extinguisher for any visible damage, such as cracks, dents, or signs of tampering. Check the tactical sleeve and straps for wear and tear.
• Cleanliness: Keep the extinguisher and mount clean and free of dirt or debris. Wipe with a damp cloth if necessary.
• Storage: Store the kit in a cool, dry place, away from direct sunlight and extreme temperatures.
• Shelf Life: Element extinguishers boast a 100+ year shelf life, requiring no maintenance or recharging.

7. Troubleshooting

Given the simple nature of the Element Fire Extinguisher and its tactical mount, troubleshooting is generally limited to proper installation and storage.

• Extinguisher Not Secure in Mount: Ensure the extinguisher is fully inserted into the sleeve. Adjust the straps to be taut and properly secured around the mounting surface. The Velcro on the straps and sleeve should be fully engaged.
• Mount Slipping: Re-tighten the straps. For smooth surfaces, consider adding a non-slip material between the mount and the surface if slippage persists. Ensure the mounting location is appropriate for the weight and movement of the extinguisher.
• Extinguisher Appears Damaged: If the extinguisher itself shows signs of significant physical damage (e.g., severe dents, cracks), do not attempt to use it. Contact Element customer support for guidance.

8. Specifications

9. Warranty and Support

For specific warranty information or technical support regarding your Element Fire Extinguisher Tactical Mounting Kit, please refer to the documentation provided with your purchase or contact Element directly through their official website or customer service channels. Keep your proof of purchase for any warranty claims.
