MOOKAKA Carplay Android Car Stereo User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your MOOKAKA Carplay Android Car Stereo. This head unit is specifically designed for Porsche 911/997 models manufactured between 2005 and 2008, offering an upgraded multimedia experience with advanced features such as Wireless Carplay, Android Auto, GPS navigation, and a high-resolution IPS display.

Please read this manual thoroughly before installation and use to ensure proper functionality and to maximize your enjoyment of the product. Keep this manual for future reference.

Image 1.1: MOOKAKA Carplay Android Car Stereo main unit.

2. Product Features

The MOOKAKA Carplay Android Car Stereo offers a range of features to enhance your driving experience:

• Compatibility: Designed for Porsche 911/997 (2005-2008).
• Display: 8.4-inch Ultra HD IPS touch screen with 1280 x 800 pixel resolution for clear visuals and smooth touch response.
• Connectivity: Wireless Carplay and Android Auto support for seamless smartphone integration.
• Internet Access: Easy connection via Wi-Fi or phone hotspot to download apps like Netflix, YouTube, and more.
• Bluetooth 5.0: Supports hands-free calls, phone book download, and APTX Lossless Music Streaming.
• Radio: AM/FM Radio with RDS, including 12 FM presets and 6 AM presets.
• Navigation: Integrated GPS for reliable navigation.
• Audio Processing: Built-in Digital Sound Processor (DSP) for enhanced audio quality.
• Multimedia Support: Plays various audio and video formats.
• Rear View Camera Support: Compatible with aftermarket rear view cameras for parking assistance.
• Steering Wheel Control: Supports original steering wheel controls for convenience.

Image 2.1: Overview of main features including Carplay, Android Auto, Bluetooth, GPS, Radio, 4G/WiFi, DSP, HiFi music, HD video, IPS screen, original steering wheel control, AHD reversing, headrest screen, DAB+, TV-Box, DVR, OBD2, TPMS, 360 Panoramic, and Universal camera support.

3. Package Contents

Please verify that all items listed below are included in your package:

• MOOKAKA Carplay Android Car Stereo Head Unit
• Power Cable
• 4G/AV Cable Ports
• Camera Input Cable
• USB Cable Ports
• GPS Antenna
• WiFi Antenna
• Radio Antenna

Image 3.1: Included accessories: Power cable, 4G/AV cable ports, Camera input, USB cable ports, GPS Antenna, Wifi antenna, Radio antenna, and the Head Unit.

4. Setup and Installation

Installation of this car stereo requires technical knowledge and experience with car electronics. It is highly recommended to have the unit installed by a qualified professional to avoid damage to the product or your vehicle.

4.1 Pre-Installation Check

1. Verify vehicle compatibility: This unit is for Porsche 911/997 (2005-2008).
2. Disconnect the car battery's negative terminal before starting any electrical work.
3. Ensure all included accessories are present.

4.2 Installation Steps (General Guidance)

1. Carefully remove the original car stereo and trim panels. Refer to your vehicle's service manual for specific instructions.
2. Connect the power cable harness from the new head unit to the vehicle's wiring. Ensure all connections are secure.
3. Connect the GPS antenna, WiFi antenna, and radio antenna to their respective ports on the head unit. Position the antennas in locations that provide optimal signal reception.
4. If installing a rear view camera or other external devices, connect their cables to the designated input ports.
5. Carefully slide the new head unit into the dashboard opening. Secure it using the appropriate mounting brackets and screws.
6. Reconnect the car battery's negative terminal.
7. Turn on the vehicle's ignition and test the stereo's basic functions (power, audio, touch screen).
8. Reinstall all trim panels.

Image 4.1: Visual comparison of the car's center console before and after the installation of the new head unit.

5. Operating Instructions

5.1 Power On/Off and Basic Navigation

Press the power button (usually located on the front panel) to turn the unit on or off. The touch screen interface allows you to navigate through various applications and settings. Use the home button to return to the main menu.

5.2 Wireless Carplay & Android Auto

To use Wireless Carplay or Android Auto:

1. Ensure Bluetooth and Wi-Fi are enabled on your smartphone.
2. On the car stereo, open the Carplay/Android Auto application.
3. Follow the on-screen prompts to pair your phone via Bluetooth. Once paired, the system will automatically connect via Wi-Fi for the Carplay/Android Auto interface.
4. Your phone's compatible apps will now be accessible on the stereo display.

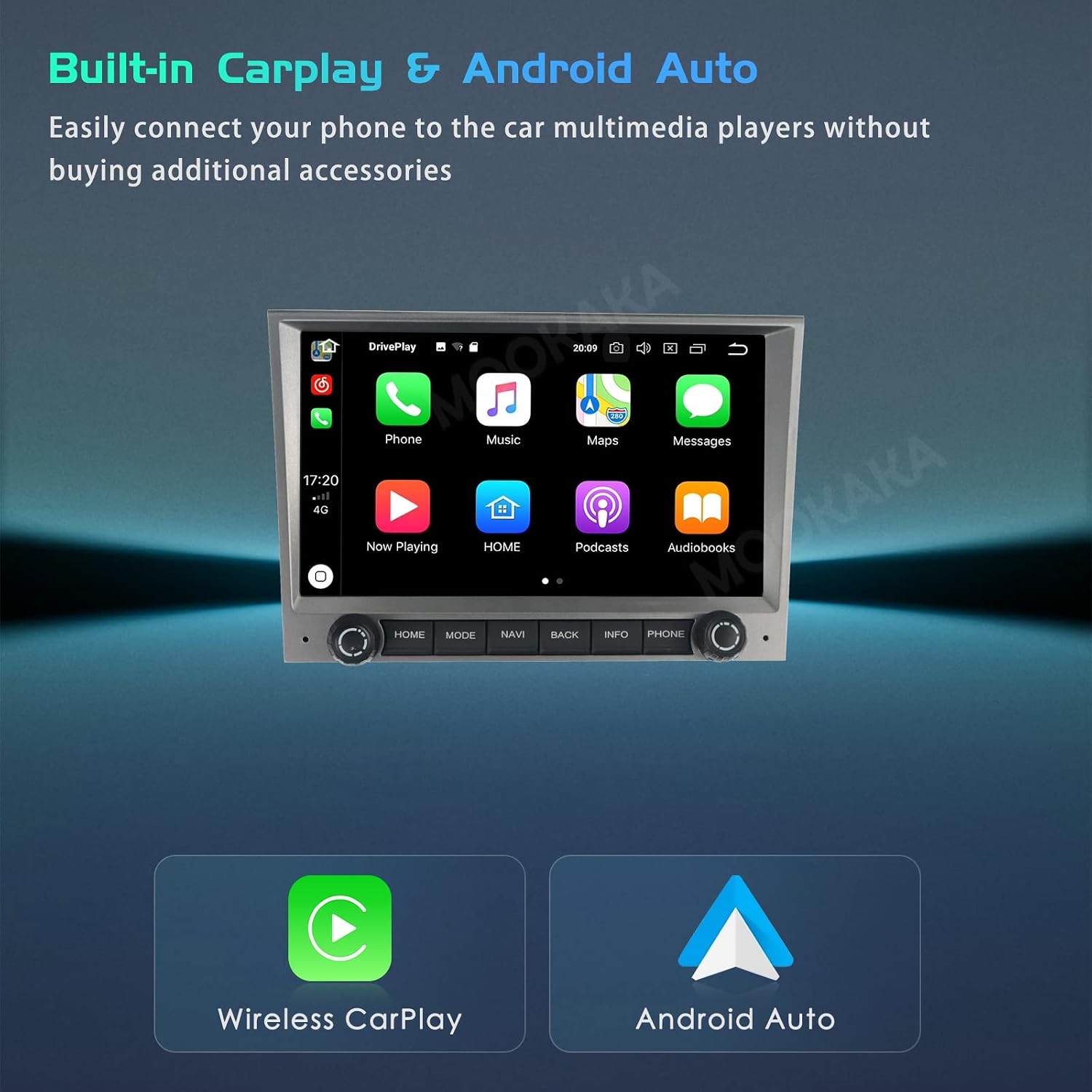

Image 5.1: Car stereo screen showing the Wireless Carplay interface with various app icons.

5.3 Bluetooth Connection

To connect your phone via Bluetooth for calls and music streaming:

1. Go to the Bluetooth settings on the car stereo.
2. Enable Bluetooth on your smartphone and search for available devices.
3. Select the car stereo's Bluetooth name (e.g., "MOOKAKA") from your phone's list.
4. Confirm the pairing code on both devices if prompted.
5. Once connected, you can make/receive calls and play music through the stereo.

Image 5.2: Bluetooth 5.0 connectivity for hands-free calls and music.

5.4 GPS Navigation

The unit comes with pre-installed GPS navigation capabilities. To use:

1. Ensure the GPS antenna is properly installed and has a clear view of the sky.
2. Open the navigation application from the main menu.
3. Enter your destination, and the system will provide turn-by-turn directions.
4. You can also download other navigation apps from the Play Store if connected to Wi-Fi.

Image 5.3: GPS navigation with support for Google Maps, iGO, and NAVITEL.

5.5 AM/FM Radio with RDS

To operate the radio:

1. Select the "Radio" application from the main menu.
2. Use the on-screen controls to scan for stations, manually tune, or select from your presets.
3. RDS (Radio Data System) will display station information where available.

Image 5.4: Radio RDS functionality for displaying station information.

5.6 Split Screen Functionality

The split-screen feature allows you to run two applications simultaneously on the display. For example, you can have navigation on one side and music on the other.

1. Open the first application you wish to use.
2. Long-press the recent apps button or follow the specific gesture/button combination for split-screen mode (may vary slightly based on software version).
3. Select the second application from the list of open apps.

Image 5.5: Split screen feature displaying navigation and media player simultaneously.

5.7 Steering Wheel Control (SWC)

If your vehicle supports it, the unit can be configured to work with your original steering wheel controls. This allows you to control volume, track changes, and other functions without taking your hands off the wheel.

1. Access the "Steering Wheel Control" settings in the unit's system menu.
2. Follow the on-screen instructions to program each button on your steering wheel to the desired function.

Image 5.6: Steering wheel control buttons for convenient operation.

5.8 Rear View Camera

When a compatible rear view camera is connected and properly installed, the display will automatically switch to the camera feed when the vehicle is put into reverse gear. This aids in safe parking and maneuvering.

Image 5.7: Rear view camera display with parking assistance lines.

5.9 Digital Sound Processor (DSP)

The built-in DSP allows for advanced audio customization. Access the DSP settings from the main menu to adjust equalizer settings, balance, fader, and other audio parameters to optimize sound quality to your preference.

Image 5.8: Built-in DSP for professional audio tuning.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your car stereo.

6.1 Cleaning the Display

• Use a soft, lint-free cloth to gently wipe the screen.
• For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaning solution. Do not spray liquid directly onto the screen.
• Avoid using abrasive cleaners, alcohol, or solvents, as these can damage the screen coating.

6.2 Software Updates

Periodically check for software updates. Updates can improve performance, add new features, and fix bugs. Connect the unit to Wi-Fi and navigate to the system settings to check for and install available updates.

6.3 General Care

• Avoid exposing the unit to extreme temperatures or direct sunlight for prolonged periods.
• Do not spill liquids on the unit.
• Ensure proper ventilation around the unit to prevent overheating.

7. Troubleshooting

If you encounter issues with your MOOKAKA Carplay Android Car Stereo, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact customer support for further assistance.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

The MOOKAKA Carplay Android Car Stereo comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or normal wear and tear.

Please retain your proof of purchase for warranty claims.

9.2 Technical Support

MOOKAKA provides professional technical support for this product. If you encounter any problems during installation or operation that are not covered in the troubleshooting section, or if you require further assistance, please contact our customer support team.

You can typically find contact information on the MOOKAKA brand website or through your purchase platform. When contacting support, please provide your product model, purchase date, and a detailed description of the issue.
