ROCKBROS Bike Helmet Instruction Manual

1. Product Overview

The ROCKBROS Bike Helmet is designed for adult cyclists, offering protection and comfort. It features a lightweight construction, adjustable fit, and includes detachable magnetic goggles and a sun visor for enhanced versatility and protection during various cycling conditions.

Key features include:

• Adjustable size for head circumferences between 22.4-24.4 inches (58-62 cm).
• Detachable magnetic goggles and sun visor for eye and face protection.
• Durable PC shell and EPS foam construction for impact resistance.
• 24 breathable vents for cooling and ventilation.
• Lightweight design, approximately 209g (0.46lb) (excluding goggles and visors).

2. Setup and Fitting

Proper helmet fit is crucial for safety and comfort. Follow these steps to ensure your helmet is correctly adjusted.

2.1 Head Circumference Adjustment

The helmet features a 360-degree adjustable dial at the back to customize the fit to your head circumference. The suggested fit range is 58-62 cm (22.4-24.4 inches).

1. Place the helmet on your head.
2. Turn the adjustment dial clockwise to tighten the fit until the helmet feels snug but comfortable, without excessive pressure.
3. Turn the adjustment dial counter-clockwise to loosen the fit.
4. The helmet should sit level on your head, covering your forehead without tilting back or forward.

Figure 2.1: Adjusting the head circumference dial for a secure fit.

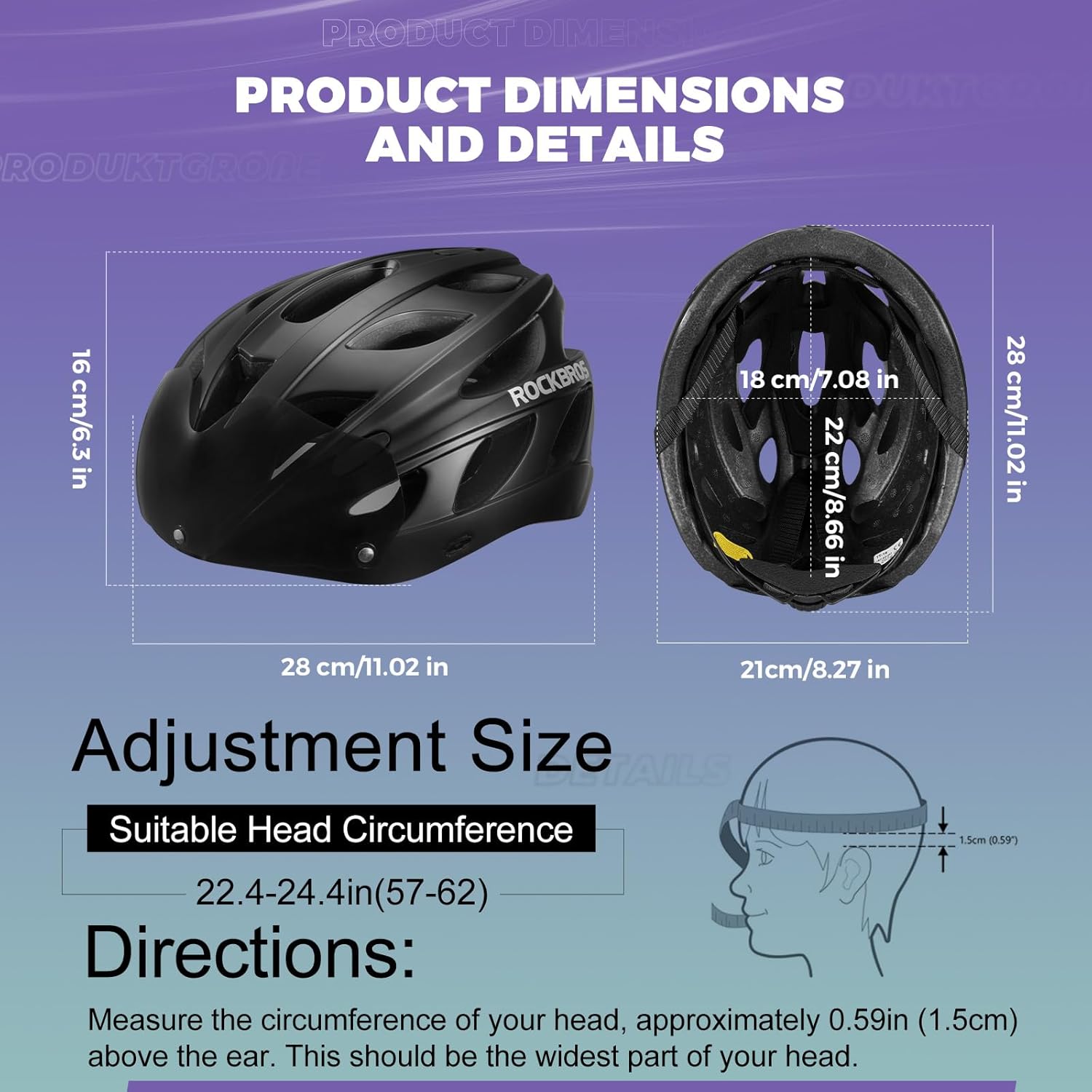

Figure 2.2: Product dimensions and head circumference measurement guide. Measure approximately 0.59 inches (1.5 cm) above the ear, at the widest part of your head.

2.2 Chin Strap Adjustment

Adjust the chin strap to keep the helmet securely in place.

1. Fasten the quick-release buckle under your chin.
2. Adjust the side straps so that the strap dividers sit just below your ears.
3. Tighten or loosen the chin strap until it is snug, allowing only one or two fingers to fit between the strap and your chin.
4. The helmet should not move excessively when you shake your head.

2.3 Attaching Magnetic Goggles and Sun Visor

The helmet comes with detachable magnetic goggles and a sun visor for versatile use.

• To attach the goggles or visor, align the magnets on the accessory with the corresponding magnets on the helmet. They will snap into place.
• The magnetic goggles are designed to be compatible with myopia glasses, providing eye protection without interfering with personal eyewear (not suitable for large-framed glasses).
• The sun visor can be used to block sun, wind, and sand.

Figure 2.3: Magnetic goggles compatibility with myopia glasses.

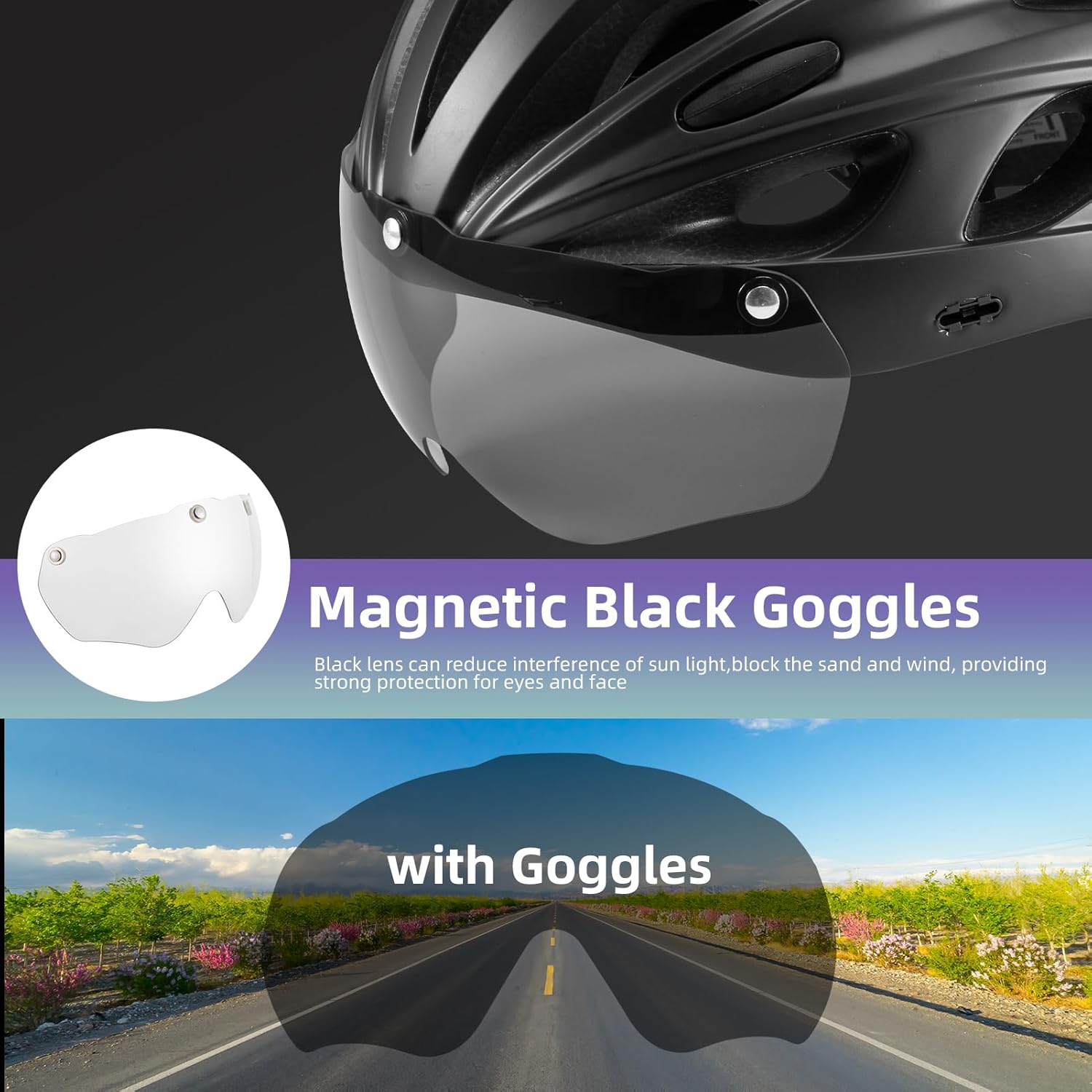

Figure 2.4: Magnetic black goggles attached to the helmet, providing protection from sun, wind, and sand.

3. Operating the Helmet

Once properly fitted, the helmet is ready for use. The design allows for different configurations based on your riding needs.

• Fast Ride Model: Use with the goggles and visor for protection against wind, dust, and dazzling light during long-distance cycling.
• Slow Ride Model: The lens can be easily turned up for short-distance slow riding.
• Leisure Model: Integrated molding provides a casual and comfortable option for daily recreational riding.
• Break Wind Model: The broken hat brim offers low wind resistance, suitable for fast riding.

Figure 3.1: Different helmet configurations for various cycling activities.

4. Maintenance and Care

Regular maintenance ensures the longevity and effectiveness of your helmet.

• Cleaning the Helmet: Use a soft cloth, mild soap, and water to clean the outer shell and straps. Avoid harsh chemicals or abrasive materials that could damage the helmet's surface or materials.
• Cleaning the Inner Liner: The helmet features a removable inner liner for easy cleaning. Gently detach the liner, hand wash with mild soap and water, rinse thoroughly, and air dry completely before reattaching.
• Goggle/Visor Care: Clean the magnetic goggles and visor with a soft, lint-free cloth and a lens cleaning solution or mild soap and water. Avoid wiping dry with abrasive materials to prevent scratches.
• Storage: Store the helmet in a cool, dry place away from direct sunlight and extreme temperatures. Do not expose the helmet to high heat, as this can damage the EPS foam.
• Inspection: Regularly inspect the helmet for any signs of damage, such as cracks in the shell, dents in the foam, or frayed straps. If any damage is found, the helmet should be replaced immediately, as its protective capabilities may be compromised.

Figure 4.1: Helmet components, including the removable inner liner for cleaning.

5. Troubleshooting

This section addresses common issues you might encounter with your helmet.

• Helmet feels loose after adjustment: Re-check the head circumference adjustment dial and chin strap. Ensure both are tightened sufficiently for a snug fit without discomfort. The helmet should not shift significantly when you move your head.
• Magnetic visor/goggles detach easily: Ensure the magnets on the visor/goggles are clean and free of debris. Verify that the visor/goggles are correctly aligned with the helmet's magnets for a secure attachment. Avoid strong impacts that could dislodge them.
• Goggles do not fit over prescription glasses: While designed for myopia glasses, some large-framed prescription glasses may not fit comfortably under the magnetic goggles. Consider using contact lenses or alternative eyewear if this is an issue.
• Chin strap is uncomfortable: Adjust the position of the side strap dividers to ensure the strap sits comfortably under your chin and around your ears. The soft chin pad should provide cushioning.
• Helmet feels hot or lacks ventilation: Ensure the helmet's vents are not obstructed. The helmet is designed with 24 breathable vents for airflow. If riding in extreme heat, consider taking breaks to cool down.

6. Specifications

7. Safety Information

Wearing a helmet can significantly reduce the risk of head injury during cycling. Please observe the following safety guidelines:

• Always wear your helmet when cycling, regardless of distance or speed.
• Ensure the helmet is properly fitted and secured before each ride. A loose helmet offers less protection.
• This helmet is designed for cycling. Do not use it for motor sports or other activities not specified.
• Helmets are designed for a single impact. If your helmet sustains an impact, even if there is no visible damage, it should be replaced immediately. The internal structure may be compromised.
• Avoid modifying the helmet in any way, including painting, applying stickers, or attaching accessories not approved by the manufacturer, as this can weaken its structure.
• Keep the helmet away from petroleum products, cleaning fluids, paints, or adhesives, as these can damage the helmet's materials.
• Children should always be supervised when wearing a helmet.

8. Warranty and Support

For warranty information or product support, please contact ROCKBROS USA, the manufacturer. Details regarding specific warranty periods and coverage may vary. It is recommended to retain your proof of purchase.

• Manufacturer: ROCKBROS
• Seller: ROCKBROS USA
• Protection Plans: Additional protection plans may be available for purchase. Please refer to your retailer for details.
