Introduction
The ASAHOM Permanent Outdoor Lights are designed to provide versatile and durable outdoor lighting for various occasions. Featuring smart app and voice control, these RGB LED lights offer 16 million colors and 70 preset scene modes, making them suitable for holiday decor, parties, or daily accent lighting. Their robust IP67 waterproof design ensures reliable performance in diverse weather conditions.
Figure 1: ASAHOM Permanent Outdoor Lights with app interface. These lights offer vibrant colors and smart control for various outdoor lighting needs.
What's in the Box
- Light kit included (1 * Power Plug, 1 * Control Box, 6 * String Lights Section, 2 * Accessory Kit, 1 * Quick Start Guide, 1 * User Manual)
Figure 2: Detailed diagram showing the components included in the package, including power plug, control box, and string light sections.
Specifications
| Feature | Detail |
|---|---|
| Brand | ASAHOM |
| Model Number | S1040 |
| Color | Multicolor |
| Indoor/Outdoor Usage | Outdoor |
| Light Source Type | LED |
| Power Source | AC/DC |
| Voltage | 110 Volts (AC) |
| Wattage | 72 Watt-hours |
| Number of Light Sources | 72 |
| Luminous Flux | 26 Lumen per light |
| Connectivity Technology | Bluetooth, Wi-Fi (2.4GHz) |
| Control Method | App, Voice (Alexa, Google Assistant) |
| Water Resistance Level | IP67 Waterproof |
| Operating Temperature | -4°F to 140°F (-20°C-60°C) |
| Average Life | 50,000 Hours |
| Item Weight | 5.36 Pounds |
| Product Dimensions | 1200 x 0.39 x 0.01 inches (100ft length) |
Setup and Installation
Follow these steps for proper installation of your ASAHOM Permanent Outdoor Lights:
- Prepare the Surface: Use rubbing acetone on a cloth to clean the spots on your eaves or desired installation surface. Ensure the area is dry before proceeding.
- Positioning: Install the lights approximately 2-4 inches away from the wall surface to achieve optimal wall-washing effects (wall washing depth: 16 inches).
- Attach Lights: Peel the VHB glue backing from each light. Press each light firmly against the surface for at least 8 seconds to ensure proper bonding.
- Secure with Clips: Use the provided screw clips for each segment to keep the lights securely in place. It is recommended to use 6 screw clips per segment.
- Connect Segments: Connect multiple light segments using the waterproof connectors. Twist and screw in the cap to ensure a secure, waterproof seal. Note: The light segments cannot be cut. The total length after adding extension lights should not exceed 150ft.
Figure 3: Illustration of the seamless wall-washing effect when lights are installed 2-4 inches from the wall.
Figure 4: Visual guide for easy installation, showing surface cleaning, light positioning, adhesive application, and securing with clips.
Operating Instructions
Your ASAHOM Permanent Outdoor Lights can be controlled via the Smart Life app or voice commands through Alexa and Google Assistant.
Smart Life App Control
- Connection: Ensure your device is connected to a 2.4GHz Wi-Fi network.
- Color Customization: Set the color of each 4-LED eaves light (as a group) from 16 million available colors.
- Scene Modes: Choose from 70 preset scene modes for various occasions (e.g., Easter decor, holiday themes).
- Music Sync: Sync the lights to music for dynamic lighting effects.
- Scheduling: Set schedules to automatically turn lights on/off or loop favorite scenes.
Figure 5: The Smart Life app allows for DIY customization of lighting effects, offering various modes and controls.
Voice Control (Alexa & Google Assistant)
- Once connected to the Smart Life app, you can use voice commands with Alexa or Google Assistant to control your lights.
- Example commands: "Alexa, turn on the outdoor lights," "Hey Google, set outdoor lights to red."
Figure 6: Lights can be synchronized with music, creating dynamic and festive atmospheres.
Video 1: Demonstration of various festival scene modes and app control features for the ASAHOM Permanent Outdoor Lights.
Maintenance
The ASAHOM Permanent Outdoor Lights are designed for long-lasting outdoor use with minimal maintenance.
- Durability: The lights are IP67 waterproof, sunproof, snowproof, and windproof, making them suitable for all-year-round use in various climates.
- Temperature Range: They operate effectively in temperatures from -4°F to 140°F (-20°C to 60°C).
- Lifespan: The LED lights have an impressive lifespan of up to 50,000 hours.
- Cleaning: Periodically clean the light surfaces with a soft, damp cloth to maintain brightness and appearance. Avoid harsh chemicals.
- Wire Integrity: The wire is designed to resist 11.02lb tensile force, ensuring durability against environmental factors.

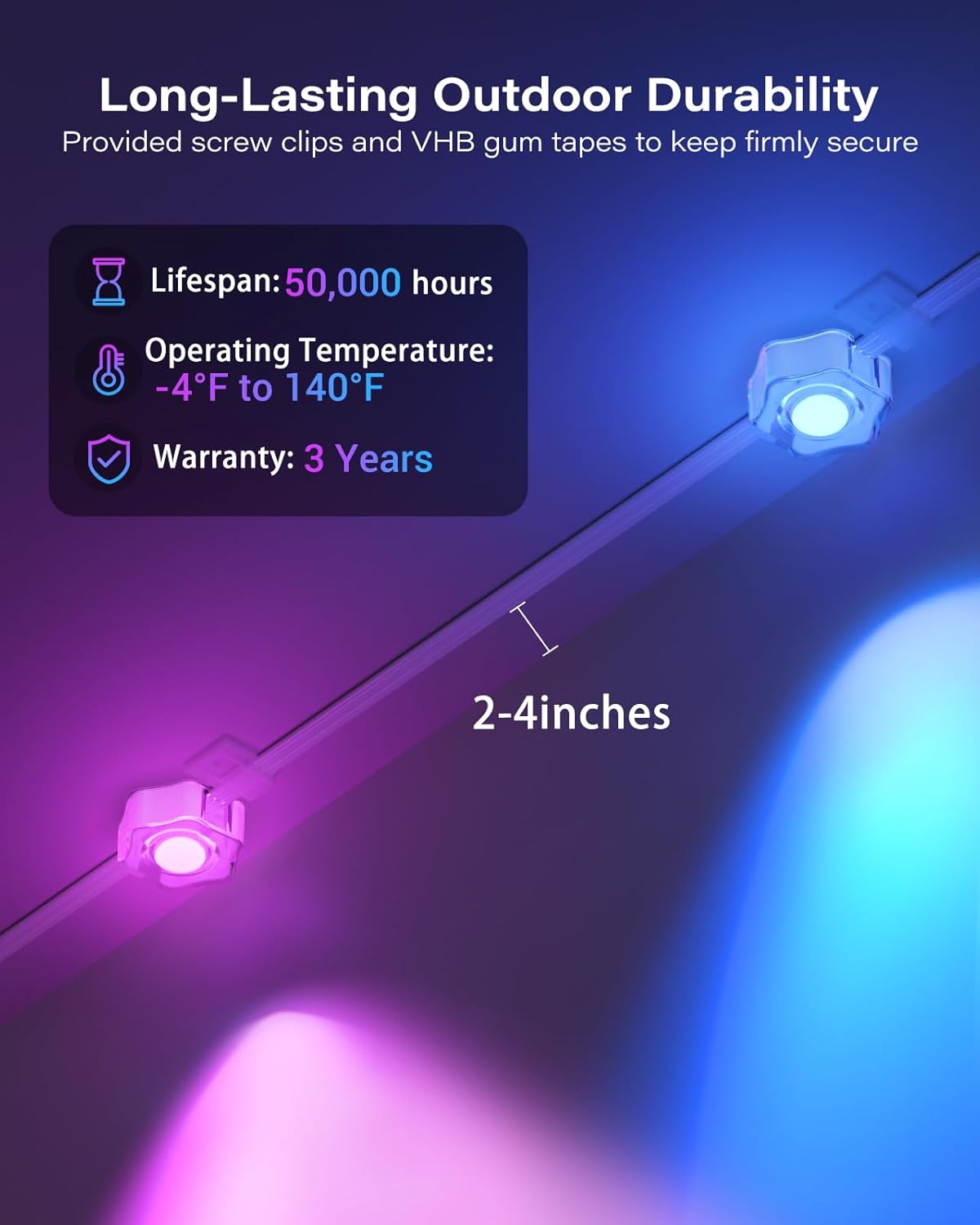

Figure 7: Key features highlighting the long-lasting outdoor durability, including lifespan, operating temperature, and wire strength.
Troubleshooting
If you encounter issues with your ASAHOM Permanent Outdoor Lights, consider the following common solutions:
- Lights Not Turning On:
- Check if the power plug is securely connected to a working outlet.
- Ensure all light segments are properly connected via their waterproof connectors.
- Verify the control box is receiving power and its indicator light is on.
- App Connectivity Issues:
- Confirm your smartphone is connected to a 2.4GHz Wi-Fi network.
- Restart your Wi-Fi router and the light system.
- Ensure the Smart Life app is updated to the latest version.
- If lights are not responding, try refreshing them in the app (often found under 'More' or 'Timer' settings).
- Inconsistent Colors/Patterns:
- Check app settings to ensure the desired scene or color is selected.
- Verify that the firmware of the lights is up to date via the Smart Life app.
Warranty and Support
ASAHOM Permanent Outdoor Lights come with a 3-year warranty.
For detailed instructions, troubleshooting, or further assistance, please refer to the official user manuals:
You can also visit the official ASAHOM Store for more product information and support.
