Introduction
This manual provides essential information for the safe and efficient operation of your BougeRV 220WH Portable Power Station. Please read all instructions carefully before use and retain this manual for future reference.
Product Features
- 6H+ Running Time Extension: Designed to extend the running time of BougeRV CRPRO Refrigerators by over 6 hours in ECO Mode.
- Wide Compatibility: Features a cigarette lighter output port compatible with 95% of 12V car refrigerators. Includes Type-C and USB-A ports for simultaneous charging of phones, cameras, and laptops.
- 2H Fast Solar Recharging: Supports up to 100W max solar input, allowing recharging to 80% in 2 hours. Also supports pass-through recharging via AC, DC, and Type-C.
- Dynamic Smart Panel: Informative display panel monitors exact remaining power (0-100%) and recharging process.
- Safety Protection System: Built-in protections against over-temperature, over-voltage, over-charge, and over-current.
What's in the Box
- 1x BougeRV 220Wh Portable Power Station
- 1x 60W USB-C to USB-C Charger Cable
- 1x Car Charging Cable
- 1x Quickstart Guide
Setup
The BougeRV 220WH Portable Power Station is designed for easy integration with compatible portable refrigerators. Follow these steps to install and begin using your power station:
- Locate the battery compartment on your compatible BougeRV refrigerator.
- Press the release buttons on the sides of the power station.
- Slide the power station into the designated compartment until it clicks securely into place.
- Ensure the power station is firmly seated and the connection is established.
Image: The BougeRV 220WH Portable Power Station being inserted into the side compartment of a portable refrigerator, illustrating how it extends the running time.
Video: This video demonstrates the simple 4-step installation process of the BougeRV 173Wh Detachable Battery into a compatible dual-zone refrigerator, highlighting its pass-through recharging capability.
Operating Instructions
The power station features an intuitive smart display panel for easy monitoring and control.
- Power On/Off: Press and hold the power button on the top of the power station for 3 seconds to turn it on or off.
- Check Battery Level: Briefly press the power button to illuminate the LED indicators, showing the remaining battery life.
- Monitor Display Panel: The dynamic smart panel displays the exact remaining power (0-100%) and indicates the recharging process.
- MAX/ECO Mode Switch: If your refrigerator supports it, press the dedicated button to switch between MAX (for rapid cooling) and ECO (for energy efficiency) modes.
- Temperature Control: Use the '+' and '-' buttons on your refrigerator's control panel to adjust the desired temperature.
Image: The upgraded smart display panel of the BougeRV 220WH Portable Power Station, showing battery percentage, input, and output wattage, capable of monitoring remaining power.
Video: This video demonstrates the cooling test of a BougeRV refrigerator, showing how to operate the touch screen display to set temperatures and monitor performance.
Charging Instructions
The BougeRV 220WH Portable Power Station offers multiple convenient recharging options:
- Solar Recharging: Connect a compatible solar panel (up to 100W max input) to the power station. It can recharge to 80% in approximately 2 hours.
- AC Recharging: Use the provided AC adapter to plug the power station into a standard wall outlet.
- DC Recharging: Utilize the included car charging cable to recharge the power station from your vehicle's 12V DC outlet.
- Type-C Recharging: Use the 60W USB-C to USB-C charger cable for Type-C recharging.
Image: The BougeRV 220WH Portable Power Station connected to a solar panel for recharging, demonstrating the solar charging capability.
Image: The BougeRV 220WH Portable Power Station connected to an AC wall outlet for recharging, showing the AC charging method.
Image: The BougeRV 220WH Portable Power Station connected to a car cigarette lighter for DC recharging, illustrating the in-car charging option.
Battery Protection Modes
The power station is equipped with a comprehensive battery protection system to ensure safety and longevity. It features High (H), Medium (M), and Low (L) modes for voltage protection, which can be adjusted via the refrigerator's control panel (refer to your refrigerator's manual for specific instructions).
- Over-Temp Protection: Prevents overheating of the battery.
- Over-Voltage Protection: Safeguards against excessive voltage input.
- Over-Charge Protection: Protects the battery from being overcharged.
- Over-Current Protection: Prevents damage from excessive current draw.

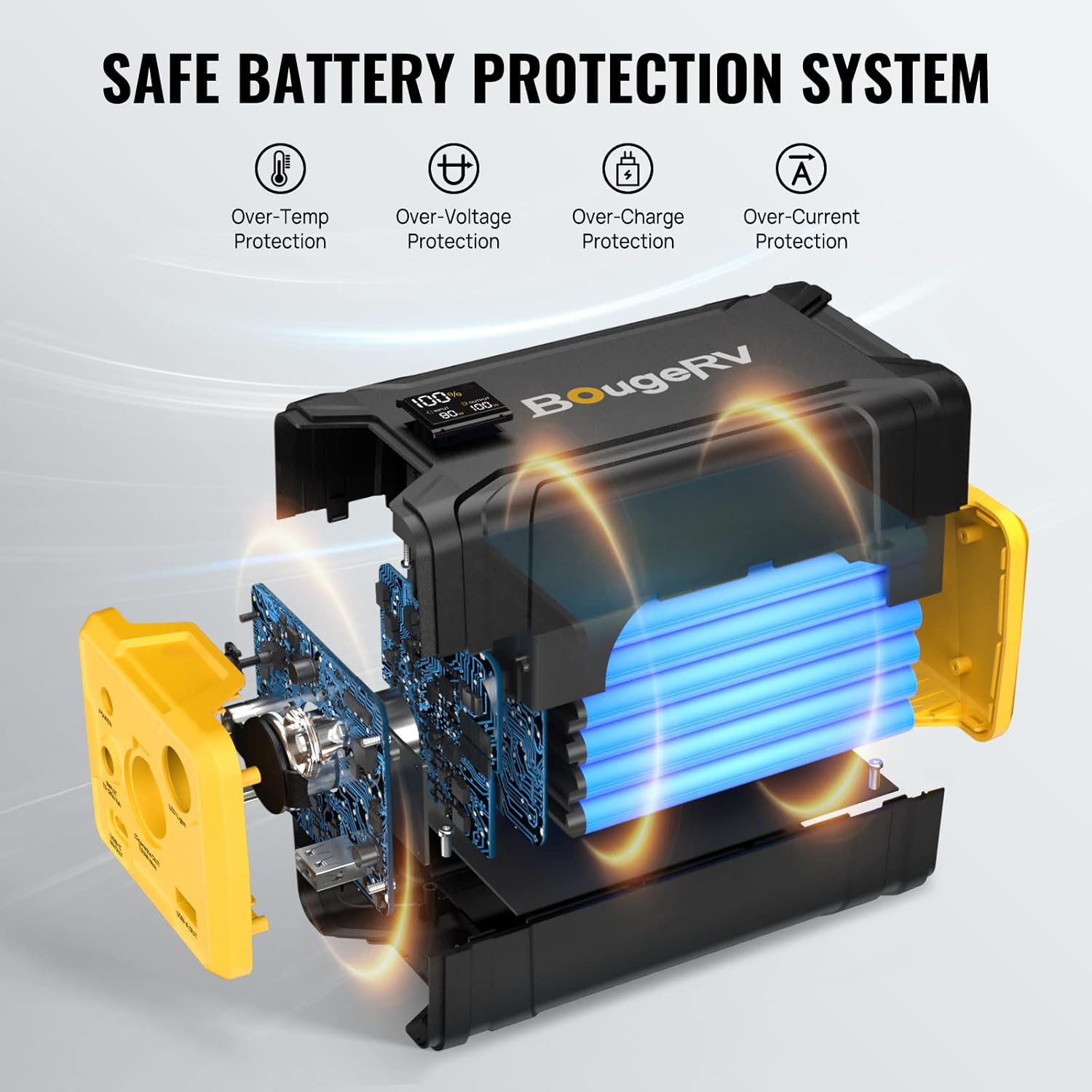

Image: A diagram illustrating the safe battery protection system of the BougeRV 220WH Portable Power Station, including over-temp, over-voltage, over-charge, and over-current protection.
Compatibility
The BougeRV 220WH Portable Power Station is specifically designed to integrate with BougeRV CRPRO, CR, Aspen, and Aspen Pro series refrigerators. Its cigarette lighter output port also ensures compatibility with most other 12V car refrigerators on the market.
Image: A diagram illustrating the compatibility of the BougeRV 220WH Portable Power Station with various BougeRV refrigerator models, including CRPRO, CR, Aspen, and Aspen Pro series.
Image: The BougeRV 220WH Portable Power Station displaying its cigarette port for 12V refrigerators, USB-A port, and USB-C port, highlighting its wide compatibility with various devices.
Maintenance
- Keep the power station clean and dry. Avoid exposure to extreme temperatures or moisture.
- Store in a cool, dry place when not in use.
- Periodically check all cables and connections for any signs of wear or damage.
- Do not attempt to disassemble or repair the power station yourself. Contact customer support for assistance.
Troubleshooting
- Power Station Not Turning On: Ensure the power button is pressed and held for 3 seconds. Check if the battery is completely depleted and requires recharging.
- Refrigerator Not Receiving Power: Verify that the power station is securely inserted into the refrigerator compartment. Check all cable connections. Ensure the power station has sufficient charge.
- Slow Recharging: Confirm that the charging source (solar panel, AC adapter, car charger) is providing adequate power. Ensure solar panels are in direct sunlight.
- Error Codes: Refer to your refrigerator's user manual for specific error code definitions and troubleshooting steps related to battery protection modes.
Specifications
| Feature | Detail |
|---|---|
| Brand | BougeRV |
| Model Number | SYZ-G200 |
| Item Weight | 3.3 Pounds |
| Item Dimensions | 7.08 x 3.3 x 3 inches |
| Connector Type | USB 2.0, Type-C |
| Number of Batteries | 1 Lithium Ion batteries required |
| Special Feature | Portable |
Warranty and Support
The BougeRV 220WH Portable Power Station comes with 2-year technical support. For any product questions or assistance, please do not hesitate to contact BougeRV customer service.
