KitchenBoss 51MM Calibrated Espresso Coffee Tamper Instruction Manual

1. Introduction

Thank you for choosing the KitchenBoss 51MM Calibrated Espresso Coffee Tamper. This manual provides essential information for the proper use, maintenance, and care of your tamper. Please read it thoroughly before first use to ensure optimal performance and longevity of the product.

2. Safety Information

• Keep out of reach of children.
• This product is designed for tamping coffee grounds in espresso portafilters. Do not use for any other purpose.
• Handle with care to avoid dropping, which may damage the tamper or the portafilter.
• Ensure the tamper is clean and dry before and after each use.

3. Product Overview

The KitchenBoss 51MM Calibrated Espresso Coffee Tamper is designed to provide consistent tamping pressure for optimal espresso extraction. It features a spring-loaded mechanism and durable construction.

Image 3.1: KitchenBoss 51MM Calibrated Espresso Coffee Tamper. This image shows the tamper with its black handle and stainless steel base, alongside its packaging.

Components:

• Handle: Ergonomically designed for comfortable grip and consistent pressure application.
• Spring Mechanism: Provides calibrated pressure (approximately 30 pounds) for uniform tamping.
• Base: 51mm diameter, food-grade SUS304 stainless steel for durability and safety.

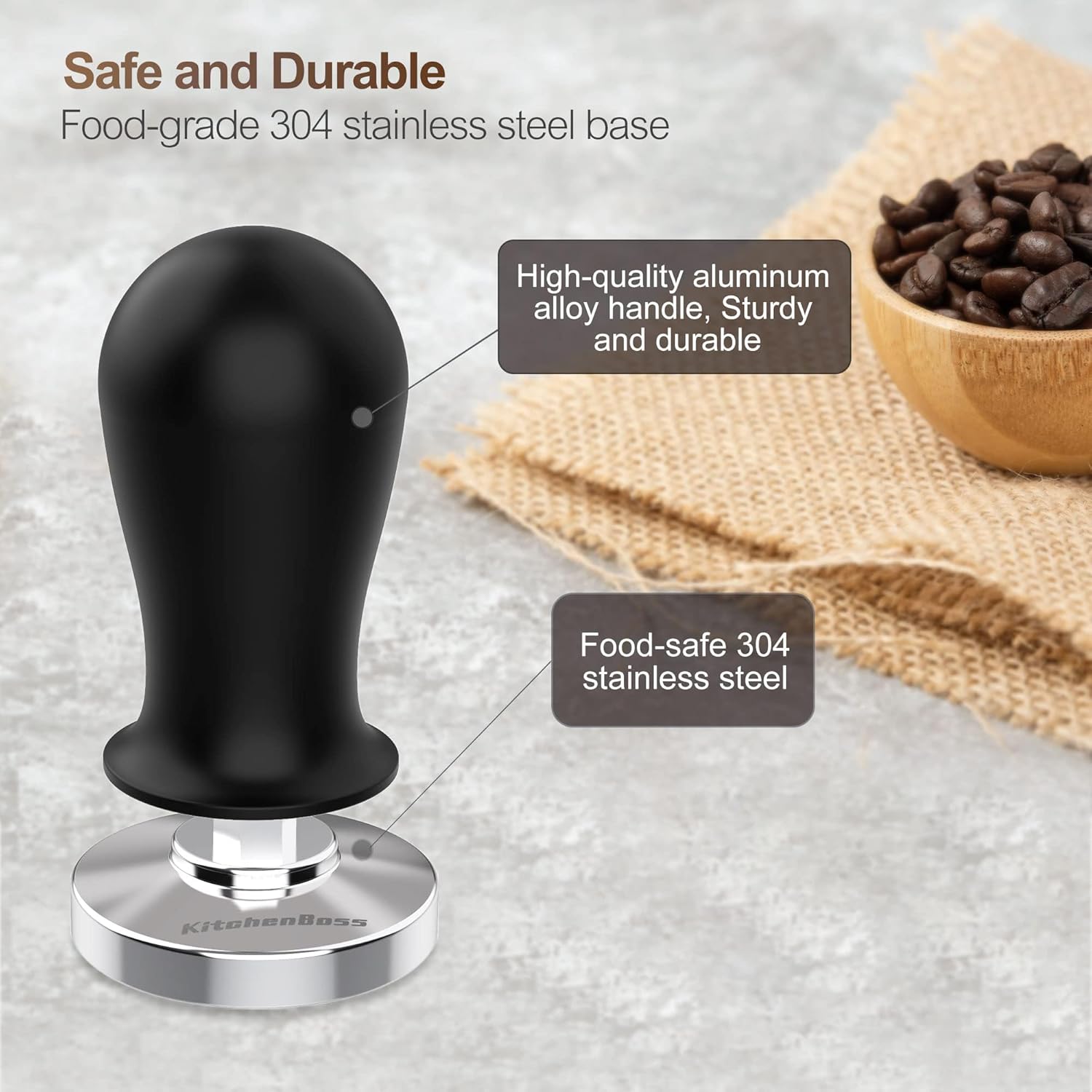

Image 3.2: Detailed view of the tamper's components, highlighting the high-quality aluminum alloy handle and food-safe 304 stainless steel base.

4. Setup and Compatibility

Before using your KitchenBoss tamper, ensure it is compatible with your espresso machine's portafilter basket.

4.1. Check Portafilter Basket Size:

This tamper is specifically designed for 51mm diameter espresso portafilter baskets. It is compatible with various espresso machine models, including but not limited to:

• DeLonghi EC685 (Dedica style), EC155, ECP3420, EC270
• Breville Bambino BES450XL
• Gaggia Classic, Carezza Deluxe, Gran Style, Viva series

It is crucial to measure your portafilter basket's internal diameter before use to confirm compatibility.

Image 4.1: Visual guide demonstrating the 51mm diameter of the tamper and its fit within a 51mm portafilter basket.

Image 4.2: Diagram showing the dimensions of the KitchenBoss tamper, including its 51mm base diameter and 100mm height.

5. Operating Instructions

Follow these steps for effective coffee tamping and optimal espresso extraction:

1. Prepare Coffee Grounds: Grind fresh coffee beans to an appropriate fineness for espresso.
2. Add Coffee Powder: Fill your 51mm portafilter basket with the desired amount of coffee grounds. Ensure the grounds are evenly distributed.
3. Level the Grounds: Gently tap the portafilter on a flat surface or use a leveling tool to ensure the coffee grounds are level before tamping.
4. Tamp the Coffee: Place the KitchenBoss 51MM Calibrated Espresso Coffee Tamper squarely on top of the leveled coffee grounds. Apply downward pressure until the internal spring mechanism fully compresses, indicating approximately 30 pounds of pressure has been applied. The tamper will "click" or stop when the calibrated pressure is reached.
5. Remove Tamper: Lift the tamper straight up from the portafilter basket. Avoid twisting or disturbing the tamped puck.
6. Inspect Puck: The tamped coffee puck should be firm, level, and smooth.

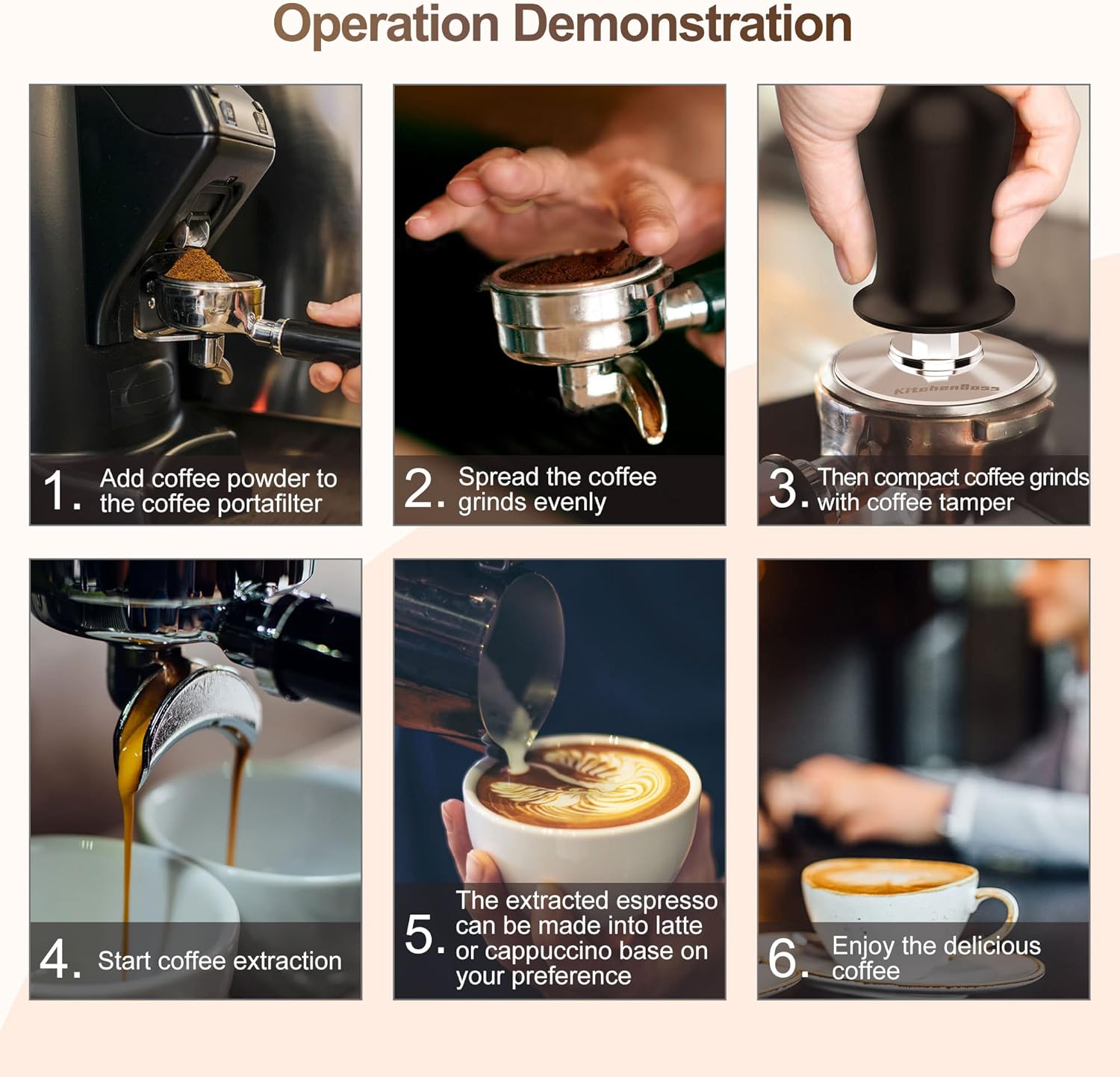

Image 5.1: Step-by-step visual guide for tamping coffee grounds, from adding coffee to extraction.

Image 5.2: Illustration of the tamper's internal spring mechanism, demonstrating how it applies 30 pounds of elastic pressure for consistent tamping.

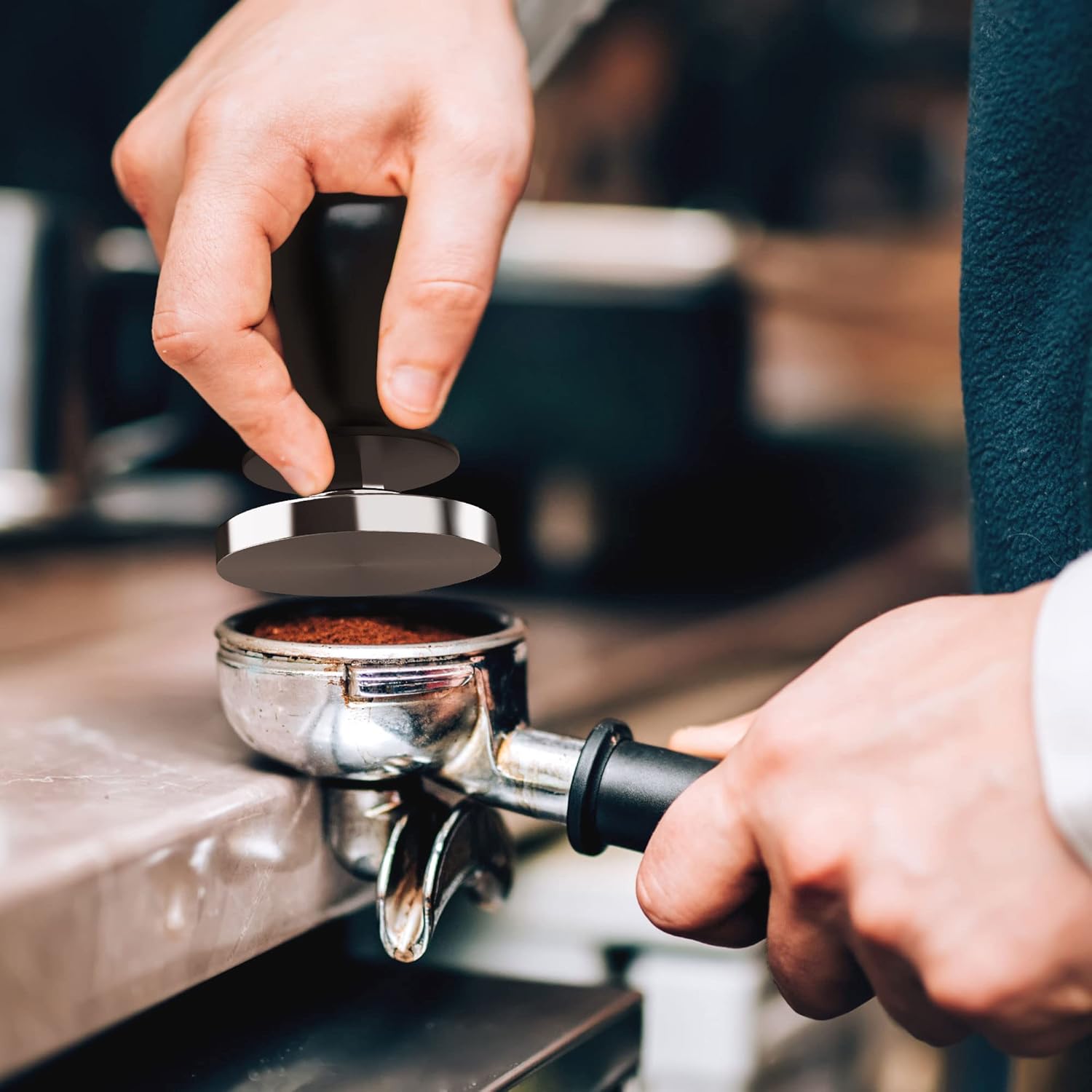

Image 5.3: A user demonstrating the proper grip and application of the tamper into a portafilter.

6. Maintenance and Cleaning

Regular cleaning and proper maintenance will extend the life of your KitchenBoss tamper.

• Daily Cleaning: After each use, wipe the tamper base with a clean, damp cloth to remove any coffee residue.
• Deep Cleaning: Periodically, the tamper base can be washed with mild soap and warm water. Ensure it is thoroughly rinsed and dried immediately to prevent water spots or mineral buildup.
• Drying: Always dry the tamper completely before storage to prevent corrosion, especially on the stainless steel base.
• Storage: Store the tamper in a dry place, away from direct sunlight or extreme temperatures.
• Do not use abrasive cleaners or scouring pads, as these can scratch the surface.
• Do not immerse the entire tamper in water, especially the handle, to protect the internal spring mechanism.

Image 6.1: Close-up view of the tamper's base, emphasizing its 100% food-grade stainless steel construction, which is easy to clean.

7. Troubleshooting

8. Specifications

• Model Number: G522VB51US
• Brand: KitchenBoss
• Tamper Diameter: 51mm
• Material: Food-grade SUS304 Stainless Steel Base, Aluminum Alloy Handle
• Calibrated Pressure: Approximately 30 pounds
• Product Dimensions: 2 x 2 x 4 inches (approximately 51mm x 51mm x 100mm)
• Item Weight: 13.4 ounces (approximately 380 grams)

9. Warranty and Support

KitchenBoss is committed to providing high-quality products. For any questions, concerns, or support needs regarding your 51MM Calibrated Espresso Coffee Tamper, please contact KitchenBoss customer service. Specific warranty details may vary; please refer to your purchase documentation or the official KitchenBoss website for the most current information.

For further assistance, visit the official KitchenBoss store: KitchenBoss Store on Amazon
