PROOX All Metal Tub Spout with Diverter

Introduction

This manual provides instructions for the installation, operation, and maintenance of your PROOX All Metal Tub Spout with Diverter. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.

Image: The PROOX All Metal Tub Spout with Diverter in Chrome finish.

Safety Information

Always turn off the main water supply before beginning any plumbing work. Wear appropriate personal protective equipment, such as safety glasses and gloves. If you are unsure about any step, consult a qualified plumber.

Package Contents

Verify that all components are present before starting installation:

• All Metal Tub Spout with Diverter
• 3/4" to 1/2" Slip-on Adapter (pre-installed)
• 3/4" to 1/2" Thread Adapter
• Washer
• Allen Key
• Teflon Tape
• Installation Hardware

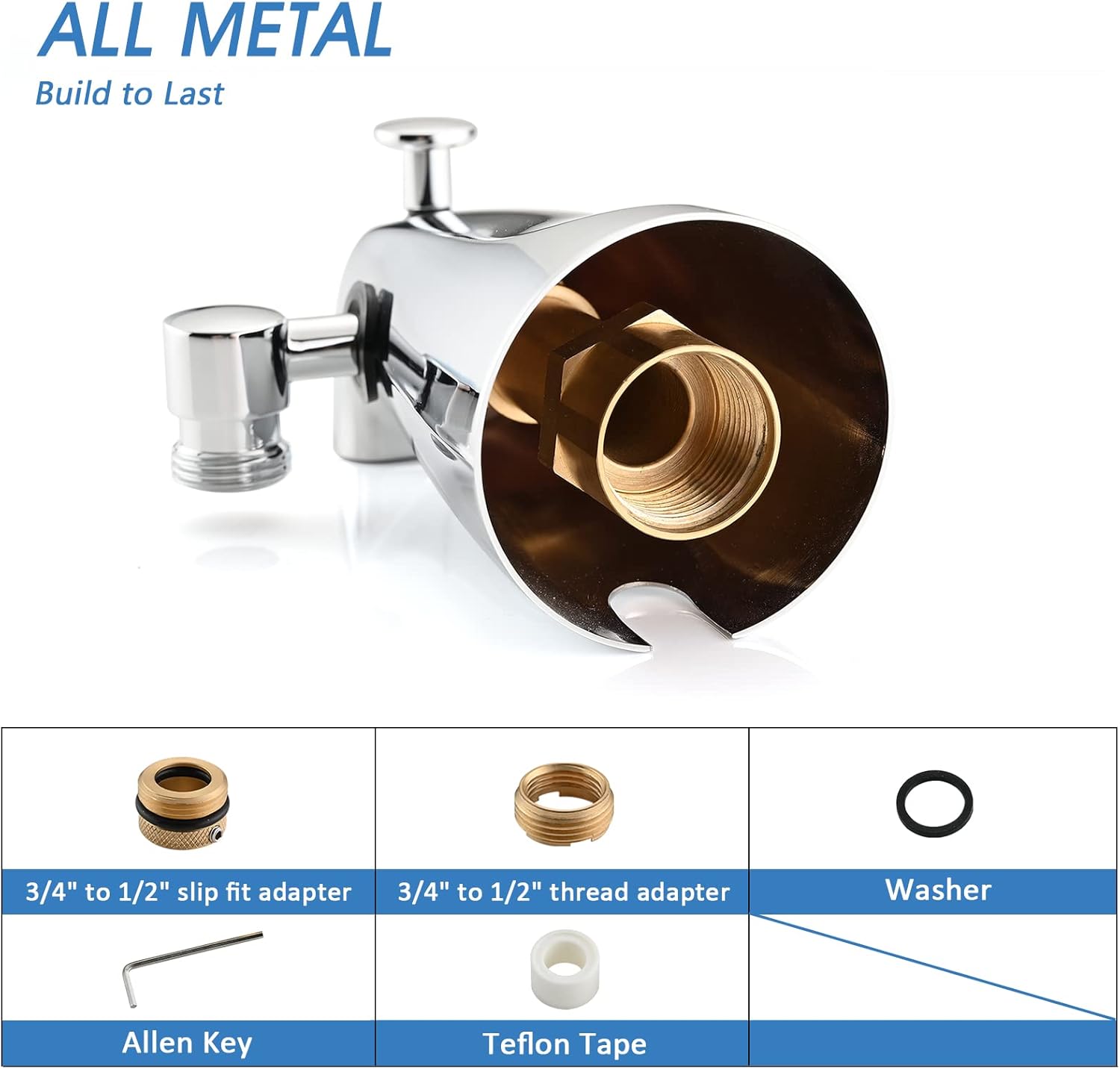

Image: All components included with the tub spout for installation.

Setup and Installation

The PROOX All Metal Tub Spout is designed for easy installation and offers three connection methods. Ensure your existing pipe protrudes between 1-1/2" and 2-7/8" from the finished wall.

Connection Methods:

1. 1/2 inch Slip-on Pipe: Use the pre-installed 3/4" to 1/2" slip-on adapter.
2. 3/4 inch Thread Pipe: Connect directly to the spout.
3. 1/2 inch Thread Pipe: Use the provided 3/4" to 1/2" thread adapter.

Apply Teflon tape to threaded connections to ensure a watertight seal. Carefully tighten all connections to prevent leaks without overtightening, which can damage components.

Image: Universal fit diagram illustrating the three connection types.

Handheld Shower Head Holder Installation:

If using the adhesive shower head holder, peel off the backing and firmly press it onto a clean, dry wall surface. Allow the adhesive to set for at least 24 hours before hanging the handheld shower head to ensure a secure bond and prevent it from detaching due to weight.

Image: The tub spout installed with a handheld shower head.

Operating Instructions

The tub spout features an ergonomic diverter rod for easy switching between tub fill and handheld shower functions.

Diverter Function:

• To fill the tub: Ensure the diverter rod is pushed down. Water will flow from the tub spout.
• To use the handheld shower: Lift the diverter rod up. Water will be redirected to the handheld shower head.

Image: Visual guide for operating the diverter mechanism.

Handheld Shower Head Operation:

If your handheld shower head has a pause function or multiple spray settings, use the corresponding buttons or levers on the shower head itself to adjust the water flow or spray pattern.

Video: Demonstration of the PROOX All Metal Tub Spout with Diverter in operation, showing the switch between tub fill and handheld shower.

Maintenance

To maintain the chrome finish and ensure optimal performance, clean the tub spout regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. The all-metal construction is designed to resist corrosion and tarnishing.

Troubleshooting

• Leaks from connections: Ensure all connections are tight and that Teflon tape was applied correctly to threaded pipes. Check washers for proper seating and damage.
• Water not fully diverting to shower head: Verify the diverter rod is fully pulled up. Inspect the diverter mechanism for any obstructions or damage.
• Spout not flush with wall: Confirm that the pipe protrusion from the wall is within the specified range of 1-1/2" to 2-7/8". Adjust pipe length if necessary.
• Handheld shower head holder detaching: Ensure the wall surface was clean and dry before application. Allow sufficient curing time (at least 24 hours) before applying weight.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the product packaging or visit the official PROOX website. Keep your purchase receipt for warranty claims.
