FrSara Fabric Shaver User Manual

1. Introduction

Thank you for choosing the FrSara Fabric Shaver. This electric lint remover is designed to efficiently remove pilling and lint from various fabrics, restoring your garments and upholstery to a fresh appearance. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Product Overview

The FrSara Fabric Shaver features a double-headed design, a high-speed motor, and multiple operating modes for versatile use.

The FrSara Fabric Shaver, featuring a sleek design, digital display for battery and mode, and a comfortable handle for effective lint and pilling removal.

Key Features:

• Efficient Performance: Double-headed design with a 20,000 rpm high-speed magnetic levitation motor and 12 precision steel blades for rapid lint removal.
• Powerful Battery: Equipped with a 2000mAh battery for extended use and Type-C charging, allowing operation while charging.
• User-Friendly Design: Features an LED high-definition digital display for function, mode, and power information. Includes a sticky lint brush and a hand rope for convenience.
• Large Capacity: A 50ML lint collector minimizes the need for frequent emptying.
• Fabric Protection: Designed with a thickened steel mesh to prevent damage to fabrics during use.

3. Setup

3.1 Charging the Device

Before first use, fully charge the fabric shaver. Connect the provided Type-C charging cable to the device and a suitable power source. The LED digital display will indicate the charging status. The device can be used while charging.

The shaver's 2000mAh battery provides extended usage, and the convenient Type-C charging port allows for use while charging.

3.2 Initial Inspection

Ensure all protective covers are removed and the lint collector is securely in place before operation. Verify that the steel mesh is free from damage.

4. Operating Instructions

4.1 Power On/Off

Press and hold the power button (indicated by a universal power symbol) on the device to turn it on or off. The digital display will illuminate upon activation.

4.2 Selecting Operating Modes

The FrSara Fabric Shaver offers three distinct modes to suit various fabric types and pilling levels. Cycle through the modes by pressing the mode selection button (refer to the digital display for current mode).

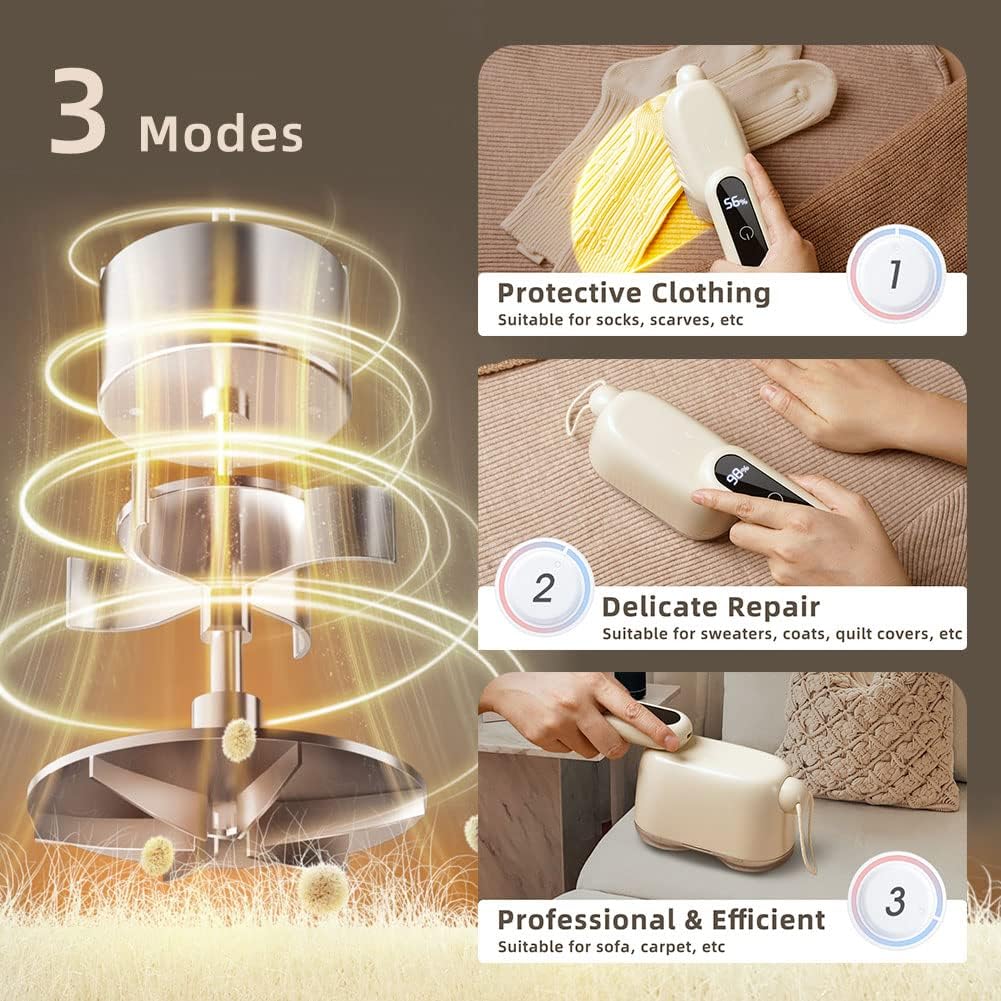

This image illustrates the three distinct operating modes of the FrSara Fabric Shaver: Mode 1 for Protective Clothing (socks, scarves), Mode 2 for Delicate Repair (sweaters, coats, quilt covers), and Mode 3 for Professional & Efficient cleaning (sofa, carpet).

• Mode 1 (Protective Clothing): Suitable for delicate items like socks and scarves.
• Mode 2 (Delicate Repair): Ideal for sweaters, coats, and quilt covers.
• Mode 3 (Professional & Efficient): Best for heavier fabrics such as sofas and carpets.

4.3 Using the Fabric Shaver

Lay the garment or fabric flat on a hard, smooth surface. Gently glide the shaver over the pilled areas, applying light and even pressure. Avoid pressing too hard to prevent damage to the fabric. For optimal results, move the shaver in circular motions or short, even strokes.

A detailed view of the shaver's double-headed design, highlighting the durable 0.35mm thickened steel mesh, engineered to protect fabrics while effectively removing lint.

An internal diagram showcasing the three-dimensional 12-leaf precision steel blade, designed for efficient lint removal without snagging threads.

5. Maintenance

5.1 Emptying the Lint Collector

Regularly empty the 50ML lint collector to maintain optimal suction and performance. Follow these steps:

1. Press and slide the lint collector compartment to the right.
2. Carefully pour out the accumulated lint and debris.
3. Clean the compartment with a soft brush or cloth if necessary.
4. Align the compartment with the track and slide it back into place until it clicks securely.

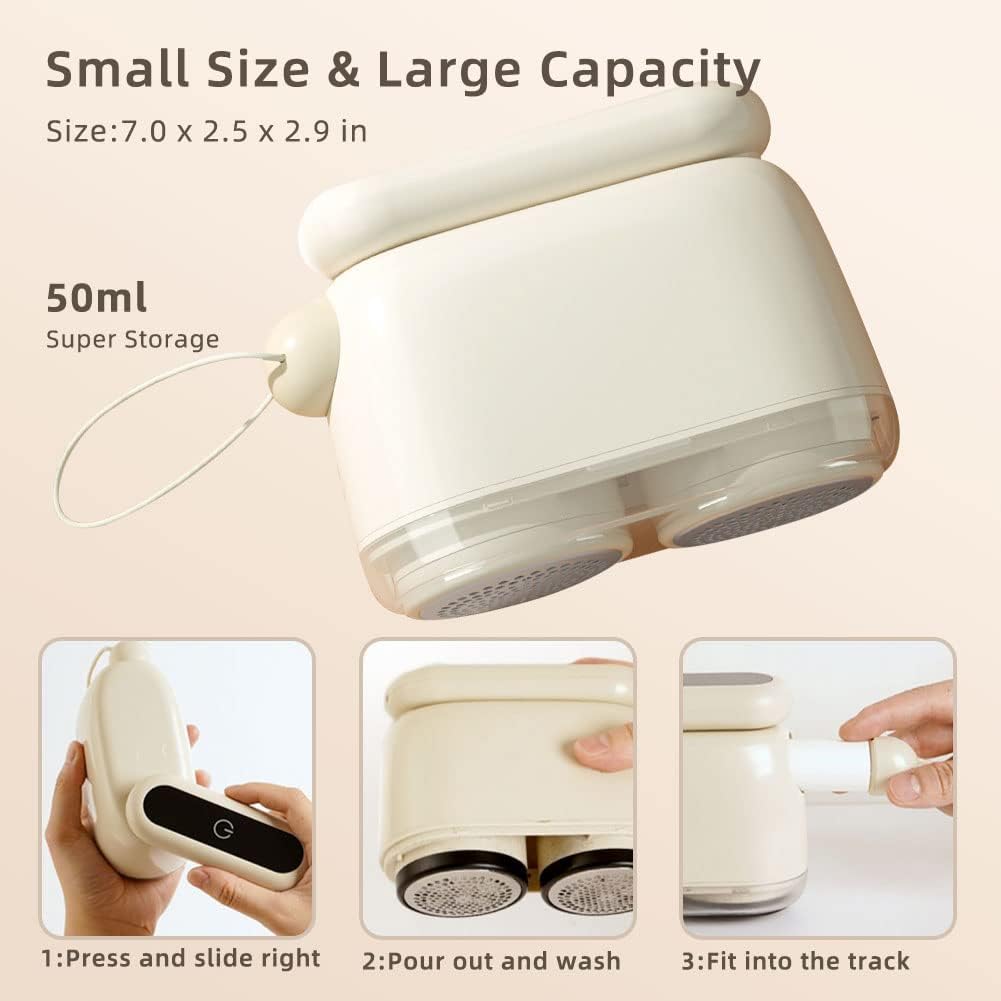

This image demonstrates the simple three-step process for emptying the 50ml lint collector: press and slide right, pour out and wash, then fit back into the track.

5.2 Cleaning Blades and Mesh

Periodically clean the blades and steel mesh to ensure efficient operation. Use a small brush (often included with similar devices) to gently remove any trapped lint or fibers from the blades and the underside of the mesh. Ensure the device is turned off and unplugged before cleaning.

6. Troubleshooting

6.1 Device Not Turning On

• Check Battery: Ensure the device is sufficiently charged. Connect it to the Type-C charger and allow it to charge for some time.
• Protective Cover: The device has a safety mechanism. Ensure the clear plastic protective cover over the blades is correctly installed. A small pin detects its presence; if not properly seated, the device will not power on.
• Power Button: Press and hold the power button firmly for a few seconds.

6.2 Reduced Performance/Ineffective Lint Removal

• Empty Lint Collector: A full lint collector can reduce suction. Empty it as described in Section 5.1.
• Clean Blades/Mesh: Trapped lint or debris on the blades or mesh can hinder performance. Clean them thoroughly (Section 5.2).
• Battery Level: Low battery can affect motor speed. Recharge the device.
• Fabric Type/Mode: Ensure you are using the appropriate mode for the fabric type. For stubborn pilling, multiple passes may be required.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact FrSara customer service directly. Keep your purchase receipt as proof of purchase.
