Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your DIAFIELD Mini Heat Gun. Please read this manual thoroughly before using the product and retain it for future reference.
The DIAFIELD Mini Heat Gun is a versatile tool designed for various applications requiring controlled heat, such as working with epoxy resin, crafting, embossing, shrink wrapping, and general DIY projects. It features two temperature settings and a compact design for ease of use.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow basic safety precautions when using this product.
- Read All Instructions: Familiarize yourself with the tool and its operation before use.
- Electrical Safety: Ensure the power source matches the voltage specified on the tool (120 Volts). Do not expose the heat gun to rain or wet conditions. Do not abuse the cord.
- Overload Protection: This heat gun is equipped with UL certified overload protection, which will automatically shut off the unit if it overheats to prevent damage. Allow the unit to cool down before resuming operation.
- Heat Hazard: The nozzle and accessories become extremely hot during use and remain hot for a period after shutdown. Avoid direct contact with hot surfaces. Allow the tool to cool completely before storing.
- Ventilation: Use the heat gun in a well-ventilated area. Some materials may produce toxic fumes when heated.
- Flammable Materials: Do not use the heat gun near flammable liquids, gases, or materials. Keep the work area clear of combustible items.
- Secure Workpiece: Always secure the workpiece to prevent movement during heating.
- Children and Bystanders: Keep children and bystanders away while operating the heat gun. The tool features a "Safe Design for Kids" to prevent fingers from reaching into the spout, but adult supervision is always required.
- Personal Protective Equipment: Wear appropriate safety glasses and gloves when operating the heat gun.
- Proper Storage: Store the heat gun in a dry, secure place out of reach of children when not in use.
Image: The heat gun's safety design, which prevents accidental contact with the hot internal elements, emphasizing compliance with safety regulations.
Product Features
- Strong Heating Temperature: Offers a temperature range of 302℉ (150℃) to 842℉ (450℃) for diverse applications.
- Two Level Setting: Provides two airflow speeds: Level I at 200 L/min and Level II at 300 L/min. Heats up quickly for efficient project completion.
- Compact & Durable Design: Ergonomically designed for comfortable handling, especially for minor projects. Features a 5.9 ft long cable.
- Long Service Life: Constructed with high-durability materials, including oxidation heating wire, fan, mica board, and an all-copper motor, supporting a product lifespan up to 800 hours.
- UL Certified with Overload Protection: Ensures safety and reliability during operation.
- Reflector Nozzle Included: Comes with a reflector nozzle for specific applications like heat shrink tubing.

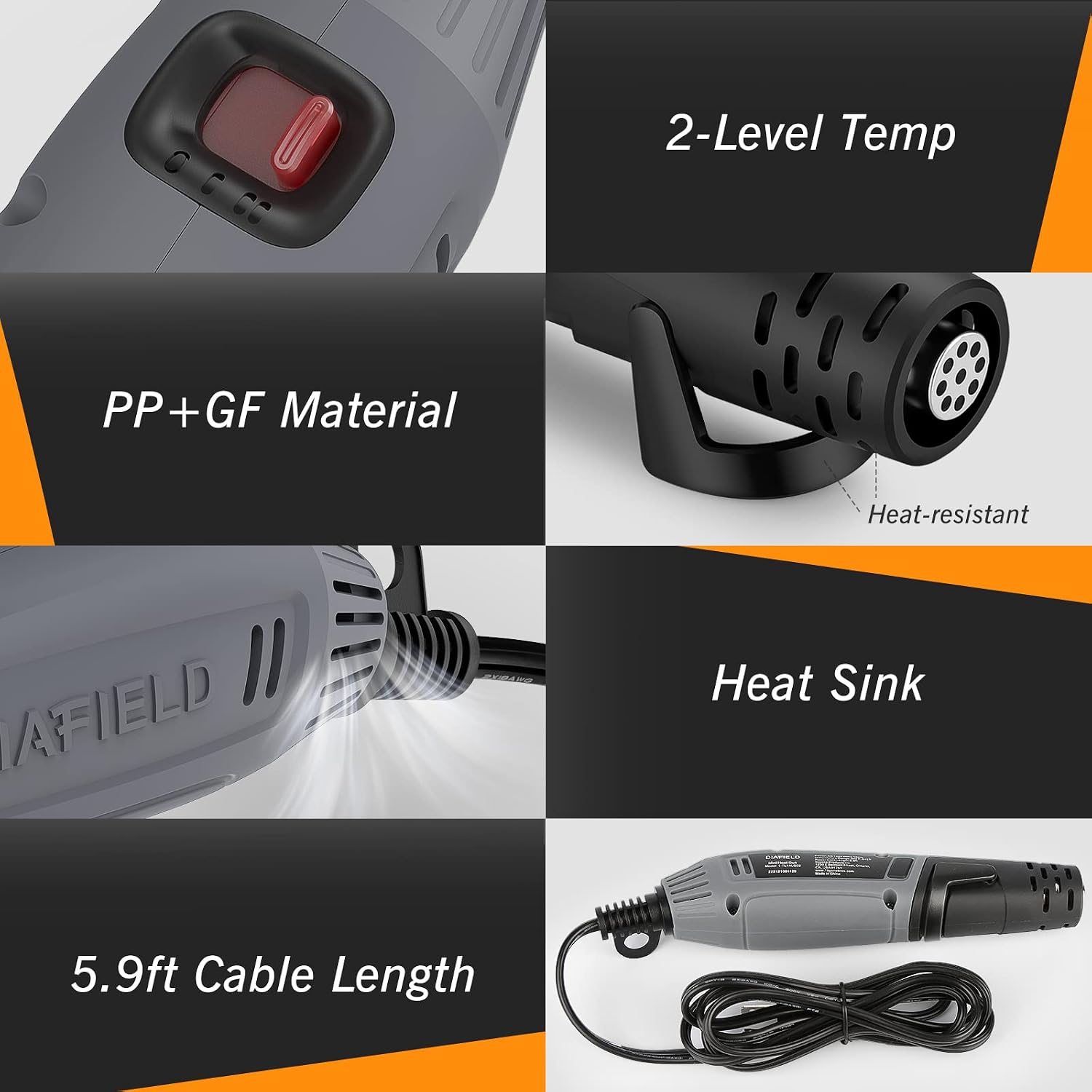

Image: Key features of the DIAFIELD Mini Heat Gun, highlighting its two-level temperature control, durable PP+GF material construction, efficient heat sink, and extended 5.9ft cable for convenience.
Package Contents
Upon opening the package, please verify that all components are present and undamaged:
- DIAFIELD Mini Heat Gun (Model: 1-TL1402)
- Reflector Nozzle
- User Manual (this document)
Image: The DIAFIELD Mini Heat Gun and its included reflector nozzle, demonstrating the complete package contents.
Setup
- Unpack: Carefully remove the heat gun and all accessories from the packaging.
- Inspect: Check the heat gun and power cord for any signs of damage. Do not use if damaged.
- Attach Nozzle (Optional): If your application requires it, securely attach the reflector nozzle to the front of the heat gun. Ensure it clicks into place or is firmly seated.
- Power Connection: Plug the heat gun's power cord into a standard 120 Volt AC electrical outlet. Ensure the outlet is easily accessible for quick disconnection if needed.
- Positioning: Place the heat gun on a stable, heat-resistant surface when not holding it. The integrated stand allows for hands-free operation.
Operating Instructions
The DIAFIELD Mini Heat Gun offers two temperature/airflow settings for various tasks.
Image: Illustration of the heat gun's rapid heating capability, reaching up to 842°F (450°C) within 8 seconds, and detailing the two temperature/airflow levels: Level I (302°F, 200L/min) and Level II (842°F, 300L/min).
- Power On: Locate the power switch on the handle. Slide the switch to the desired setting:
- Level I: Provides a temperature of approximately 302℉ (150℃) with an airflow of 200 L/min. Suitable for delicate tasks like embossing or drying paint.
- Level II: Provides a temperature of approximately 842℉ (450℃) with an airflow of 300 L/min. Ideal for tasks requiring higher heat, such as shrink wrapping or epoxy resin work.
- Heating Time: The heat gun heats up rapidly, reaching its maximum temperature within approximately 8 seconds.
- Application: Direct the hot air stream towards the workpiece. Maintain a safe distance to avoid scorching or damaging the material. Move the heat gun slowly and evenly over the surface for consistent heating.
- Using the Reflector Nozzle: The included reflector nozzle is particularly useful for heat shrink tubing. It directs heat around the circumference of the tube for even shrinkage.
Image: Demonstrates the application of the reflector nozzle for heat shrink tubing, ensuring uniform heat distribution around wires.
- Power Off: When finished, slide the power switch to the "OFF" position.
- Cool Down: Allow the heat gun to cool down completely before storing. The metal nozzle will remain hot for some time after use.
Common Applications
The DIAFIELD Mini Heat Gun is suitable for a variety of tasks:
- Epoxy Resin: Removing bubbles and curing resin.
- Crafting: Drying paint, speeding up glue drying, shaping plastics.
- Embossing: Melting embossing powder for raised designs.
- Shrink Wrapping: Applying heat to shrink film around objects.
- DIY Projects: General heating tasks where controlled hot air is needed.
Image: A visual representation of the wide range of applications for the DIAFIELD Mini Heat Gun, including working with epoxy resin, melting wax for seals, and applying shrink wrap.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your heat gun.
- Cleaning: Disconnect the heat gun from the power source before cleaning. Use a soft, damp cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners.
- Air Vents: Keep the air intake and exhaust vents clear of dust and debris to ensure proper airflow and prevent overheating. Use a soft brush or compressed air to clean the vents if necessary.
- Cord Care: Regularly inspect the power cord for cuts, fraying, or damage. Do not use the heat gun if the cord is damaged. Avoid wrapping the cord tightly around the tool, which can cause stress.
- Storage: Store the heat gun in a dry, clean, and safe place when not in use. Ensure it is completely cool before storing.
Troubleshooting
If you encounter issues with your DIAFIELD Mini Heat Gun, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heat gun does not turn on. | No power supply; Power switch is off; Overload protection activated. | Check power outlet and cord connection. Ensure switch is in Level I or Level II. Unplug, wait for 10-15 minutes for the unit to cool down and reset overload protection, then plug back in. |
| Low airflow or insufficient heat. | Air vents blocked; Incorrect temperature setting. | Ensure air intake and exhaust vents are clear of obstructions. Select Level II for higher heat and airflow. |
| Heat gun shuts off during use. | Overload protection activated due to overheating. | This is a safety feature. Turn off the heat gun, unplug it, and allow it to cool down completely (approx. 15-30 minutes). Ensure vents are clear. Resume operation. |
| Unusual smell or smoke. | New unit (initial use); Overheating; Foreign material inside. | A slight odor may occur during first use. If persistent or accompanied by smoke, immediately turn off, unplug, and discontinue use. Contact customer support. |
If the problem persists after attempting these solutions, please contact DIAFIELD customer support.
Specifications
| Model Number | 1-TL1402 |
| Brand | DIAFIELD |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Temperature Range | 302℉ - 842℉ (150℃ - 450℃) |
| Airflow Speed (Level I) | 200 L/min |
| Airflow Speed (Level II) | 300 L/min |
| Cable Length | 5.9 ft |
| Material | PP+GF (Polypropylene + Glass Fiber) |
| Item Weight | 11.3 ounces |
| Product Dimensions (L x W x H) | 8" x 1.6" x 1.6" |
| Certifications | UL Certified |
Image: Dimensional overview of the DIAFIELD Mini Heat Gun, indicating its compact size for easy handling and storage.
Warranty and Support
For warranty information or technical support, please contact DIAFIELD customer service through the retailer where the product was purchased or visit the official DIAFIELD website. Please have your model number (1-TL1402) and purchase date available when contacting support.
For additional resources and product information, you may visit the DIAFIELD Store on Amazon.
