1. Product Overview
The PROFLO PF5331 is a double stud shoe designed to protect plumbing pipes or electrical conduits that pass through wall studs. It reinforces the stud where a hole has been drilled, preventing nails or screws from penetrating the pipe or conduit and ensuring structural integrity. This stud shoe features a double channel design, accommodating two separate lines.

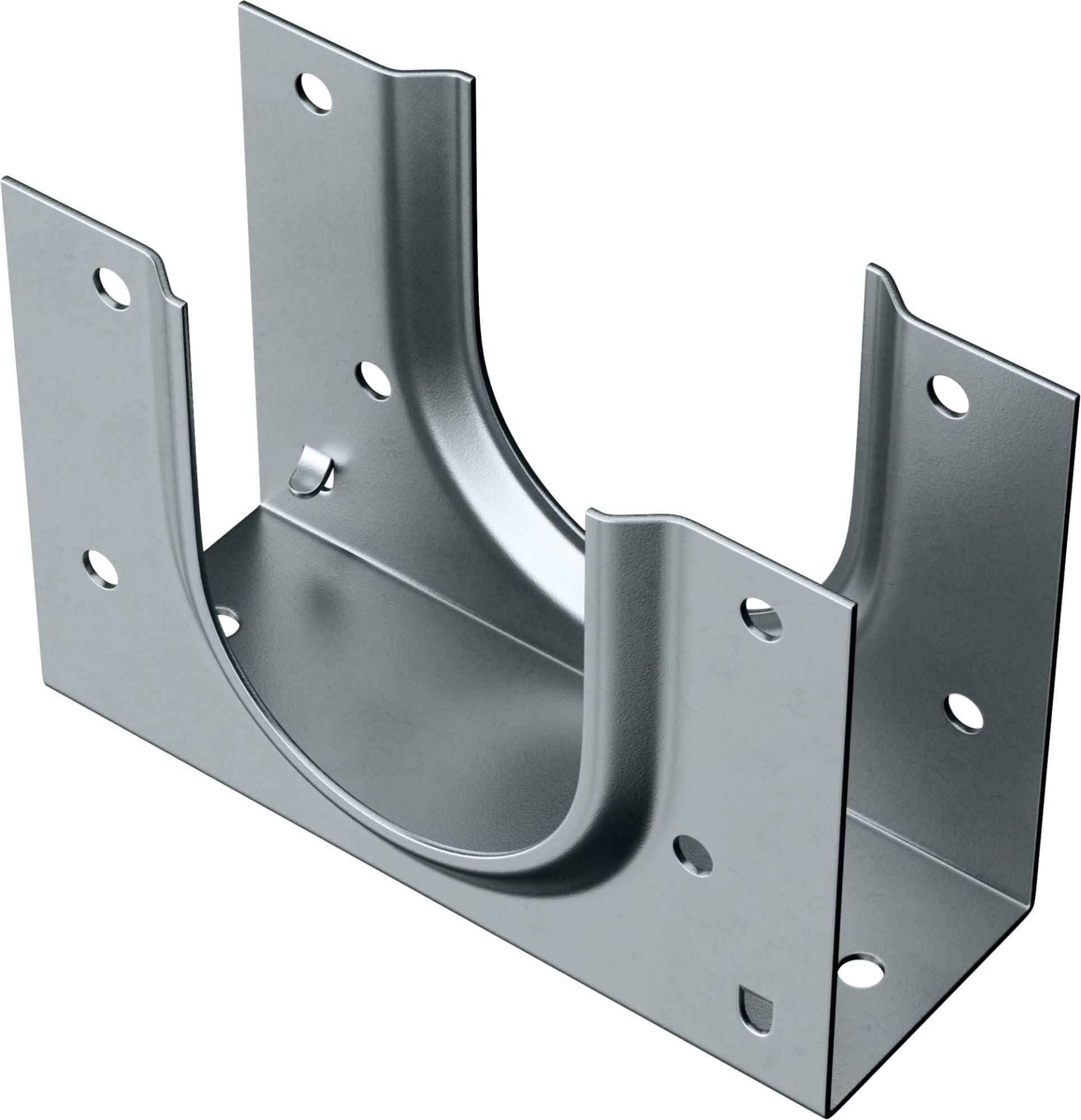

Image 1.1: Angled view of the PROFLO PF5331 Double Stud Shoe, showing its two channels and mounting holes.
Key Features:
- Type: Double channel design for multiple lines.
- Application: Designed for non-load bearing walls only.
- Purpose: Provides protection for pipes and conduits passing through studs.
2. Safety Information
Please read and understand all safety instructions before installing or using this product. Failure to follow these instructions may result in property damage or injury.
- Important: This stud shoe is not designed for use in load-bearing walls. Using it in a load-bearing wall may compromise the structural integrity of the wall.
- Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when working with tools and construction materials.
- Ensure all local building codes and regulations are followed during installation.
- Keep out of reach of children.
California Proposition 65 Warning:
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
3. Installation (Setup)
The PROFLO PF5331 Double Stud Shoe is designed for straightforward installation to reinforce studs where pipes or conduits pass through.
Required Tools (Not Included):
- Drill
- Appropriate fasteners (screws or nails suitable for wood studs)
- Measuring tape
- Pencil
Installation Steps:
- Prepare the Stud: Identify the location in the non-load bearing wall stud where the pipe or conduit will pass. Drill a hole of appropriate size through the stud.
- Position the Stud Shoe: Place the PROFLO PF5331 stud shoe over the drilled hole, ensuring the pipe(s) or conduit(s) will pass through the channels of the shoe. The shoe should straddle the weakened section of the stud.
- Secure the Stud Shoe: Using appropriate fasteners, secure the stud shoe to the wooden stud through the pre-drilled holes on the flanges of the shoe. Ensure the shoe is firmly attached and does not move.
- Run Pipes/Conduits: Once the stud shoe is securely installed, run your plumbing pipes or electrical conduits through the protected channels.
Image 3.1: Close-up view of the PROFLO PF5331 Double Stud Shoe, highlighting the fastener holes and channel design.
4. Function and Purpose
The PROFLO PF5331 Double Stud Shoe serves as a passive protective device. Once installed, its primary function is to:
- Protect Pipes/Conduits: It shields pipes and electrical conduits from accidental penetration by nails, screws, or other fasteners during subsequent construction or renovation activities.
- Reinforce Studs: It reinforces the structural integrity of a wooden stud that has been weakened by drilling holes for utility lines, particularly in non-load bearing applications.
No active operation is required after proper installation. The stud shoe performs its protective function continuously.
5. Maintenance
The PROFLO PF5331 Double Stud Shoe requires minimal maintenance due to its durable construction.
- Periodic Inspection: If accessible, periodically inspect the stud shoe for any signs of damage, corrosion, or loosening of fasteners.
- Cleaning: If necessary, clean with a damp cloth to remove dust or debris. Avoid abrasive cleaners.
- Damage: If the stud shoe appears damaged or compromised, it should be replaced to ensure continued protection.
6. Troubleshooting
Most issues related to a stud shoe are installation-related or due to improper application.
- Stud Shoe is Loose: Ensure fasteners are properly tightened. If the stud material is compromised, consider using larger fasteners or relocating the stud shoe if possible.
- Pipe/Conduit Not Fitting: Verify that the drilled hole in the stud and the channels of the stud shoe are appropriately sized for the pipe or conduit being used. Do not force pipes/conduits into channels that are too small.
- Damage to Stud Shoe: If the stud shoe is bent, cracked, or otherwise damaged, it may not provide adequate protection. Replace any damaged stud shoes immediately.
- Used in Load-Bearing Wall: If the stud shoe has been incorrectly installed in a load-bearing wall, consult a structural engineer or qualified professional to assess and rectify the situation. This is a critical safety concern.
7. Specifications
| Manufacturer | PROFLO |
| Part Number | PF5331 |
| Item Weight | 7.8 ounces |
| Product Dimensions (Approximate) | 1 x 1 x 1 inches (Note: These dimensions may be generic. Refer to actual product for precise measurements.) |
| Color | No Finish |
| Item Package Quantity | 1 |
| Type | Double Stud Shoe |
| ASIN | B0BRBLQJ1W |
| Date First Available | October 12, 2023 |
8. Warranty Information
The PROFLO PF5331 Double Stud Shoe comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact PROFLO customer support directly.
9. Customer Support
For technical assistance, installation questions, or warranty claims, please contact PROFLO customer support. Have your product model number (PF5331) and purchase information ready when contacting support.
