Safecourt Kitchen Compact Contact Grill CG200

Introduction

Thank you for choosing the Safecourt Kitchen Compact Contact Grill CG200. This versatile appliance is designed for grilling a variety of foods, including meat, vegetables, and sandwiches. Its features, such as removable plates and a 180-degree opening function, make it convenient for daily use and easy to clean. Please read this manual carefully before operating the grill to ensure safe and efficient use.

Important Safety Instructions

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The handle is designed to be heat-resistant, but always exercise caution when opening or closing the grill during operation.

Product Overview

The Safecourt Kitchen CG200 Contact Grill is designed for versatility and ease of use. Key features include:

• Non-stick Coating: Ensures food does not stick and simplifies cleaning.
• Removable Plates: Grill plates can be easily detached for thorough cleaning.
• Fat Drainage System: Integrated system with a removable drip tray collects excess fat and liquids.
• Adjustable Temperature Control: A continuous heating panel allows precise temperature setting up to 230°C.
• Indicator Lights: Power and ready indicator lights show the appliance status.
• 180° Open Function: The grill can open completely flat, doubling the grilling surface for gourmet cooking.
• Floating Top Plate: Automatically adjusts to the thickness of your food, ensuring even pressure and cooking.
• Adjustable Height Lock: Allows the top plate to be locked at different heights, ideal for melting cheese or making mini pizzas without direct contact.
• BPA-Free Materials: Ensures food safety.
• Cable Storage: Convenient storage for the power cord.

Components

• Upper Grill Plate
• Lower Grill Plate
• Temperature Control Knob (MIN-MAX)
• Power Indicator Light
• Ready Indicator Light
• Heat-Resistant Handle
• 180° Open Release Button/Lever
• Removable Drip Tray
• Height Adjustment Lock

Figure 1: Front view of the Safecourt Kitchen CG200 Contact Grill, highlighting the control knob and indicator lights.

Figure 2: The Safecourt Kitchen CG200 Contact Grill in closed position with a sandwich, illustrating its compact size and dimensions (31cm width, 34cm depth, 38cm height when closed).

Setup

1. Unpack: Carefully remove the grill and all accessories from the packaging. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, wipe the grill plates with a damp cloth or sponge. Ensure they are completely dry. Wipe the exterior of the appliance with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the grill on a stable, heat-resistant, and dry surface. Ensure there is adequate ventilation around the appliance. Keep it away from walls, curtains, and other heat-sensitive materials.
4. Insert Drip Tray: Slide the removable drip tray into its designated slot at the front or side of the grill to collect any excess fat or liquids during cooking.
5. Power Connection: Ensure the voltage of your power outlet matches the specifications of the grill (230V). Plug the power cord into a grounded wall outlet.

Operating Instructions

1. Preheating the Grill

1. Ensure the grill plates are clean and the drip tray is in place.
2. Close the grill lid.
3. Plug the power cord into a suitable wall outlet. The power indicator light will illuminate.
4. Turn the temperature control knob to your desired setting (e.g., MAX for high heat).
5. Allow the grill to preheat. The ready indicator light will illuminate when the grill has reached the set temperature. This usually takes 5-10 minutes.

Figure 3: Adjusting the temperature using the control knob on the front of the grill.

2. Grilling in Closed Position (Contact Grill)

1. Once preheated (ready light on), carefully open the grill.
2. Place your food (e.g., sandwiches, chicken breasts) onto the lower grill plate. Do not overload the grill.
3. Gently close the top plate. The floating top plate will adjust to the thickness of your food, ensuring even cooking pressure.
4. Cook for the desired time, checking periodically. Cooking times will vary based on food type and thickness.
5. When food is cooked, use a heat-resistant plastic or wooden utensil to remove it. Do not use metal utensils, as they can damage the non-stick coating.

Figure 4: The grill in closed position, cooking a sandwich. The floating top plate ensures even pressure.

3. Grilling in 180° Open Position (Table Grill)

This function allows you to use the grill as an open flat grill, providing a larger cooking surface, ideal for multiple items or gourmet cooking.

1. With the grill closed, locate the 180° release button or lever on the side of the hinge.
2. Press the button/lever and gently push the top plate back until it lies flat, creating a continuous grilling surface.
3. Ensure the grill is stable in this open position.
4. Preheat as usual. Once ready, place food on both the upper and lower plates.
5. Cook food, turning as necessary.
6. To return to the closed position, lift the top plate and guide it back until it locks into place.

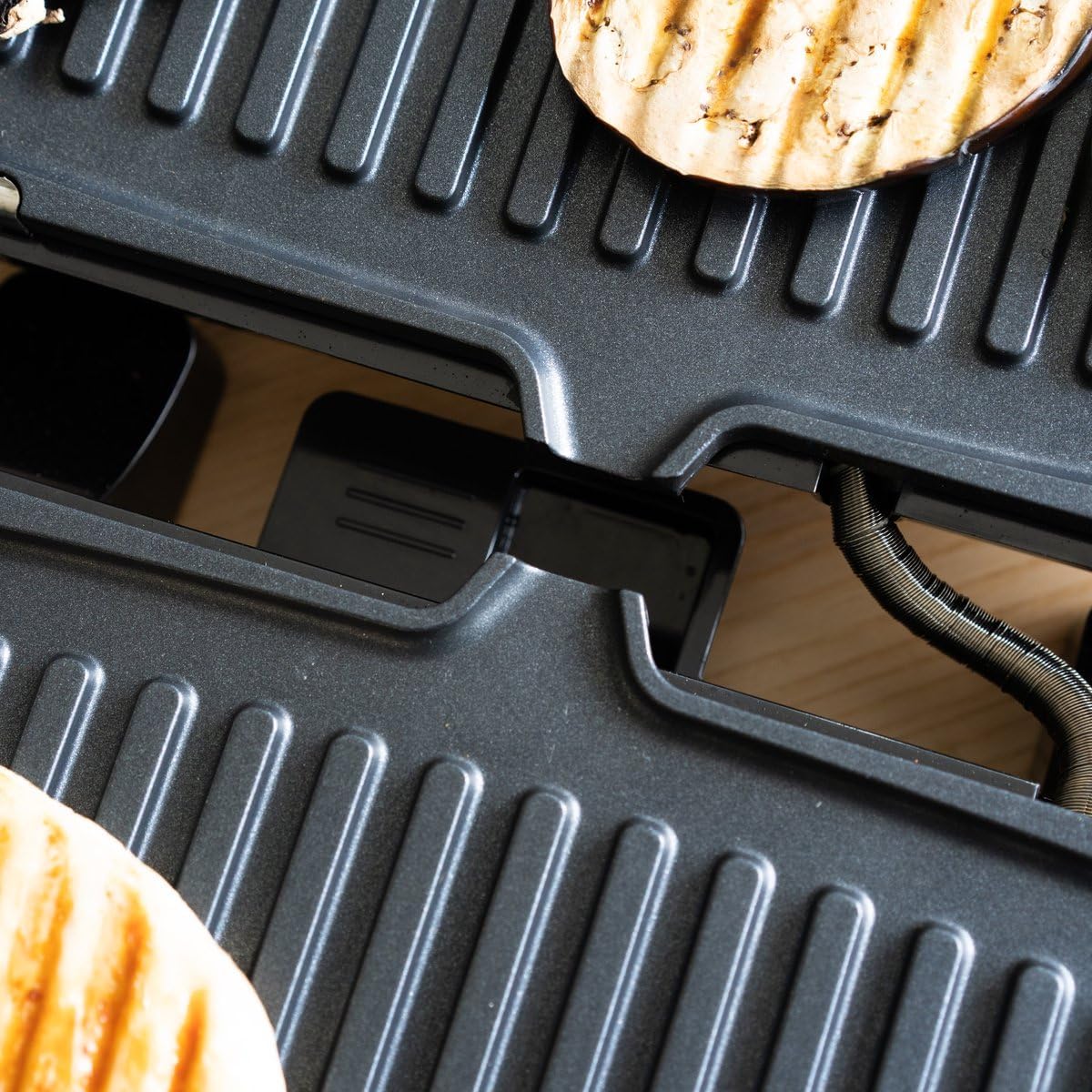

Figure 5: Detail of the 180-degree hinge mechanism, allowing the grill to open flat.

Figure 6: The grill fully open at 180 degrees, providing a large flat grilling surface for various foods like chicken and vegetables.

4. Using the Height Adjustment Lock

The top plate can be locked at a certain height above the lower plate, allowing it to emit heat without direct contact. This is useful for:

• Melting cheese on sandwiches or other dishes.
• Heating mini pizzas or open-faced items.

To use, lift the top plate to the desired height and engage the height adjustment lock mechanism (usually a lever or notch on the side). Ensure the plate is securely locked before use.

Maintenance and Cleaning

Regular cleaning ensures the longevity and hygienic operation of your grill.

1. Unplug and Cool: Always unplug the grill from the power outlet and allow it to cool completely before cleaning.
2. Remove Drip Tray: Carefully slide out the drip tray from its slot. Empty any collected fat or liquids. The drip tray is dishwasher safe for easy cleaning.

Figure 7: Removing the drip tray for cleaning. The tray collects excess fat and liquids.
3. Remove Grill Plates: Locate the release buttons or levers for the grill plates (usually on the sides or front of each plate). Press them and carefully lift the plates off the grill.
4. Clean Grill Plates: The non-stick grill plates are dishwasher safe. Alternatively, they can be washed by hand with warm, soapy water and a non-abrasive sponge. Ensure all food residue is removed. Dry thoroughly before reattaching.

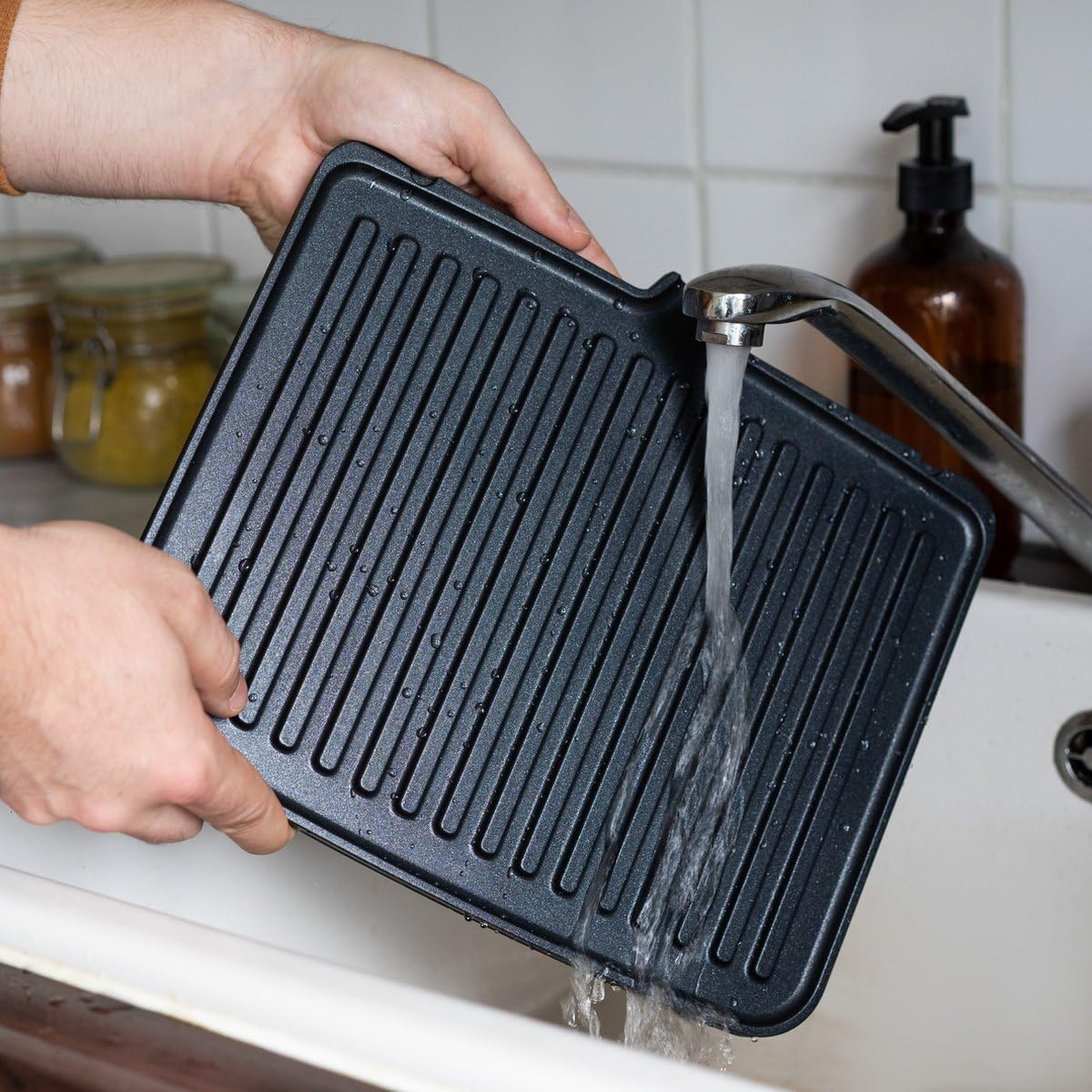

Figure 8: A removable grill plate being cleaned under running water, demonstrating the ease of cleaning.

5. Clean Exterior: Wipe the exterior of the grill with a damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or scouring pads, as they can damage the finish. Never immerse the main unit in water.
6. Reassemble: Once all parts are clean and dry, reattach the grill plates and insert the drip tray.
7. Storage: Store the grill in a dry place. Use the integrated cable storage for neatness.

Troubleshooting

Specifications

Warranty and Support

For warranty information, technical support, or service inquiries, please contact Safecourt Kitchen customer service. Keep your purchase receipt as proof of purchase.

Contact details can typically be found on the product packaging or the official Safecourt Kitchen website.
