Introduction
Thank you for choosing the EMKE 180x30cm Double Layer Flat Panel Hot Water Radiator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new radiator. Please read these instructions carefully before installation and retain them for future reference.
Image: Overview of EMKE Panel Radiator features, highlighting high-quality materials, seamless welding technology, high-quality protective coating, and high thermal conductivity.
Setup and Installation
The EMKE radiator is designed for vertical wall mounting and central connection to your hot water heating system. Ensure you have all necessary tools and components before beginning installation. A valve is not included with the radiator and must be purchased separately.
Included Components
- Radiator Panel
- Mounting Kit (Brackets, Screws, Dowels)
- Installation Instructions (this manual)
Image: Detailed view of included accessories for installation, including brackets, screws, dowels, and a rubber strip. Also illustrates the four-layer packaging.
Connection Methods
This radiator supports central connection. The connection thread is G1/2", and the connection size is 50mm. The distance from the interface to the wall is 86mm.
Image: Illustration of central connection and connection at both ends for the radiator. The central connection is compatible with divided or combined valves.
Image: Close-up view of the radiator's connection points, detailing the G1/2" connection thread and 50mm spacing between connections. It also indicates hot water as the energy type and highlights high thermal conductivity.
Dimensions and Technical Drawing
Before installation, please measure your installation space to ensure compatibility. Refer to the technical drawing for precise measurements.
Image: A visual comparison of different radiator heights (1800mm, 1600mm, 600mm) with a consistent width of 300mm, next to a 2-meter wall for scale.
Image: Technical drawing providing precise dimensions for the radiator, including its height (1800mm), width (300mm), central connection spacing (50mm), G1/2" thread, and wall distance (85mm).
Operating Instructions
This EMKE radiator operates using hot water circulation, providing efficient heating for your space. Its high thermal conductivity ensures rapid heat distribution.
Optimal Performance
- Energy Type: Hot Water
- Recommended Inlet/Outlet Water Temperature: 75°C / 55°C
Image: A wall-mounted EMKE radiator in a living space, demonstrating its high thermal conductivity and space-saving design. Arrows indicate heat distribution.
Image: Illustrates the energy efficiency of the radiator, its hot water energy type, and the G1/2" connecting thread. A note reminds that the valve is not included.
Maintenance
To ensure the longevity and efficient performance of your EMKE radiator, follow these general maintenance guidelines:
- Cleaning: Regularly wipe the radiator surface with a soft, damp cloth to remove dust and dirt. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Bleeding: Periodically bleed the radiator to release any trapped air, which can reduce heating efficiency. Consult your heating system's manual for specific instructions on how to bleed radiators.
- Inspection: Annually inspect the radiator and connections for any signs of leaks or corrosion. Address any issues promptly.
Troubleshooting
If you encounter issues with your EMKE radiator, consider the following common troubleshooting steps:
- Radiator Not Heating Evenly: This is often caused by trapped air. Try bleeding the radiator as described in the maintenance section.
- No Heat from Radiator: Check if the radiator valve is fully open. Ensure your central heating system is operational and the thermostat is set correctly.
- Leaking: If you notice any leaks, immediately turn off your heating system and contact a qualified plumber. Do not attempt to repair leaks yourself unless you are qualified.
For persistent problems, consult a qualified heating engineer.
Product Specifications
| Feature | Detail |
|---|---|
| Model | 180x30cm Double Layer |
| Dimensions (H x W) | 180 x 30 cm |
| Output Power | 911 W |
| Number of Tubes | 4*2 |
| Application Area | 12.1 m² |
| Layers | Double Layer |
| Weight | 27.76 kg |
| Material | High-quality SPCC Steel |
| Certifications | BS EN 442, CE certified |
| Connection Type | Central Connection |
| Connection Thread | G1/2" |
| Connection Size | 50 mm |
| Distance from Wall | 86 mm (Wall to outer edge heating body) |
| Energy Type | Hot Water Circulation |
| Installation Type | Wall Mounted |
| Recommended Water Temp. | Inlet: 75°C / Outlet: 55°C |
| Recommended Usage | Home, Bedroom, Living Room, Office, Bathroom |
Image: A summary table of panel radiator specifications including operation mode, installation, connection details, and recommended water temperature. Also shows images of the radiator in various suitable locations.

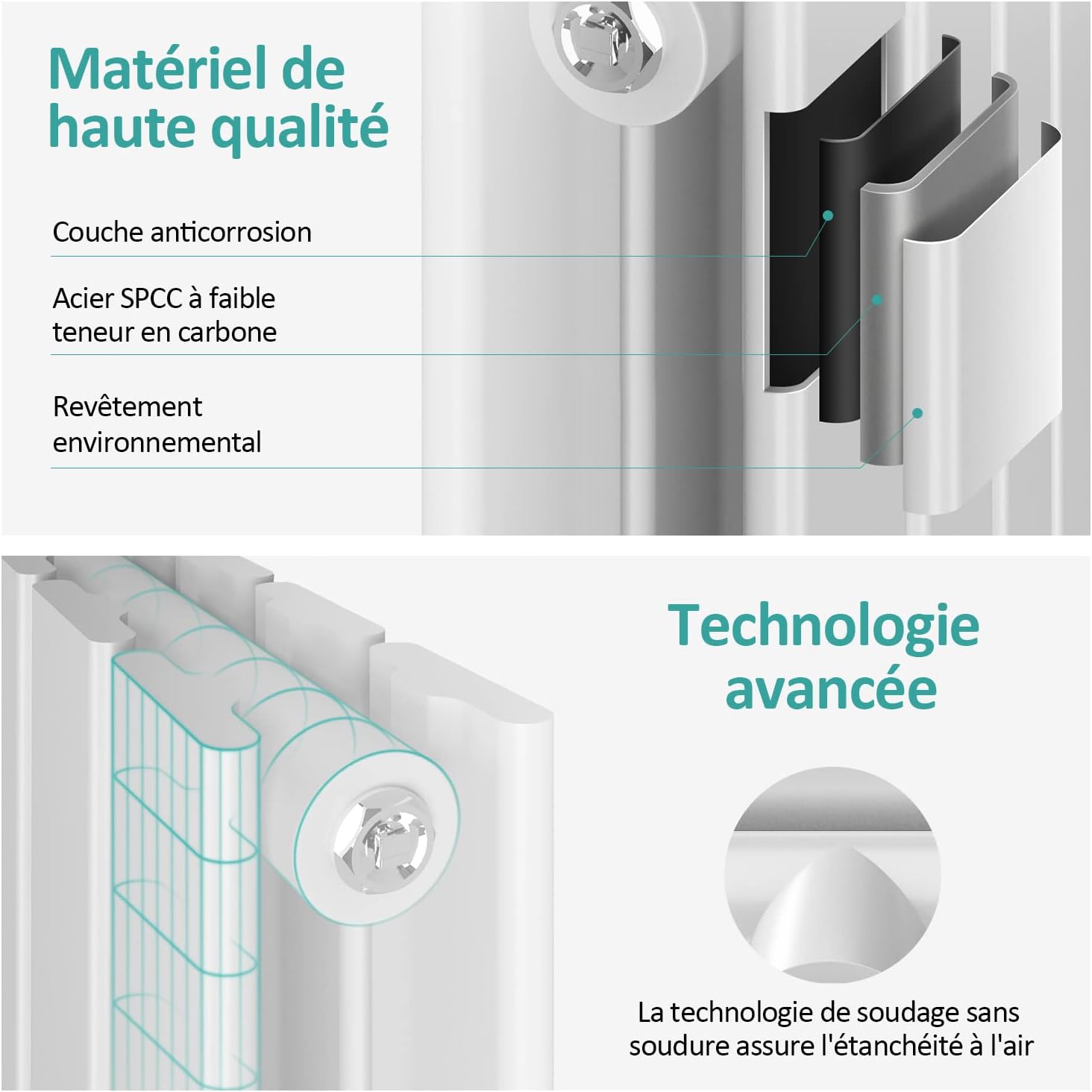

Image: Detailed cutaway view highlighting the high-quality material construction, including an anticorrosion layer, low-carbon SPCC steel, and environmental coating. It also depicts advanced welding technology for air-tightness.
Image: Explains the use of low-carbon SPCC cold-rolled steel in EMKE radiators for enhanced strength and reduced leakage. Details the internal structure with inner coating, mild steel layer, and environmental protection spraying, along with advanced lap welding technology.
Warranty Information
Specific warranty details for the EMKE 180x30cm Double Layer Flat Panel Hot Water Radiator are not provided in the product information. For warranty claims or information regarding spare parts availability, please contact your retailer or the manufacturer directly.
Customer Support
Should you require further assistance, have questions about installation, or need to report a product issue, please contact EMKE customer support or your point of purchase. Ensure you have your product model and purchase date available when contacting support.
You can often find contact information on the EMKE brand website or through the retailer where you purchased the product.
