COWSAR 10000 BTU Portable Air Conditioner User Manual

1. Introduction

Thank you for choosing the COWSAR 10000 BTU Portable Air Conditioner. This 4-in-1 unit is designed to provide efficient cooling, dehumidification, and air circulation for spaces up to 400 sq.ft. With its compact design, remote control, and quiet operation, it offers a comfortable environment for your home or office. This manual provides detailed instructions for safe operation, installation, maintenance, and troubleshooting.

Image: The COWSAR 10000 BTU Portable Air Conditioner, a white rectangular unit with a remote control.

2. Key Features

• 4-in-1 Functionality: Offers Cooling (61-90°F), Dry (25L/day), Fan (Low and High speeds), and Sleep modes.
• Powerful Cooling: 10000 BTU cooling capacity, suitable for areas up to 400 sq.ft.
• Quiet Operation: Operates at less than 54dBA, ensuring minimal disturbance, especially in Sleep Mode.
• Remote Control: Conveniently adjust settings from up to 196 inches away.
• 24-Hour Timer: Program the unit to turn on or off automatically.
• Portability: Equipped with casters and side handles for easy movement between rooms.
• Self-Evaporating System: Utilizes collected water to cool the condenser, reducing the need for frequent draining.
• Automatic Defrosting: Unit automatically defrosts at low ambient temperatures to maintain performance.
• ETL Certified: Ensures safety and quality standards are met.

Image: Infographic highlighting key features like 350 sq.ft cooling area, 10000 BTU, 2-speed fan, and 1-24H timer setting, with a family relaxing in a living room.

Image: Diagram illustrating the 3-in-1 functions: Cooling (61°F-91°F), Air Circulation (360m³/h), and Dehumidifying (43 pints/day), shown across different rooms of a house.

3. Package Contents

Please check the package contents upon unboxing to ensure all components are present and undamaged:

Image: A visual representation of the accessories included with the portable air conditioner, alongside a list.

• Exhaust hose (x1)
• Hose connector (x1)
• Window kit adapter (x1)
• Remote control (x1)
• Window kit (x1)
• Water pipe (x1)
• User manual (x1)

4. Setup and Installation

The COWSAR portable air conditioner is designed for easy setup, primarily for window installation. Follow these steps for optimal performance:

1. Positioning: Place the unit on a flat, stable surface near a window. Ensure there is adequate space around the unit for proper airflow.
2. Attach Exhaust Hose: Connect the exhaust hose to the unit and the hose connector.
3. Install Window Kit: Adjust the window kit to fit your double-hung or sliding window opening. The air conditioner water hose is 59 inches long, providing flexibility for common window types.
4. Connect Window Kit Adapter: Securely attach the hose connector with the exhaust hose to the window kit adapter, and then insert it into the window kit.
5. Seal Gaps: Ensure all gaps around the window kit and hose are sealed to prevent warm air from entering the room.
6. Power Connection: Plug the power cord into a grounded electrical outlet.

Image: The portable air conditioner positioned next to a window with the exhaust hose installed, showing dimensions (27.6in height, 13.7in depth, 13.78in width) and a 60-inch stretchable exhaust hose.

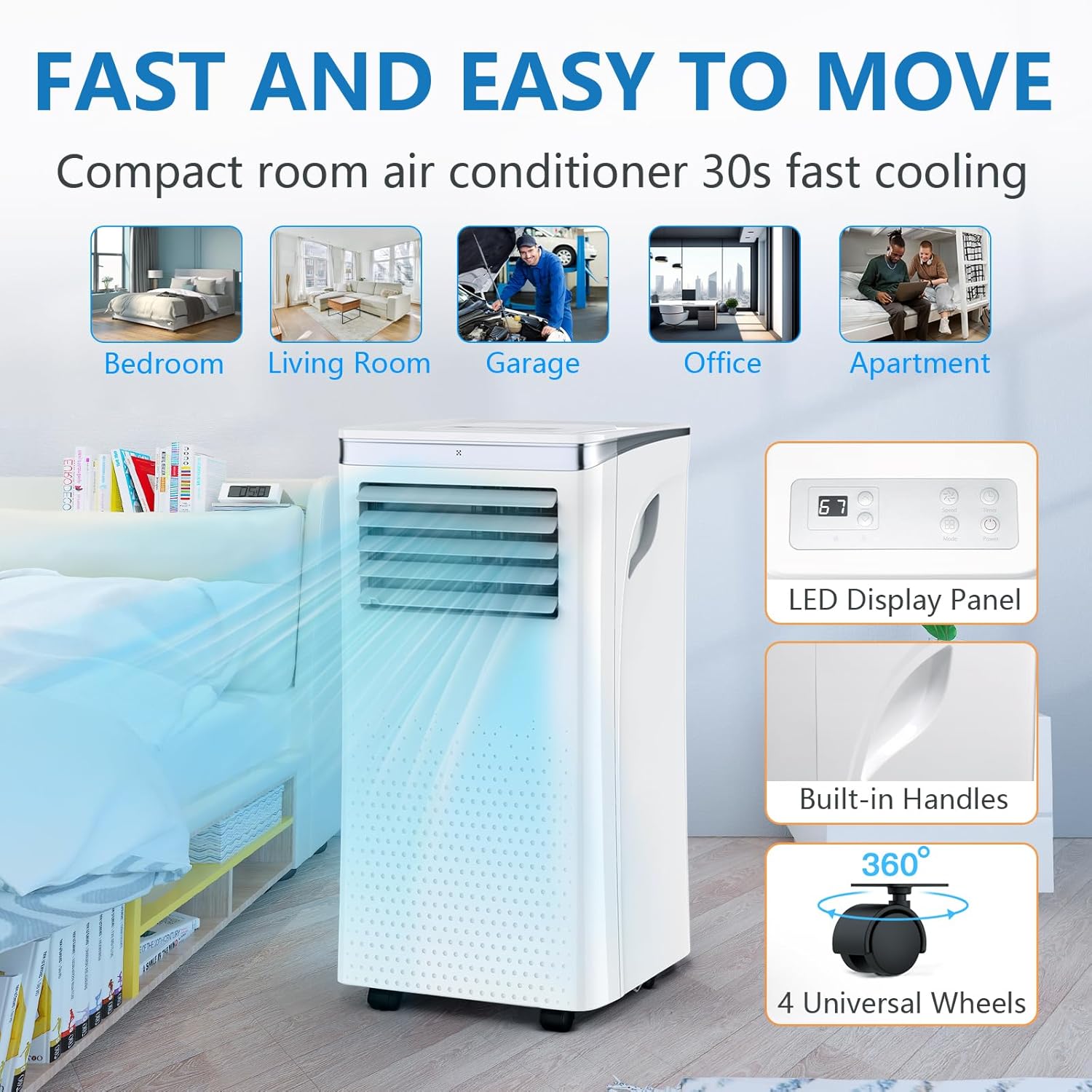

Image: The portable air conditioner in a bedroom setting, highlighting its portability with built-in handles and 4 universal wheels, suitable for various rooms like bedroom, living room, garage, office, and apartment.

Image: Close-up views showing the unit's casters for easy movement and the double-sided invisible handle for convenient carrying.

5. Operating Instructions

The COWSAR portable AC unit can be operated via the control panel on the unit or the included remote control.

Control Panel and Remote Control

The control panel features an LED display and buttons for various functions. The remote control provides full functionality from a distance.

Image: A person using the remote control for the portable air conditioner, with labels indicating functions like Up, High, Down, Low, Timer, Cool, Dry, Fan, Sleep, and Power.

Operating Modes

• Cooling Mode: Set your desired temperature between 61°F and 90°F for effective cooling.
• Dry Mode (Dehumidifier): Removes up to 25 liters of moisture per day, ideal for humid environments.
• Fan Mode: Circulates air without cooling. Choose between Low and High fan speeds.
• Sleep Mode: Designed for quiet operation and energy saving during sleep. One hour after entering sleep mode, the unit will automatically increase the set temperature by 1°C (1.8°F) to prevent overcooling.

Timer Function

The 24-hour timer allows you to schedule the unit's operation. For example, set it to turn on before you arrive home or turn off after you fall asleep.

Image: An illustration demonstrating the 24H Timer function, showing examples for morning (regular start-up refrigeration before work) and night (shut down after 8 hours before sleeping).

6. Maintenance

Proper maintenance ensures the longevity and efficiency of your COWSAR portable air conditioner.

• Self-Evaporating System: The unit's self-evaporating system reuses collected water to cool the condenser, reducing the need for manual draining under normal operating conditions.
• Automatic Defrosting: If frost forms on the evaporator at low ambient temperatures, the unit will automatically initiate a defrosting cycle.
• Filter Cleaning: Regularly clean the air filter to maintain optimal airflow and cooling performance. Refer to the filter compartment for removal and cleaning instructions.
• Unit Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: If storing the unit for an extended period, ensure it is completely dry, clean the filter, and store it in a cool, dry place.

7. Troubleshooting

If you encounter issues with your COWSAR portable air conditioner, refer to the following common problems and solutions:

• Unit does not turn on: Check if the power cord is securely plugged into a working outlet. Ensure the unit is not in standby mode.
• Insufficient cooling: Verify that the exhaust hose is properly installed and sealed. Check if the air filter is clean. Ensure windows and doors are closed to prevent warm air entry.
• Unusual noise: Ensure the unit is on a flat, stable surface. Check for any obstructions in the air intake or exhaust vents.
• Water leakage: While the unit has a self-evaporating system, excessive humidity might lead to some water accumulation. Ensure the unit is level. If persistent, consult the manual for manual draining instructions or contact support.

For issues not listed here or if problems persist, please contact COWSAR customer support.

8. Specifications

Image: An internal view of the portable air conditioner highlighting the upgraded compressor for strong cooling performance, fast cooling, energy saving, and quiet operation.

Image: An illustration showing the low noise level of the portable air conditioner, with a sleeping child, indicating that a quiet life will not be disturbed.

9. Warranty and Support

The COWSAR 10000 BTU Portable Air Conditioner comes with a 1-year warranty from the date of purchase.

If you have any questions, concerns, or require assistance with your air conditioner, please do not hesitate to contact COWSAR customer support. We are committed to providing a response within 24 hours.

For the most up-to-date support information, please refer to the contact details provided on the product packaging or the official COWSAR website.
