AXLAHA Headlight Assembly User Manual

1. Introduction

Thank you for choosing the AXLAHA Headlight Assembly. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new headlight units. Please read this manual thoroughly before installation and retain it for future reference.

This product is designed as an OE replacement for the 2014-2015 Chevy Silverado 1500 Pickup Truck, ensuring a precise fit and reliable performance.

2. Safety Information

• Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or damage.
• Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
• Ensure the vehicle is parked on a level surface with the parking brake engaged before beginning installation.
• If you are unsure about any step of the installation process, consult a qualified automotive technician.

3. Setup and Installation

The AXLAHA Headlight Assembly features a plug-and-play design for easy and fast installation, requiring no complicated techniques or drilling. The package includes a pair of headlight units for both the driver and passenger sides.

3.1 Vehicle Compatibility

• Compatible with 2014-2015 Chevy Silverado 1500 Pickup Truck.
• Bulbs are not included. Required bulb types: Low Beam H11 / High Beam HB3.

3.2 Installation Steps (General Guide)

1. Disconnect the negative terminal of the vehicle's battery.
2. Carefully remove the old headlight assembly. This typically involves removing retaining clips, screws, or bolts, and disconnecting the electrical connectors.
3. Install the new AXLAHA Headlight Assembly. Ensure all mounting points align correctly.
4. Connect the electrical connectors to the new headlight unit.
5. Secure the new headlight assembly using the original retaining clips, screws, or bolts.
6. Install the H11 (Low Beam) and HB3 (High Beam) bulbs into the new headlight assembly if not already present.
7. Reconnect the vehicle's battery.
8. Test the headlights (low beam, high beam, turn signals) to ensure proper function.
9. Perform headlight aiming adjustment as needed (refer to Section 4.2).

3.3 Front Details Overview

Figure 1: Front view of the headlight assembly highlighting key components like the clear lens, low beam, turn signal light, high beam, and safety reflector. Note that HB3 high beam and H11 low beam bulbs are required and not included.

3.4 Back Details Overview

Figure 2: Rear view of the headlight assembly showing the adjuster for light aiming, the one-way vent for moisture regulation, and the bulb protective film area.

4. Operating Instructions

Once installed, the headlight assembly operates in conjunction with your vehicle's existing lighting controls.

4.1 Bulb Types

• Low Beam: H11 (Bulb not included)
• High Beam: HB3 (Bulb not included)

4.2 Light Adjustment

The headlight assembly includes an adjuster, allowing you to fine-tune the light beam direction as needed for optimal visibility and to comply with local regulations. After installation, it is recommended to adjust the headlights to ensure proper alignment and prevent blinding oncoming traffic.

Figure 3: Detailed views of the clear reflector, high beam, turn signal light, and low beam sections of the headlight.

5. Maintenance

To ensure the longevity and optimal performance of your AXLAHA Headlight Assembly, follow these maintenance guidelines:

5.1 Cleaning

• Clean the headlight lenses regularly with a soft cloth and mild automotive cleaning solution to remove dirt, dust, and road grime.
• Avoid abrasive cleaners or harsh chemicals that could damage the lens surface or UV coating.

5.2 Durability Features

The headlight assembly is constructed with high-quality materials and fine workmanship, undergoing rigorous quality tests to ensure performance and durability. Key features include:

• IP65 Waterproof Level: Designed to prevent water accumulation within the lamps, ensuring excellent sealing against various environmental conditions.
• UV Block Clear Coat: Features a UV coating with UV resistance and impact resistance to prevent yellowing or cracking over time, extending the service life of the headlights.

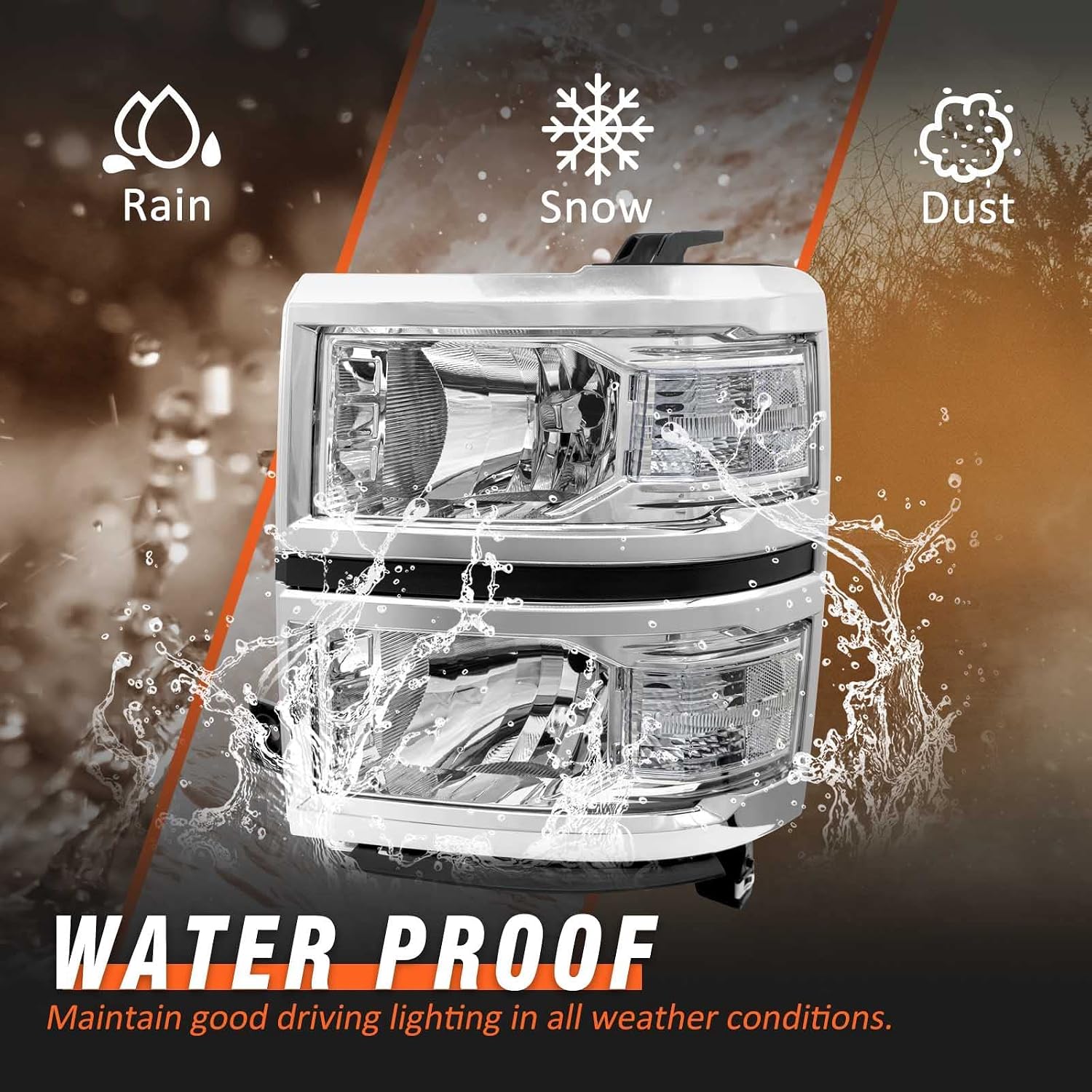

Figure 4: The headlight assembly is designed to be waterproof, maintaining good driving lighting in all weather conditions, including rain, snow, and dust.

Figure 5: The UV coating provides resistance against UV impact, sunlight, and oxidation, preventing yellowing or cracking and extending the headlight's lifespan. The water resistance feature is also highlighted.

6. Troubleshooting

If you encounter issues with your headlight assembly, consider the following common troubleshooting steps:

• Headlights Not Working:
  • Check the vehicle's fuses related to the headlights.
  • Ensure all electrical connectors are securely plugged in.
  • Verify that the bulbs are correctly installed and not burnt out.
• Dim Lighting:
  • Ensure the headlight lenses are clean.
  • Check the condition of the bulbs; replace if necessary.
  • Verify proper voltage supply to the headlights.
• Moisture Inside Headlight:
  • Small amounts of condensation can occur due to temperature changes and typically dissipate.
  • Ensure the one-way vent (Figure 2) is not obstructed.
  • If excessive moisture persists, check for proper sealing around the bulb caps and housing.
• Improper Light Aim:
  • Use the integrated adjuster (Figure 2) to correct the light beam direction. Refer to your vehicle's service manual for specific aiming procedures.

If these steps do not resolve the issue, please contact customer support.

7. Specifications

8. Warranty Information

AXLAHA products come with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its specified performance standards under normal use.

The warranty does not cover damage resulting from improper installation, accident, misuse, abuse, unauthorized modifications, or normal wear and tear.

Please retain your proof of purchase for warranty claims.

9. Customer Support

If you encounter any issues with your AXLAHA Headlight Assembly after purchase, or have questions regarding installation or operation, our dedicated after-sales service team is available to assist you.

For support, please refer to the contact information provided with your purchase or visit the official AXLAHA store on Amazon:

AXLAHA Official Store
